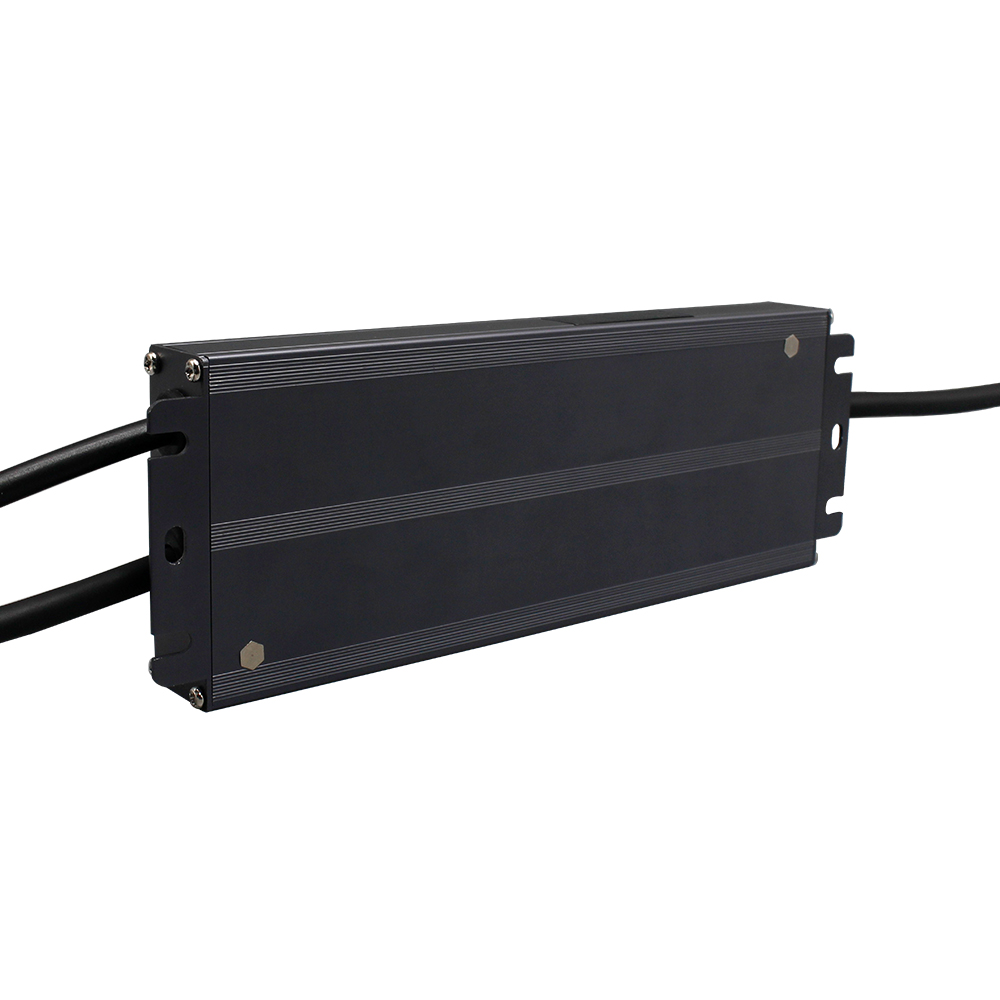

DP2 80W 96W 100W 120W CV RGB CW DALI-2 Shyira LED Umushoferi 12V 24V 36V 48V DC

DP2 80W 96W 100W 120W CV RGB CW DALI-2 Shyira LED Umushoferi 12V 24V 36V 48V DC

Imbaraga za Ouput:	80W 96W 100W 120W
Kuboneka:



Baza Ongeraho Igitebo

Ubwoko bwa Dimming:
DALI-2 Gusunika
Ubwoko bwitaruye:
Kwigunga
Ubwoko bw'ibisohoka:
Umuvuduko uhoraho
Imiyoboro isohoka:
Dimming, CCT, RGBCW
Igipimo cya IP:
IP66, Kuma & Damp, Itose
Umuvuduko winjiza:
100-277VAC
Imbaraga zisohoka:
80W, 96W, 100W, 120W
Umuvuduko w'amashanyarazi:
12/24/36 / 48V
Icyemezo:
UL & cUL, FCC, Icyiciro cya 2

Ibyiza

DP2 80W 96W 100W 120W CV RGB CW DALI-2 Shyira LED Umushoferi 12V 24V 36V 48V DC

Ibisohoka:	Umuvuduko uhoraho
Urwego:	100-277VAC
Igishushanyo cya PFC:	Yubatswe mubikorwa bya PFC
Kurinda:	Inzira ngufi / hejuru yumutwaro / hejuru yubushyuhe
Gukwirakwiza ubushyuhe:	Gukonjesha ukoresheje umwuka wubusa
Imikorere idakoresha amazi:	IP66 (EU); Amazu arinzwe ya aluminiyumu, ahantu humye, huzuye kandi hatose (US)
Ibishushanyo mbonera:	1) Guhindura ibisohoka voltage gato 2) shiraho adresse Flicker yubusa, 4KHZ PWM ibisohoka kugirango ugere kurwego rwo gusonerwa stroboscopique
Igikorwa cyo kugabanya:	DALI-2 dimming. Kugabanya Digital hamwe na Logarithmic curve (isanzwe) cyangwa umurongo uhetamye
Urwego ruciriritse:	0-100% ubujyakuzimu: 0.1%
Imikorere ya NFC	Hindura neza ibisohoka voltage, andika kandi usome adresse
Gusaba:	Birakwiye kumurika LED no kwimura ibimenyetso byimikorere
Garanti:	Garanti yimyaka 5

Ibisobanuro

Umuyoboro	Umubare w'icyitegererezo	Imbaraga zisohoka	Umuvuduko w'amashanyarazi	Ibisohoka Ibiriho	Ingano	Ibiro
1 Umuyoboro	KV-12080-DP2A	80W	12V	6.66A	200 * 78 * 25mm	0.83kg
	KV-24080-DP2A		24V	3.34A	232 * 78 * 25mm	0.83kg
	KV-36080-DP2A		36V	2.22A
	KV-46080-DP2A		48V	1.67A
	KV-24096-DP2A	96W	24V	4A
	KV-36096-DP2A		36V	2.67A
	KV-48096-DP2A		48V	2A
	KV-12100-DP2A	100W	12V	8.34A
	KV-24100-DP2A		24V	4.17A
	KV-36100-DP2A		36V	2.78A
	KV-48100-DP2A		48V	2.09A
	KV-12120-DP2A	120W	12V	10A
	KV-24120-DP2A		24V	5A
	KV-36120-DP2A		36V	3.33A
	KV-48120-DP2A		48V	2.5A

Imiyoboro 2 CCT	KV-12080-2C-DP2A	80W	12V	6.66A	232 * 78 * 25mm	0.83kg
	KV-24080-2C-DP2A		24V	3.34A
	KV-36080-2C-DP2A		36V	2.22A
	KV-46080-2C-DP2A		48V	1.67A
	KV-24096-2C-DP2A	96W	24V	4A
	KV-36096-2C-DP2A		36V	2.67A
	KV-48096-2C-DP2A		48V	2A
	KV-12100-2C-DP2A	100W	12V	8.34A
	KV-24100-2C-DP2A		24V	4.17A
	KV-36100-2C-DP2A		36V	2.78A
	KV-48100-2C-DP2A		48V	2.09A
	KV-12120-2C-DP2A	120W	12V	10A
	KV-24120-2C-DP2A		24V	5A
	KV-36120-2C-DP2A		36V	3.33A
	KV-48120-2C-DP2A		48V	2.5A

Imiyoboro 3 RGB	KV-12080-3C-DP2A	80W	12V	6.66A	232 * 78 * 25mm	0.83kg
	KV-24080-3C-DP2A		24V	3.34A
	KV-36080-3C-DP2A		36V	2.22A
	KV-46080-3C-DP2A		48V	1.67A
	KV-24096-3C-DP2A	96W	24V	4A
	KV-36096-3C-DP2A		36V	2.67A
	KV-48096-3C-DP2A		48V	2A
	KV-12100-3C-DP2A	100W	12V	8.34A
	KV-24100-3C-DP2A		24V	4.17A
	KV-36100-3C-DP2A		36V	2.78A
	KV-48100-3C-DP2A		48V	2.09A
	KV-12120-3C-DP2A	120W	12V	10A
	KV-24120-3C-DP2A		24V	5A
	KV-36120-3C-DP2A		36V	3.33A
	KV-48120-3C-DP2A		48V	2.5A

Imiyoboro 4 RGBW	KV-12080-4C-DP2A	80W	12V	6.66A	232 * 78 * 25mm	0.83kg
	KV-24080-4C-DP2A		24V	3.34A
	KV-36080-4C-DP2A		36V	2.22A
	KV-46080-4C-DP2A		48V	1.67A
	KV-24096-4C-DP2A	96W	24V	4A
	KV-36096-4C-DP2A		36V	2.67A
	KV-48096-4C-DP2A		48V	2A
	KV-12100-4C-DP2A	100W	12V	8.34A
	KV-24100-4C-DP2A		24V	4.17A
	KV-36100-4C-DP2A		36V	2.78A
	KV-48100-4C-DP2A		48V	2.09A
	KV-12120-4C-DP2A	120W	12V	10A
	KV-24120-4C-DP2A		24V	5A
	KV-36120-4C-DP2A		36V	3.33A
	KV-48120-4C-DP2A		48V	2.5A

Imiyoboro 5 RGBCW	KV-12080-5C-DP2A	80W	12V	6.66A	232 * 78 * 25mm	0.83kg
	KV-24080-5C-DP2A		24V	3.34A
	KV-36080-5C-DP2A		36V	2.22A
	KV-46080-5C-DP2A		48V	1.67A
	KV-24096-5C-DP2A	96W	24V	4A
	KV-36096-5C-DP2A		36V	2.67A
	KV-48096-5C-DP2A		48V	2A
	KV-12100-5C-DP2A	100W	12V	8.34A
	KV-24100-5C-DP2A		24V	4.17A
	KV-36100-5C-DP2A		36V	2.78A
	KV-48100-5C-DP2A		48V	2.09A
	KV-12120-5C-DP2A	120W	12V	10A
	KV-24120-5C-DP2A		24V	5A
	KV-36120-5C-DP2A		36V	3.33A
	KV-48120-5C-DP2A		48V	2.5A
