Ebintu Ebikwata ku

Oli wano: Ewaka / Ebintu ebikolebwa / Canada 200-347VAC Ddereeva wa LED / KVC-DMX Series DMX 512. Omusomo gwa KVC-DMX / 60W 96W 100W 120W DMX512 Ddereeva wa LED eya vvulovumenti etakyukakyuka 12 24 36 48 Volt DC

Ekika ky'ebintu

okutikka

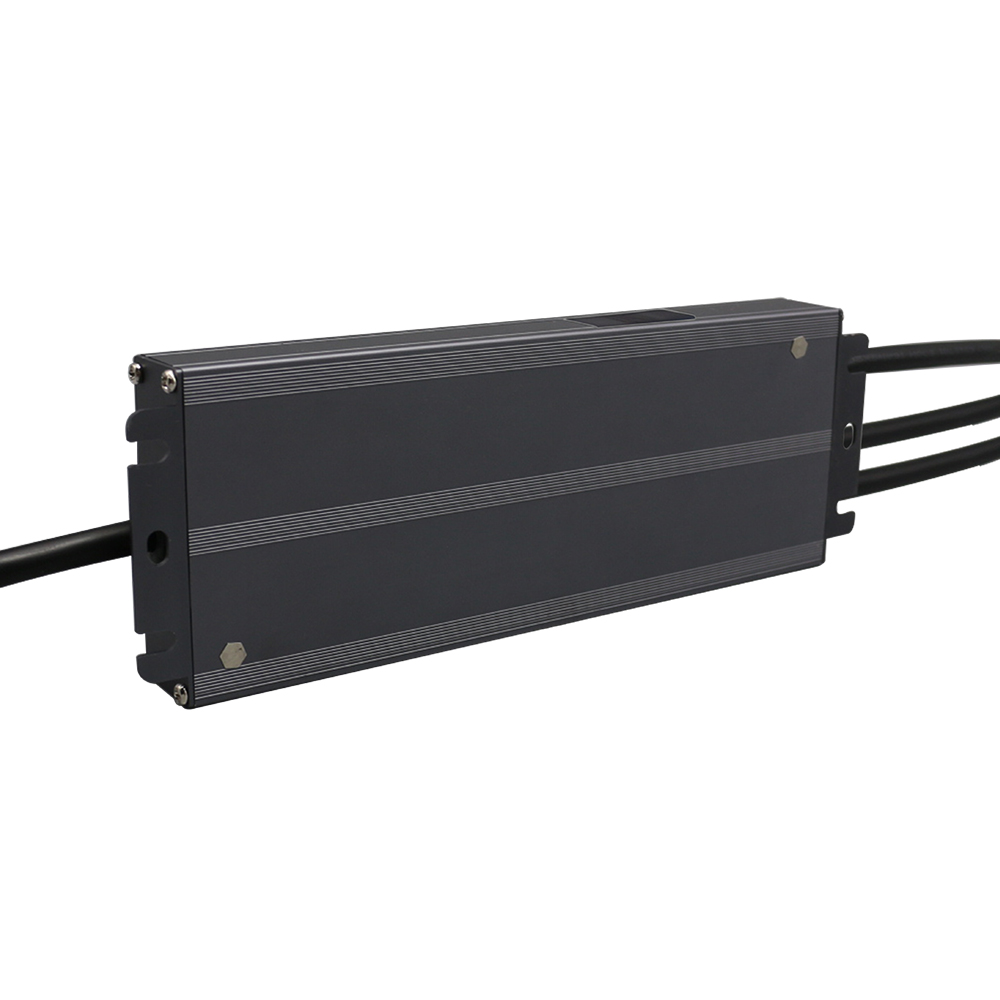

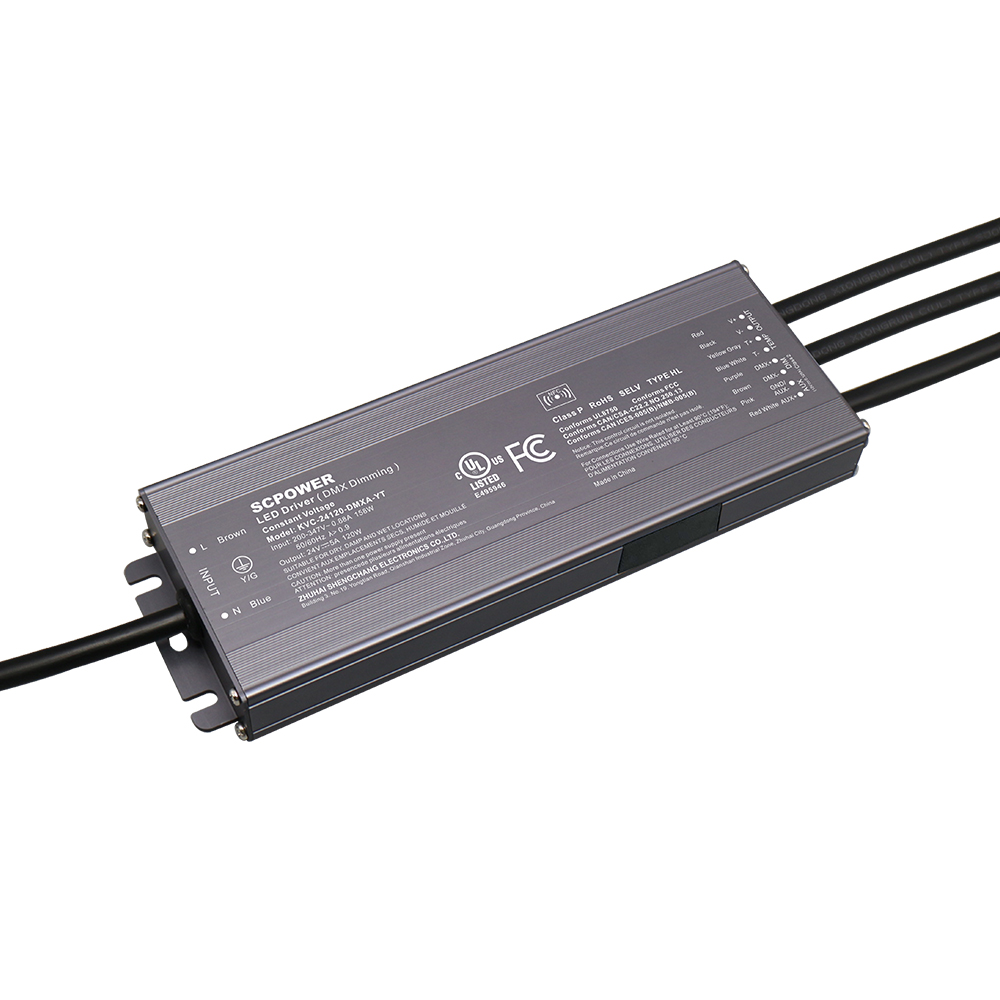

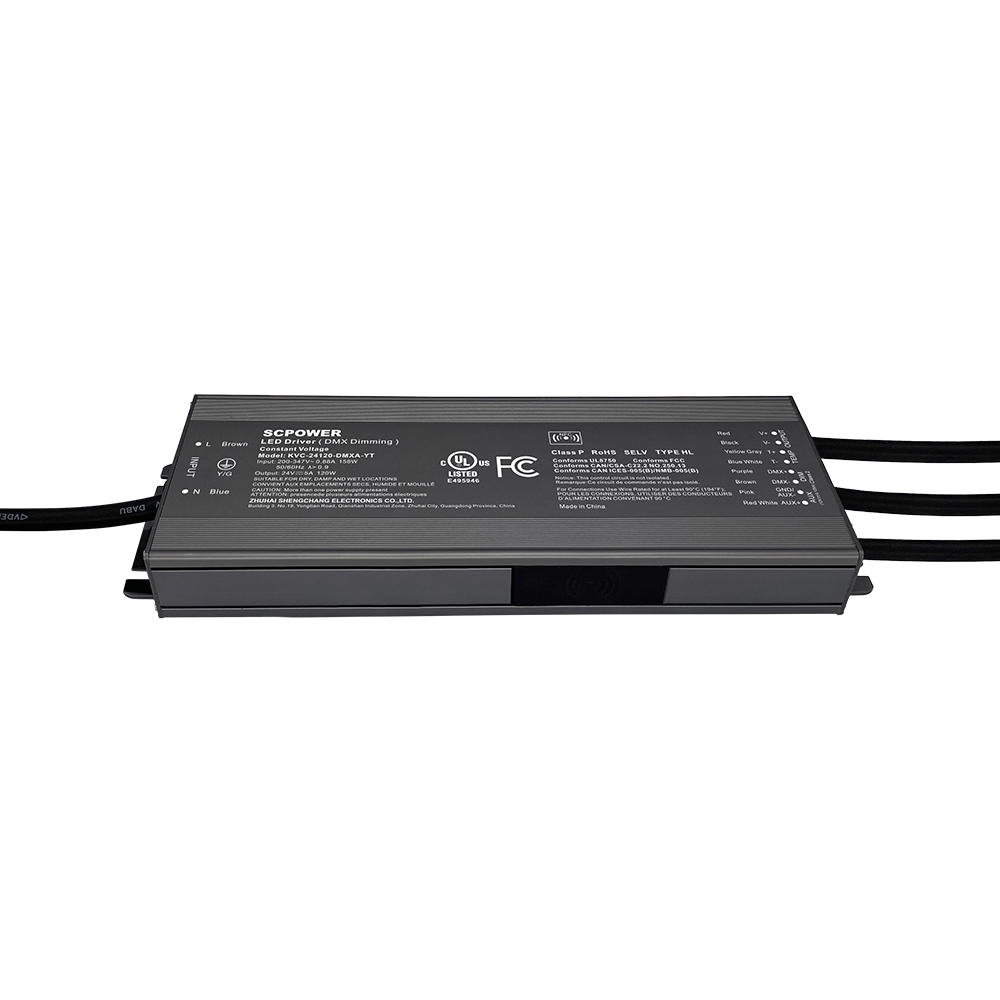

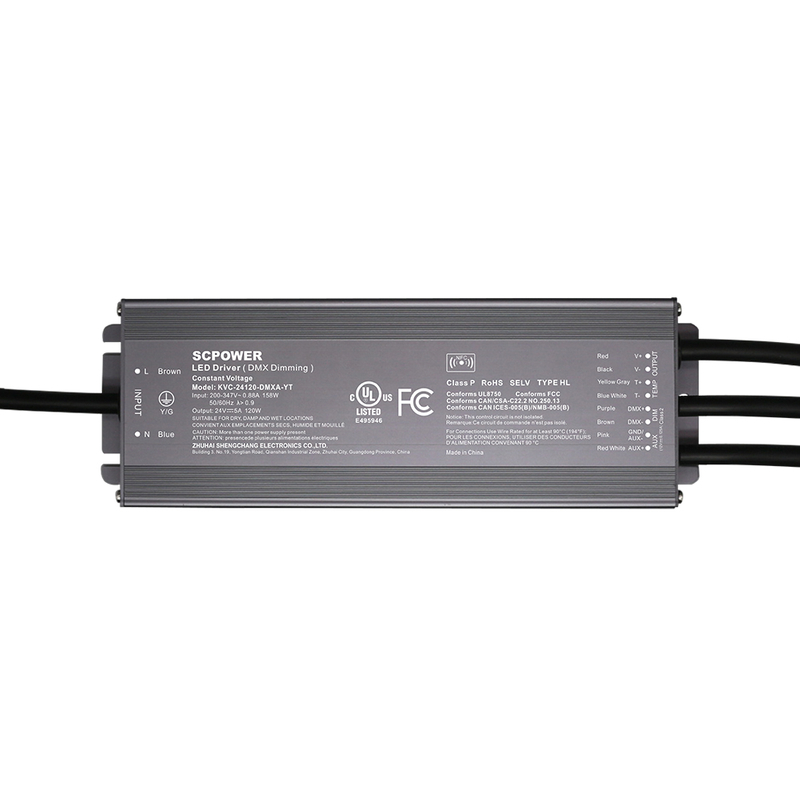

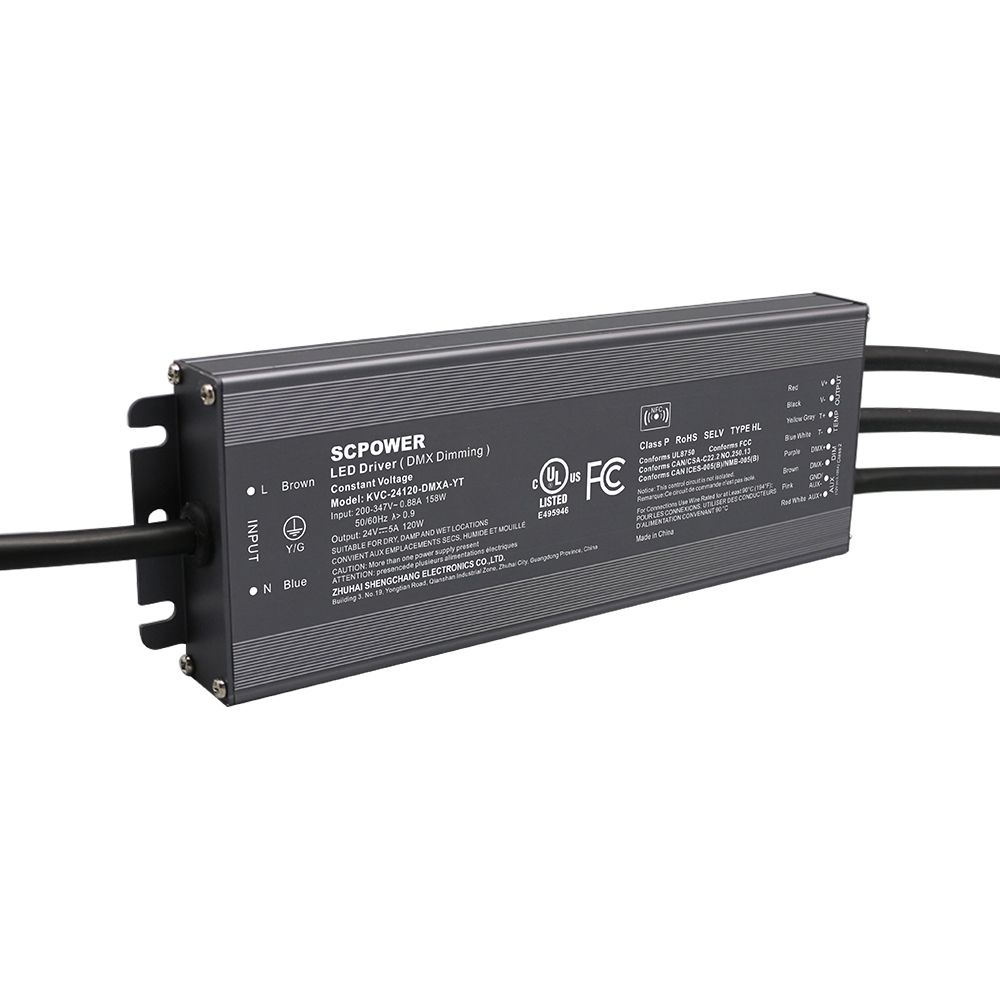

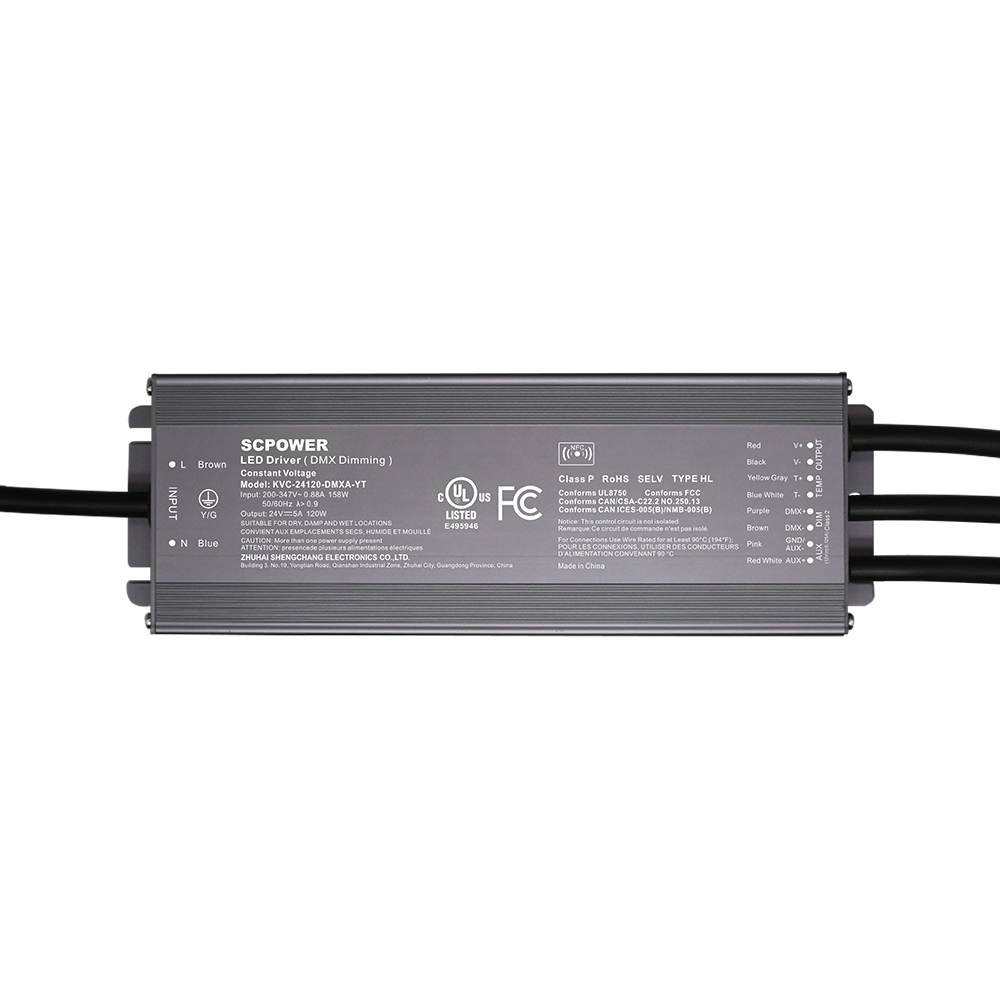

60W 96W 100W 120W DMX512 Ddereeva wa LED eya vvulovumenti etali ya bulijjo ewunyiriza 12 24 36 48 Volt DC

Amaanyi ga Ouput:
60W
96W
100W
120W
Okubeerawo:
Buuza Yongera ku Basket

  • KVC-DMXA

  • DMX512

  • Kifikkiriza

  • Voltage etakyukakyuka

  • Okuzikira

  • IP66, Enkalu & Ennyogovu, Ennyogovu

  • 100-277VAC

  • 60W, 96W, 100W, 120W, amaanyi g’obwagazi

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Ekibiina eky’okubiri, ICES, CE, RoHS, REACH

Ekirungi kya

60W 96W 100W 120W DMX512 Ddereeva wa LED eya vvulovumenti etali ya bulijjo ewunyiriza 12 24 36 48 Volt DC


Flicker-free,okufuluma dimming frequency 20KHz okutuuka ku ddaala ly'okusonyiyibwa,

Digital dimming, okufuga ettaala emu,n'amasannyalaze agayamba & okufuga ebbugumu

Ebintu eby'enjawulo

● Okufuluma: Voltage etakyukakyuka

● Obuwanvu: 200-347VAC

● Enteekateeka ya PFC: Omulimu gwa PFC ogukola oguzimbibwamu

● Obulung'amu: Okutuuka ku bitundu 88%

● Obukuumi: Short circuit / Omugugu ogusukkiridde / Ebbugumu erisukkiridde

● Okusaasaanya ebbugumu: Okunyogoza nga tuyita mu kutambuza empewo ey’obwereere

● Omulimu ogutayingiramu mazzi: Obukuumi obujjuvu Ennyumba ya Aluminiyamu, mu bifo ebikalu, ebinyogovu n’ebibisi

● Omulimu gw’okuzibikira: DMX512 okuzikiza

● Ekifo ekizikiza: 0.1-100%

● Omulimu gwa NFC: Okulongoosa obulungi vvulovumenti efuluma, okuwandiika n’okusoma endagiriro

● Okukozesa: Esaanira okutaasa LED n'okukozesa obubonero obutambula

● Waranti: Waranti ya myaka 5

Okunnyonnyola


Amaanyi agafuluma

Ennamba ya Model

Voltage efuluma

Ebifulumizibwa Current

Obunene

Obuzito

60W

KVC-12060-DMXA

12V

5A

200 * 78 * 25.1mm

KVC-24060-DMXA

24V

2.5A

KVC-36060-DMXA

36V

1.67A

KVC-48060-DMXA

48V

1.25A

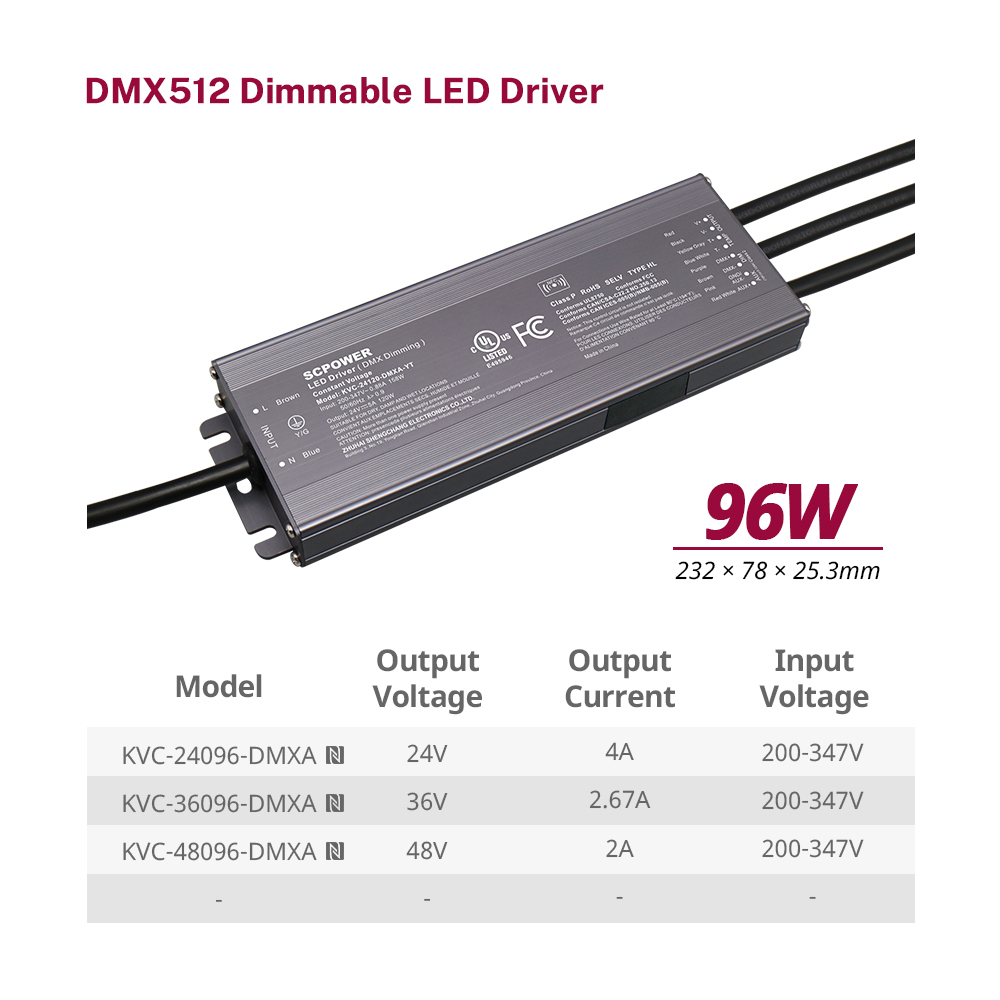

96W

KVC-24096-DMXA

24V

4A

232 * 78 * 25.3mm

kkiro 0.83

KVC-36096-DMXA

36V

2.67A

KVC-48096-DMXA

48V

2A

100W

KVC-12100-DMXA

12V

8.33A

KVC-24100-DMXA

24V

4.17A

KVC-36100-DMXA

36V

2.78A

KVC-48100-DMXA

48V

2.08A

120W

KVC-12120-DMXA

12V

10A

KVC-24120-DMXA

24V

5A

KVC-36120-DMXA

36V

3.33A

KVC-48120-DMXA

48V

2.5A


KVC Series Dimmable Voltage etakyukakyuka LED Ddereeva 200V -347V AC

KVC Series Dimmable Constant Voltage LED Ddereeva nga alina NFC


Ekifaananyi kya Waya za Ddereeva wa DMX LED

06-KVC-详情页-接线图-DMX-260611


okufuna spec_60W DMX ekizikiza. Ddereeva wa CV KVC-DMXA-T 12V&24V&48V.pdf

okufuna spec_96W DMX ekizikiza. Omugoba wa CV KVC-DMXA-YT 24V&48V.pdf

okufuna spec_120W DMX ekizikiza. Omuvuzi wa CV KVC-DMXA-YT 12V&24V&48V.pdf

okufuna spec_100W DMX ekizikiza. Omuvuzi wa CV KVC-DMXA-YT 12V&24V&48V.pdf
