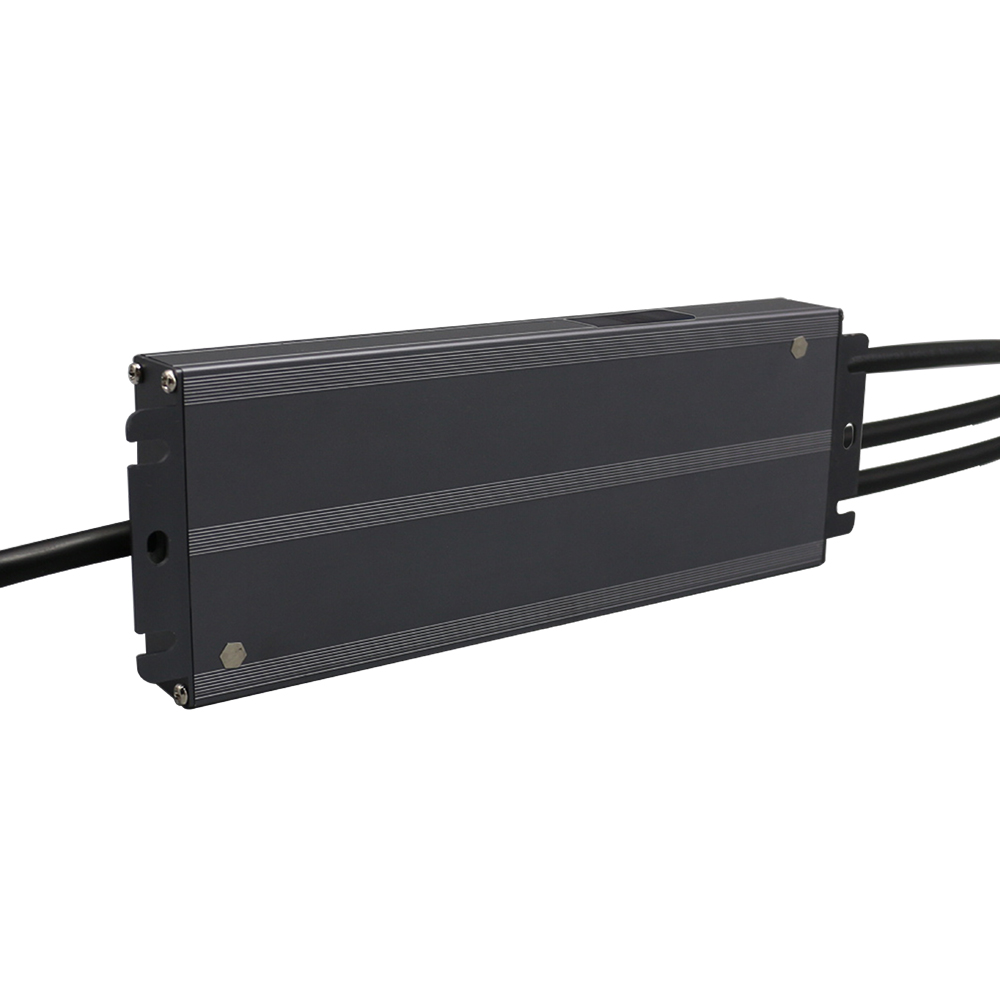

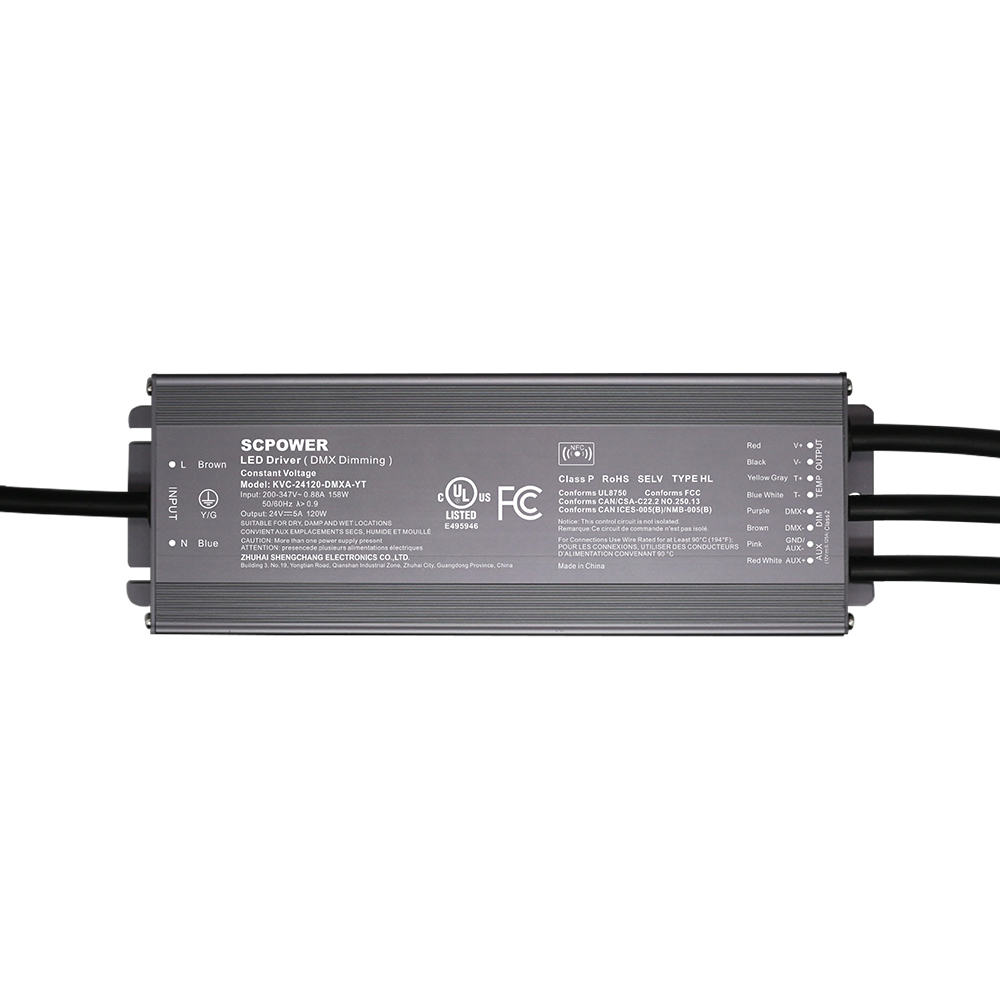

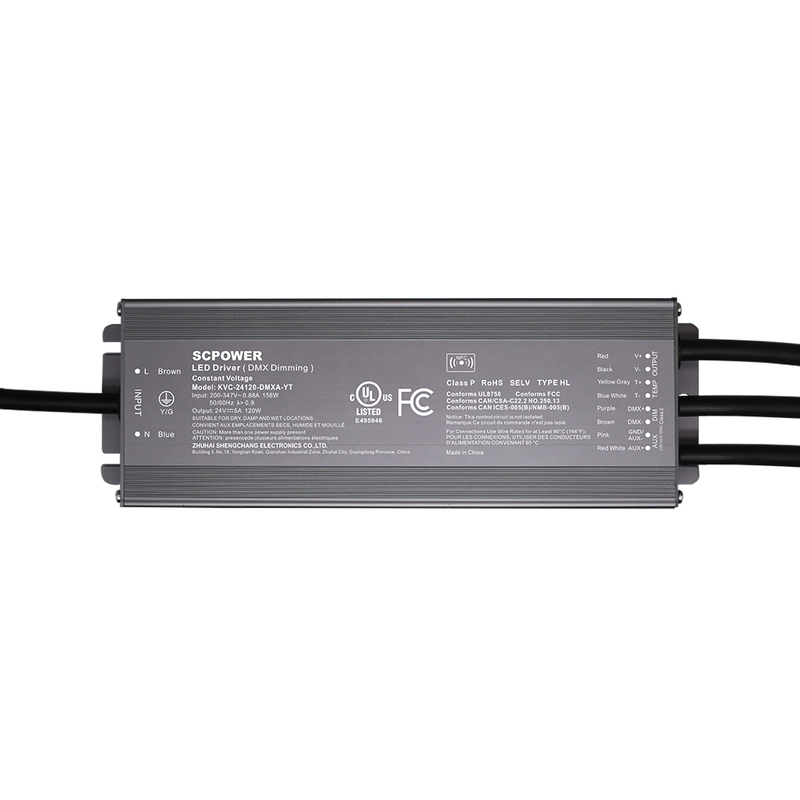

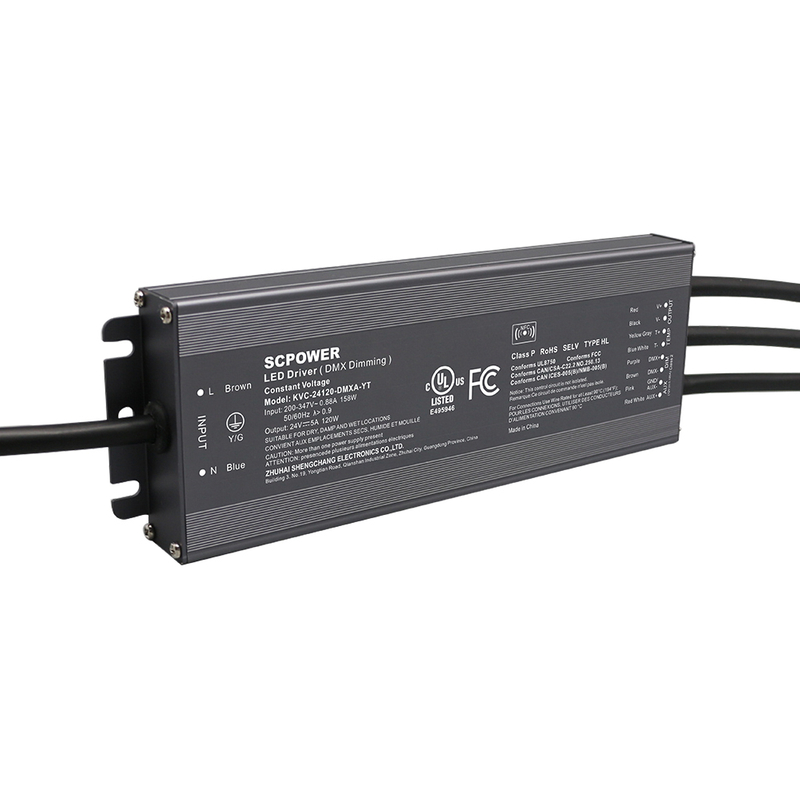

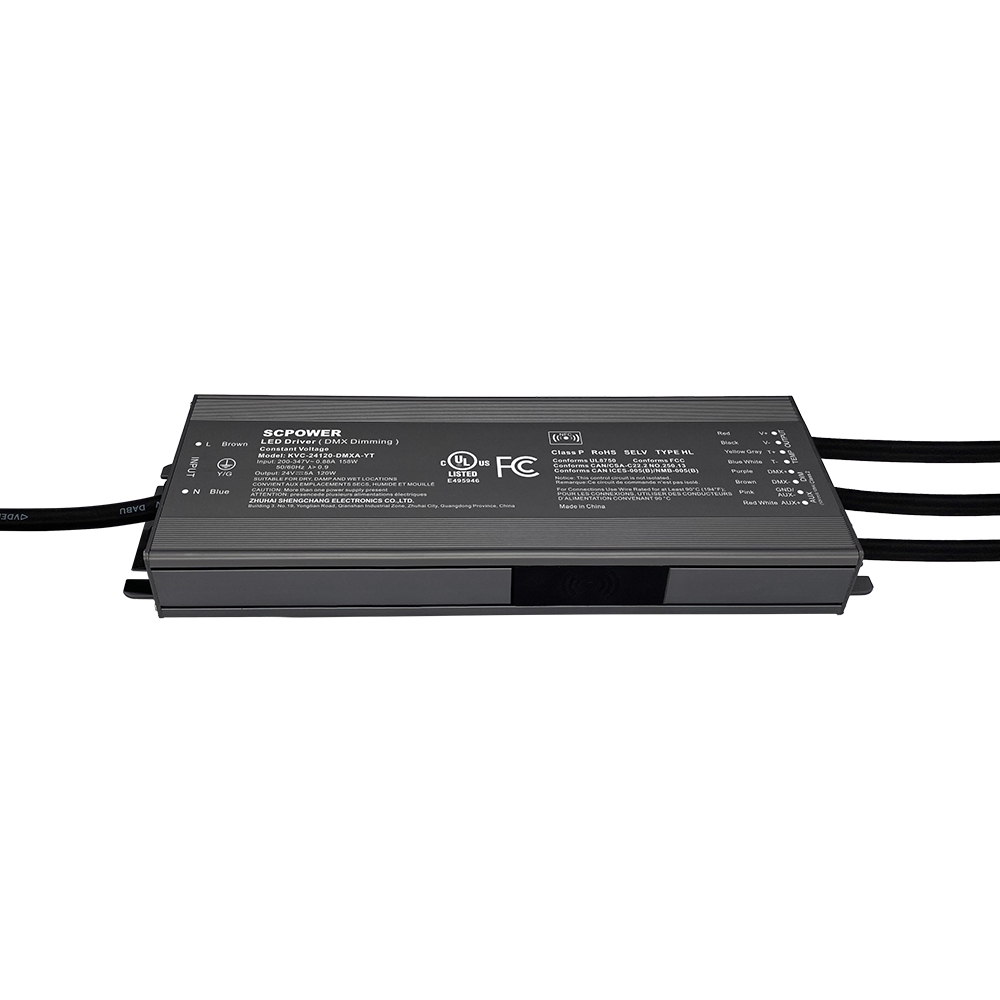

60W 96W 100W 120W DMX512 Dimmable Constant Voltage LED Driver 12 24 36 48 Volt DC

Ouput Power:
Availability:
  • DMX512

  • Isolated

  • Constant Voltage

  • Dimming

  • IP66, Dry & Damp, Wet

  • 100-277VAC

  • 60W, 96W, 100W, 120W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Class 2, ICES, CE, RoHS, REACH

Advantage

60W 96W 100W 120W DMX512 Dimmable Constant Voltage LED Driver 12 24 36 48 Volt DC


Flicker-free,output dimming frequency 20KHz reach the exemption level,

Digital dimming, single light control,with auxiliary power supply & temperature control


Output:

Constant Voltage

Range:

200-347VAC

PFC design:

Built-in active PFC function

Efficiency:

Up to 88%

Protections:

Short circuit/ over load/ over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

Full protection Aluminum housing, for dry, damp and wet locations

Dimming function:

DMX512 dimming

Dimming range:

0.1-100%

NFC function

Fine tune the output voltage, write and read address

Application:

Suitable for LED lighting and moving sign applications

Warranty:

5 years warranty

Specification


Output Power

Model Number

Output Voltage

Output Current

Size

Weight

60W

KVC-12060-DMXA

12V

5A

200*78*25.1mm


KVC-24060-DMXA

24V

2.5A

KVC-36060-DMXA

36V

1.67A

KVC-48060-DMXA

48V

1.25A

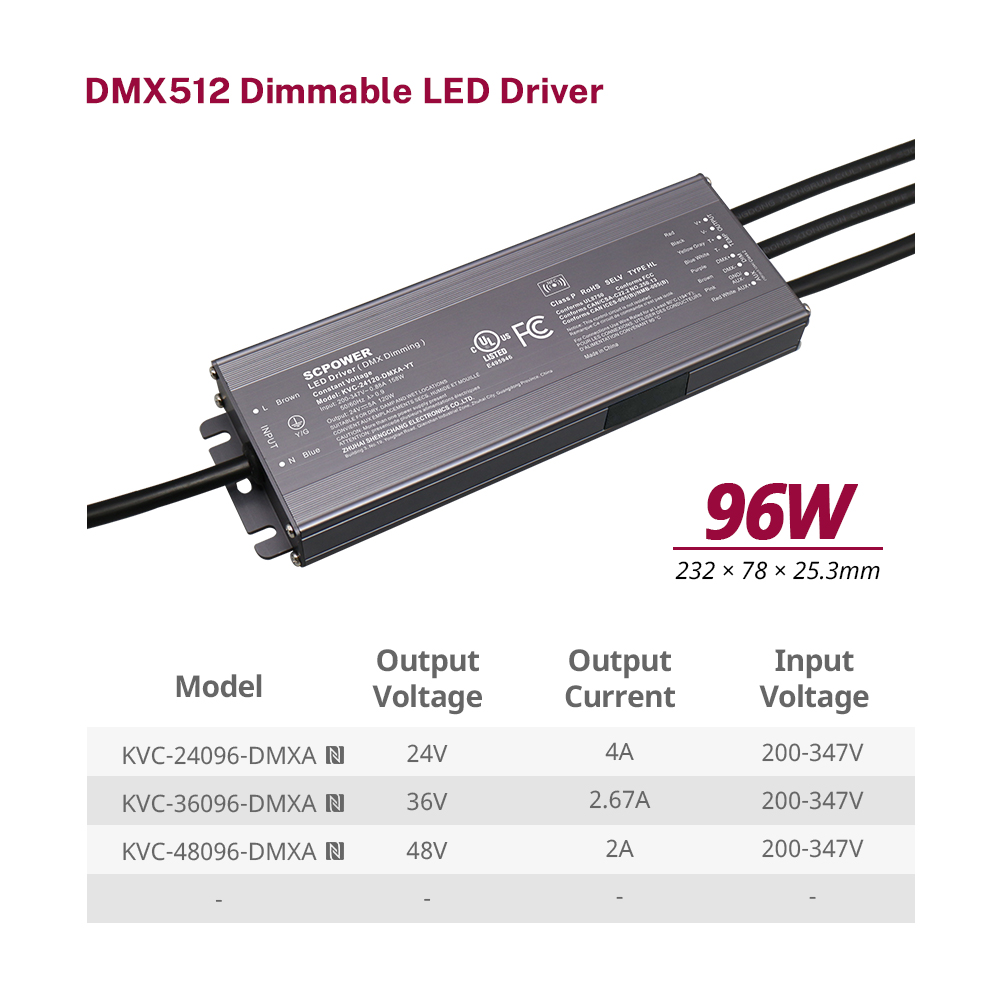

96W

KVC-24096-DMXA

24V

4A

232*78*25.3mm

0.83kg

KVC-36096-DMXA

36V

2.67A

KVC-48096-DMXA

48V

2A

100W

KVC-12100-DMXA

12V

8.33A

KVC-24100-DMXA

24V

4.17A

KVC-36100-DMXA

36V

2.78A

KVC-48100-DMXA

48V

2.08A

120W

KVC-12120-DMXA

12V

10A

KVC-24120-DMXA

24V

5A

KVC-36120-DMXA

36V

3.33A

KVC-48120-DMXA

48V

2.5A


DMX LED Driver Wiring Diagram
