60W DMX512 LED Driver Constant-Voltage 200-347VAC Lighting

Product Overview

Designed exclusively for commercial lighting professionals, electrical contractors, and lighting system integrators, our 60W DMX512 LED Driver delivers industry-leading performance and precision control for demanding lighting projects. This isolated, constant voltage LED power supply features a wide universal input range of 200-347VAC 50/60Hz, with configurable output voltage options of 12V, 24V, 36V, and 48V to match diverse LED load requirements. Built with a robust full-protection plastic housing and rated for dry and damp locations, this 200-347VAC constant voltage LED driver holds full global certifications including UL & cUL, FCC, Class 2, ICES, CE, RoHS, and REACH, with a 5-year warranty to support long-term project reliability. Engineered with flicker-free dimming technology and advanced DMX512 digital control, it is the ideal power solution for professional commercial and architectural lighting systems.

Features

● Output: Constant Voltage

● Range: 200-347VAC

● PFC design: Built-in active PFC function

● Efficiency: Up to 88.5%

● Protections: Short circuit / Over load / Over temperature

● Heat dissipation: Cooling by free air convection

● Waterproof performance: IP20 can be used indoor.(EU)

●  Full plastic protection housing, for dry & damp locations.(US)

● Design features: Multiple frequency options. Lamp temperature detection. Driver parameters can be adjusted by APP.

● Dimming function: DMX Dimming (PWM output)

● Min load: Min load is 10% Dimming range: 0.2%-100% dimming depth 0.2%(244Hz) 0.2%-100% dimming depth 0.2%(800Hz)

●  0.3%-100% dimming depth 0.3%(4KHz) 0.8%-100% dimming depth 0.8%(20KHz)

● Application: Suitable for LED lighting and moving sign applications

● Warranty: 5 years warranty

● Other: Flicker-free dimming

Key Features & Competitive Advantages

High-Precision DMX512 Dimming Technology

Our DMX512 dimmable LED power supply delivers seamless 0.1-100% digital dimming with a 20KHz output frequency, achieving flicker-free performance that meets international video and broadcast exemption standards. It supports single-light independent control, with an integrated auxiliary power supply and temperature control system to ensure stable dimming across the full load range, eliminating flicker, drop-out, or jitter common in inferior drivers.

Robust Electrical Design & Compliance

Equipped with a built-in active PFC function, this UL listed 60W LED driver achieves a power factor >0.95, with peak efficiency up to 88% to reduce energy waste and operational costs for commercial facilities. It features comprehensive protection mechanisms including short circuit, over load, and over temperature protection, with free air convection cooling for stable long-term operation. Its Class 2 and SELV ratings ensure full compliance with North American and global electrical safety standards for commercial installations.

Intelligent Functionality & Long-Term Reliability

This 60W constant voltage LED driver with NFC function enables wireless fine-tuning of output voltage, as well as address writing and reading, simplifying on-site configuration and system commissioning for integrators. With a compact form factor of 192.5×62×24mm and IP20 rating for dry and damp locations, it offers flexible installation in diverse commercial environments, backed by a 5-year manufacturer warranty for complete project peace of mind.

Ideal Application Scenarios

This DMX512 LED driver for commercial lighting is optimized for a wide range of professional applications, including:

• Architectural facade lighting and stage & entertainment lighting systems requiring precise single-light DMX512 control

• Commercial retail lighting, including in-store display lighting and window displays where flicker-free performance is critical for videography and customer experience

• Indoor and outdoor moving sign & wayfinding lighting, with wide input voltage compatibility for global installations

• Hospitality, healthcare, and institutional lighting projects requiring reliable, code-compliant dimmable power solutions

• High-end commercial office lighting systems with centralized DMX512 lighting control integration

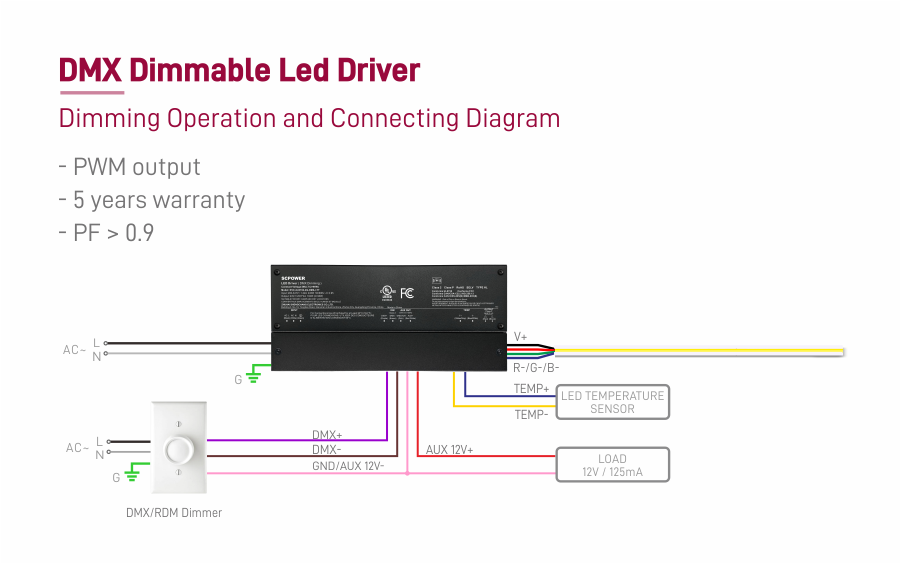

Installation & Wiring Guidance

For professional electrical contractors and system integrators, follow these core installation guidelines for optimal performance:

• Always disconnect main power before installation and wiring to avoid electrical hazard.

• Input wiring: Connect the AC line (L), neutral (N), and ground wires to the corresponding terminals, using wire rated for a minimum of 90°C (194°F) to comply with installation standards.

• Output wiring: Match the positive and negative DC output terminals to your LED load, ensuring correct polarity to prevent equipment damage.

• DMX512 bus wiring: Connect the D+, D-, and GND terminals to your DMX512 control system, with a 120Ω terminal resistor installed at the farthest device on the bus to ensure signal stability.

• Use the NFC function for on-site output voltage tuning and address configuration, with the driver mounted in a well-ventilated location suitable for dry or damp environments, avoiding fully enclosed high-temperature spaces.
