| Ouput Power: | |
|---|---|
| Availability: | |
DMX512
Isolated
Constant Voltage
Dimming, RGB
IP66, Dry & Damp, Wet
100-277VAC
300W, 288W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2, ICES, CE, RoHS, REACH

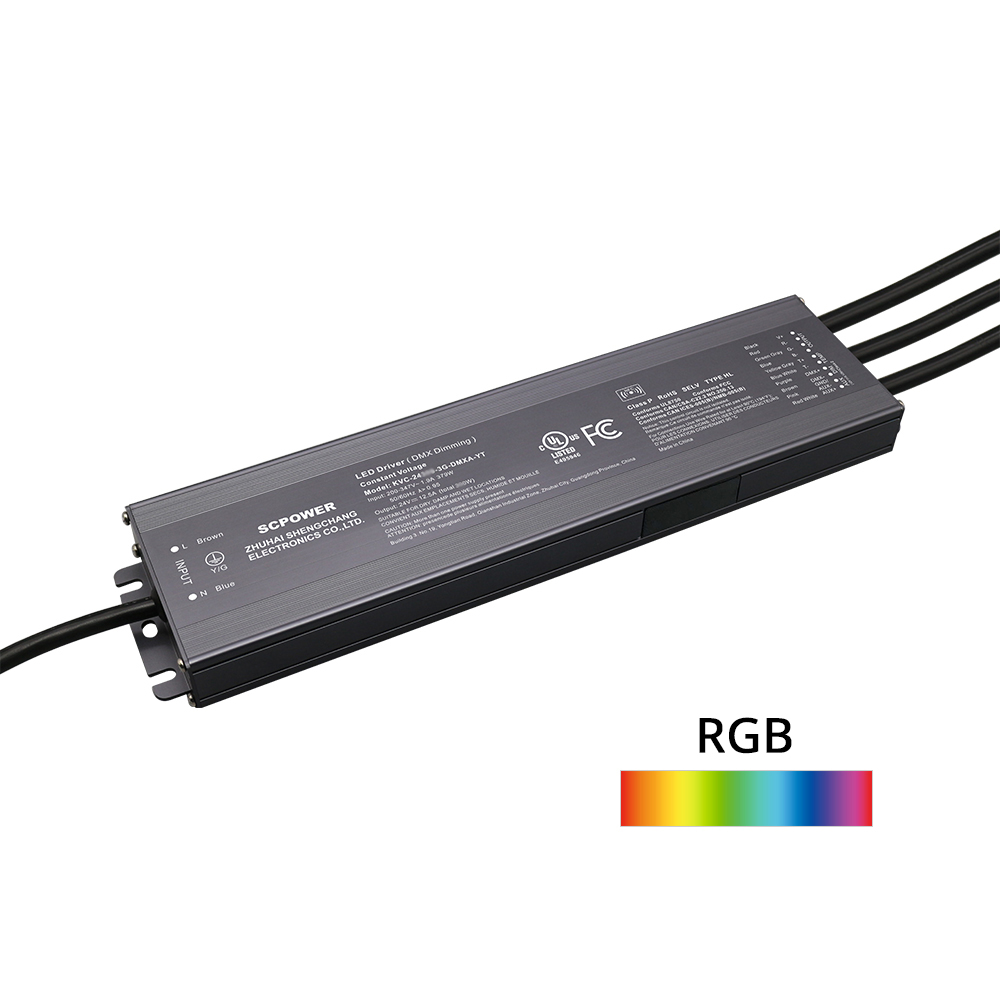

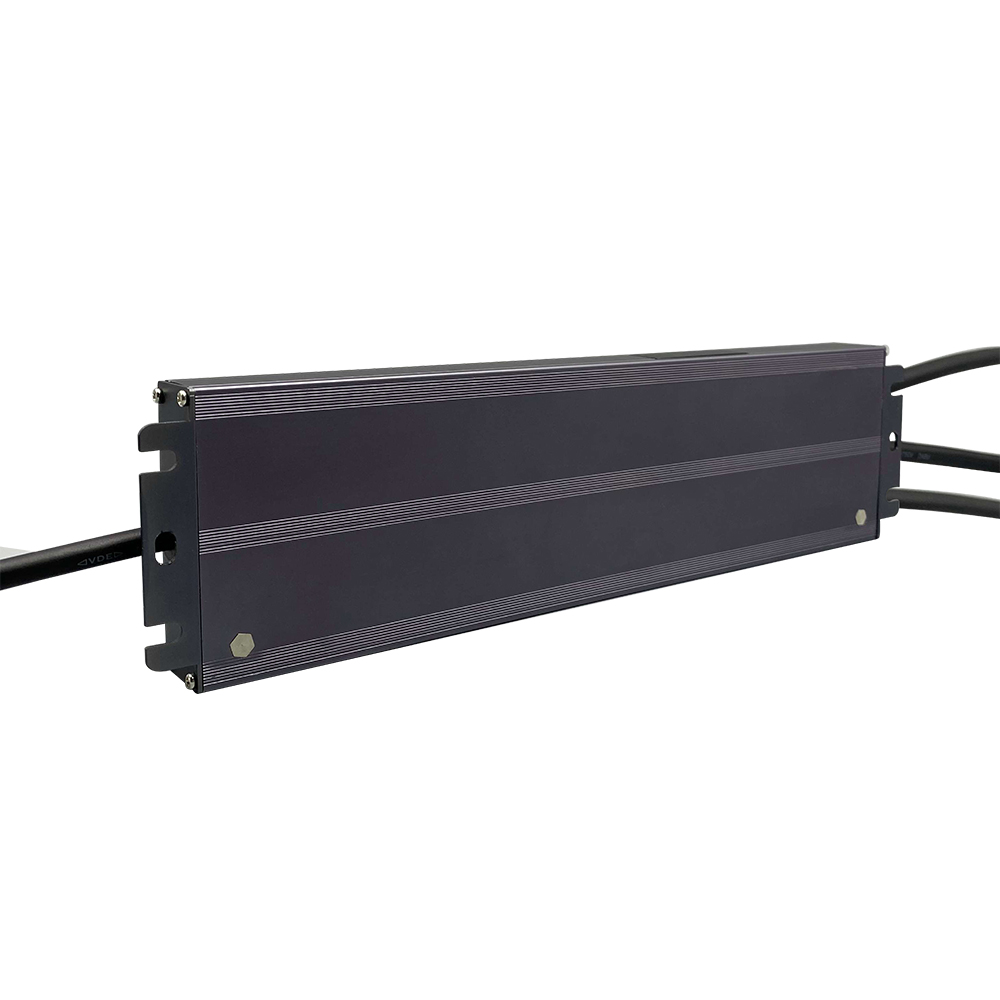

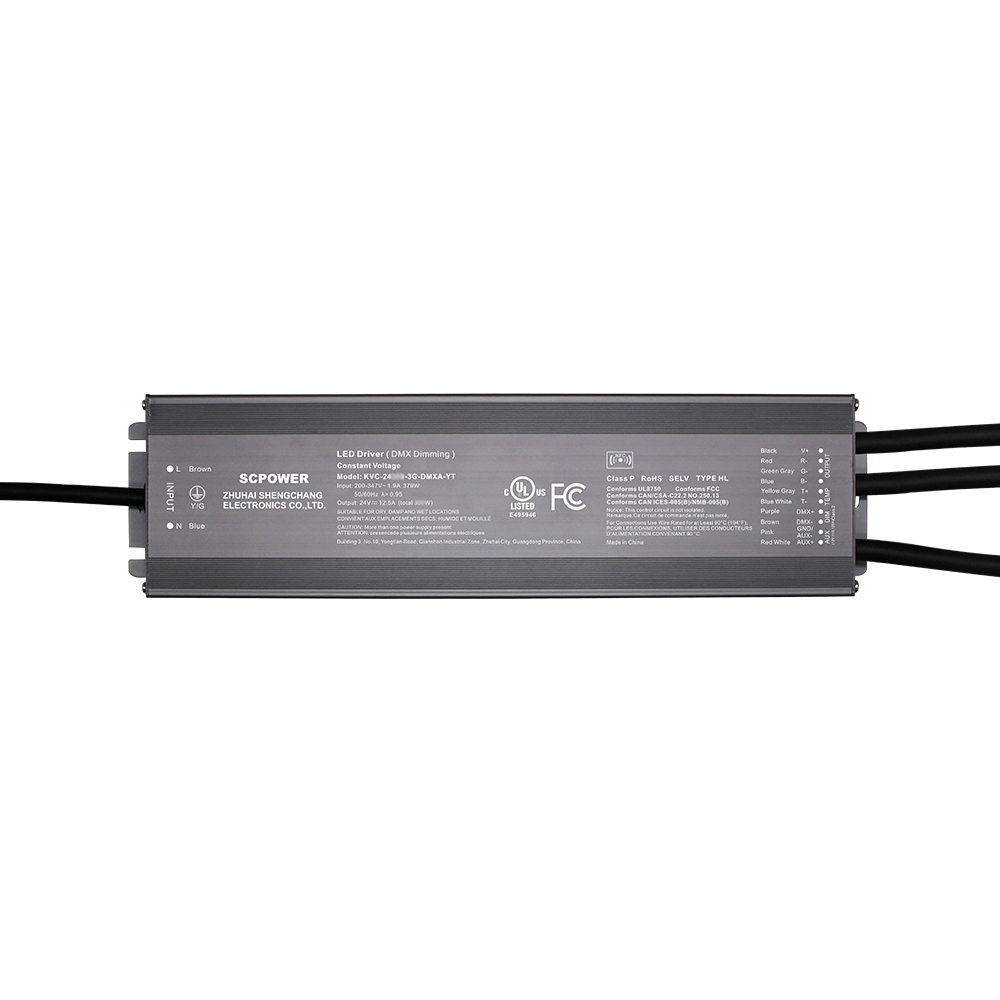

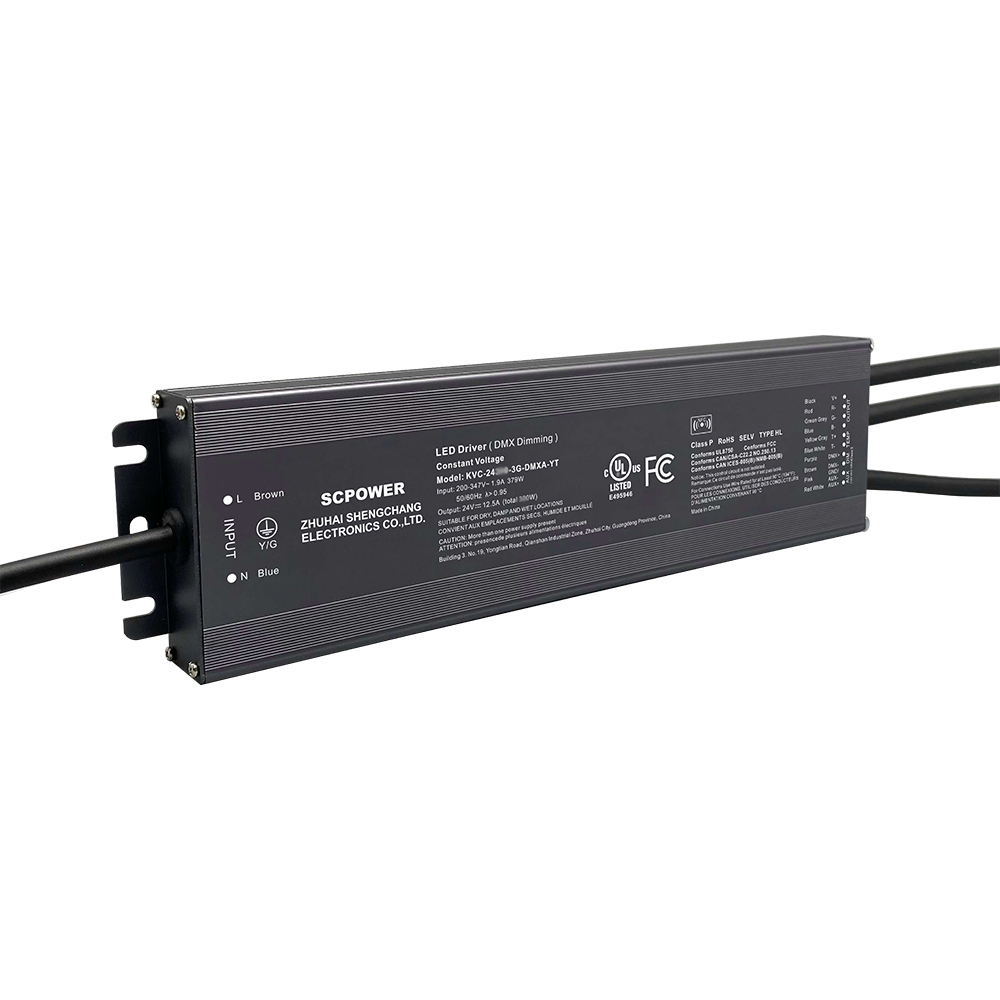

288W 300W RGB DMX512 Dimmable Constant Voltage LED Driver 200V -347V AC
Flicker-free,output dimming frequency 20KHz reach the exemption level,
Digital dimming, single light control,with auxiliary power supply & temperature control
Output: |
Constant Voltage |
Range: |
200-347VAC |
PFC design: |
Built-in active PFC function |
Efficiency: |
Up to 93% |
Protections: |
Short circuit/ over load/ over temperature |
Heat dissipation: |
Cooling by free air convection |
Waterproof performance: |
Full protection Aluminum housing, for dry, damp and wet locations |
Dimming function: |
DMX512 dimming |
Dimming range: |
0.1-100% |
NFC function |
Fine tune the output voltage, write and read address |
Application: |
Suitable for LED lighting and moving sign applications |
Warranty: |
5 years warranty |
Output Power |
Model Number |
Output Voltage |
Output Current |
Size |
Weight |
288W |
KVC-C24288-3G-DMXA |
24V |
3*4A |
302*78*25.1mm |
|
KVC-C36288-3G-DMXA |
36V |
3*2.67A |
|||
KVC-C48288-3G-DMXA |
48V |
3*2A |
|||

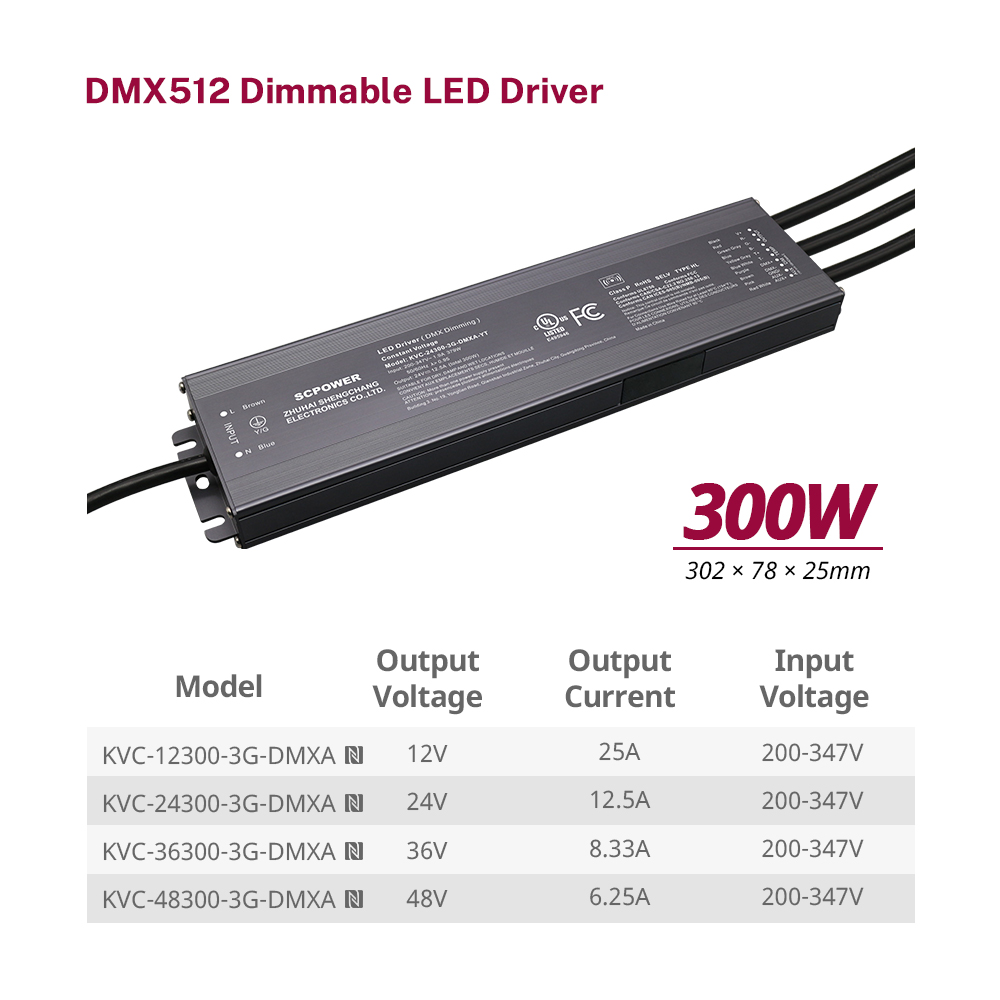

300W |
KVC-12300-3G-DMXA |
12V |
25A |
302*78*25.1mm |
|
KVC-24300-3G-DMXA |
24V |
12.5A |
|||
KVC-36300-3G-DMXA |
36V |
8.33A |
|||
KVC-48300-3G-DMXA |
48V |
6.25A |
|||
