| Ouput Power: | |
|---|---|
DMX512
Isolated
Constant Voltage
Dimming, CCT, RGB
IP66, Dry & Damp, Wet
100-277VAC
300W, 288W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2, ICES, CE, RoHS, REACH

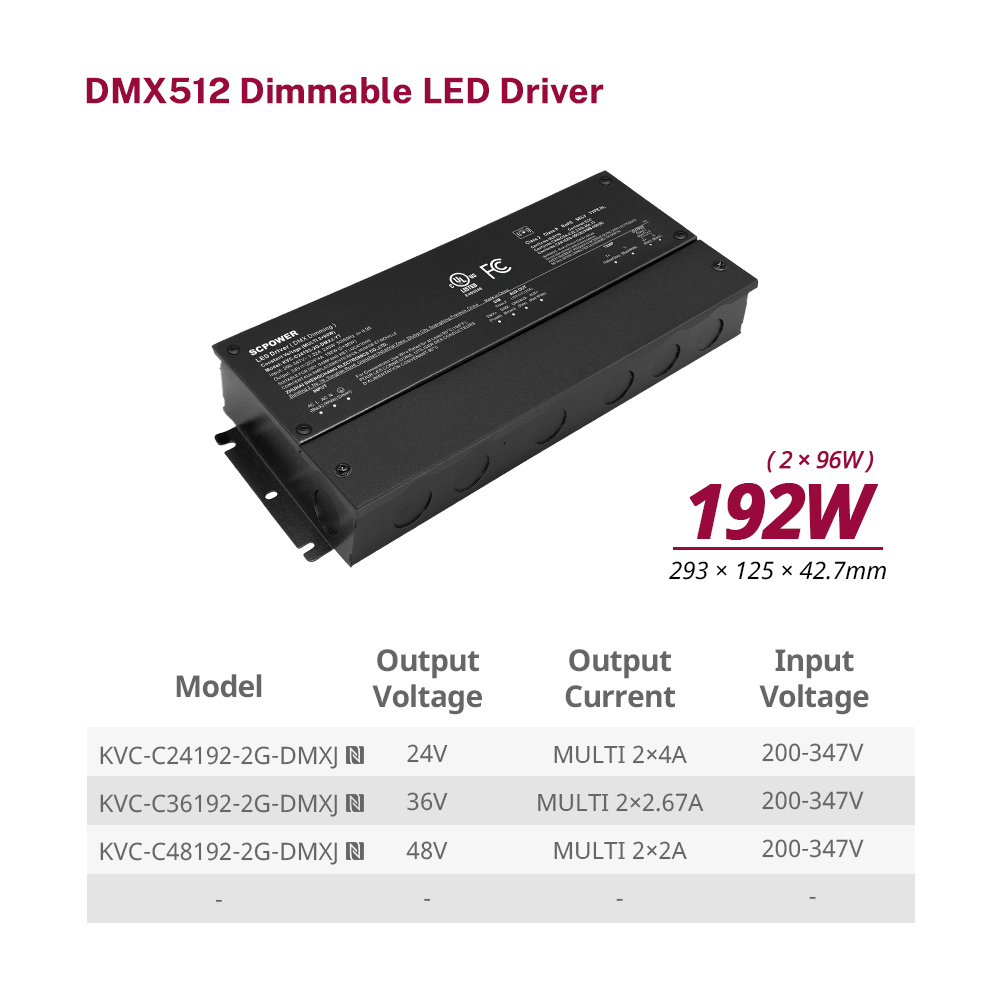

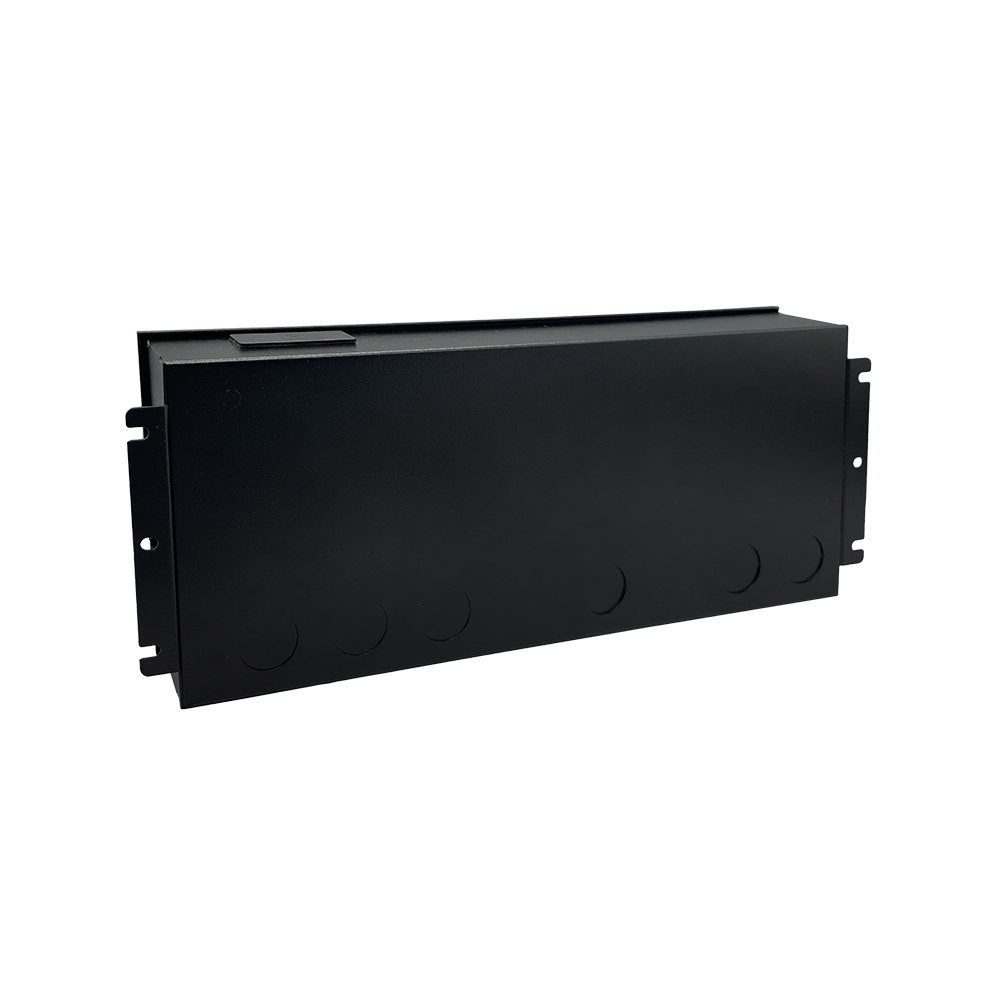

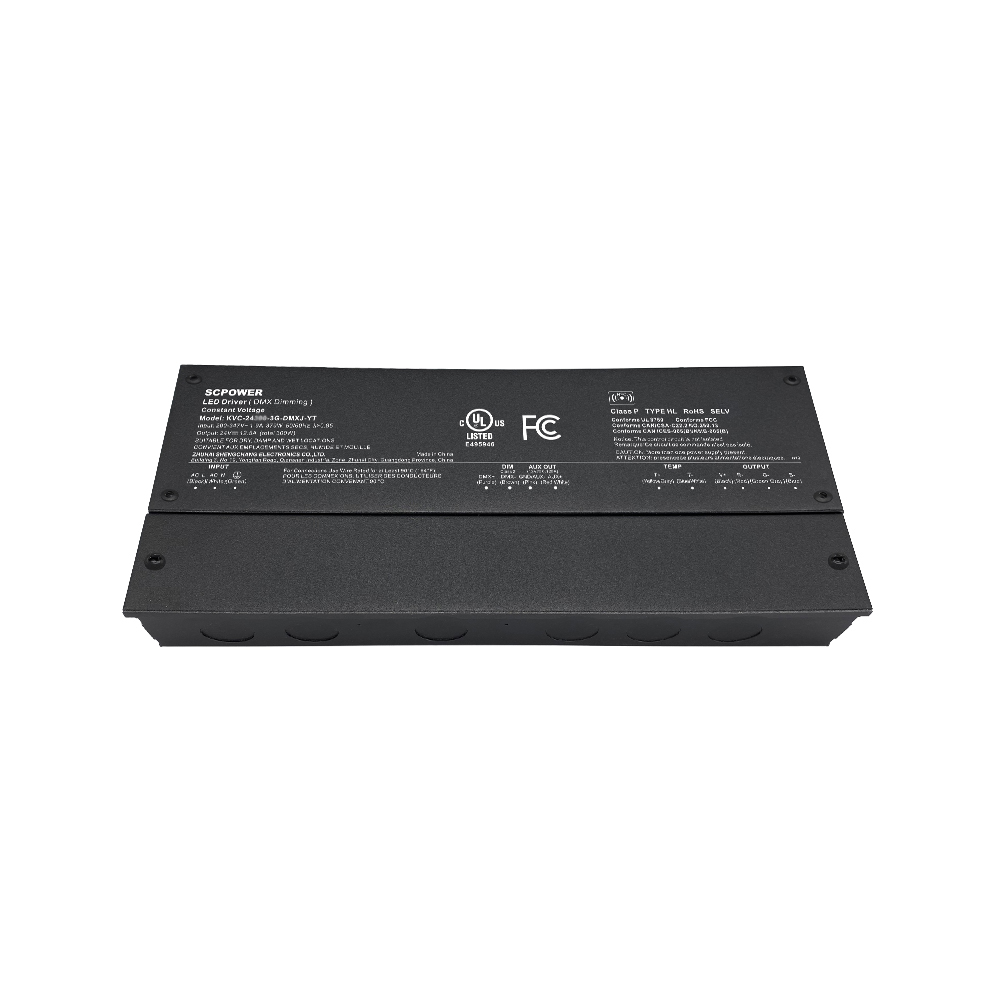

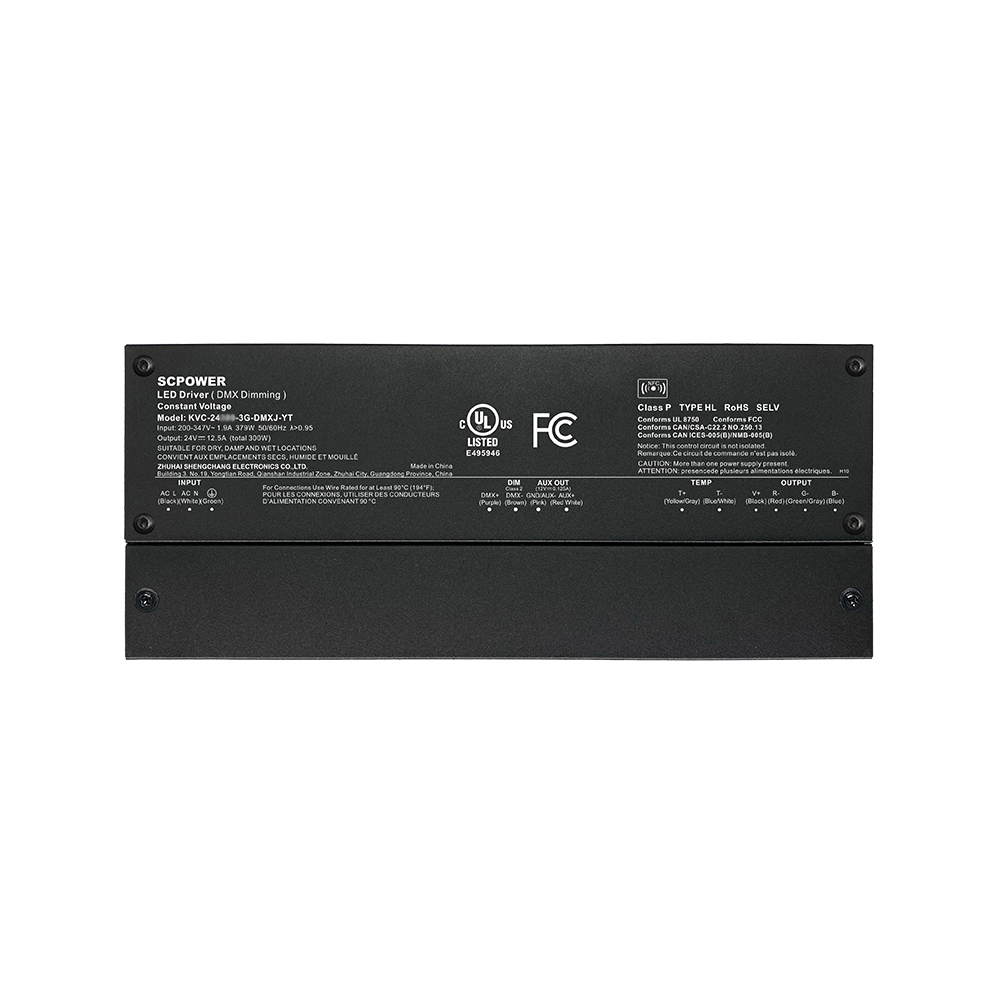

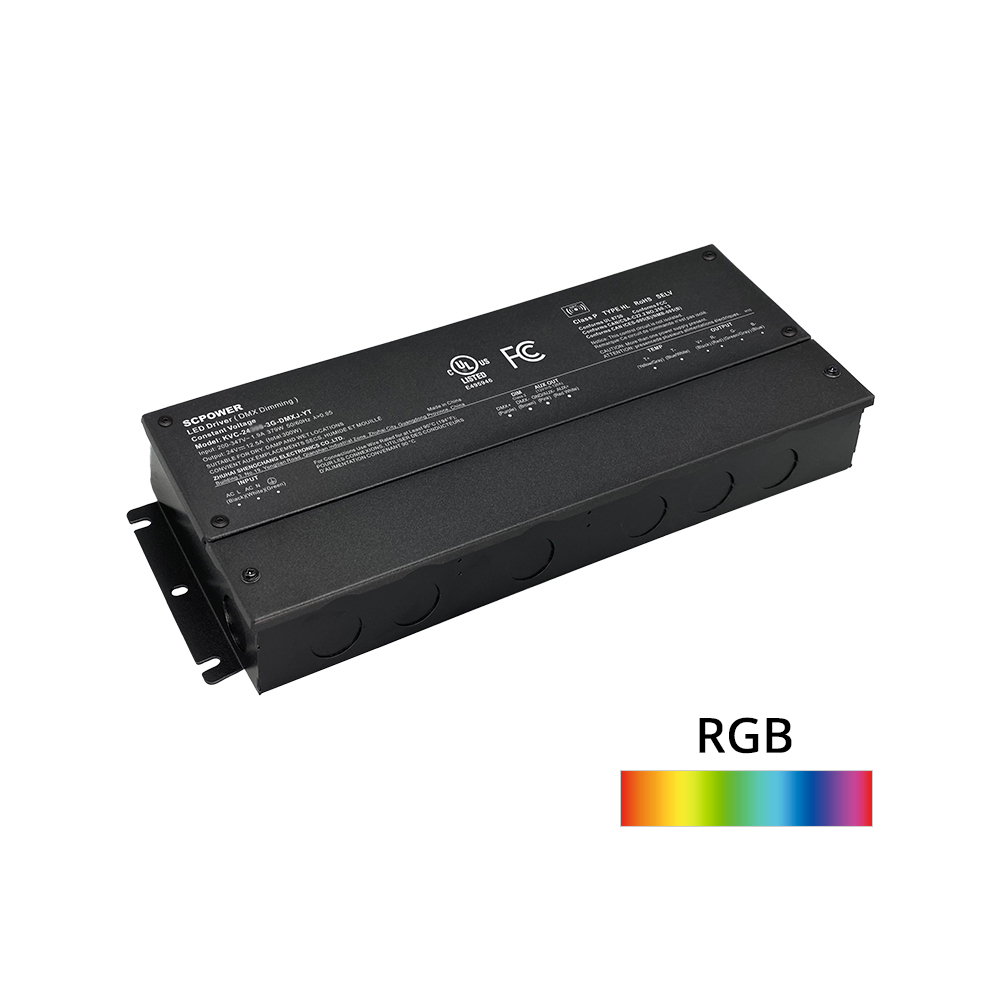

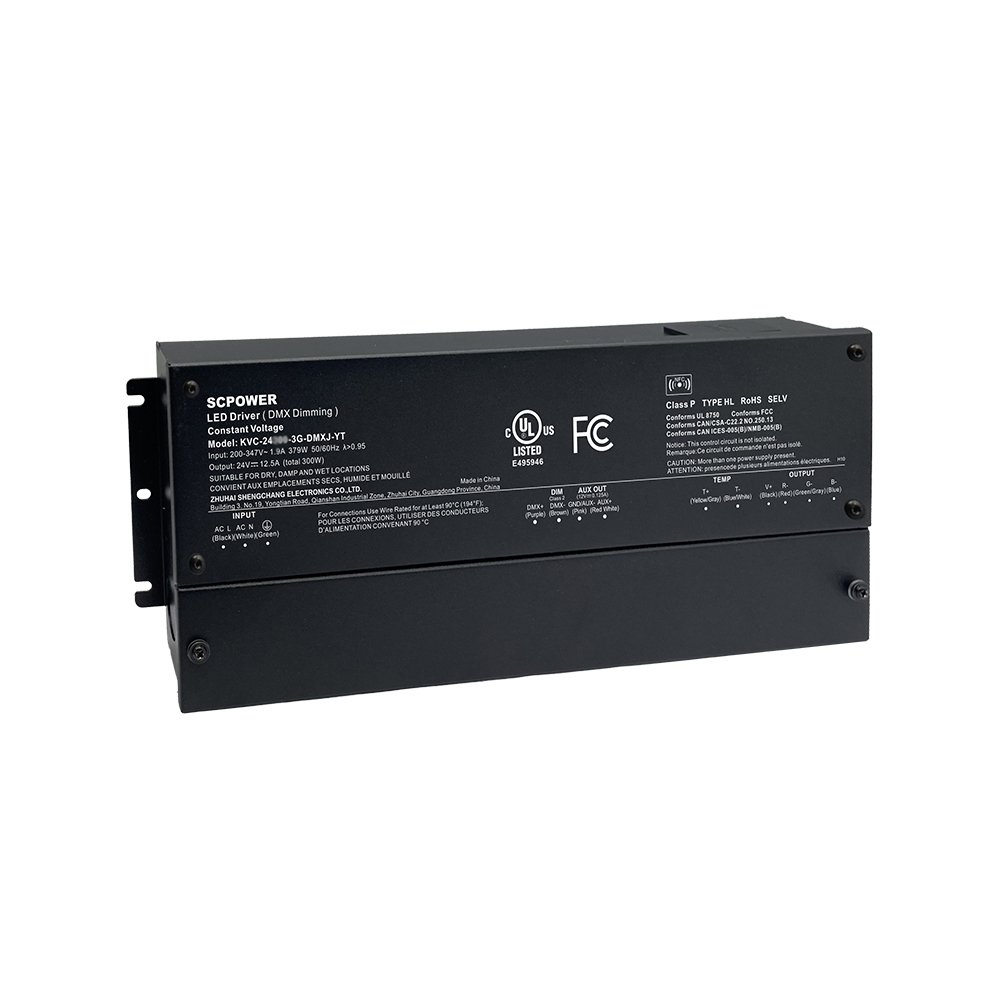

288W 300W RGB DMX512 Dimming Constant Voltage LED Light Driver 12 24 36 48 Volt DC
Flicker-free,
output dimming frequency 20KHz reach the exemption level,
Digital dimming,
single light control,
with auxiliary power supply & temperature control
Output: | Constant Voltage |
Range: | 200-347VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 93.5% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection Aluminum housing, for dry, damp and wet locations |
Dimming function: | DMX512 dimming |
Dimming range: | 0.1-100% |
NFC function | Fine tune the output voltage, write and read address |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Model Number | Watts | Output Voltage | Output Current | Class 2 | Listings | Output Mode | Size | Weight |
KVC-C24192-2G-DMXJ-YT | 192W | 24V | 2*4A | Yes | cUL, UL, FCC, ICES, CE, RoHS, Reach | CCT | 293*125*42.7mm | |
KVC-C36192-2G-DMXJ-YT | 36V | 2*2.67A | ||||||
KVC-C48192-2G-DMXJ-YT | 48V | 2*2A | ||||||
KVC-12200-2G-DMXJ-YT | 200W | 12V | 16.67A | No | ||||
KVC-24200-2G-DMXJ-YT | 24V | 8.33A | ||||||
KVC-36200-2G-DMXJ-YT | 36V | 5.56A | ||||||
KVC-48200-2G-DMXJ-YT | 48V | 4.16A | ||||||
KVC-C24288-3G-DMXJ-YT | 288W | 24V | 3*4A | Yes | cUL, UL, FCC, ICES, CE, RoHS, Reach | RGB | 316*125*42.7mm | |
KVC-C36288-3G-DMXJ-YT | 36V | 3*2.67A | ||||||
KVC-C48288-3G-DMXJ-YT | 48V | 3*2A | ||||||
KVC-12300-3G-DMXJ-YT | 300W | 12V | 25A | No | ||||
KVC-24300-3G-DMXJ-YT | 24V | 12.5A | ||||||
KVC-36300-3G-DMXJ-YT | 36V | 8.33A | ||||||
KVC-48300-3G-DMXJ-YT | 48V | 6.25A | ||||||
288W 300W RGB DMX512 Dimming Constant Voltage LED Light Driver 12 24 36 48 Volt DC
Flicker-free,
output dimming frequency 20KHz reach the exemption level,
Digital dimming,
single light control,
with auxiliary power supply & temperature control
Output: | Constant Voltage |
Range: | 200-347VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 93.5% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection Aluminum housing, for dry, damp and wet locations |
Dimming function: | DMX512 dimming |
Dimming range: | 0.1-100% |
NFC function | Fine tune the output voltage, write and read address |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Model Number | Watts | Output Voltage | Output Current | Class 2 | Listings | Output Mode | Size | Weight |
KVC-C24192-2G-DMXJ-YT | 192W | 24V | 2*4A | Yes | cUL, UL, FCC, ICES, CE, RoHS, Reach | CCT | 293*125*42.7mm | |
KVC-C36192-2G-DMXJ-YT | 36V | 2*2.67A | ||||||
KVC-C48192-2G-DMXJ-YT | 48V | 2*2A | ||||||
KVC-12200-2G-DMXJ-YT | 200W | 12V | 16.67A | No | ||||
KVC-24200-2G-DMXJ-YT | 24V | 8.33A | ||||||
KVC-36200-2G-DMXJ-YT | 36V | 5.56A | ||||||
KVC-48200-2G-DMXJ-YT | 48V | 4.16A | ||||||
KVC-C24288-3G-DMXJ-YT | 288W | 24V | 3*4A | Yes | cUL, UL, FCC, ICES, CE, RoHS, Reach | RGB | 316*125*42.7mm | |
KVC-C36288-3G-DMXJ-YT | 36V | 3*2.67A | ||||||
KVC-C48288-3G-DMXJ-YT | 48V | 3*2A | ||||||
KVC-12300-3G-DMXJ-YT | 300W | 12V | 25A | No | ||||
KVC-24300-3G-DMXJ-YT | 24V | 12.5A | ||||||
KVC-36300-3G-DMXJ-YT | 36V | 8.33A | ||||||
KVC-48300-3G-DMXJ-YT | 48V | 6.25A | ||||||
