Oli wano: Ewaka / Ebintu ebikolebwa / Canada 200-347VAC Ddereeva wa LED / KVC-DMX Series DMX 512. Omusomo gwa KVC-DMX / 192W 200W CCT DMX512 Okuziba Voltage ya Constant Voltage LED Ettaala Ddereeva 200 - 347 Volt AC

Ekika ky'ebintu

Ekirungi kya

192W 200W CCT DMX512 Okuziba Voltage etakyukakyuka LED Ettaala Ddereeva 200 - 347 Volt AC

Temuli flicker, .

output dimming frequency 20KHz okutuuka ku ddaala ly’okusonyiyibwa, .

Okuzikira mu ngeri ya digito, .

okufuga ekitangaala kimu, .

nga balina amasannyalaze agayambi & okufuga ebbugumu

Ebifulumizibwa:	Voltage etakyukakyuka
Ebanga:	200-347VAC
Dizayini ya PFC:	Omulimu gwa PFC ogukola oguzimbibwamu
Amaanyi:	Okutuuka ku bitundu 93.5%
Obukuumi:	Short circuit/ okutikka okusukkiridde/ okusukka ebbugumu
Okusaasaanya ebbugumu:	Okunyogoza nga tuyita mu kukyusa empewo ey’obwereere
Omulimu gw’okuziyiza amazzi:	Obukuumi obujjuvu Ennyumba ya Aluminiyamu, ey’ebifo ebikalu, ebinyogovu n’ebibisi

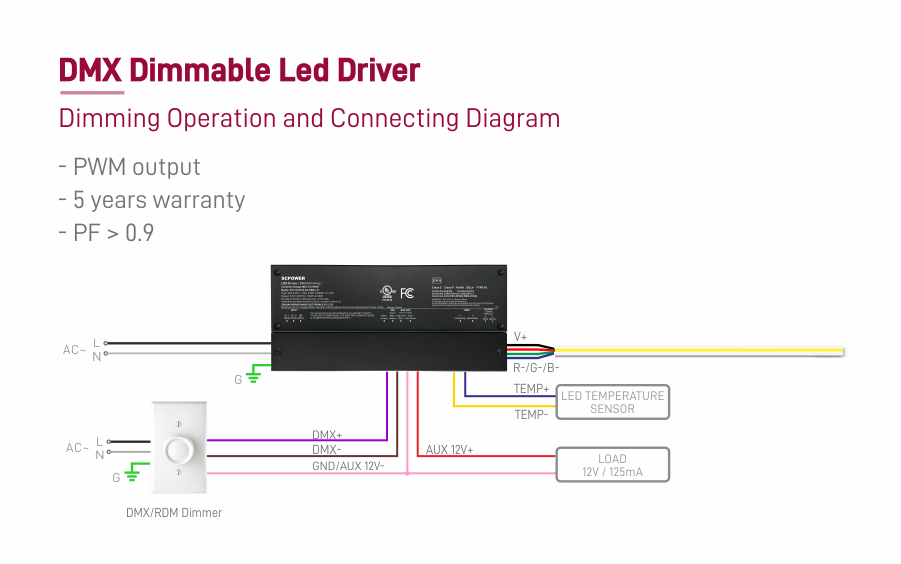

Omulimu gw’okuzibikira:	DMX512 okuzikira
Dimming range:	0.1-100% .

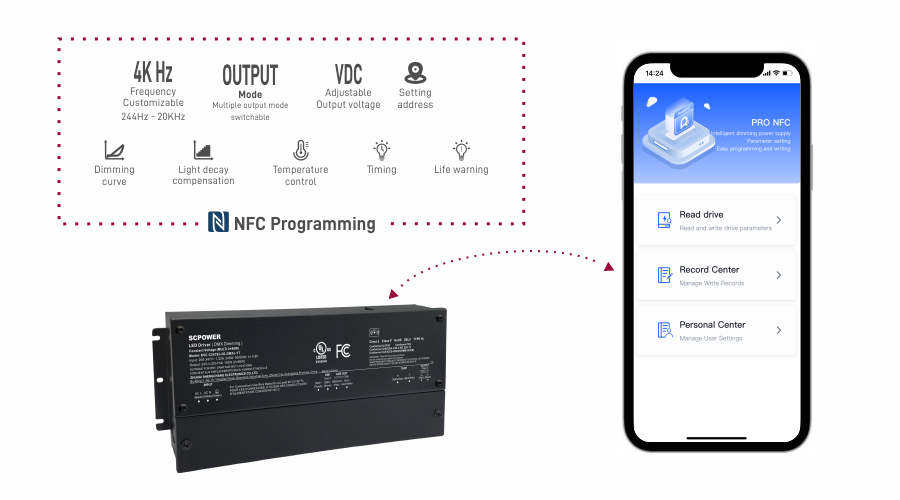

Omulimu gwa NFC	Fine tune the output voltage, wandiika n'okusoma endagiriro
Okusaba:	Esaanira okutaasa kwa LED n’okukozesa obubonero obutambula
Waranti:	Waranti ya myaka 5

Ebikwata ku Ddereeva w’ettaala ya LED eya 192W 200W CCT DMX512

Ennamba ya Model	Watts	Voltage efuluma	Ebifulumizibwa Current	Ekibiina 2	Ebiwandiiko ebiwandiikiddwa	Ensonga y’Amaanyi (Typ.) .	Omutindo gw’okufulumya	Obunene	Obuzito
KVC-12060-DMXJ-YT	60W	12V	5A	Yee	cUL, UL, FCC, ICES, CE, RoHS, Okutuuka ku nsonga eno	PF≥0.95	Okuzikira	202.5 * 114.2 * 40mm
KVC-24060-DMXJ-YT		24V	2.5A
KVC-36060-DMXJ-YT		36V	1.67
KVC-48060-DMXJ-YT		48V	1.25A

KVC-24096-DMXJ-YT	96W	24V	4A	Yee	cUL, UL, FCC, ICES, CE, RoHS, Okutuuka ku nsonga eno	PF≥0.93	Okuzikira	241 * 125 * 40mm
KVC-36096-DMXJ-YT		36V	2.67A
KVC-48096-DMXJ-YT		48V	2A
KVC-12100-DMXJ-YT	100W	12V	8.34A	Nedda
KVC-24100-DMXJ-YT		24V	4.17A
KVC-36100-DMXJ-YT		36V	2.78A
KVC-48100-DMXJ-YT		48V	2.09A
KVC-12120-DMXJ-YT	120W	12V	10A	Nedda
KVC-24120-DMXJ-YT		24V	5A
KVC-36120-DMXJ-YT		36V	3.33A
KVC-48120-DMXJ-YT		48V	2.5A

KVC-C24192-2G-DMXJ-YT	192W	24V	2*4A	Yee	cUL, UL, FCC, ICES, CE, RoHS, Okutuuka ku nsonga eno	PF≥0.95	CCT Okuziba	293 * 125 * 42.7mm
KVC-C36192-2G-DMXJ-YT nga bano		36V	2*2.67A
KVC-C48192-2G-DMXJ-YT nga bano		48V	2*2A
KVC-12200-2G-DMXJ-YT	200W	12V	16.67A	Nedda
KVC-24200-2G-DMXJ-YT		24V	8.33A
KVC-36200-2G-DMXJ-YT		36V	5.56A
KVC-48200-2G-DMXJ-YT		48V	4.16A

KVC-C24288-3G-DMXJ-YT nga bano	288W	24V	3*4A	Yee	cUL, UL, FCC, ICES, CE, RoHS, Okutuuka ku nsonga eno	PF≥0.93	RGB CCT Okuziba	316 * 125 * 42.7mm
KVC-C36288-3G-DMXJ-YT		36V	3*2.67A
KVC-C48288-3G-DMXJ-YT		48V	3*2A
KVC-12300-3G-DMXJ-YT	300W	12V	25A	Nedda
KVC-24300-3G-DMXJ-YT		24V	12.5A
KVC-36300-3G-DMXJ-YT		36V	8.33A
KVC-48300-3G-DMXJ-YT		48V	6.25A
