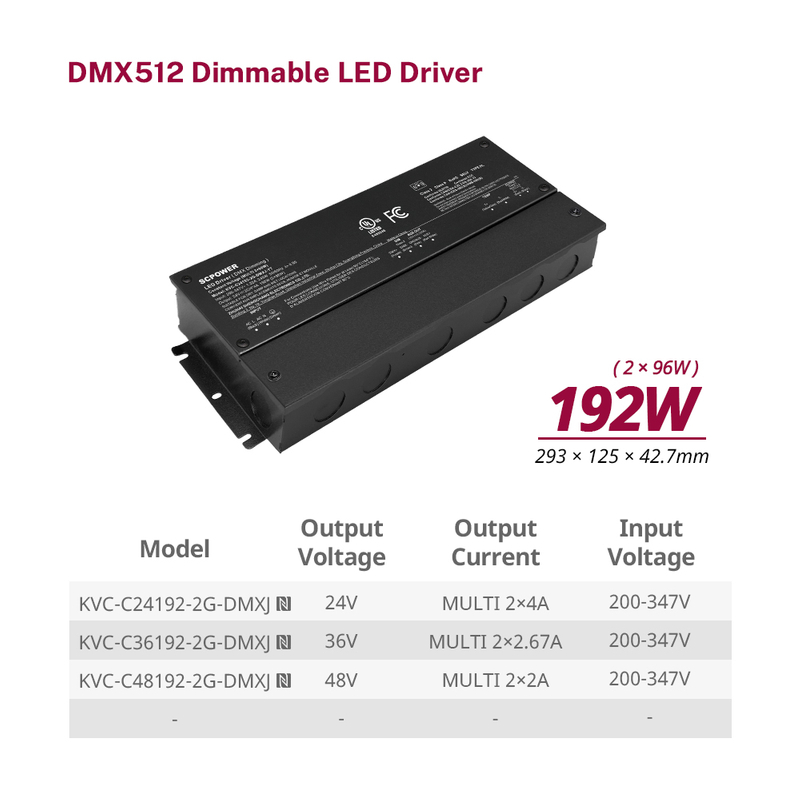

192W 200W CCT DMX512 Dimming Constant Voltage LED Light Driver 200 - 347 Volt AC

192W 200W CCT DMX512 Dimming Constant Voltage LED Light Driver 200 - 347 Volt AC

Kapangyarihan ng Ouput:	192W Klase 2 200W
Availability:



Magtanong Idagdag sa Basket

modelo:
KVC-DMXJ
Uri ng Dimming:
DMX512
Nakahiwalay na Uri:
Nakahiwalay
Uri ng Output:
Patuloy na Boltahe
Mga Output na Channel:
Pagdidilim, CCT
Rate ng IP:
IP66, Tuyo at Mamasa-masa, Basa
Input Voltage:
100-277VAC
Output Power:
200W, 192W
Output Voltage:
12/ 24/ 36/ 48V
Sertipikasyon:
UL & cUL, FCC, Class 2, ICES, RoHS, REACH

Advantage

192W 200W CCT DMX512 Dimming Constant Voltage LED Light Driver 200 - 347 Volt AC

Walang kurap,

output dimming frequency 20KHz umabot sa exemption level,

Digital dimming,

solong kontrol ng ilaw,

may pantulong na supply ng kuryente at kontrol sa temperatura

Mga tampok

● Output: Patuloy na Boltahe

● Saklaw: 200-347VAC

● Disenyo ng PFC: Built-in na aktibong PFC function

● Efficiency: Hanggang 93.5%

● Mga Proteksyon: Short circuit / Over load / Over temperature

● Pag-alis ng init: Paglamig sa pamamagitan ng libreng air convection

● Hindi tinatablan ng tubig na pagganap: Buong proteksyon Aluminum housing, para sa tuyo, mamasa-masa at basa na mga lokasyon

● Dimming function: DMX512 dimming

● Dimming range: 0.1-100%

● Function ng NFC: I-fine tune ang output voltage, isulat at basahin ang address

● Application: Angkop para sa LED lighting at moving sign applications

● Warranty: 5 taon na warranty

Pagtutukoy ng 192W 200W CCT DMX512 LED Light Driver

Numero ng Modelo	Watts	Output Voltage	Kasalukuyang Output	Klase 2	Mga listahan	Power Factor (Typ.)	Output Mode	Sukat	Timbang
KVC-12060-DMXJ-YT	60W	12V	5A	Oo	cUL, UL, FCC, ICES, CE, RoHS, Reach	PF≥0.95	Pagdidilim	202.5114.240mm
KVC-24060-DMXJ-YT		24V	2.5A
KVC-36060-DMXJ-YT		36V	1.67
KVC-48060-DMXJ-YT		48V	1.25A

KVC-24096-DMXJ-YT	96W	24V	4A	Oo	cUL, UL, FCC, ICES, CE, RoHS, Reach	PF≥0.93	Pagdidilim	24112540mm
KVC-36096-DMXJ-YT		36V	2.67A
KVC-48096-DMXJ-YT		48V	2A
KVC-12100-DMXJ-YT	100W	12V	8.34A	Hindi
KVC-24100-DMXJ-YT		24V	4.17A
KVC-36100-DMXJ-YT		36V	2.78A
KVC-48100-DMXJ-YT		48V	2.09A
KVC-12120-DMXJ-YT	120W	12V	10A	Hindi
KVC-24120-DMXJ-YT		24V	5A
KVC-36120-DMXJ-YT		36V	3.33A
KVC-48120-DMXJ-YT		48V	2.5A

KVC-C24192-2G-DMXJ-YT	192W	24V	2*4A	Oo	cUL, UL, FCC, ICES, CE, RoHS, Reach	PF≥0.95	ng CCT Pagdidilim	29312542.7mm
KVC-C36192-2G-DMXJ-YT		36V	2*2.67A
KVC-C48192-2G-DMXJ-YT		48V	2*2A
KVC-12200-2G-DMXJ-YT	200W	12V	16.67A	Hindi
KVC-24200-2G-DMXJ-YT		24V	8.33A
KVC-36200-2G-DMXJ-YT		36V	5.56A
KVC-48200-2G-DMXJ-YT		48V	4.16A

KVC-C24288-3G-DMXJ-YT	288W	24V	3*4A	Oo	cUL, UL, FCC, ICES, CE, RoHS, Reach	PF≥0.93	RGB CCT Dimming	31612542.7mm
KVC-C36288-3G-DMXJ-YT		36V	3*2.67A
KVC-C48288-3G-DMXJ-YT		48V	3*2A
KVC-12300-3G-DMXJ-YT	300W	12V	25A	Hindi
KVC-24300-3G-DMXJ-YT		24V	12.5A
KVC-36300-3G-DMXJ-YT		36V	8.33A
KVC-48300-3G-DMXJ-YT		48V	6.25A
