Oli wano: Ewaka / Ebintu ebikolebwa / Triac Dimmable LED Ddereeva wa LED / KVF-TDW Series 100-277V Omutindo gwa CV / Class 2 180W 300W 96W 192W 288W 384W Triac Dimmable LED Amasannyalaze CV 110vac 120vac n’okudda waggulu

Ekika ky'ebintu

okutikka

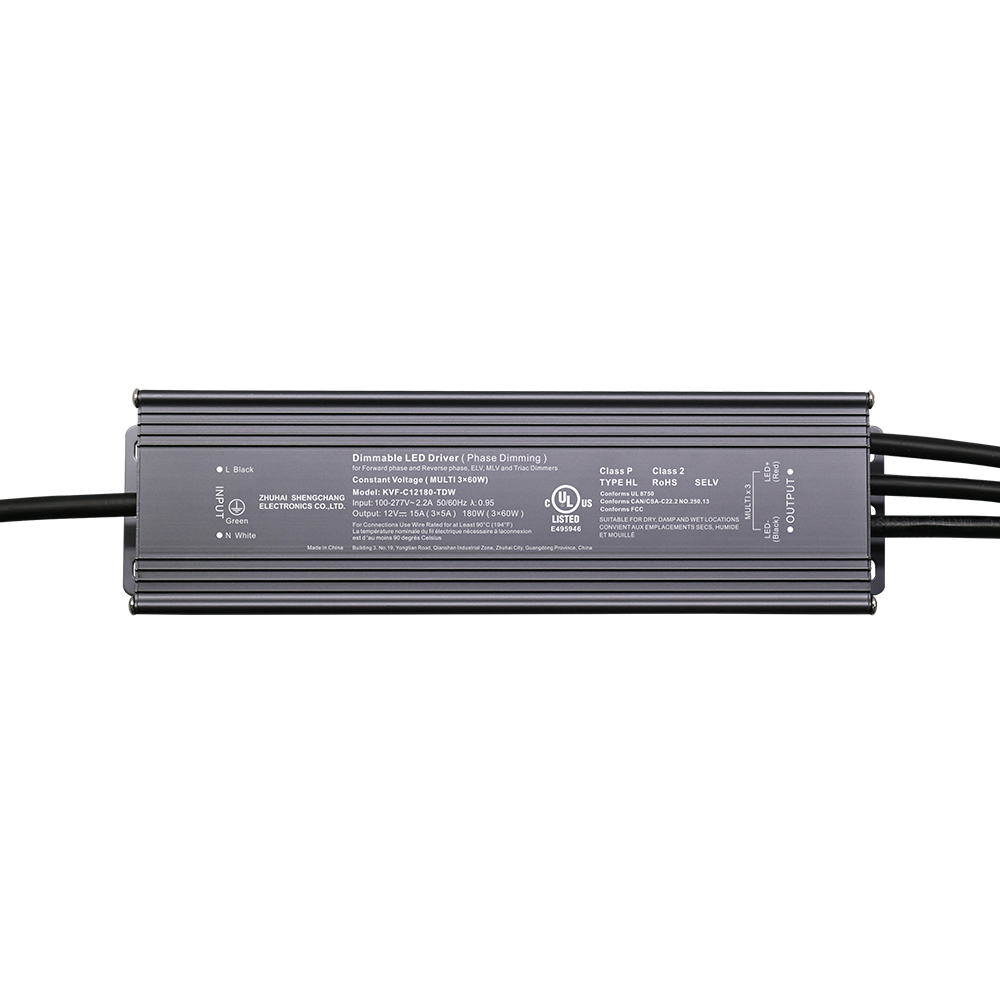

Class 2 180W 300W 96W 192W 288W 384W Triac Dimmable LED Amasannyalaze CV 110vac 120vac n’okudda waggulu

Amaanyi ga Ouput:
180W
192W
288W
300W
384W
Okubeerawo:
Buuza Yongera ku Basket

  • Triac

  • Kifikkiriza

  • Voltage etakyukakyuka

  • Okuzikira

  • IP66, Enkalu & Ennyogovu, Ennyogovu

  • 100-277VAC

  • 180W, 192W, 288W, 384W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Ekibiina eky’okubiri, CE, RoHS, REACH

Ekirungi kya

Class 2 180W 300W 96W 192W 288W 384W Triac Dimmable LED Amasannyalaze CV 110vac 120vac n’okudda waggulu



Ebifulumizibwa:

Voltage etakyukakyuka

Ebanga:

100-277VAC

Dizayini ya PFC:

Omulimu gwa PFC ogukola oguzimbibwamu

Obukuumi:

Short circuit/ okutikka okusukkiridde/ okusukka ebbugumu

Okusaasaanya ebbugumu:

Okunyogoza nga tuyita mu kukyusa empewo ey’obwereere

Omulimu gw’okuziyiza amazzi:

Full protection aluminium housing, ku kifo ekikalu, ennyogovu & ennyogovu

Omulimu gw’okuzibikira:

Okuziba ekitundu: kola ne Forward phase, MLV ne Reverse phase, ELV, TRIAC dimmers.

Dimming range:

0-100% .

Okusaba:

Esaanira okukozesa amataala ga LED

Waranti:

Waranti ya myaka 5



Okunnyonnyola


Amaanyi agafuluma

Ebifulumizibwa

Ennamba ya Model

Voltage efuluma

Ebifulumizibwa Current

Obunene

Obuzito

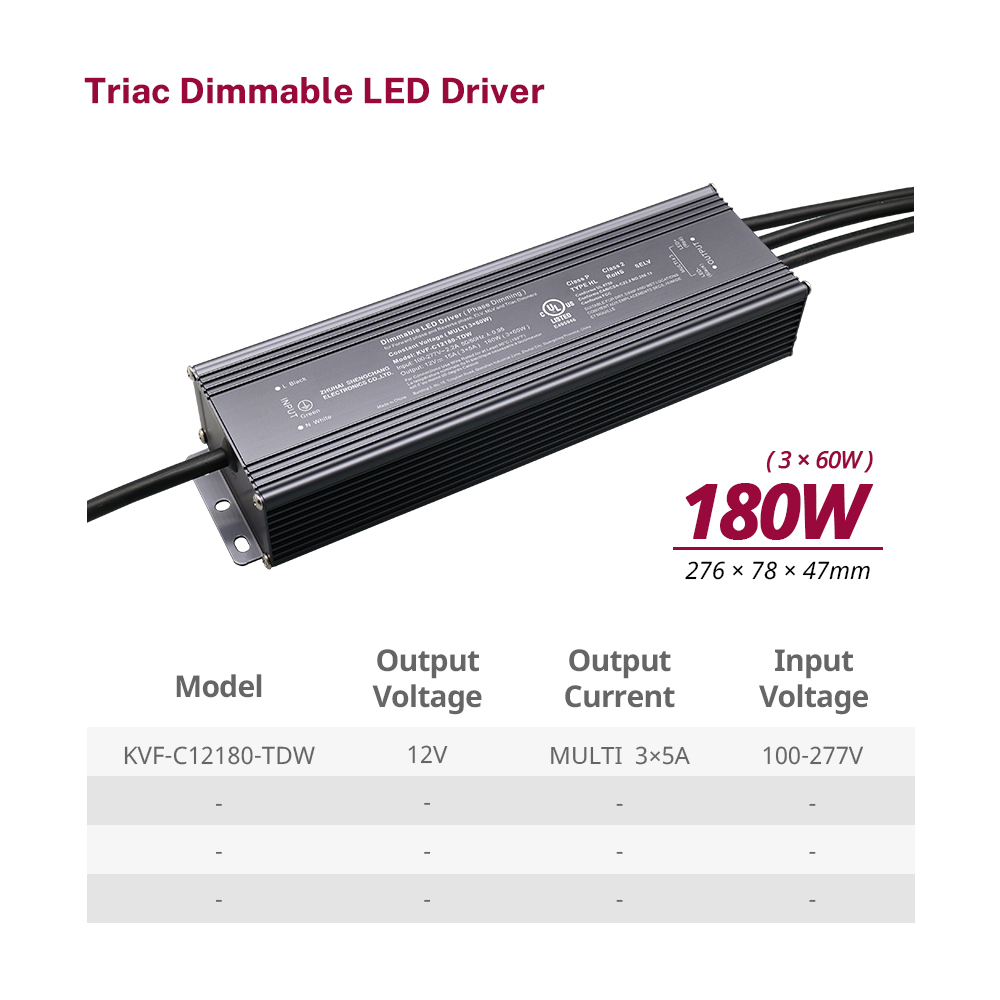

180W
(60W * 3) nga bwe kiri.

Emikutu 3

KVF-C12180-TDW

12V

5A * 3

276*78*47mm

kkiro emu n’ekitundu

300W
(60W * 5) .

Emikutu 5

KVF-C12300-TDW

12V

5A * 5. Ebiragiro

301 * 110 * 45mm

kkiro 1.88

96W
(96W * 1) .

1 omukutu

KVF-24096-TDW

24V

4A

230*70*43mm

kkiro 1.12

KVF-36096-TDW

36V

2.67A

KVF-48096-TDW

48V

2A

192W
(96W * 2) .

emikutu 2

KVF-C24192-TDW

24V

4A * 2.

276*78*47mm

kkiro emu n’ekitundu

KVF-C36192-TDW

36V

2.67A * 2

KVF-C48192-TDW

48V

2A * 2.

288W
(96W * 3) .

Emikutu 3

KVF-C24288-TDW

24V

4A * 3.

301 * 110 * 45mm

kkiro 1.88

KVF-C36288-TDW

36V

2.67A * 3

KVF-C48288-TDW

48V

2A * 3

384W
(96W * 4) .

emikutu 4

KVF-C24384-TDW

24V

4A * 4.

322 * 78 * 44mm

kkiro 1.95

KVF-C36384-TDW

36V

2.67A * 4

KVF-C48384-TDW

48V

2A * 4.


Ekifaananyi kya Waya za Ddereeva wa Triac LED

Ekifaananyi kya Waya za Ddereeva wa Triac LED


Ekifaananyi kya waya za Ddereeva wa Triac LED (1) .Ekifaananyi kya waya za Ddereeva wa Triac LED (2) .


Triac LED Driver Size(laba spec okuwanula)


Class 2 180W 300W 96W 192W 288W 384W Triac Dimmable LED Amasannyalaze CV 110vac 120vac n’okudda waggulu

Amaanyi agagereddwa: 180W 300W 96W 192W 288W 384W

Enteekateeka ya Voltage eya bulijjo

Voltage eyingizibwa: 100-277VAC (100vac 120vac)

47-63HZ Obuwanvu bwa Frequency

0.99@120VAC 0.95@277VAC Ensonga y’Amasannyalaze(Typ.)@ omugugu omujjuvu

okufuna 180W 192W KVF-C-TDW.pdf

okufuna spec_triac dim CV 288W 300W KVF-C-TDW.pdf

okufuna spec_triac dim CV 384W KVF-C-TDW.pdf

okufuna spec_triac dim CV 48V 192W KVF-C-TDW.pdf

okufuna spec_triac dim CV 48V 288W KVF-C-TDW.pdf

okufuna spec_96W Triac ekizikiza. Omuvuzi wa CV KVF-TDW 24V.pdf
