Ditiɛl fɔ di Prodakt dɛn

Yu de ya: Os / Prodakt dɛn we dɛn kin mek / Triac Dimmable LED Drayva we yu kin yuz / KVF-TDW seri 100-277v cv standad / Klas 2 180W 300W 96W 192W 288W 384W Triac Dimmable LED Pawa Saplai CV 110vac 120vac ɛn ɔp

Di Kategori fɔ Prodakt

we dɛn de lod

Klas 2 180W 300W 96W 192W 288W 384W Triac Dimmable LED Pawa Saplai CV 110vac 120vac ɛn ɔda wan dɛn

Ouput Pawa: .
180W
192W
288W
300W we yu de yuz
384W
Di tin dɛn we yu kin gɛt:
Aks kwɛstyɔn Add to Basket na di say we yu de

  • Triac

  • Fa say

  • Kɔnstant Vɔltɛm

  • Dimming

  • IP66, Dray & Damp, Wet

  • 100-277VAC we yu go yuz

  • 180W, 192W, 288W, 384W, ɛn ɔda pipul dɛn

  • 12/ 24/ 36/ 48V. Di wan dɛn we de wok

  • UL & cUL, FCC, Klas 2, C. E., RoHS, RICH

Bɛnifit

Klas 2 180W 300W 96W 192W 288W 384W Triac Dimmable LED Pawa Saplai CV 110vac 120vac ɛn ɔda wan dɛn



Di tin we dɛn kin du: .

Kɔnstant Vɔltɛm

Te:

100-277VAC we yu go yuz

PFC dizayn: .

Bilt-in aktif PFC funkshɔn

Di tin dɛn we go protɛkt wi:

Short sirkit/ ova lod/ ova temperechur

Di we aw di ɔt de pwɛl:

Kulin bay fri ay kɔnvɛkshɔn

Watapruf pefɔmɛns:

Ful protɛkshɔn aluminiɔm haus, fɔ dray, damp & wet ples

Dimming funkshɔn: .

Faz dimin: wok wit Fɔwad faz, MLV ɛn Rivas faz, ELV, TRIAC dim.

Dimming rɛnj: .

0-100% na di .

Aplay fɔm:

I fayn fɔ di aplikeshɔn fɔ LED layt

Waranti:

5 ia warranty



Spɛsifikeshɔn


Ɔtput Pawa

Di tin we dɛn kin du

Mɔdel Nɔmba

Ɔtput Vɔltɛm

Ɔtput Kɔrɛnt

Sayz

We

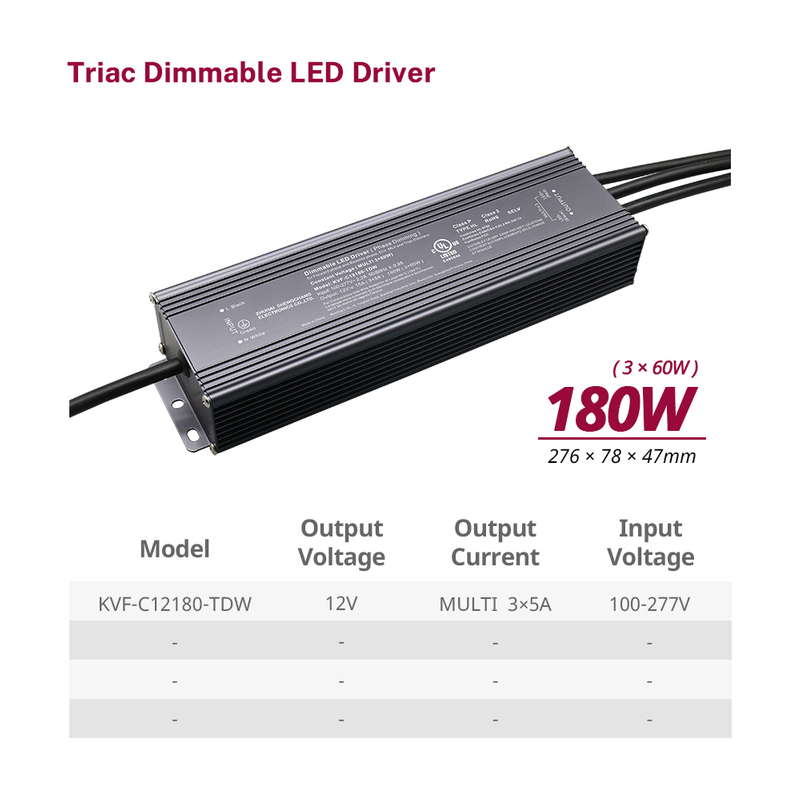

180W
(60W * 3) .

3 chanɛl dɛn

KVF-C12180-TDW, di wan dɛn we de wok

12V

5A * 3. Di wan dɛn we de wok

276 * 78 * 47 mm

1.6kg we yu de yuz

300W
(60W * 5) .

5 chanɛl dɛn

KVF-C12300-TDW, di wan dɛn we de wok

12V

5A * 5. Di wan dɛn we de wok

301 * 110 * 45 mm

1,88kg we yu de yuz

96W
(96W * 1) .

1 chanɛl

KVF-24096-TDW, di wan dɛn we de wok

24V

4A

230 * 70 * 43 mm

1,12kg we yu de yuz

KVF-36096-TDW, di wan dɛn we de wok

36V

2.67A

KVF-48096-TDW, di wan dɛn we de wok

48V

2A

192W
(96W * 2) .

2 chanɛl dɛn

KVF-C24192-TDW, di wan dɛn we de wok

24V

4A * 2. Di wan dɛn we de wok

276 * 78 * 47 mm

1.6kg we yu de yuz

KVF-C36192-TDW, di wan dɛn we de wok

36V

2.67A * 2. Na di 2.67A

KVF-C48192-TDW, di wan dɛn we de wok

48V

2A * 2. Di wan dɛn we de wok

288W
(96W * 3) .

3 chanɛl dɛn

KVF-C24288-TDW, di wan dɛn we de wok

24V

4A * 3. Di wan dɛn we de wok

301 * 110 * 45 mm

1,88kg we yu de yuz

KVF-C36288-TDW, di wan dɛn we de wok

36V

2.67A * 3. Di wan dɛn we de wok

KVF-C48288-TDW, di wan dɛn we de wok

48V

2A * 3. Di wan dɛn we de wok

384W
(96W * 4) .

4 chanɛl dɛn

KVF-C24384-TDW, di wan dɛn we de wok

24V

4A * 4. Di wan dɛn we de wok

322 * 78 * 44 mm

1,95kg we yu de yuz

KVF-C36384-TDW, di wan dɛn we de wok

36V

2.67A * 4. Di wan dɛn we de wok

KVF-C48384-TDW, di wan dɛn we de wok

48V

2A * 4. Di wan dɛn we de wok


Triac LED draiva wiring diagram

Triac LED draiva wiring diagram


Triac LED draiva wiring diagram (1) .Triac LED draiva wiring diagram (2) .


Triac LED Drayva Sayz(luk di spec dawlod)


Klas 2 180W 300W 96W 192W 288W 384W Triac Dimmable LED Pawa Saplai CV 110vac 120vac ɛn ɔda wan dɛn

Rated pawa opshɔn dɛn: 180w 300w 96w 192w 288w 384w

Dizayn fɔ Kɔnstant Vɔltɛm

Input Vɔltɛm Rɛnj: 100-277VAC (100vac 120vac)

47-63HZ Frikyuɛnsi Rɛnj

0.99@120VAC 0.95@277VAC Pawa Faktɔ(Typ.)@ ful lod

dɔŋlod spec_triac dim CV 180W 192W KVF-C-TDW.pdf

dɔŋlod spec_triac dim CV 288W 300W KVF-C-TDW.pdf

dɔŋlod spec_triac dim CV 384W KVF-C-TDW.pdf. Di wan dɛn we de wok fɔ di kɔmni

dɔŋlod spec_triac dim CV 48V 192W KVF-C-TDW.pdf

dɔŋlod spec_triac dim CV 48V 288W KVF-C-TDW.pdf

dɔŋlod spec_96W Triak dim. CV drayva KVF-TDW 24V.pdf
