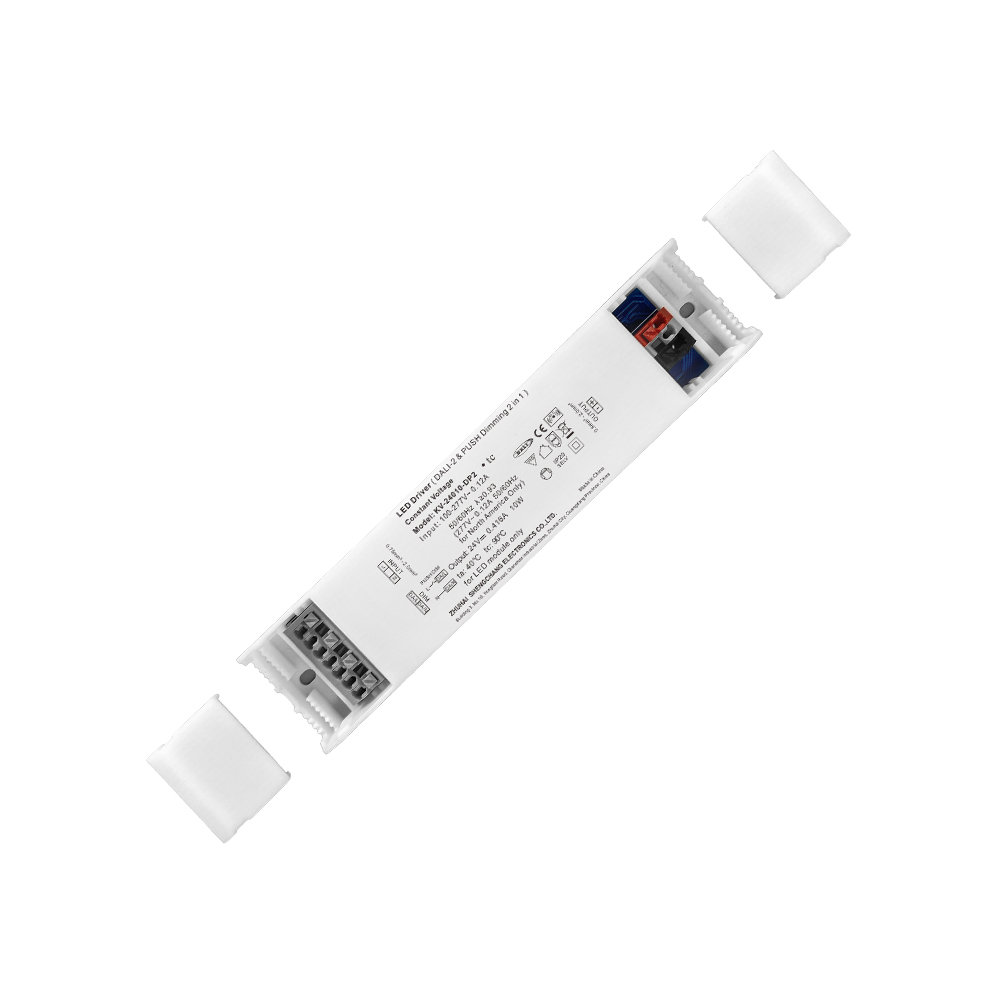

DP2 10W 20W CV DALI 2 Ddereeva wa LED ow’okusika 12Volt 24Volt 36Volt 48Volt

Okubeerawo:
Buuza Yongera ku Basket

  • DALI-2 Okusika

  • Kifikkiriza

  • Voltage etakyukakyuka

  • Okuzikira

  • IP20

  • 100-277VAC

  • 10W, 20W, 1000

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Ekibiina kya 2


Ekirungi kya

DP2 10W 20W CV DALI 2 Ddereeva wa LED ow’okusika 12Volt 24Volt 36Volt 48Volt


·Vultage y’okuyingiza 100-277V AC

·4K Hz PWM frequency, Flicker Free, okuzikira obulungi

·Ezimbiddwamu omulimu gwa PFC ogukola

·Efficiency okutuuka ku% .

·Obukuumi: short circuit, omugugu ogusukkiridde, ebbugumu erisukkiridde

·Okunyogoza nga tuyita mu kukyusa empewo ey’obwereere

· Ennyumba ezikuuma aluminiyamu mu bujjuvu, ku bifo ebikalu, ebinyogovu & ebibisi ( US )

·Omulimu gw’okuzibikira:  DALI-2 okuziba, Push Dimming

· Omulimu gwa NFC:   Teekateeka vvulovumenti efuluma katono

·Ekifo ekizikiza: 0-100%

· Esaanira okukozesa amataala nga olina digital dimming

·Okukola dizayini ya IP20

·Waranti5 emyaka


Okunnyonnyola


Amaanyi agafuluma

Ennamba ya Model

Voltage efuluma

Ebifulumizibwa Current

Obunene

Obuzito

10W

KV-12010-DP2

12V

0.83A

148 * 33 * 20mm (Obuwanvu * Obugazi * Obugulumivu)

KV-24010-DP2

24V

0.42A

KV-36010-DP2

36V

0.28A

KV-48010-DP2

48V

0.21A

20W

KV-12020-DP2

12V

1.67A

KV-24020-DP2

24V

0.83A

KV-36020-DP2

36V

0.56A

KV-48020-DP2

48V

0.42A


okufuna spec_10W DALI-2 OKUSINDIKA okuzikira. Ddereeva wa CV KV-DP2 12V&24V.pdf

okufuna spec_20W DALI-2 OKUSINDIKA ekizikiza. Ddereeva wa CV KV-DP2 12V&24V.pdf
