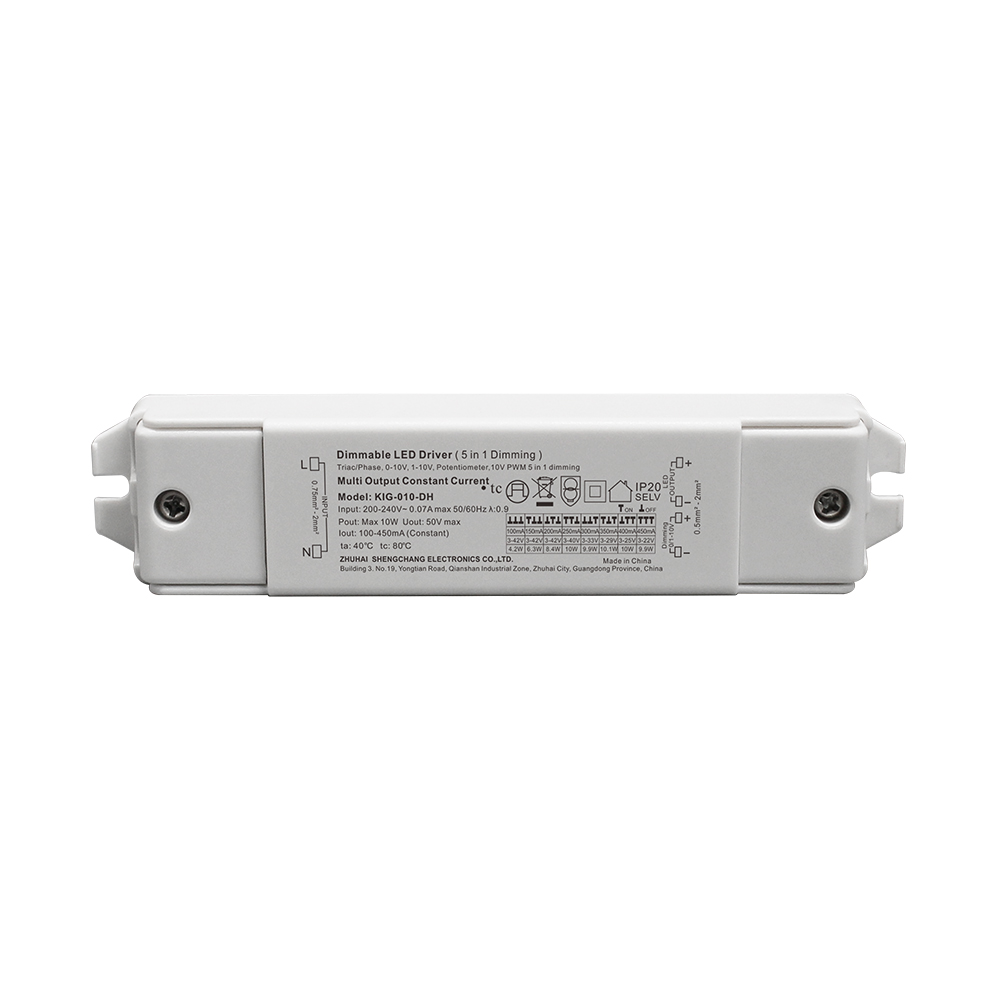

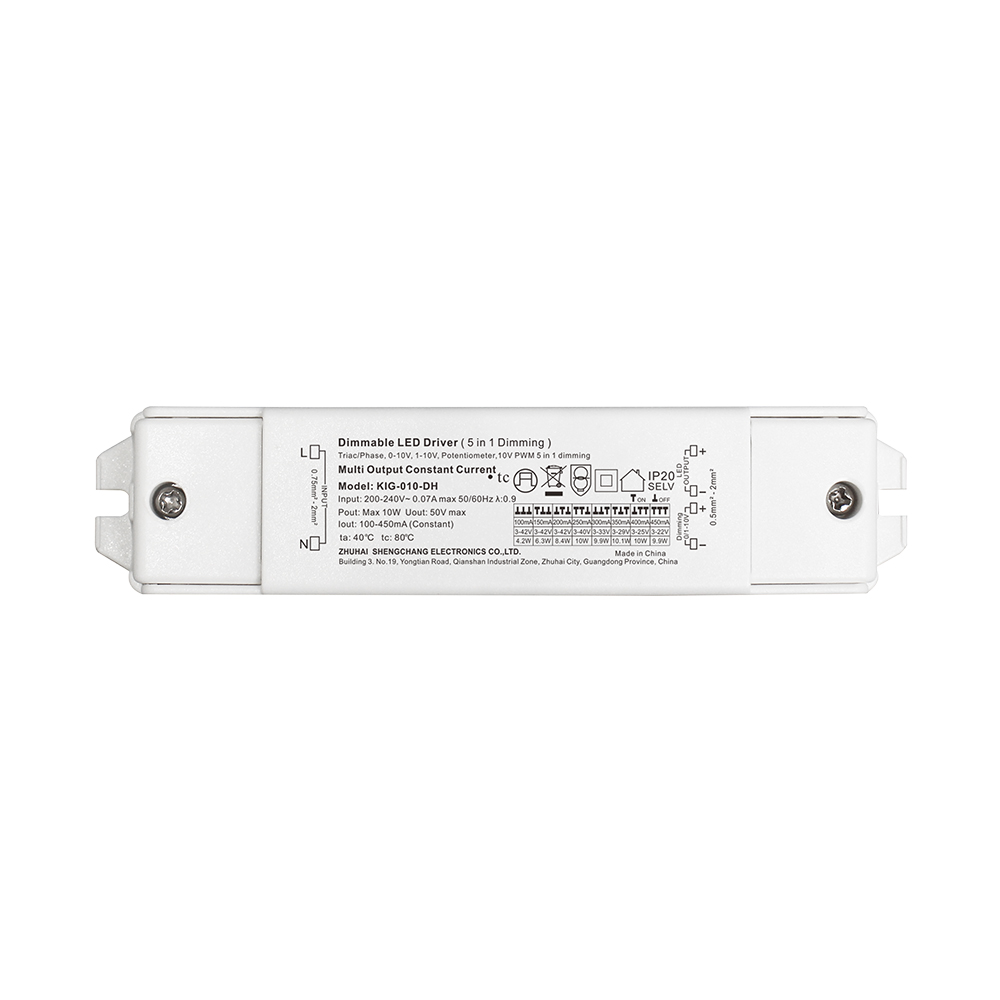

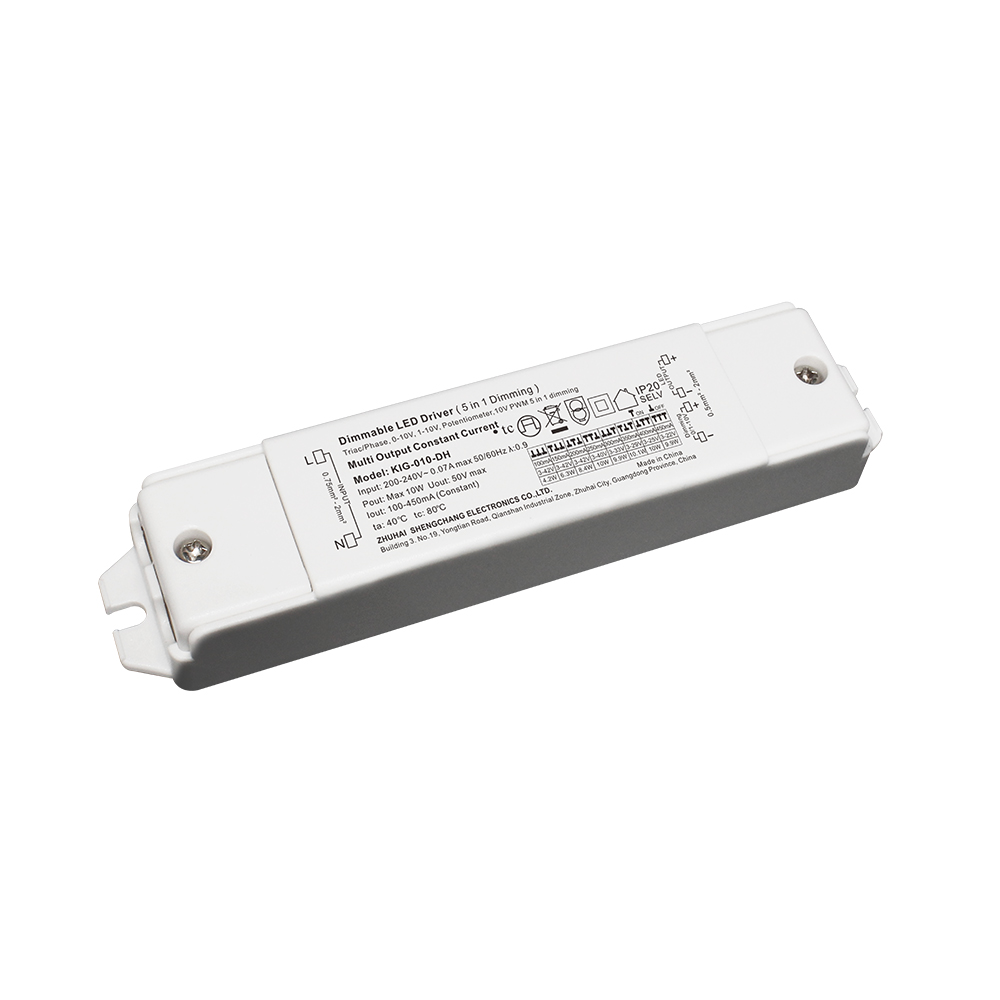

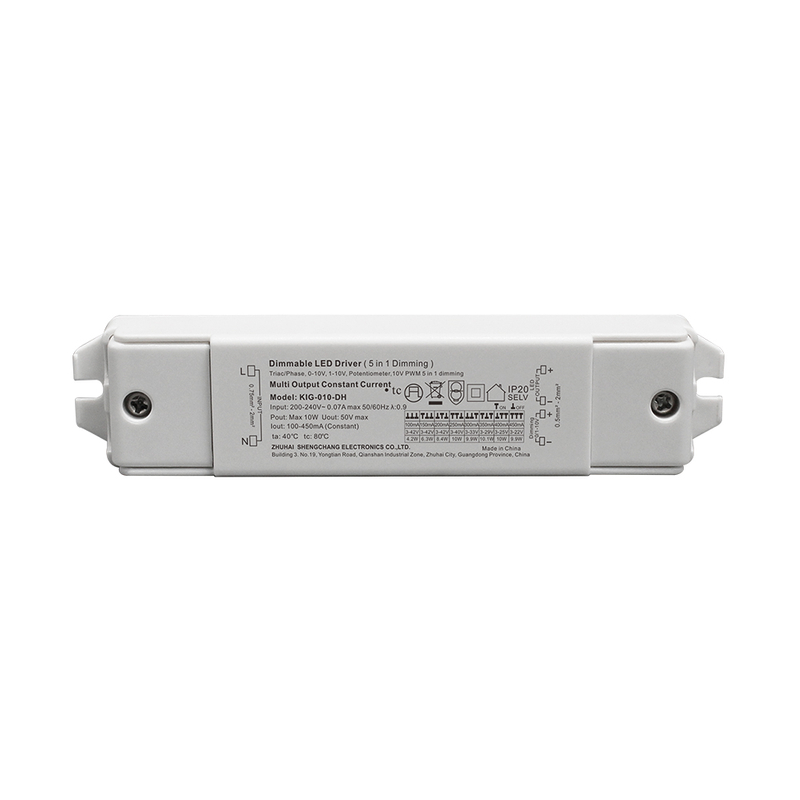

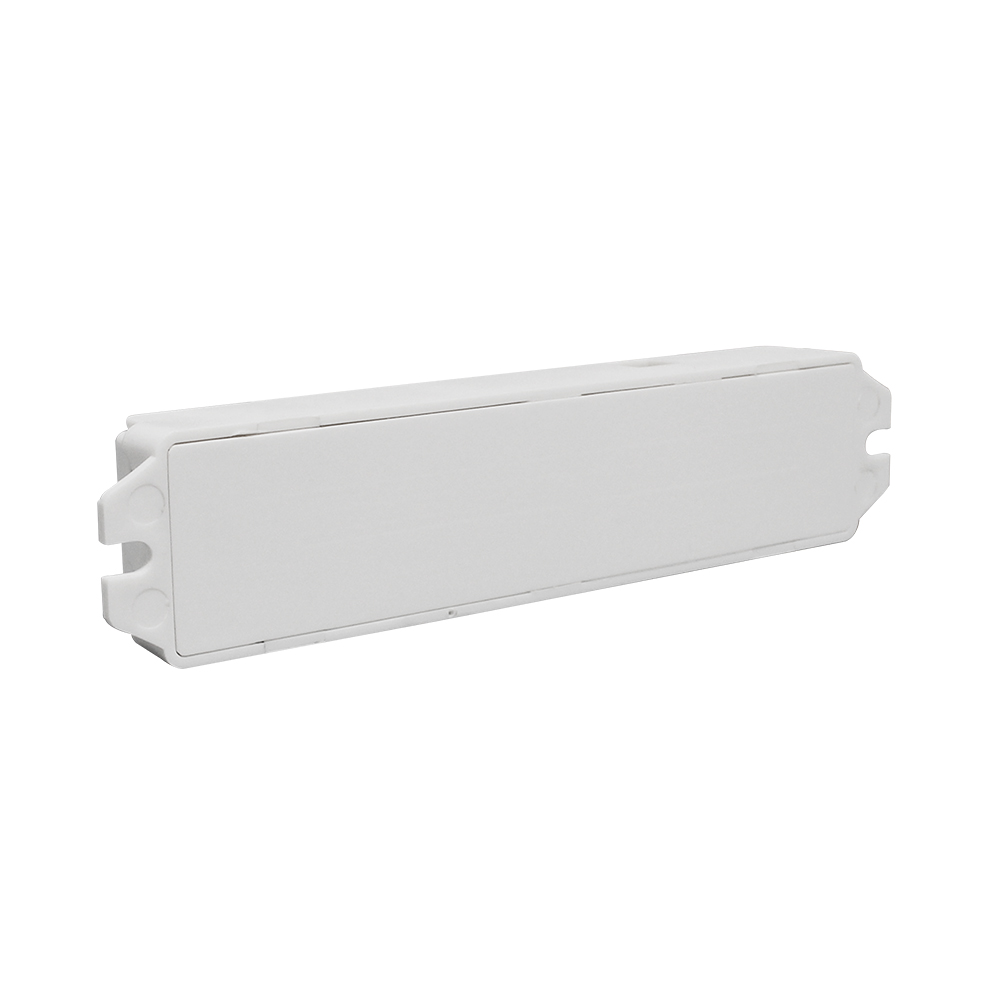

10 20 40 60 Watt CC Triac 0-10V Igereranya LED Umushoferi 220 230 240 Volt

Icyitegererezo:
KIG-010-DH
KIG-020-DH
KIG-040-DH
KIG-060-DH
Kuboneka:
Baza Ongeraho Igitebo

  • Triac 0-10V

  • Kwigunga

  • Umuvuduko uhoraho

  • Dimming

  • IP20, Kuma & Damp

  • 200-240VAC

  • 10W, 20W, 40W, 60W

  • 3V-42V

  • SAA, ENEC, CB, CE, RoHS, KUGERAHO

Ibyiza

10 20 40 60 Watt CC Triac 0-10V Igereranya LED Umushoferi 220 230 240 Volt


Ibisohoka:

Ihoraho

Urwego:

200-240VAC

Igishushanyo cya PFC:

Byubatswe mubikorwa bya PFC

Kurinda:

Inzira ngufi / hejuru yubushyuhe

Gukwirakwiza ubushyuhe:

Gukonjesha ukoresheje umwuka wubusa

Imikorere idakoresha amazi:

IP20 (EU)

Igikorwa cyo kugabanya:

Icyiciro cya dimingi: kora hamwe nuyoboye, MLV nu murongo ukurikira, ELV, TRIAC dimmers

0-10V gucana: 0-10V / 1-10V / Potentiometero / 10V PWM 4 muri 1

Ikigereranyo cyerekana:

1-100%

Gusaba:

Bikwiranye no gukoresha amatara yo mu nzu

Garanti:

Garanti yimyaka 5

Ibisobanuro


Imbaraga zisohoka

Umubare w'icyitegererezo

Ibisohoka

Ingano

Ibiro

10W

KIG-010-DH

3-42V 100mA

135 * 30 * 20mm

0.10Kg

3-42V 150mA

3-42V 200mA

3-40V 250mA

3-33V 300mA

3-29V 350mA

3-25V 400mA

3-22V 450mA

20W

KIG-020-DH

3-42V 250mA

159.5 * 43 * 20mm

0.15K

3-42V 350mA

3-42V 400mA

3-42V 450mA

3-40V 500mA

3-36V 550mA

3-33V 600mA

3-29V 700mA

40W

KIG-040-DH

3-50V 300mA

171.5 * 54 * 20mm

0.17Kg

3-50V 350mA

3-50V 400mA

3-50V 450mA

3-50V 500mA

3-50V 550mA

3-50V 600mA

3-50V 650mA

3-50V 700mA

3-50V 800mA

3-45V 900mA

3-40V 1000mA

3-37V 1100mA

3-34V 1200mA

3-31V 1300mA

3-29V 1400mA

60W

KIG-060-DH

3-50V 600mA

192.5 * 62 * 24mm

0.30Kg

3-50V 700mA

3-50V 800mA

3-50V 900mA

3-50V 1000mA

3-50V 1100mA

3-50V 1200mA

3-46V 1300mA

3-43V 1400mA

3-40V 1500mA

3-38V 1600mA

3-35V 1700mA

3-33V 1800mA

3-32V 1900mA

3-30V 2000mA

3-29V 2100mA



Triac & 0-10V LED Amashanyarazi Amashanyarazi

Triac & 0-10V LED Amashanyarazi


Triac & 0-10V LED Amashanyarazi (2)Triac & 0-10V LED Amashanyarazi (1)


Triac &  0-10V LED  Ingano yo gutanga amashanyarazi:

Triac & 0-10V LED Ingano yo gutanga amashanyarazi



Kuramo Ubwoko_10W Triac 0-10V dim.CC Umushoferi KIG-DH.pdf

Kuramo Ubwoko_20W Triac 0-10V dim.CC Umushoferi KIG-DH.pdf

Kuramo Ubwoko_40W Triac 0-10V dim.CC Umushoferi KIG-DH.pdf

Kuramo Ubwoko_60W Triac 0-10V dim.CC Umushoferi KIG-DH.pdf
