Choosing the wrong dimming method is the costliest mistake in any LED project. Homeowners, facility managers, and architects all face the same question. Which system fits the budget, the existing wiring, and the control needs?
A cheap dimmer may flicker. An advanced protocol may need new cables. These problems waste money and time. The three main choices are triac dimming, 0-10v control, and dali. Each one works best in different spaces and for different goals.

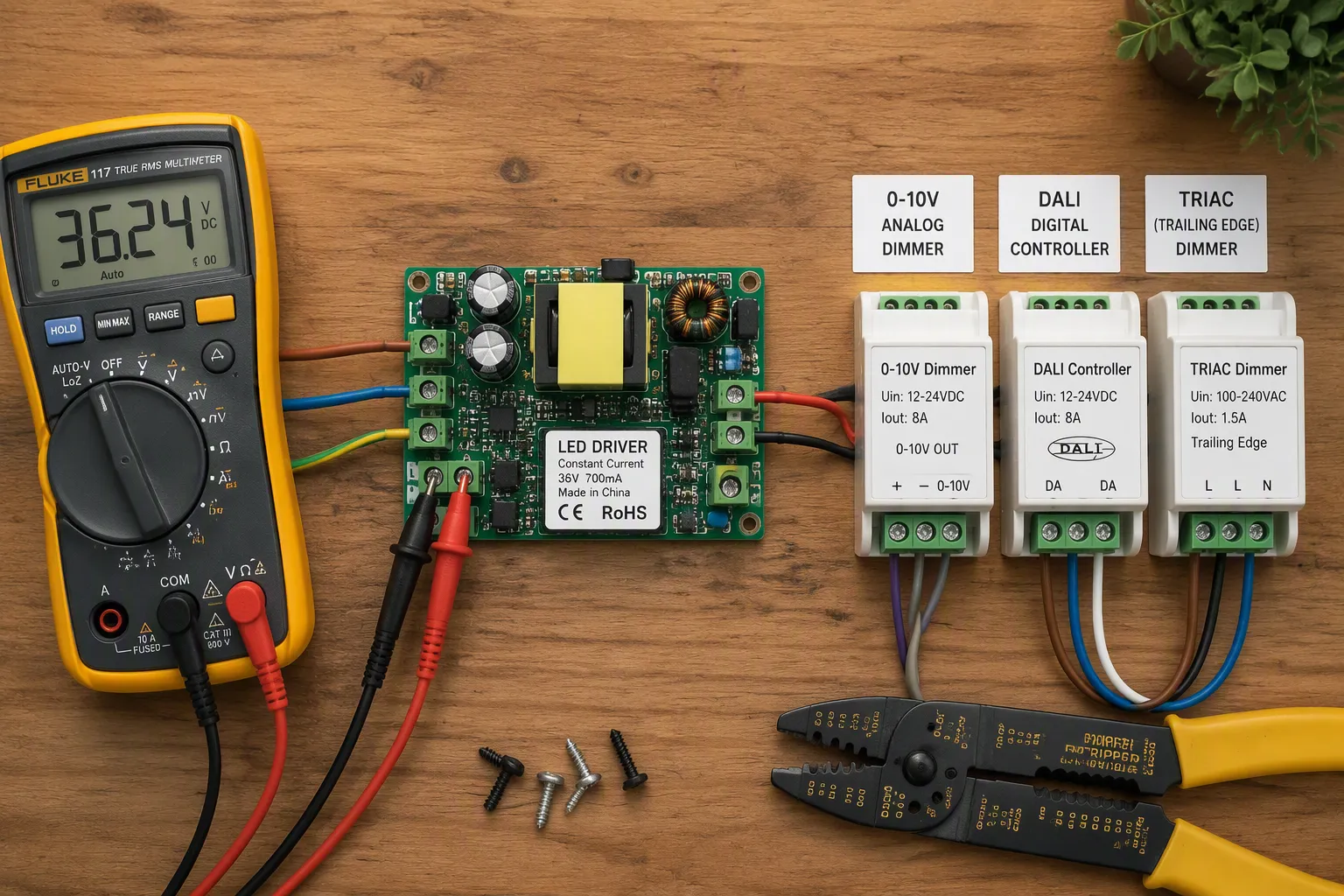

This guide explains how each method works. It compares them side by side on cost, precision, and scalability. It also gives a clear framework for matching a lighting control system to a real installation. Readers can then choose with confidence.
Table of Contents
Toggle
Key Takeaways
Pick TRIAC dimming for low-cost home upgrades that use the wiring you already have.
Use 0-10V dimming to get smooth commercial lighting across large areas.
Choose DALI dimming for better control and individual addressing in large buildings.
Pick a dimmer protocol that works with the LED driver to prevent flicker and failure.
TRIAC dims only 10-20%. 0-10V dims down to 1%. DALI gives you exact digital control.
TRIAC uses the AC wires already in place. 0-10V needs two low-voltage wires. DALI uses a two-wire bus.
TRIAC costs the least at the start. 0-10V costs a medium amount. DALI costs more, but it saves energy over time.
Triac Dimming: Simple Retrofit Solution
Triac dimming is still the most common way to control lights in older homes. It works by cutting the AC sine wave to lower the power that gets through. This method is called phase-cut control. There are two types: leading-edge and trailing-edge. Leading-edge triac dimmers cut the front of the waveform. Trailing-edge dimmers cut the back. Most older triac dimmers use leading-edge technology with mechanical switches. Trailing-edge models use electronic MOSFET or IGBT transistors instead.
Wiring for triac dimming is easy. A regular wall dimmer takes the place of the old light switch. You do not need any extra control wires. This makes triac dimming the simplest retrofit choice for home lighting. Homeowners can put in these devices without running new cables. But how led dimming works with triac systems depends a lot on the driver inside each fixture.
How Triac Dimming Controls LED Output
A triac dimmer lowers the average voltage sent to the lighting load. The dimmer fires at a certain point in each AC cycle. This action limits the energy that reaches the led lights. The result is less light output. For incandescent bulbs, this method works smoothly. For led lighting, the process is more complex. The driver has to read the chopped waveform the right way.
Whether the dimmer and driver work together decides if it succeeds. A driver made for trailing-edge control may not work with a leading-edge triac dimmer. This mismatch causes unstable dimming or dead zones where nothing happens. The table below shows the key differences between the two phase-cut methods.
Feature
Leading-Edge (TRIAC)
Trailing-Edge (ELV / MOSFET)
Phase Cut Type
Beginning of the AC sine wave
End of the AC sine wave
Switch Type
Mechanical
Electronic
Compatibility
Halogen, incandescent, some LEDs
Most modern LEDs
Common Problems
Flicker, buzzing at low loads
Less noise, smoother control
Cost
Lower
Slightly higher
Pros, Cons, and Best Use Cases
The main good point of triac dimming is low cost and simple setup. These dimmers work well in home retrofits where wiring cannot change. They also fit simple lighting setups with a single control point. However, several bad points affect performance. Flickering is the most common complaint. This problem often comes from driver and dimmer incompatibility. Using non-dimmable LEDs or going below the dimmer's minimum load also causes flicker.
Minimum load requirements create another problem. Traditional triac dimmers were built for higher-wattage incandescent loads. Low-power LED lights may not pull enough current to work right. This leads to flashing, erratic dimming, or ghosting. Ghosting means the LEDs stay faintly lit after switch-off. Buzzing and humming also happen when the dimmer and driver are poorly matched. Audible noise comes from component vibration caused by the chopped waveform.
Trailing-edge dimming fixes many of these issues. This technology gives a smoother power turn-off. It gets rid of high voltage spikes and reduces buzzing. Trailing-edge control also makes sensitive electronic LED parts last longer. For modern LED fixtures and premium installations, trailing-edge dimming is the better choice. For simple retrofits with compatible dimmable LEDs, leading-edge triac dimmers are still a practical option.
0-10V Dimming for Commercial LED Systems
Commercial spaces need smooth, steady light control across many fixtures. The 0-10v system does this with a simple analog signal. Facility managers pick this method for offices, schools, and retail stores. It balances cost and performance better than most other options.
How the 0-10V Analog Signal Works
A 0-10v dimming setup uses two low-voltage wires. These wires carry a DC signal between the controller and the driver. The voltage level tells the driver how much light to make. At 10 volts, the fixture runs at full brightness. At 0 volts, the light output drops to its lowest level. This analog approach gives smooth, predictable control.
~10% output at 1V (cannot reach full off via dimming)
Turning off completely
Dims to off automatically at 0V
Requires a separate on/off switch to cut power
Common in commercial LED drivers?
Less common in modern designs
More common – most modern commercial drivers use 1-10V
Reason for preference
–
Safety (avoids live wires with no light output) and driver longevity (constant power at 0% can shorten lifespan)
The 1-10v design offers safety benefits. A fixture at 1 volt still gives about 10% light output. This small glow tells workers that power is still on. The driver also lasts longer because it never runs at zero output for long periods. For these reasons, most commercial LED drivers now use the 1-10v standard.
Loop Control vs. Individual Addressing
A 0-10v circuit controls all fixtures on the same loop together. Every light on that wire responds to the same voltage signal. This design works well for open offices, warehouses, and parking garages. All lights dim as one group. No single fixture can change without affecting the others.
This loop approach keeps wiring simple and cost low. One dimmer controls an entire zone. Installers run two control wires from the dimmer to each driver on the circuit. The setup takes less time and fewer materials than addressable systems.
The trade-off is clear. A 0-10v system cannot dim one fixture while leaving another at full power. It cannot set scenes or read feedback from individual lights. For spaces that need per-fixture control, DALI or another digital protocol is the better fit. For large areas with uniform lighting needs, 0-10v dimming remains a practical and affordable choice.
DALI Dimming Protocol for Advanced Control
The Digital Addressable Lighting Interface, or DALI, is a digital protocol for advanced lighting control. Every luminaire on a DALI network has its own address. This setup lets the controller and each driver talk back and forth. DALI dimmers send orders to certain fixtures. They also get status updates back from each one.
How DALI’s Digital Bus Enables Two-Way Communication
DALI uses a digital bus to carry signals between controllers and drivers. The physical layer uses Differential Manchester encoding. Logic values move as signal changes. Each node links to the bus through two terminals. This setup allows differential receiving and sending. The encoding method gives the system strong protection against interference. This is important for reliable error fixing during two-way communication with LED drivers.
2-byte or 3-byte forward frame (FF); 1-byte backward frame (BF)
The 1200 bps data rate is slow by today’s standards. This slow speed actually helps the system. It makes the signal stronger against electrical noise. The bidirectional, half-duplex method means devices take turns sending and receiving. Forward frames carry commands to the driver. Backward frames send status information back. This two-way flow sets DALI apart from analog systems. A 0-10V dimmer cannot hear back from the fixture. DALI dimmers can.
Why Addressability Matters in Large Projects
Addressability changes how a project team handles lighting. Each fixture answers to its own commands. A facility manager can dim one row of led lights while keeping another at full power. They can set scenes for different times of day. They can also read feedback from each driver. This feedback includes lamp status and power use.
Large buildings gain the most from this feature. An office tower may have hundreds of fixtures across many floors. With DALI dimming, each one has an identity on the network. The control system can group them by zone, floor, or window direction. It can adjust led lighting based on daylight levels. It can also report failures before occupants notice them.
The trade-off is higher cost and more setup work. DALI dimmers cost more than triac or 0-10V devices. The setup process takes longer. Technicians must assign addresses and set up groups. This work requires training and planning. For small residential projects, the investment rarely pays off. For large commercial spaces, the long-term savings in energy and maintenance justify the upfront expense. DALI dimming gives building managers a level of control that analog systems simply cannot match.
Comparing Dimming Options Head‑to‑Head
Cost, Dimming Range, and Precision
A head-to-head comparison starts with money. Picture a 10-fixture meeting room using 12W COB recessed spotlights. Triac dimming needs an $18 driver per fixture and a $60 wall dimmer. That adds up to $240 plus $60 plus labor. A 0-10v setup uses a $22 driver per fixture and a $180 controller. That totals $220 plus $180 plus labor. A dali system uses a $28 driver per fixture plus a power supply and gateway costing $350. That comes to $280 plus $350 plus labor. Wiring is simplest for triac, and medium for the other two. Energy use stays about the same for all three at the same light level. For a 100-fixture commercial job, these per-fixture costs grow in a straight line. That makes dali the most expensive upfront option.
Can flicker or buzz with incompatible LEDs or switches
0-10V
1%–100%
Smooth, consistent dimming without flicker
DALI
Precise dimming with minimal wasted energy
No flicker percentage range given in the source
Triac dimmers cannot push led lights as low as the other two. They also carry a moderate flicker risk, because the chopped waveform demands a matched driver. A 0/1-10v signal avoids that problem entirely. The DC control voltage never cuts the AC waveform, so the light stays steady from full output down to roughly one percent. Dali dimmers reach similar precision through digital commands. Installers who need deep, flicker-free dimming should look past triac dimming for high-wattage fixtures.
Scalability and Installation Complexity
Scale changes the picture. Triac dimmers handle about 8 fixtures per circuit, and they need no extra control wires. That ceiling suits small rooms, not open floors. A 0/1-10v loop scales further, but every zone needs its own two-core control cable run back to the controller. Dali dimmers scale best of all. One bus supports 64 fixtures without a repeater, and the two-wire bus is polarity-free, so a daisy-chain topology keeps wiring simple.
Distance matters too. The DALI standard allows runs up to 300 meters, though engineering practice keeps them shorter.
In engineering practice, the DALI wiring distance should not exceed 200 meters.
Commissioning effort grows with capability. A 0/1-10v system needs no specialized software, no addressing, and no digital bus configuration. Dali dimmers cost more per zone, require commissioning software to assign addresses and configure groups and scenes, and demand a trained integrator. That extra work pays off in buildings where lighting joins a larger lighting control system.
Best Applications for Each Protocol
Each protocol owns a natural home. Triac dimmers fit residential retrofits, table lamps, and small conference rooms with a couple of downlights. They need no extra wires and cost the least. A 0/1-10v system suits commercial projects that want smooth transitions across zones. Industry reports call 0-10v the default dimming protocol for 90% of commercial projects, and its limits rarely matter in warehouses, parking lots, offices, and retail spaces. Dali dimmers belong in large architectural installations where addressability, scene setting, and feedback justify the premium. Granular control and occupancy sensing integration can deliver 20–30% greater energy savings, which offsets the higher upfront cost over time.
One rule overrides every recommendation. The dimming protocol must match between the controller and the driver. A triac dimmer cannot talk to a 0/1-10v driver, and dali dimmers will not respond to an analog signal. Mixing protocols produces flicker, dead zones, or no dimming at all. Buyers should confirm compatibility before ordering any led lighting package. A head-to-head comparison only helps when the chosen dimmer and driver speak the same language.
Choosing a Dimming Protocol for LED Projects
Residential Retrofits and Small Spaces
Homeowners and small business owners often begin with one simple goal. They want to dim their led lights without breaking open walls. Triac dimmers fit this need very well. These devices take the place of the wall switch already there. They need no extra control wires. A homeowner can put one in within minutes. The cost stays low, and the setup feels familiar.
However, triac dimmers have limits. They work best with compatible drivers and enough load. A single led bulb may not pull enough current to dim smoothly. Flicker and buzz can show up. Trailing-edge models cut down on these problems. They cost a little more but give smoother low-end performance. For guestrooms, small retail shops, and home offices, triac dimmers are still a practical choice. They give basic dimming at the lowest price.
Commercial Offices and Retail Stores
Commercial spaces ask more of a lighting control system. Open offices need even brightness across many desks. Retail stores want accent control and scene changes. Two protocols lead in this space: 0-10v and dali.
A 0-10v system controls all fixtures on a loop as one group. One dimmer adjusts a whole zone. This design fits open floors, warehouses, and parking garages. The wiring stays simple. Installers run two low-voltage wires from the controller to each driver. No addressing or software is needed. The cost per zone runs about $40 to $70 for the switch. A single 0-10v dimmer rated at 8 amps on a 277V circuit can control over 2,200W of LED load. That capacity covers a large area with one device.
Dali dimmers give more detailed control. Each fixture has its own address. A facility manager can dim one row while keeping another at full power. Scene recall and occupancy sensing integration become possible. This flexibility saves energy. Dimming fixtures to 50% brightness cuts energy use by about 50%. Running at 70% average output saves roughly 30% on lighting energy costs. Combined with occupancy sensors, savings of 40% to 60% are common in warehouses and large commercial spaces.
The trade-off is cost and complexity. Dali controllers cost $200 or more per controller. They need commissioning software and a trained integrator. For a 20-fixture warehouse, this overhead rarely pays off. For a multi-floor office with hundreds of fixtures, the long-term savings justify the investment.
Architectural and High-End Installations
Large architectural projects need more than basic dimming. Museums, airports, corporate headquarters, and universities require central monitoring, energy dashboards, and fault alarms. They also need future reconfiguration without rewiring. Dali dimmers meet these demands.
A Dali network supports up to 64 fixtures per bus without a repeater. The two-wire bus is polarity-free, so daisy-chain wiring stays simple. The system allows two-way communication. Controllers send commands and receive status updates. They can report lamp failures, track runtime, and integrate with building management systems through BACnet or KNX gateways. This level of control supports energy efficiency goals and simplifies maintenance.
0-10v for small floors; Dali for multi-zone, sensor-rich control
Retail & Galleries
Accent control, frequent layout changes, night scene
0-10v when budgets are tight; Dali when scene recall matters
Museums, Universities, Airports, Corporate HQ
Central monitoring, energy dashboards, fault alarms
Dali with BMS integration via BACnet/KNX gateway
One rule overrides every recommendation. The dimming protocol must match between the controller and the driver. A Dali controller connected to a 0-10v driver will not dim. A 0-10v dimmer connected to a triac-only driver will not dim. A triac dimmer connected to a 0-10v driver will flicker, buzz, or damage the driver. There are no graceful failures here. Before specifying any system, check the fixture's driver datasheet for supported protocols. Then specify a controller that matches. This single verification step prevents more troubleshooting callbacks than any other check in the lighting specification process.
Compatibility Checklist for LED Driver Systems
Matching Driver and Dimmer Protocols
The first thing to check in any lighting project is protocol matching. A dimmer and its driver must speak the same language. A triac dimmer cannot control a 0-10V driver. A DALI controller will not answer an analog signal. Electricians say that driver-dimmer mismatch is a top cause of LED flickering during service calls. This mismatch makes current unstable, which leads to flashing on and off or complete failure.
Parts that do not match between dimmer, driver, and lighting product causing poor dimming performance.
A good driver with the wrong dimmer still fails. A good dimmer with the wrong driver still flickers. Both parts must match.
Wiring Infrastructure Requirements
Wiring needs change with each protocol. Triac dimmers use the AC wiring already there. They need no extra control cables. This makes them simple for retrofits. However, triac dimmers need a minimum load to work. Low-power LED fixtures may not pull enough current. This causes flicker or ghosting.
A 0-10V or 1-10V system needs two low-voltage control wires. These wires run from the controller to each driver on the loop. Installers must plan these runs during construction. DALI systems use a two-wire bus. This bus has no polarity, so daisy-chain wiring stays simple. One bus supports up to 64 fixtures without a repeater. The DALI standard allows runs up to 300 meters, though engineering practice keeps them under 200 meters. Each protocol needs its own wiring plan. A lighting control system built for one protocol will not work with another without rewiring.
Avoiding Common Mistakes with Mixed Systems
Mixing protocols creates failures you can predict. A triac dimmer connected to a 0-10V driver will flicker, buzz, or damage the driver. A DALI controller connected to a 0-10V driver will not dim at all. These are not gentle failures. They cause callbacks and wasted labor.
Three mistakes show up most often in the field:
Using dimmer switches made for incandescent or halogen bulbs with LED fixtures. This causes flickering, limited dimming range, buzzing, and early shutdown.
Picking a low-quality or incompatible internal LED driver. This leads to constant flickering and uneven performance.
Assuming that any dimmable LED works with any dimmer. Compatibility must be checked, not assumed.
The fix is simple. Check the driver datasheet for supported protocols. Then specify a controller that matches. This one verification step prevents more troubleshooting callbacks than any other check in the lighting specification process. For complex applications, a lighting specialist can confirm that every part of the lighting control chain works together.
The best dimming choice depends on project scale, budget, and control needs. TRIAC suits cheap retrofits. A dimmer replaces the wall switch with no new wires. 0-10V delivers smooth commercial dimming across zones. DALI offers scalable digital control for large buildings. Each dimmer must match its driver protocol.
For residential lighting, a trailing-edge dimmer reduces flicker. Commercial lighting teams often pick 0-10V for offices and retail lighting. Architectural lighting projects gain addressable control from DALI. No single dimmer fits every lighting control job.
Readers should consult a lighting specialist or use a product selector tool. These experts confirm the right dimmer and driver for any led lighting or lighting control installation.
FAQ
Can a triac dimmer control any dimmable LED fixture?
No. A triac dimmer needs a driver built for phase-cut control. A driver made for 0-10V or DALI will not respond to a chopped AC waveform. This mismatch causes flicker, buzzing, or dead zones. Buyers should check the driver datasheet before pairing any dimmer with a fixture.
Why do some LED lights flicker at low dim levels?
Flicker often comes from a driver and dimmer mismatch. Low-power LED fixtures may not pull enough current to meet the dimmer's minimum load. This shortfall causes flashing, erratic dimming, or ghosting. A trailing-edge dimmer reduces these problems and gives smoother low-end performance.
What is the difference between 0-10V and 1-10V dimming?
A true 0-10V driver dims to full off at 0 volts. A 1-10V driver stops at about 10% output at 1 volt. Most modern commercial drivers use the 1-10V standard. This design keeps a small glow that tells workers power is still on. It also extends driver life.
How many fixtures can one DALI bus support?
One DALI bus supports up to 64 fixtures without a repeater. The two-wire bus has no polarity, so daisy-chain wiring stays simple. The DALI standard allows runs up to 300 meters. Good engineering practice keeps runs under 200 meters for reliable performance.
Does DALI cost more than 0-10V?
Yes. A DALI driver costs more per fixture. The system also needs a power supply, a gateway, and commissioning software. A trained integrator must assign addresses and set up groups. For large buildings, the energy and maintenance savings often justify the higher upfront cost.
Can a facility manager mix dimming protocols in one building?
No. The dimming protocol must match between the controller and the driver. A DALI controller will not dim a 0-10V driver. A triac dimmer will not control a 0-10V driver. Mixing protocols produces flicker, dead zones, or no dimming at all.
Which dimming method suits a small retail shop?
A small retail shop often needs basic dimming at low cost. A triac dimmer replaces the wall switch with no new wires. A trailing-edge model reduces buzz and flicker. For shops that want scene changes, a compact 0-10V kit offers smoother lighting control across zones.
What should a buyer check before ordering an LED driver?
The buyer should check the driver datasheet for supported protocols. The dimmer specification must list a matching output type. These two documents must agree. This single verification step prevents more troubleshooting callbacks than any other check in the lighting specification process.
