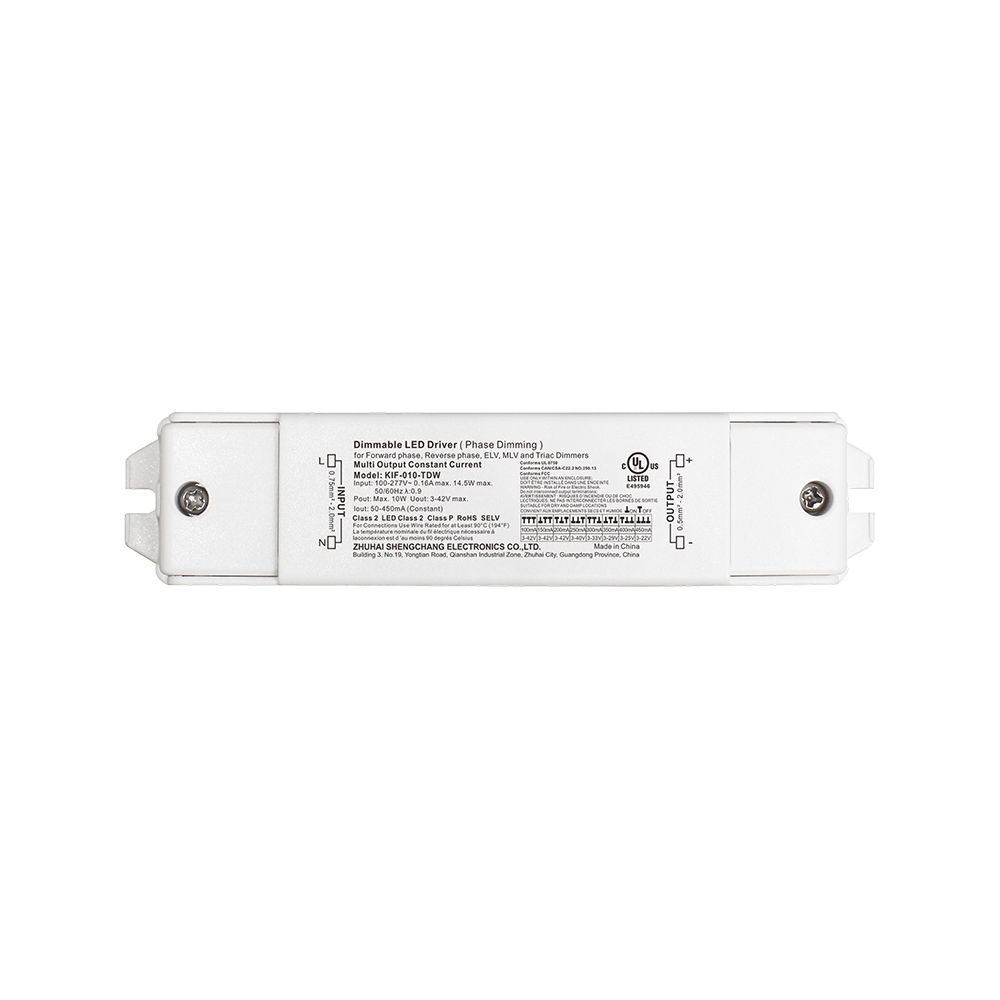

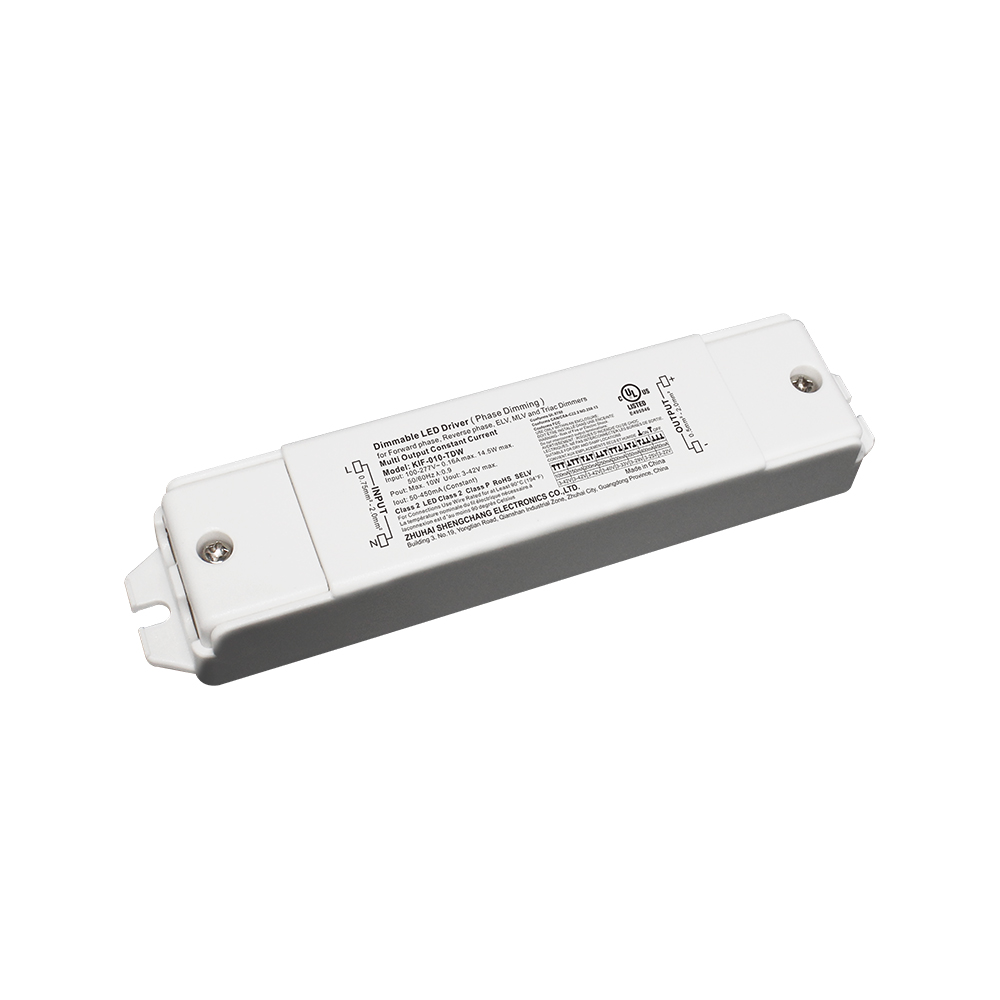

10W 20W 30W 40W CC Triac Dimming LED Power Supply 100-277V

Model:
Availability:
  • Triac

  • Isolated

  • Constant Voltage

  • Dimming

  • IP20, Dry & Damp

  • 100-277VAC

  • 10W, 20W, 40W, 60W

  • 3V-42V

  • UL & cUL, FCC, Class 2, ICES, CE, RoHS, REACH

Advantage

10W 20W 30W 40W CC Triac Dimming LED Power Supply 100-277V


Output:

Constant Current

Range:

100~277VAC

PFC design:

Built-in active PFC function

Protections:

Short circuit/ over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

Full protection plastic housing, for dry, damp, locations

Dimming function:

Triac/phase cut dimming Work with leading or trailing edge Triac dimmer

Dimming range:

1-100%

Application:

Suitable for LED lighting and moving sign applications

Warranty:

5 years warranty


Triac Dimming LED Power Supply 100-277V (1)



High Performance

Up to 90% cost saving



Triac Dimming LED Power Supply 100-277V (2)

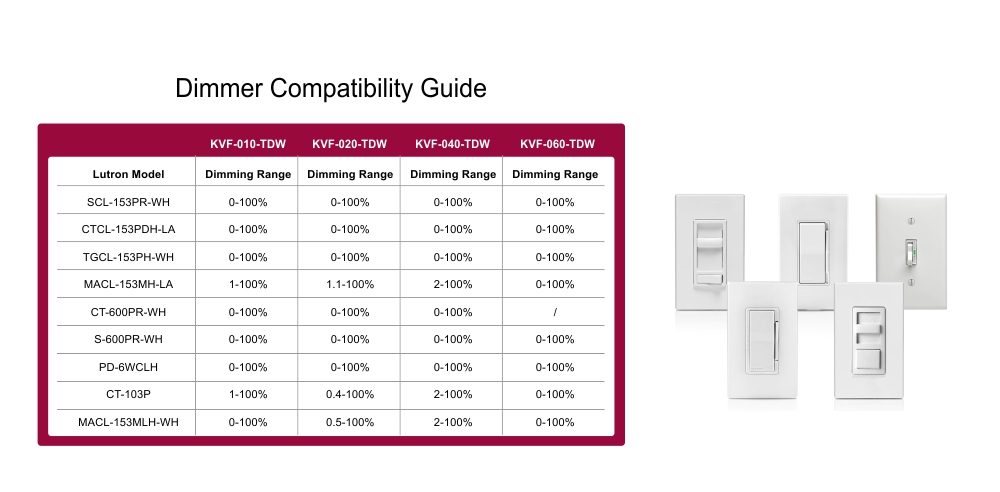

High Compatibility

Compation with popular dimmers or interlligent illumination control system

MLV & ELV Leading & Trailing edge

Triac Dimming LED Power Supply 100-277V (3)Triac Dimming LED Power Supply 100-277V (4)



Perfect to use for Indoor Lighting, Downlights, Ceiling Lights, Spotlights, Cabinet Lights

Chandeliers & Pendant Lights, Bathroom Vanity Lighting



Triac Dimming LED Power Supply 100-277V (5)Triac Dimming LED Power Supply 100-277V (6)Triac Dimming LED Power Supply 100-277V (7)

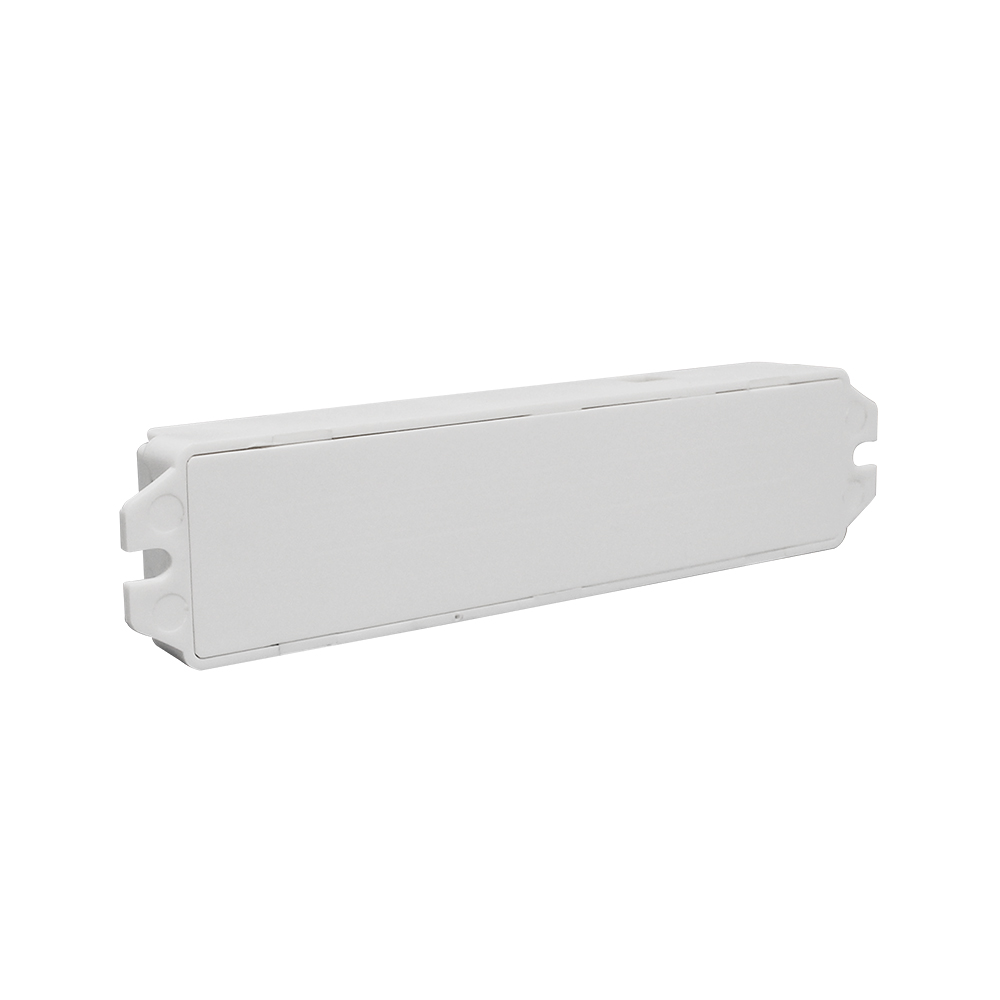

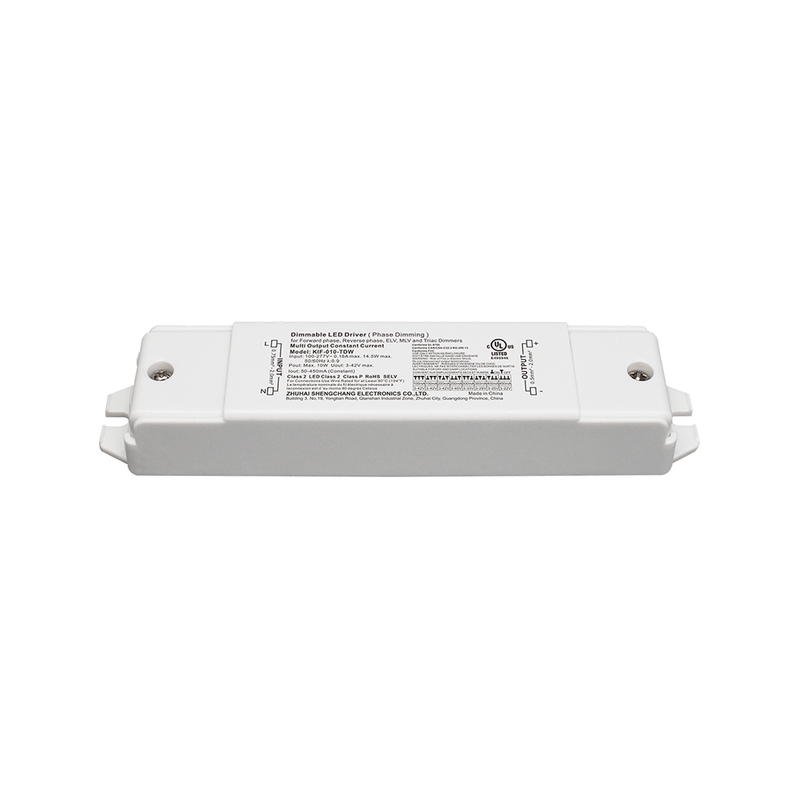

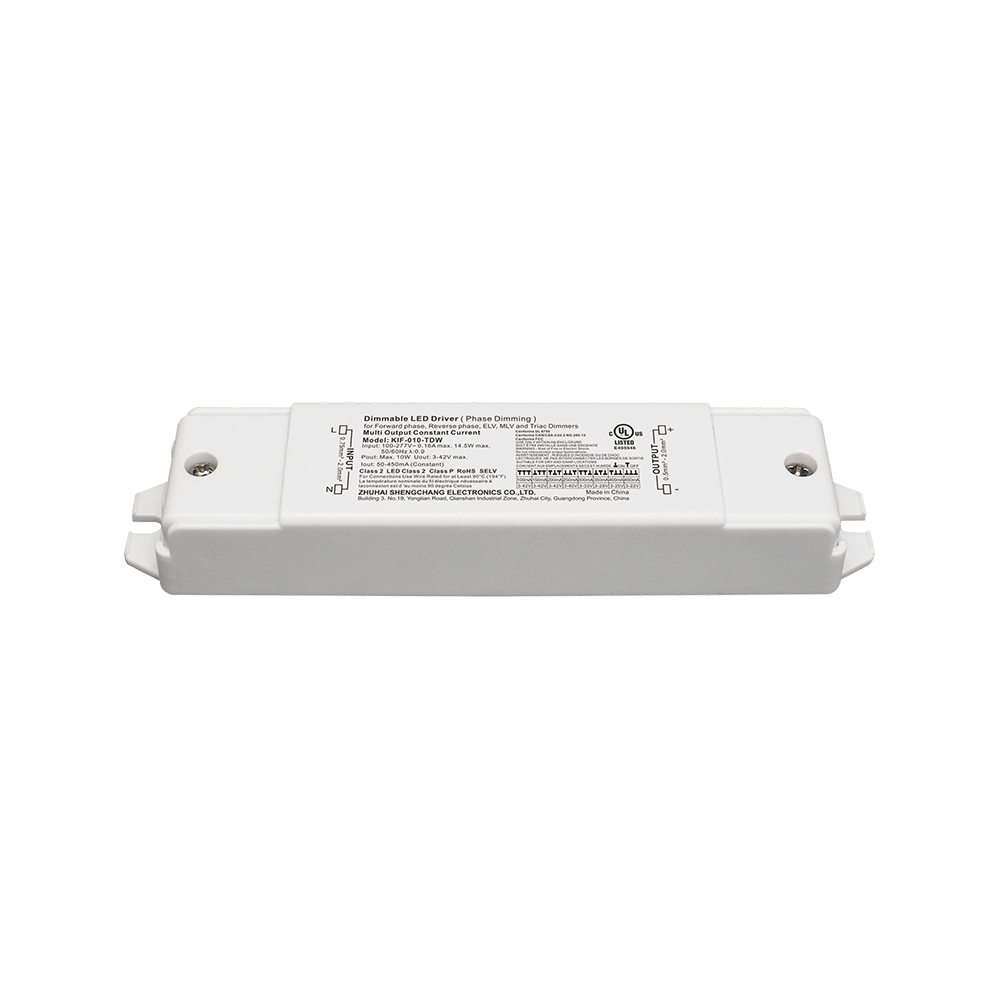

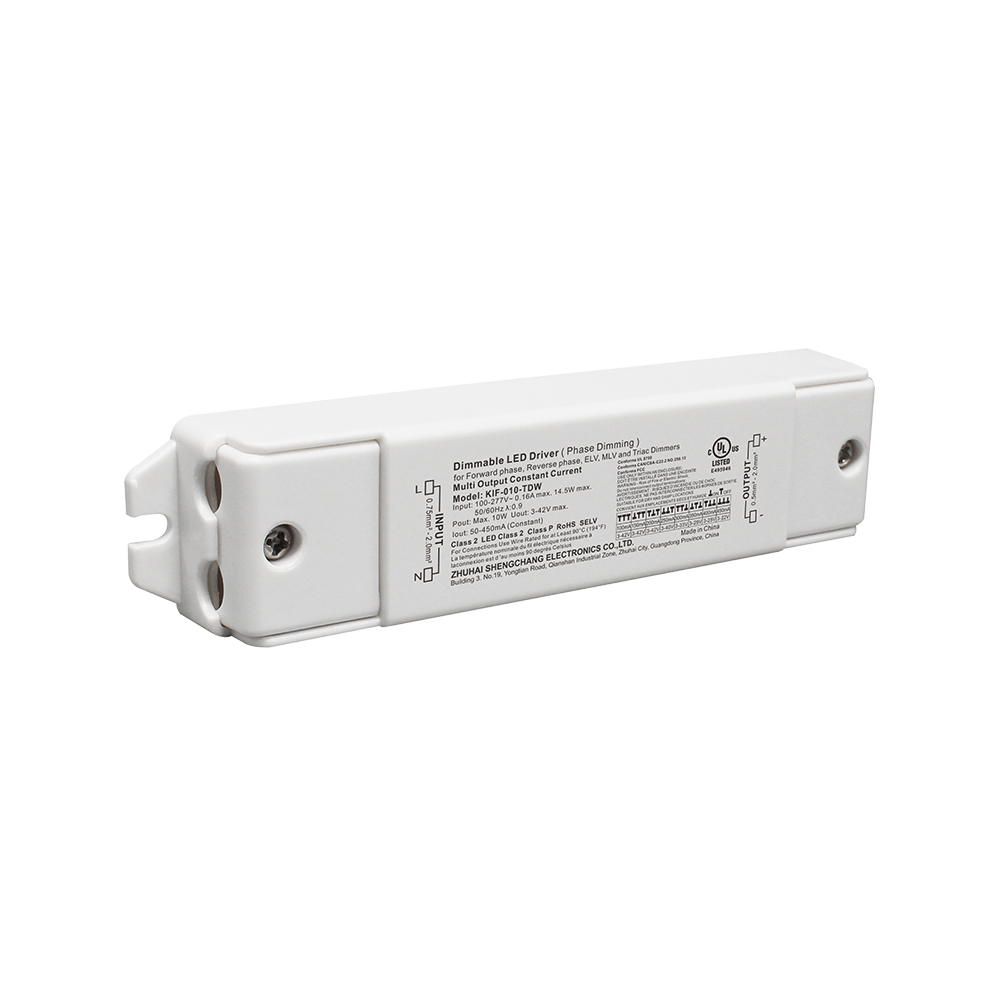

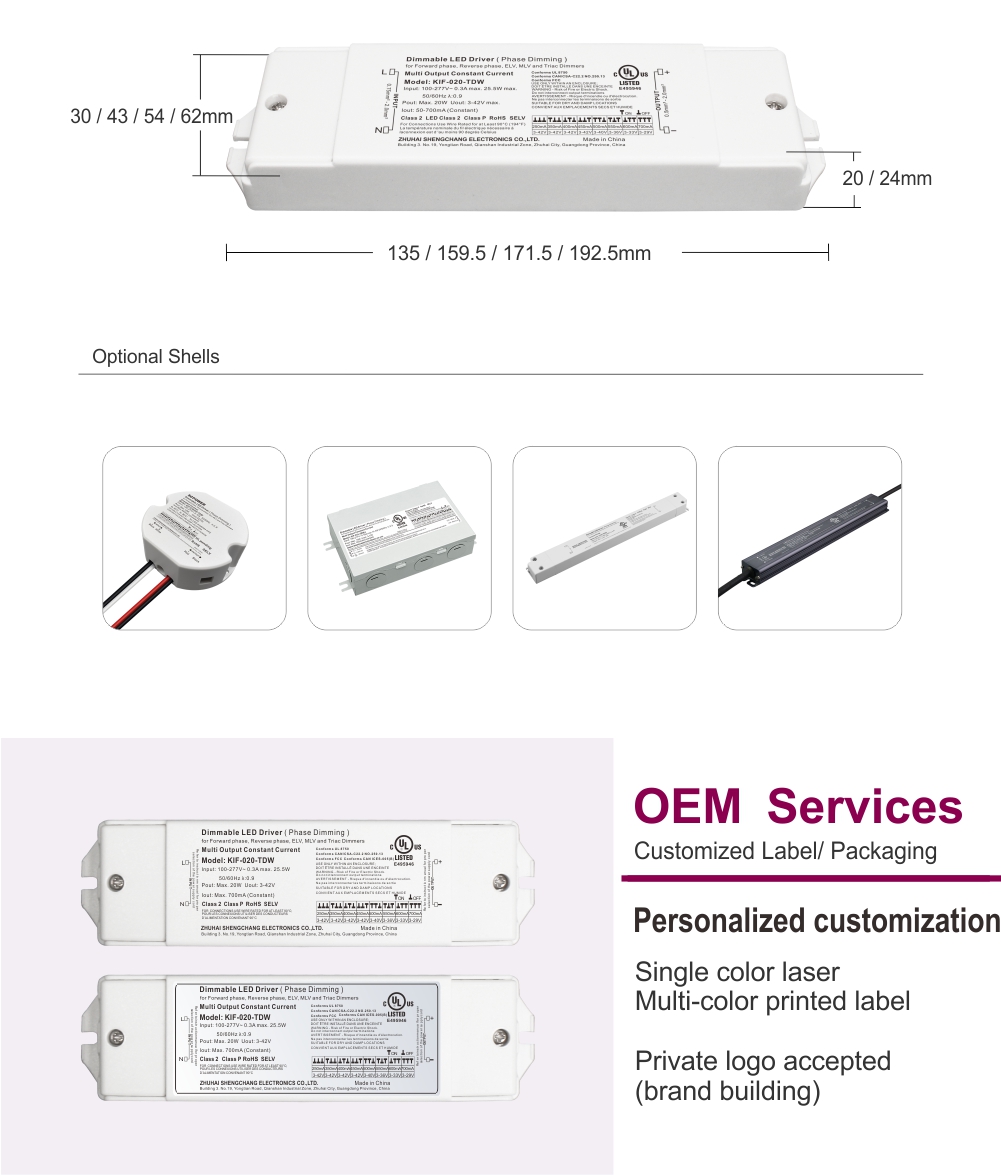

Small Size & Light Weight


Size(mm)


10W: 135*30*20mm, 0.115kg

20W: 159.5*43*20mm, 0.1kg

40W: 171.5*54*20mm, 0.225kg

60W: 192.5*62*24mm, 0.3kg



Triac Dimming LED Power Supply 100-277V (8)

Specification


Output Power

Model Number

Output

Power Factor

Size

WeIFht

10W

KIF-010-TDW

3-42V 100mA

0.98

135*30*20mm

0.10Kg

3-42V 150mA

3-42V 200mA

3-40V 250mA

3-33V 300mA

3-29V 350mA

3-25V 400mA

3-22V 450mA

20W

KIF-020-TDW

3-42V 250mA

0.95

159.5*43*20mm

0.15Kg

3-42V 350mA

3-42V 400mA

3-42V 450mA

3-40V 500mA

3-36V 550mA

3-33V 600mA

3-29V 700mA

40W

KIF-040-TDW

3-50V 300mA

0.95

171.5*54*20mm

0.17Kg

3-50V 350mA

3-50V 400mA

3-50V 450mA

3-50V 500mA

3-50V 550mA

3-50V 600mA

3-50V 650mA

3-50V 700mA

3-50V 800mA

3-45V 900mA

3-40V 1000mA

3-37V 1100mA

3-34V 1200mA

3-31V 1300mA

3-29V 1400mA

60W

KIF-060-TDW

3-50V 600mA

0.99

192.5*62*24mm

0.30Kg

3-50V 700mA

3-50V 800mA

3-50V 900mA

3-50V 1000mA

3-50V 1100mA

3-50V 1200mA

3-46V 1300mA

3-43V 1400mA

3-40V 1500mA

3-38V 1600mA

3-35V 1700mA

3-33V 1800mA

3-32V 1900mA

3-30V 2000mA

3-29V 2100mA

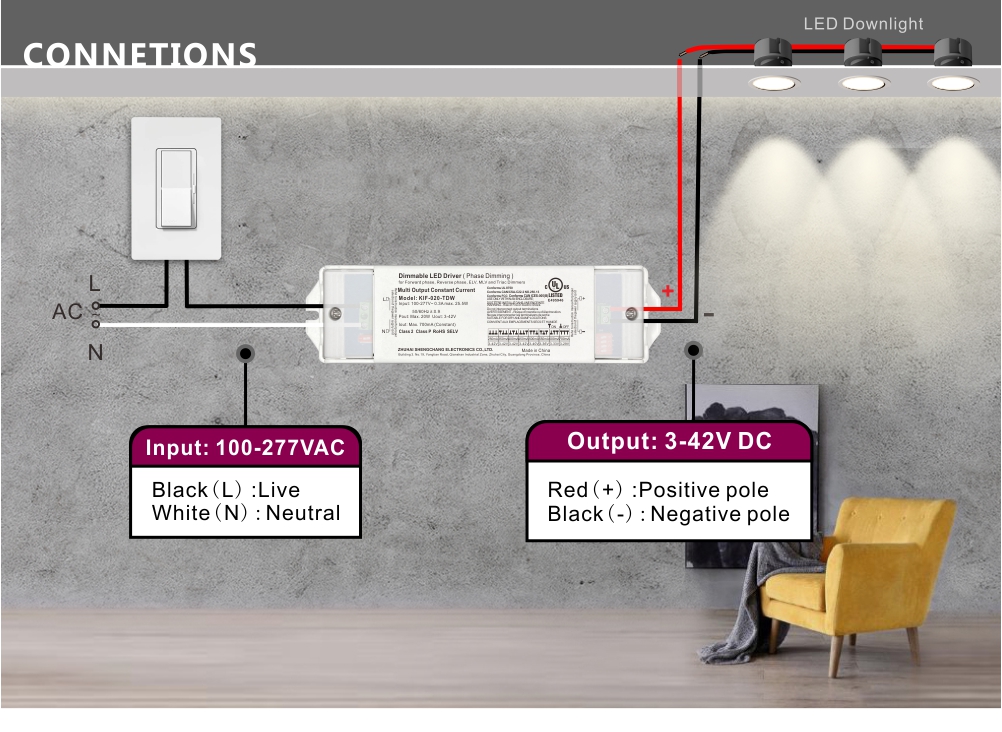

Triac LED Power Supply Wiring Diagram

Triac LED Power Supply

Triac LED Driver Wiring Diagram (1)



Triac LED Power Supply Size:
