Model Number | Output Power | Output Voltage | Output Current | Channels |
SDD-CL12120-DIM | 120W ( 2*60W, Class 2 ) | 12V | 5A*2 | Dimming |
SDD-CL24160-DIM | 160W ( 2*80W, Class 2 ) | 24V | 3.33A*2 |
SDD-CL48160-DIM | 160W ( 2*80W, Class 2 ) | 48V | 1.67A*2 |
Output | Constant Voltage |
Input Range | 120VAC |
PFC design | Built-in active PFC function |

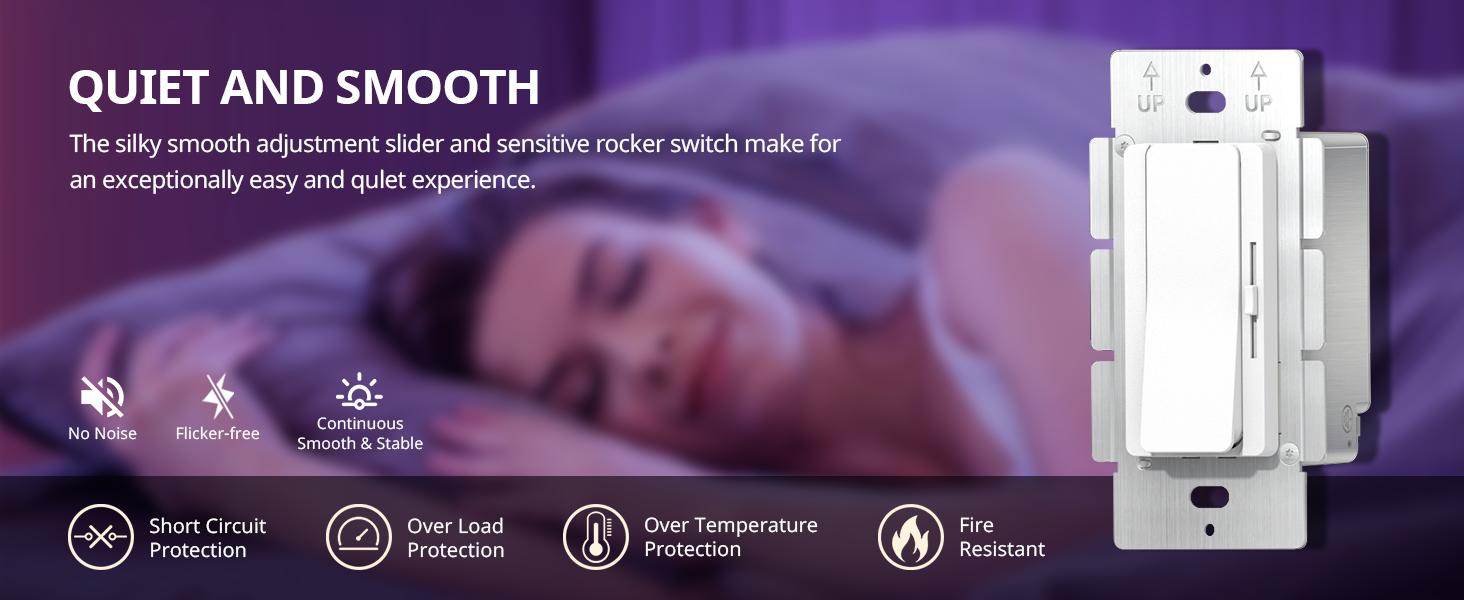

Protections | Short circuit/ Over load/ Over temperature |
Heat dissipation | Cooling by free air convection |
Waterproof performance | For dry and damp locations (US) |
Design features
| 1) Fine-tune output voltage can be adjusted slightly 2) Preset dimmer with on/off function 3) 3-Way switches 4) Eliminated compatibility issues between drivers and switches |
Dimming range | 0.3%-100% |
Application | Suitable for the application of LED lighting |
Warranty | 5 years warranty |
Others | 16KHZ PWM output with dimming curve is a gamma 2.2 curve Flicker-free |

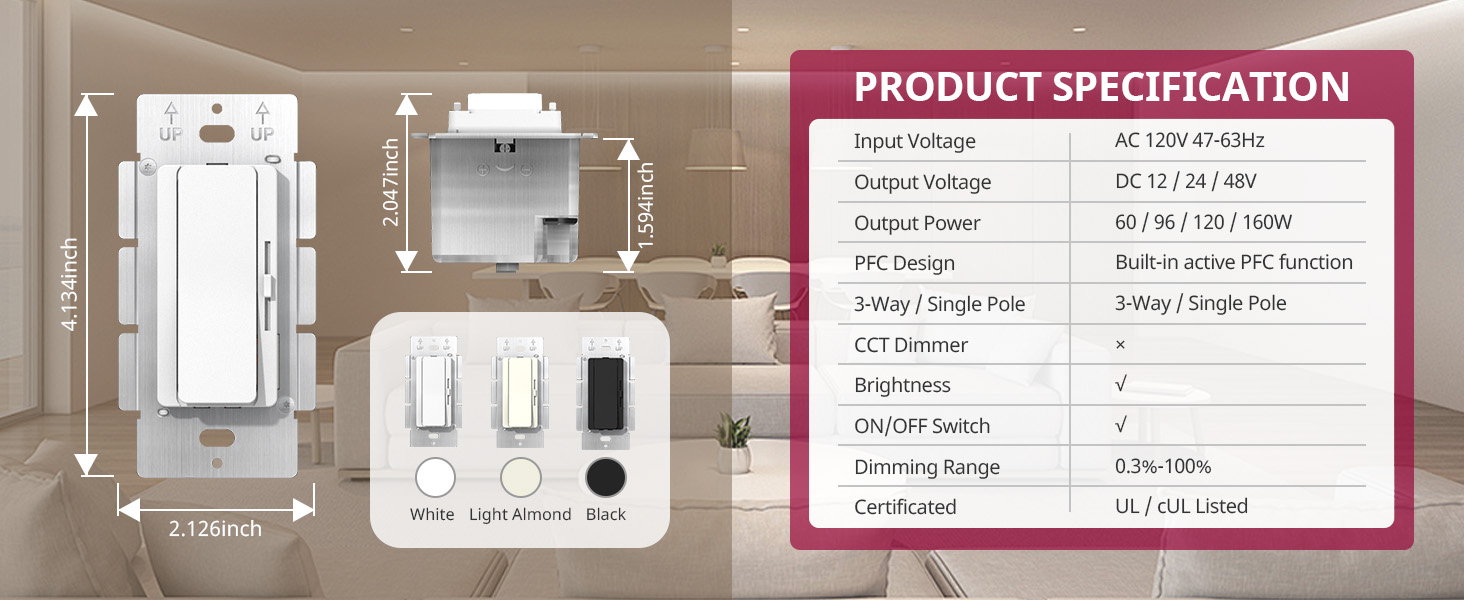

Product Mode |  | SDD-CCT |  | SDD-DIM |  | SDD-ND |
Built in LED Driver | CCT LED Driver+Dimmer 2 in 1 | Dimming LED Driver+Dimmer 2 in 1 | On/Off LED Driver |
CCT Dimmer | √ | × | × |
Brightness | √ | √ | × |
ON/OFF Switch | √ | √ | √ |
Input Voltage | 120V 60Hz | 120V 60Hz | 120V 60Hz |
Output Voltage | 12/24/48V | 12/24/48V | 12/24/48V |
Output Power | 60/96/120/160W | 60/96/120/160W | 60/96/120/160W |

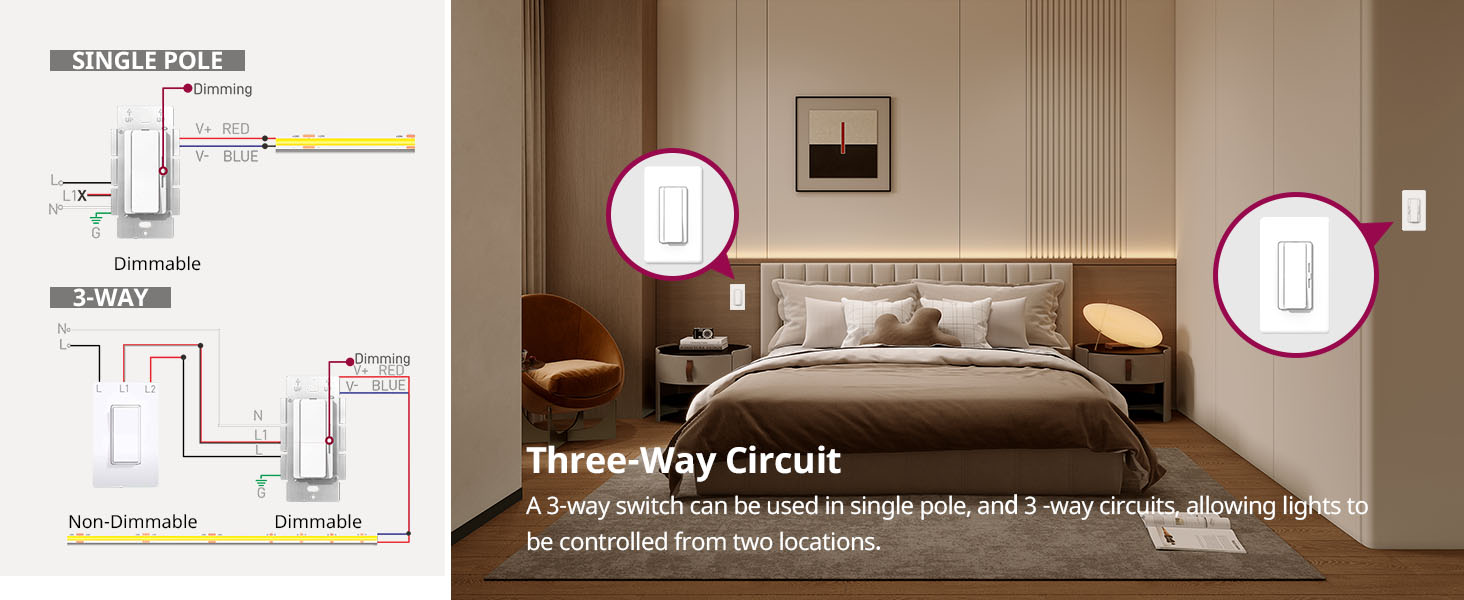

3-Way/single Pole | 3-Way / Single Pole | 3-Way / Single Pole | 3-Way / Single Pole |
Certificated | UL/cUL Listed | UL/cUL Listed | UL/cUL Listed |
120W 160W CV Class2 Wired Driver + Dimmer 2 in 1 Dual Independent Power Channels 60W 80W for Vietnam

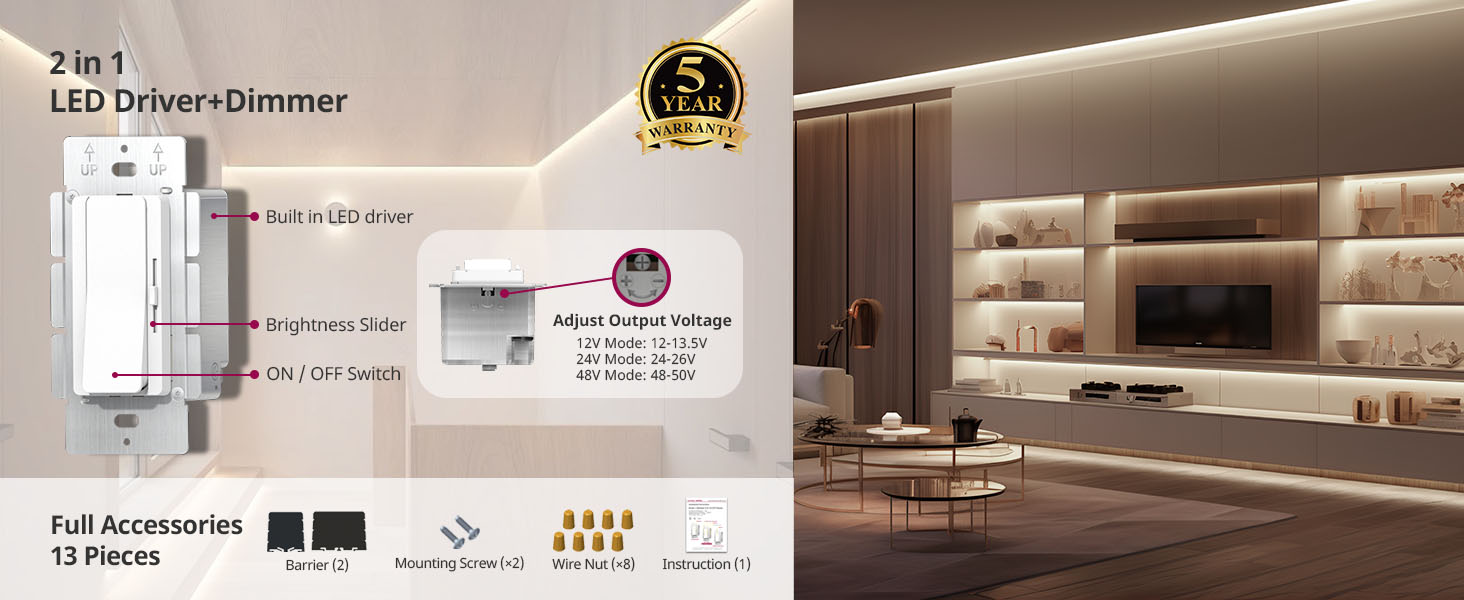

Driver and Dimmer 2-in-1: Saves space with easy one-piece installation for your dimmable LED lighting.
0.3%-100% Dimming range.

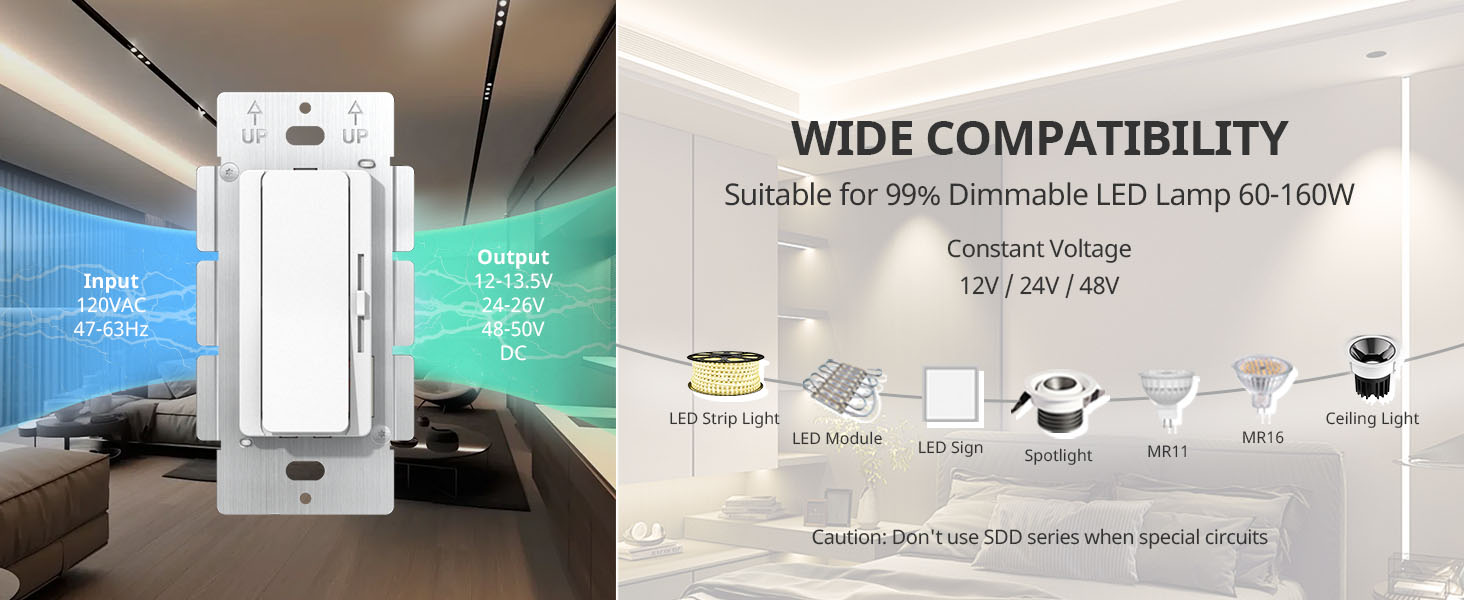

Driver + Dimmer 2-in-1 with universal compatibility.
Simpler wiring, driver + dimmer all in one step.
Why Trust a Dimmable LED Driver Source Factory? Full Transparency for Your Peace of Mind.
We are SCPOWER/SURETRON — your direct intelligent dimmable LED driver manufacturer, specializing in advanced driver+dimmer 2-in-1 systems. With large-scale Vietnam factory and modern China factory facilities totaling 20k㎡, we serve 30+ countries globally.
Our Vietnam factory and China factory operate with 20+ international certifications (UL, ENEC, SAA) — quality without compromise. From Triac and 0-10V to DALI-2 and wireless — we deliver reliable dimmable LED driver and driver+dimmer 2-in-1 solutions.
