Building 3, No.19 Yongtian Rd., Xiangzhou, Zhuhai city, Guangdong province, China
 |
BLE (Casambi, Tuya, Smart Life
Non isolated
Constant Voltage
Dimming
IP67, Dry & Damp, Wet
100-277VAC
150W, 200W, 400W, 600W
UL & cUL, FCC, CE, RoHS, REACH

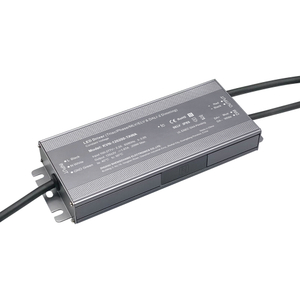

150W 200W 400W 600W CV Triac BLE Wireless LED Strip Power Supplies for Llight Fixture
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
150W | KVN-120150-TBWJ1 | 120V | 1.25A | 205.4*118*42.7mm | |
200W | KVN-120200-TBWJ1 | 120V | 1.67A | ||
400W | KVN-120400-TBWJ1 | 120V | 3.33A | 232*116*40mm | |
600W | KVN-120600-TBWJ1 | 120V | 5A | 279*85*40mm |
Triac Dimming LED Strip Power Supply Wiring Diagram
Triac Dimming LED Strip Power Supply Size（see the spec download）
Power up precision lighting with our industrial-grade 150W/200W/400W/600W Constant Voltage (CV) LED Drivers. Engineered for demanding LED strip lights and fixtures, these TRIAC-dimmable power supplies feature Bluetooth BLE 5.0 wireless control for smartphone dimming/CCT tuning. The IP67 waterproof aluminum housing withstands -30℃~+60℃ environments with integrated lightning surge protection. UL/CE/ROHS certified with triple safeguards (short-circuit/over-voltage/overheating) .
New Technology Without Welding: COB Strip Lights apply the latest weldless technology to ensure that the entire strip will not have interrupted black spots when in use, providing continuous and sufficient light.
150W 200W 400W 600W CV Triac BLE Wireless LED Strip Power Supplies for Llight Fixture
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
150W | KVN-120150-TBWJ1 | 120V | 1.25A | 205.4*118*42.7mm | |
200W | KVN-120200-TBWJ1 | 120V | 1.67A | ||
400W | KVN-120400-TBWJ1 | 120V | 3.33A | 232*116*40mm | |
600W | KVN-120600-TBWJ1 | 120V | 5A | 279*85*40mm |
Triac Dimming LED Strip Power Supply Wiring Diagram
Triac Dimming LED Strip Power Supply Size（see the spec download）
Power up precision lighting with our industrial-grade 150W/200W/400W/600W Constant Voltage (CV) LED Drivers. Engineered for demanding LED strip lights and fixtures, these TRIAC-dimmable power supplies feature Bluetooth BLE 5.0 wireless control for smartphone dimming/CCT tuning. The IP67 waterproof aluminum housing withstands -30℃~+60℃ environments with integrated lightning surge protection. UL/CE/ROHS certified with triple safeguards (short-circuit/over-voltage/overheating) .
New Technology Without Welding: COB Strip Lights apply the latest weldless technology to ensure that the entire strip will not have interrupted black spots when in use, providing continuous and sufficient light.
