Triac
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
200-240VAC
60W, 80W, 100W, 120W
12/ 24/ 36/ 48V
CE, RoHS, REACH

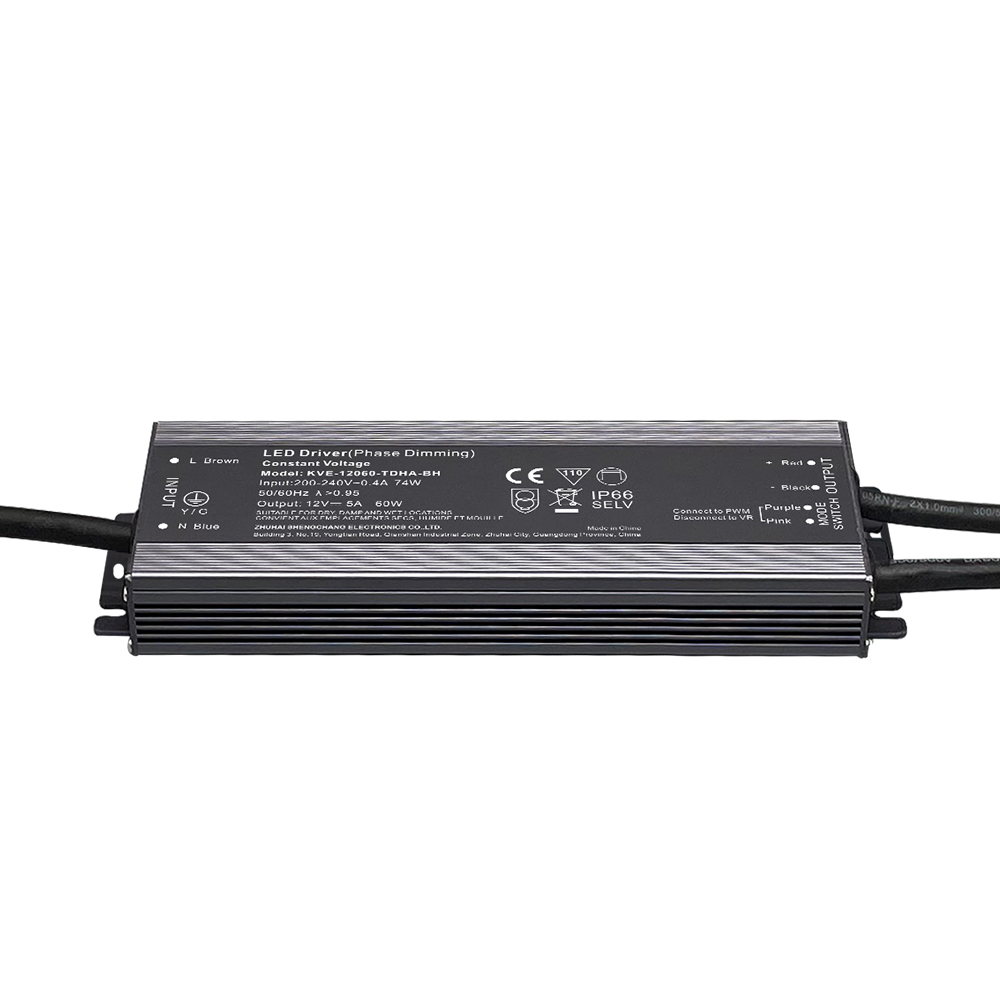

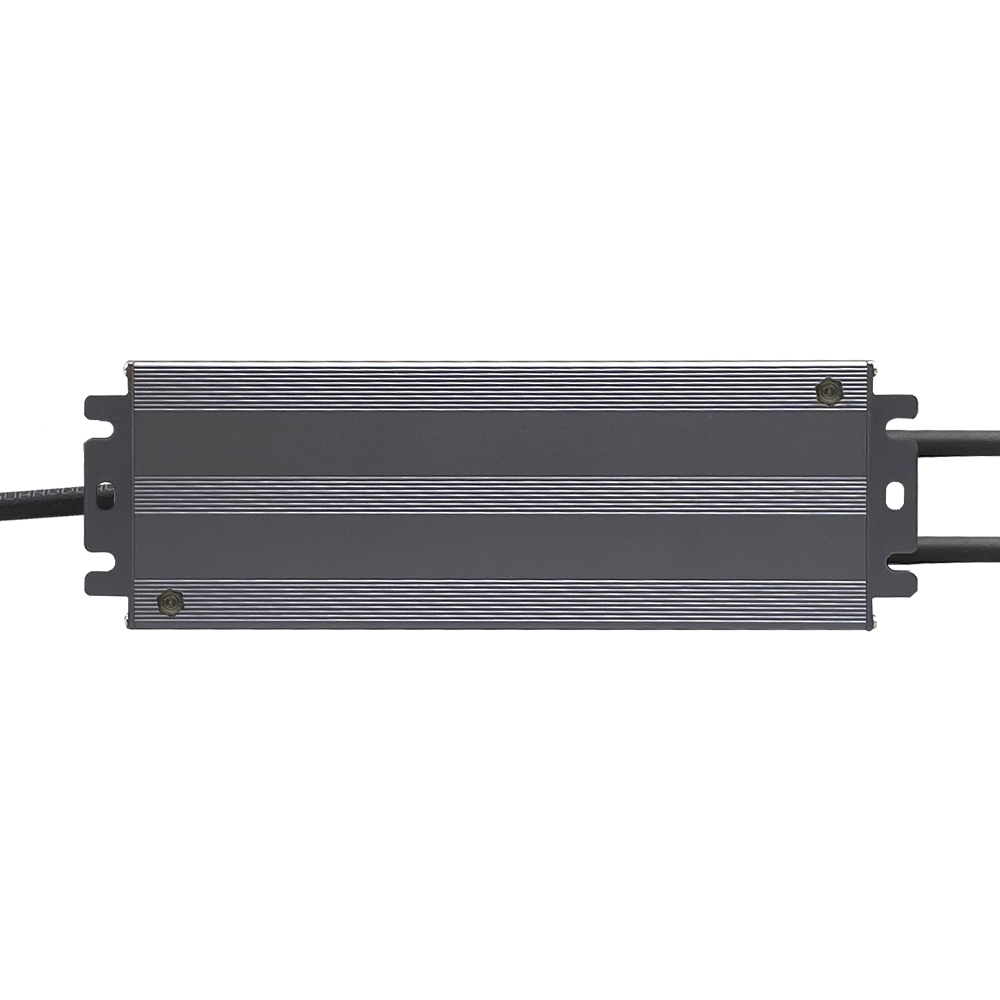

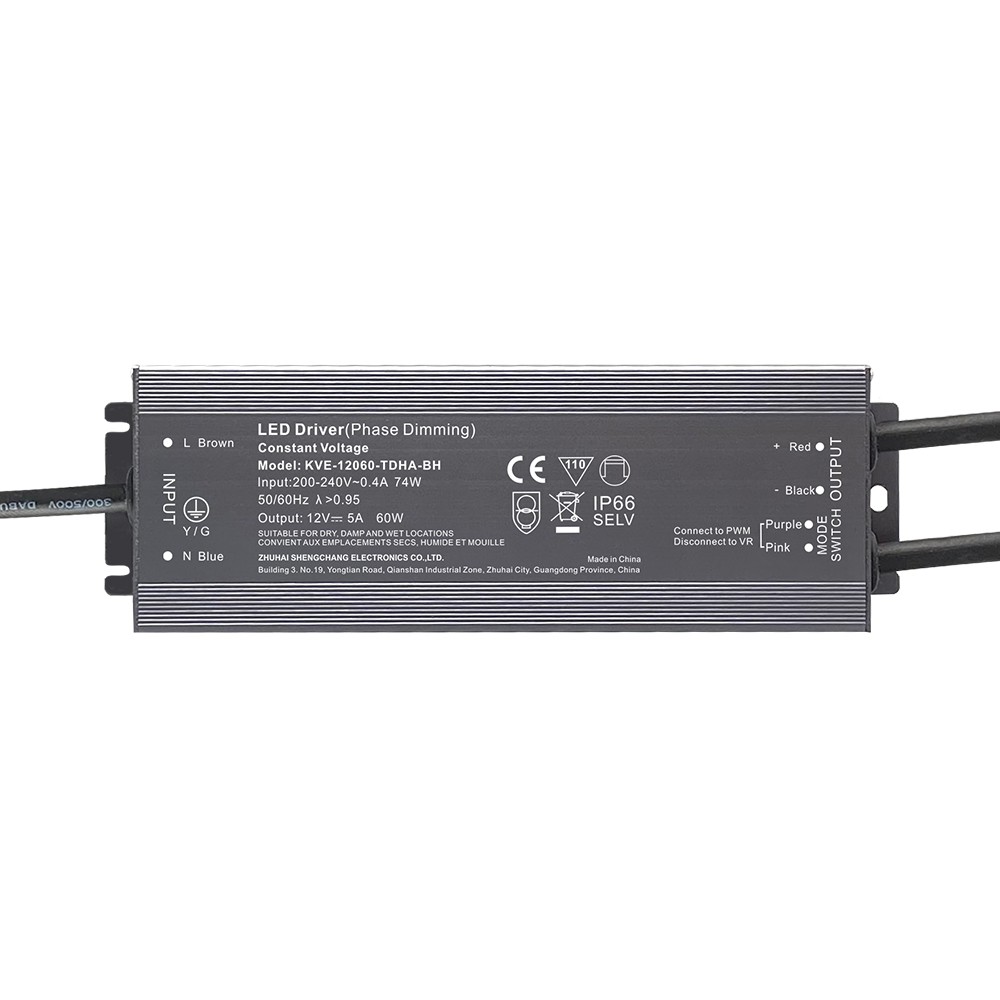

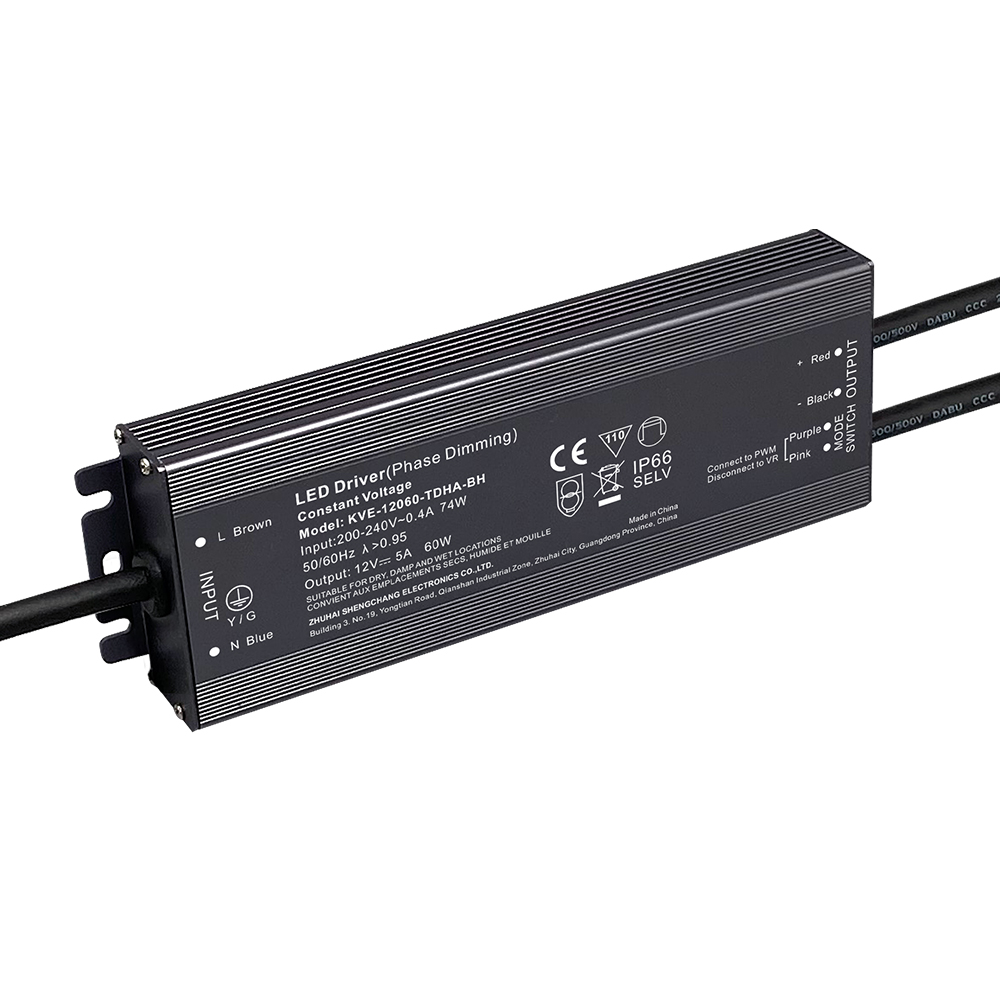

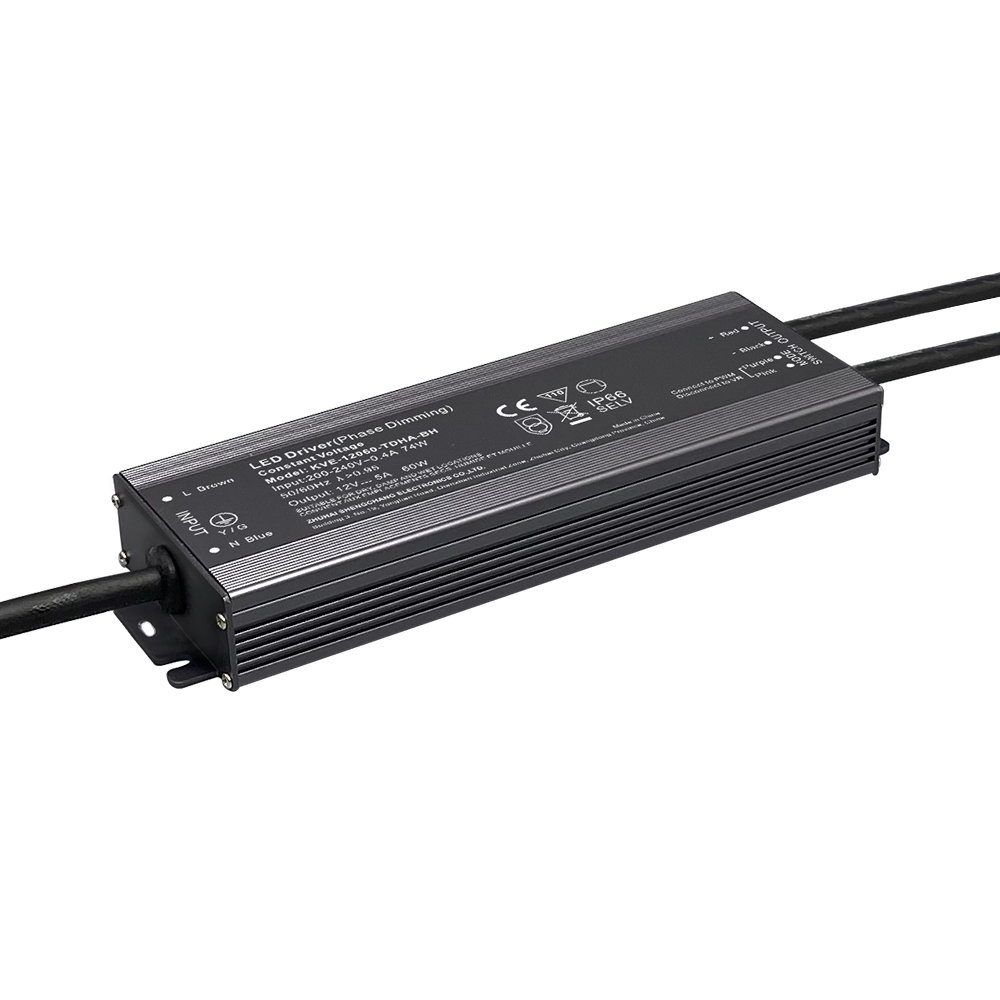

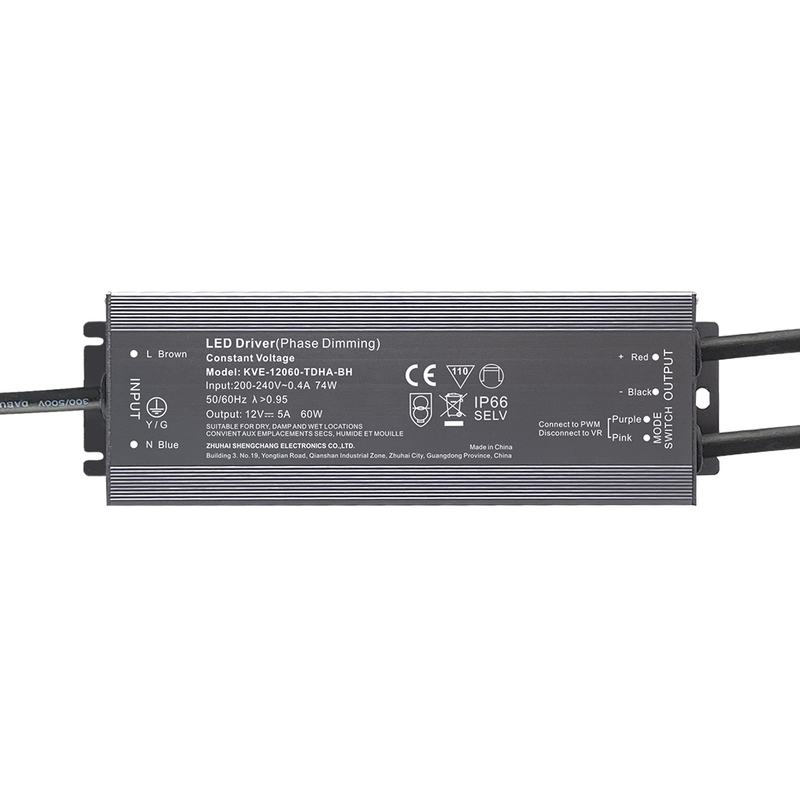

60 80 100 120 Watt CV Triac Dimmable LED Power Supplies Wholesale
Output: | Constant Voltage |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function,PF≥0.95 |
Efficiency: | Up to 91% |
Protections: | Short circuit/over temperature/over load |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 (EU) |
Dimming function: | PWM & Voltage reduce (VR) mode can be switched Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Others | High efficiency, smaller size, high power factor, low THD |

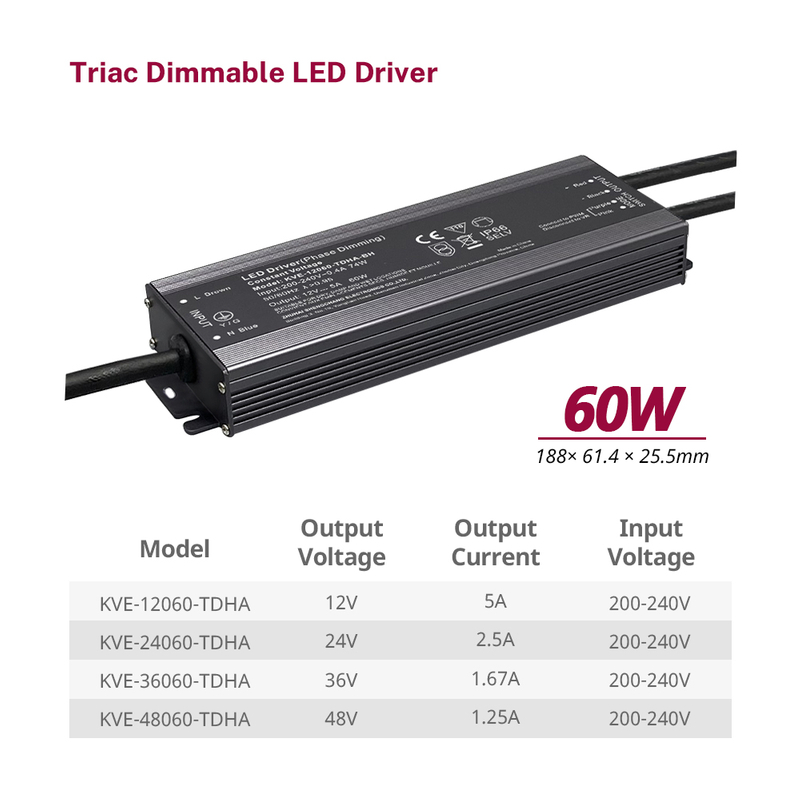

Output Power | Model Number | Output Voltage | Output Current | Size | Weight | Packing |
60W | KVE-12060-TDHA | 12V | 5A | 188*61.4*25.5mm | 0.562kg | 300*280*215mm 20pcs /CTN |
KVE-24060-TDHA | 24V | 2.5A | ||||
KVE-36060-TDHA | 36V | 1.67 | ||||
KVE-48060-TDHA | 48V | 1.25A | ||||
80W | KVE-12080-TDHA | 12V | 6.66A | |||
KVE-24080-TDHA | 24V | 3.34A | ||||
KVE-36080-TDHA | 36V | 2.22A | ||||
KVE-48080-TDHA | 48V | 1.67A | ||||
100W | KVE-12100-TDHA | 12V | 8.34A | |||
KVE-24100-TDHA | 24V | 4.17A | ||||
KVE-36100-TDHA | 36V | 2.78A | ||||
KVE-48100-TDHA | 48V | 2.09A | ||||
120W | KVE-12120-TDHA | 12V | 10A | |||
KVE-24120-TDHA | 24V | 5A | ||||
KVE-36120-TDHA | 36V | 3.33A | ||||
KVE-48120-TDHA | 48V | 2.5A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size(see the spec download)
60 80 100 120 Watt CV Triac Dimmable LED Power Supplies Wholesale
Output: | Constant Voltage |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function,PF≥0.95 |
Efficiency: | Up to 91% |
Protections: | Short circuit/over temperature/over load |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 (EU) |
Dimming function: | PWM & Voltage reduce (VR) mode can be switched Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Others | High efficiency, smaller size, high power factor, low THD |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight | Packing |
60W | KVE-12060-TDHA | 12V | 5A | 188*61.4*25.5mm | 0.562kg | 300*280*215mm 20pcs /CTN |
KVE-24060-TDHA | 24V | 2.5A | ||||
KVE-36060-TDHA | 36V | 1.67 | ||||
KVE-48060-TDHA | 48V | 1.25A | ||||
80W | KVE-12080-TDHA | 12V | 6.66A | |||
KVE-24080-TDHA | 24V | 3.34A | ||||
KVE-36080-TDHA | 36V | 2.22A | ||||
KVE-48080-TDHA | 48V | 1.67A | ||||
100W | KVE-12100-TDHA | 12V | 8.34A | |||
KVE-24100-TDHA | 24V | 4.17A | ||||
KVE-36100-TDHA | 36V | 2.78A | ||||
KVE-48100-TDHA | 48V | 2.09A | ||||
120W | KVE-12120-TDHA | 12V | 10A | |||
KVE-24120-TDHA | 24V | 5A | ||||
KVE-36120-TDHA | 36V | 3.33A | ||||
KVE-48120-TDHA | 48V | 2.5A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size(see the spec download)
