| Ouput Power: | |
|---|---|
Triac 0-10V
Isolated
Constant Voltage
1CH (Dimming)
IP20, Dry & Damp
200-240VAC
60W
12/ 24/ 36/ 48V
SAA, ENEC, TUV, CB, CE, RoHS, REACH

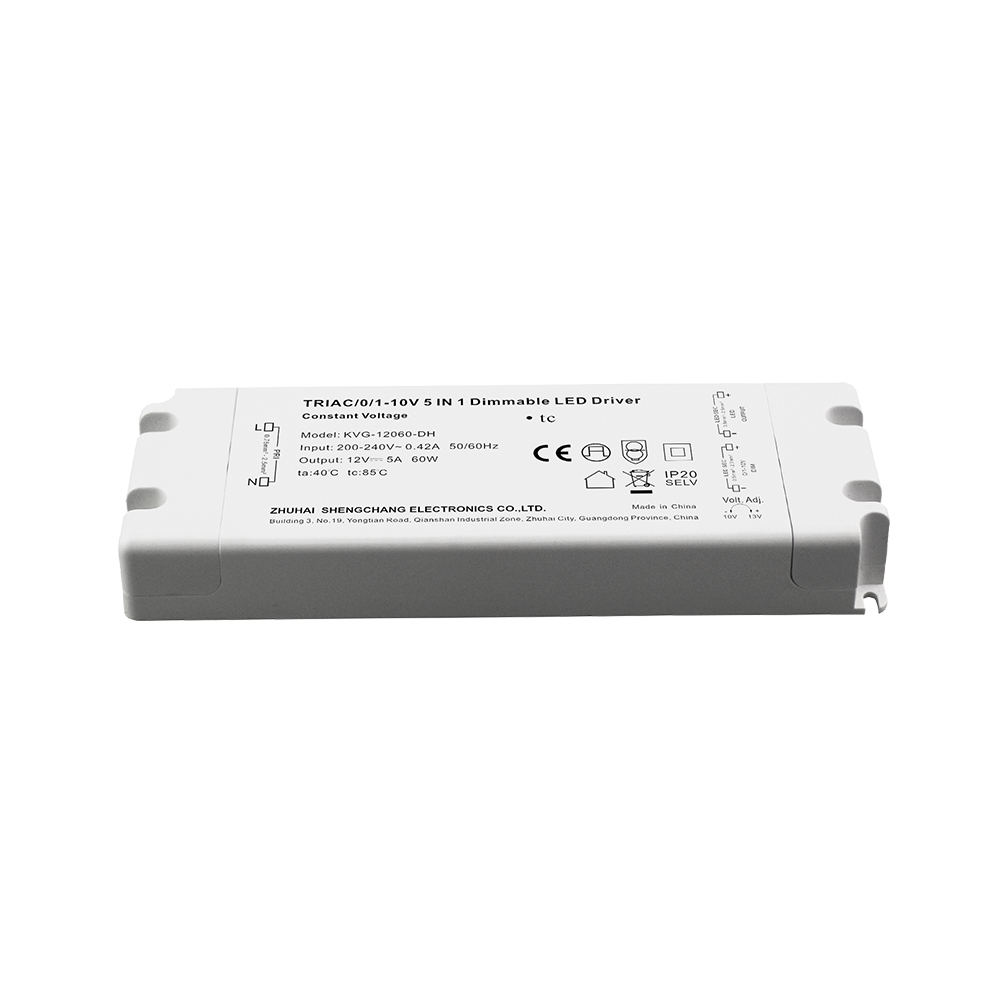

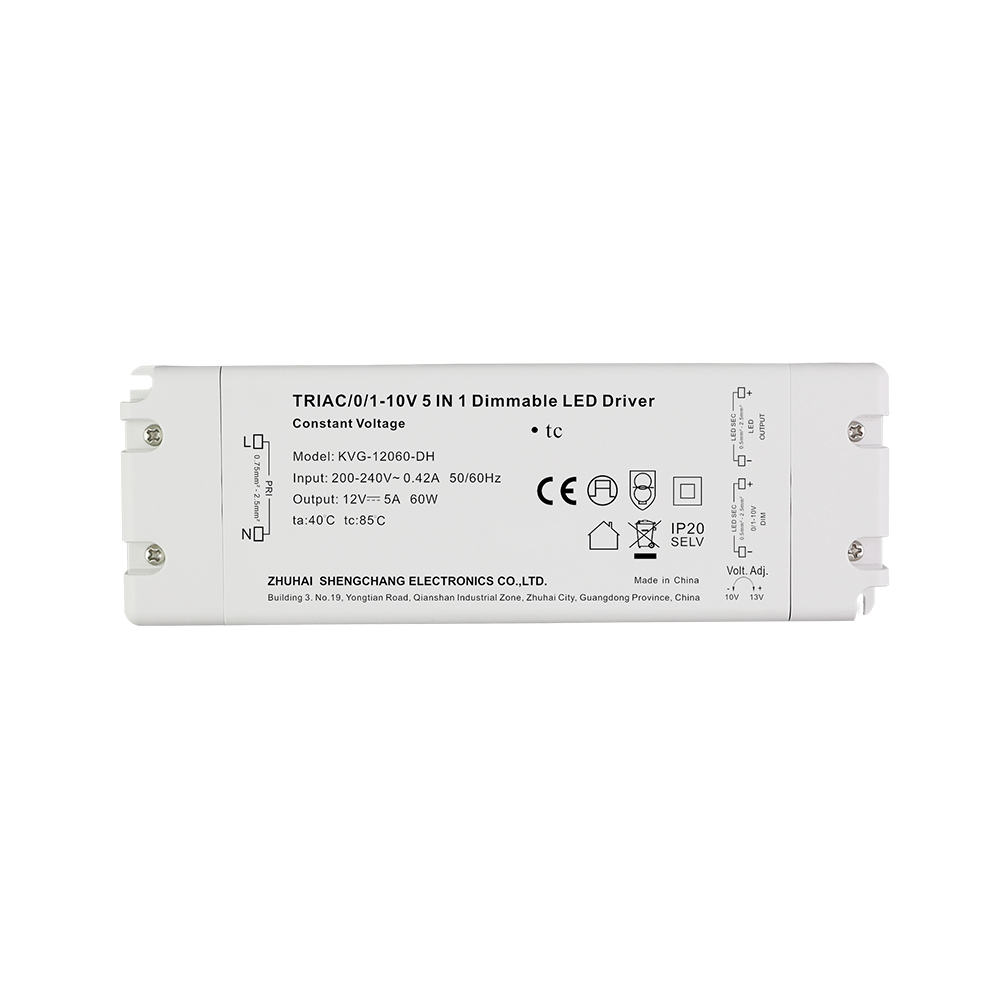

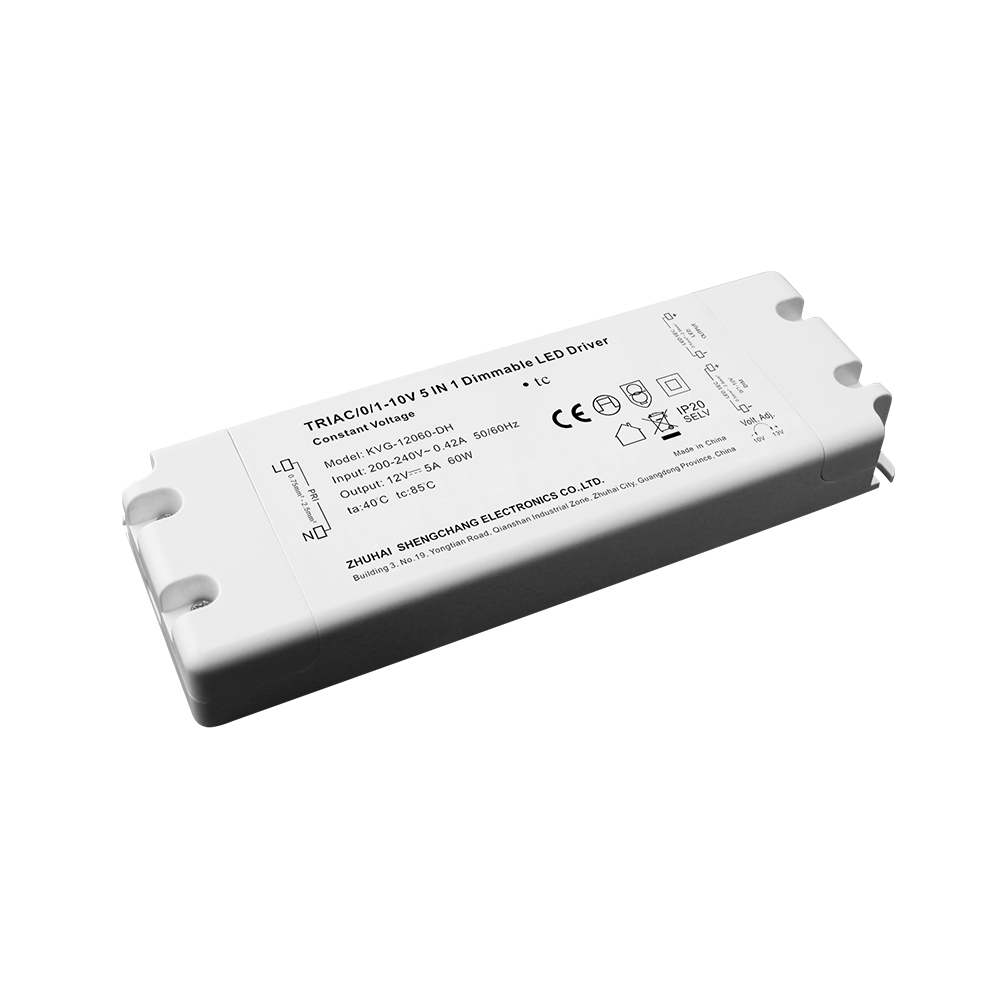

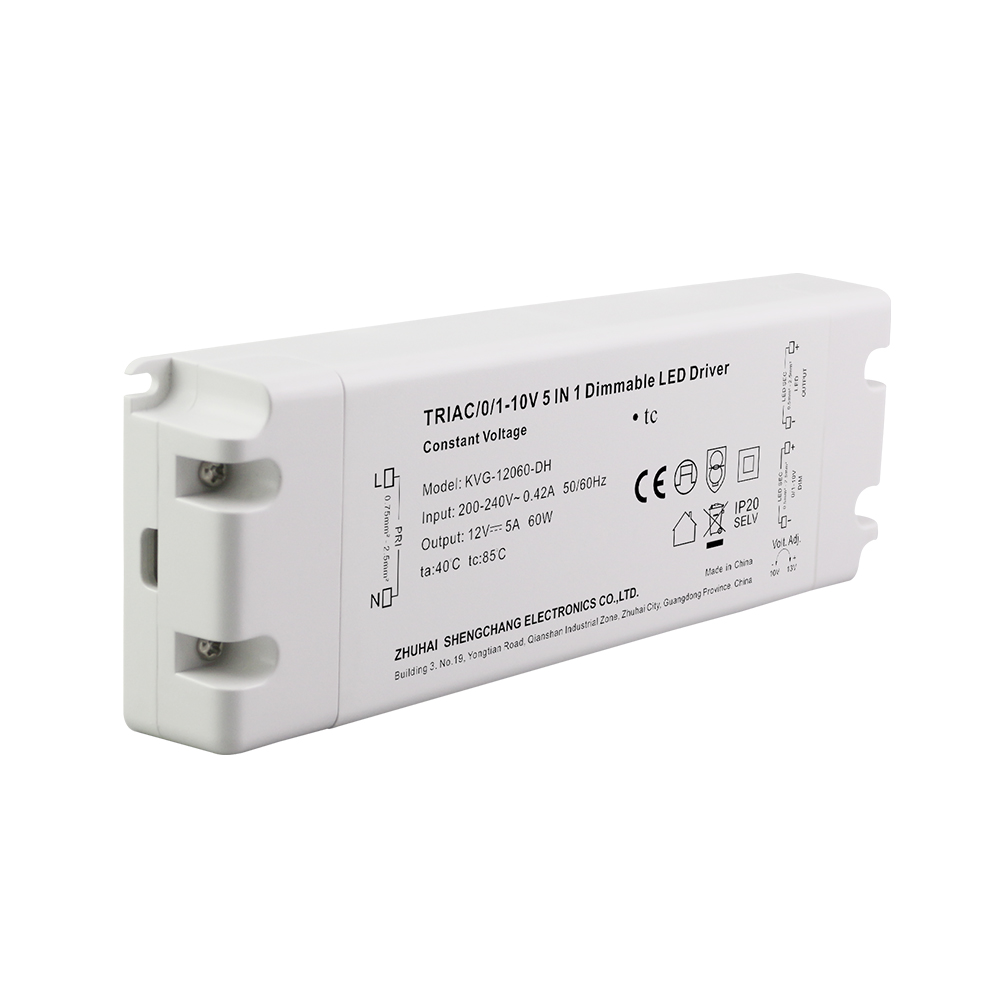

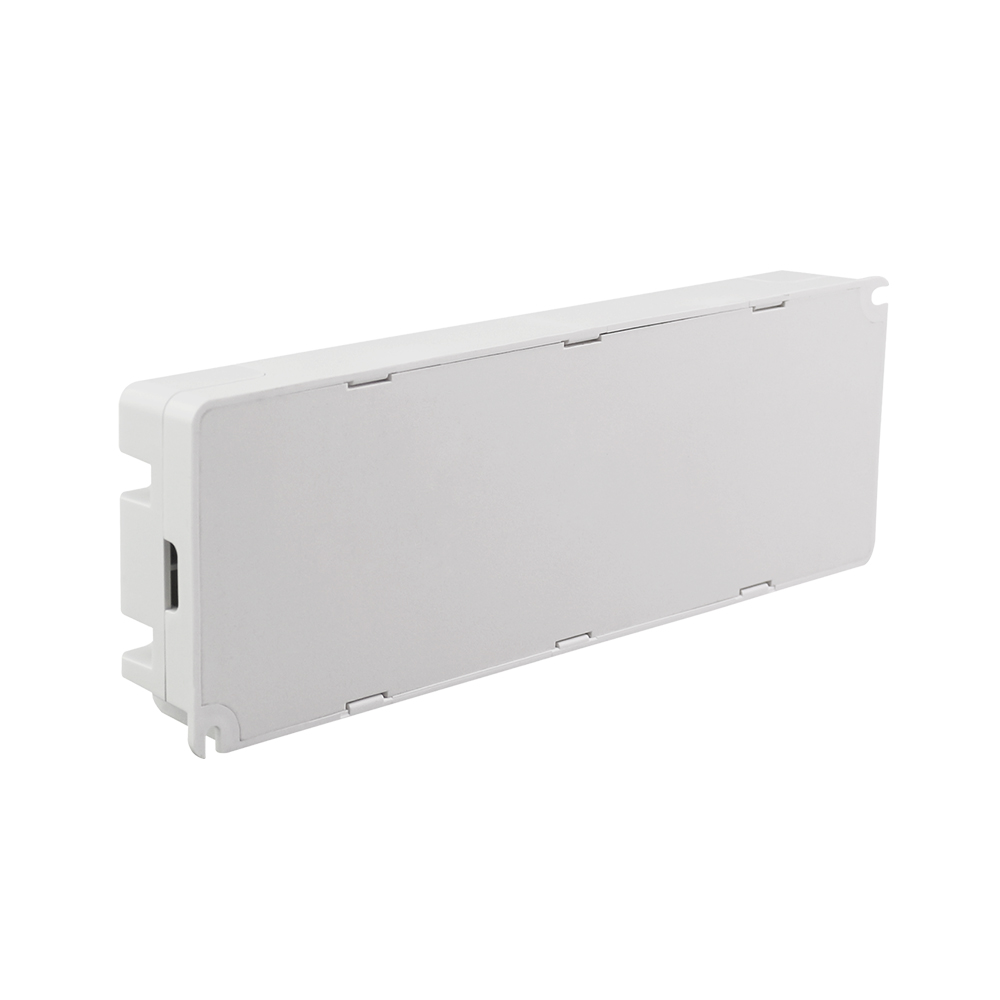

60 Watt Triac 0-10V Dimmable LED Driver CV Adjustable Output Voltage
·Output constant voltage
·Range AC input :200-240VAC
·Built-in active PFC function
·Protection:short circuit/over loading/ Over temperature
·Load: 10-100%
·PWM output, does not change the color index
·Flicker-free
·Dimming function:
Phase/Triac dimming: work with leading edge ,and trailing edge TRIAC dimmers
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Dimming range: 0-100%
·Suitable for LED lighting and moving sign applications

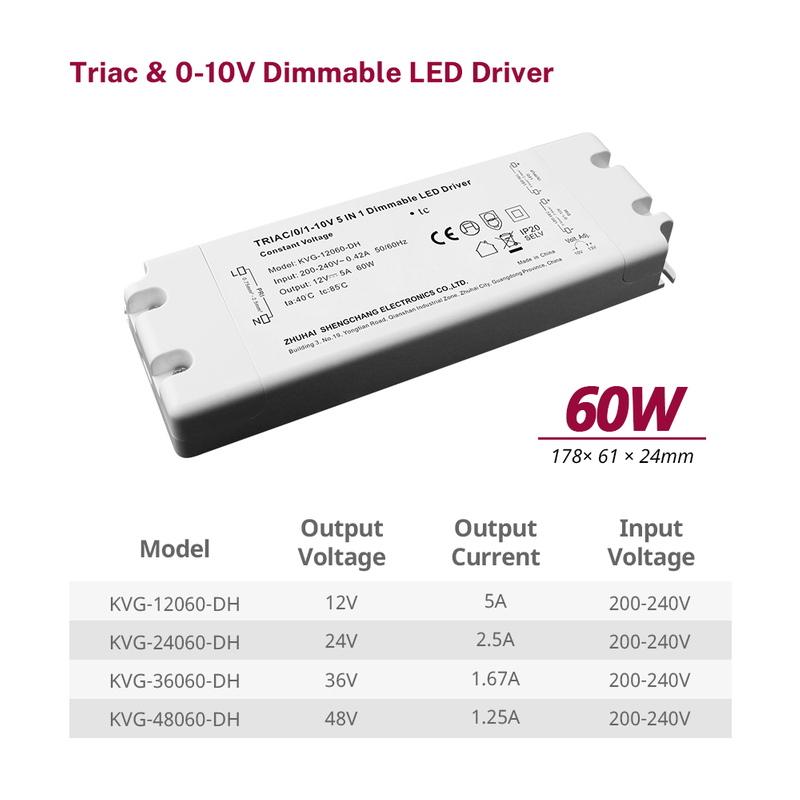

Model Number | KVG-12060-DH | KVG-24060-DH | KVG-36060-DH | KVG-46060-DH |
Output Voltage | 12V | 24V | 36V | 48V |
Output Current | 5A | 2.5A | 1.67 | 1.25A |
Output Power | 60W | |||
Input Voltage | 200-240Vac | |||
Power Gactor | 0.98 | |||
Size | 178*61*24mm | |||
N.W. | 0.35kg | |||
Introducing the 60 Watt Triac 0-10V Dimmable LED Driver, designed specifically for LED lamps. This high-quality LED driver offers adjustable output voltage, providing flexibility and customization for various lighting applications.
With a power output of 60 watts, this driver is capable of efficiently powering LED lamps while maintaining optimal performance. The Triac dimming feature allows for seamless dimming control, ensuring the perfect lighting ambiance for any environment.
Equipped with 0-10V dimming capabilities, this LED driver offers smooth and flicker-free dimming, allowing for precise control over the brightness levels of LED lamps. The CV adjustable output voltage feature further enhances the versatility of this driver, making it suitable for a wide range of LED lighting systems.
Constructed with durability and reliability in mind, this LED driver is built to last and withstand the rigors of daily use. Its professional-grade design ensures consistent and stable performance, making it an ideal choice for both residential and commercial lighting applications.
Upgrade your LED lighting system with the 60 Watt Triac 0-10V Dimmable LED Driver, the perfect solution for achieving energy-efficient and customizable lighting solutions.
