Model Number | Output Power | Output Voltage | Output Current | Channels |
SDD-24S12-096-CCT | 60W Class2 | 12V | 5A | 2CH (Dimming & tunable color temperarture)
12V / 24V Switchable |
96W Class2 | 24V | 4A |
SDD-48S24-096-CCT | 60W Class2 | 24V | 2.5A |
96W Class2 | 48V | 2A |
Output: | Constant Voltage |
Input Range: | 120VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ Over load/ Over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry and damp locations (US) |
Design features: | 1) Fine-tune Voltage slightly 2) Preset dimmer with on/off function 3) 3-Way switches 4) Dimming and color temperature adjustment function 5) Eliminated compatibility issues between drivers and switches |
Dimming range: | 0.3%-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | 16KHZ PWM output with dimming curve is a gamma 2.2 curve Flicker-free |
duct Mode |  | SDD-CCT |  | SDD-DIM |  | SDD-ND |
Built in LED Driver | CCT LED Driver+Dimmer 2 in 1 | Dimming LED Driver+Dimmer 2 in 1 | On/Off LED Driver |
CCT Dimmer | √ | × | × |
Brightness | √ | √ | × |
ON/OFF Switch | √ | √ | √ |
Input Voltage | 120V 60Hz | 120V 60Hz | 120V 60Hz |
Output Voltage | 12/24/48V | 12/24/48V | 12/24/48V |
Output Power | 60/96/120/160W | 60/96/120/160W | 60/96/120/160W |
3-Way/single Pole | 3-Way / Single Pole | 3-Way / Single Pole | 3-Way / Single Pole |
Certificated | UL/cUL Listed | UL/cUL Listed | UL/cUL Listed |
96W CV 2CH CCT Dimming Driver + Dimmer 2 in 1 with Flexible Output Dual-Range Switchable Voltage

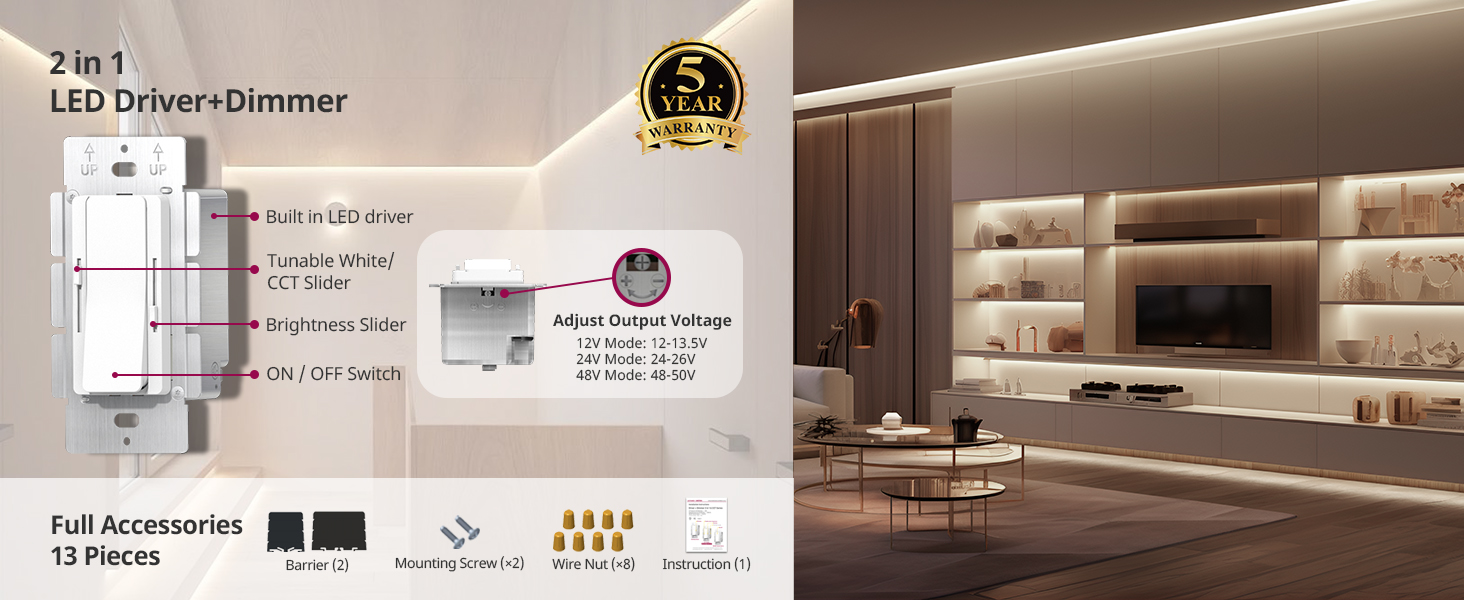

Ready-to-Use Driver + Dimmer 2 in 1, Includes 13 Accessories
One control, endless possibilities. Adjust both the color (CCT) and the brightness of your LED lights with a single, all-in-one driver and dimmer.
Driver + Dimmer 2-in-1 with Built-In Dimmable Driver. It looks like a wall switch, but it's the complete dimming solution that installs seamlessly into your circuit.
Driver + Dimmer 2-in-1 for LED Strips & More LED Lighting. Get ultimate dimming control in one simple, all-in-one device.
SDD Series 2-in-1 Driver + Dimmer in 3 Colors. Get reliable performance in your choice of White Light, Almond, or Black.
Building upon the unwavering quality and scale of our established dimmable LED driver manufacturing in China, we are excited to launch our new state-of-the-art facility in Vietnam. This expansion is strategically focused on delivering our advanced driver+dimmer 2 in 1 solutions with greater efficiency and flexibility to our international partners.
