Introduction
LED drivers are essential for powering LED lights effectively. However, like all components, they can fail, affecting your lighting system.
In this guide, we’ll explore how to test an LED driver, helping you identify issues early and maintain optimal performance.
You’ll learn testing methods, tools, and troubleshooting tips to ensure your LED driver runs smoothly.

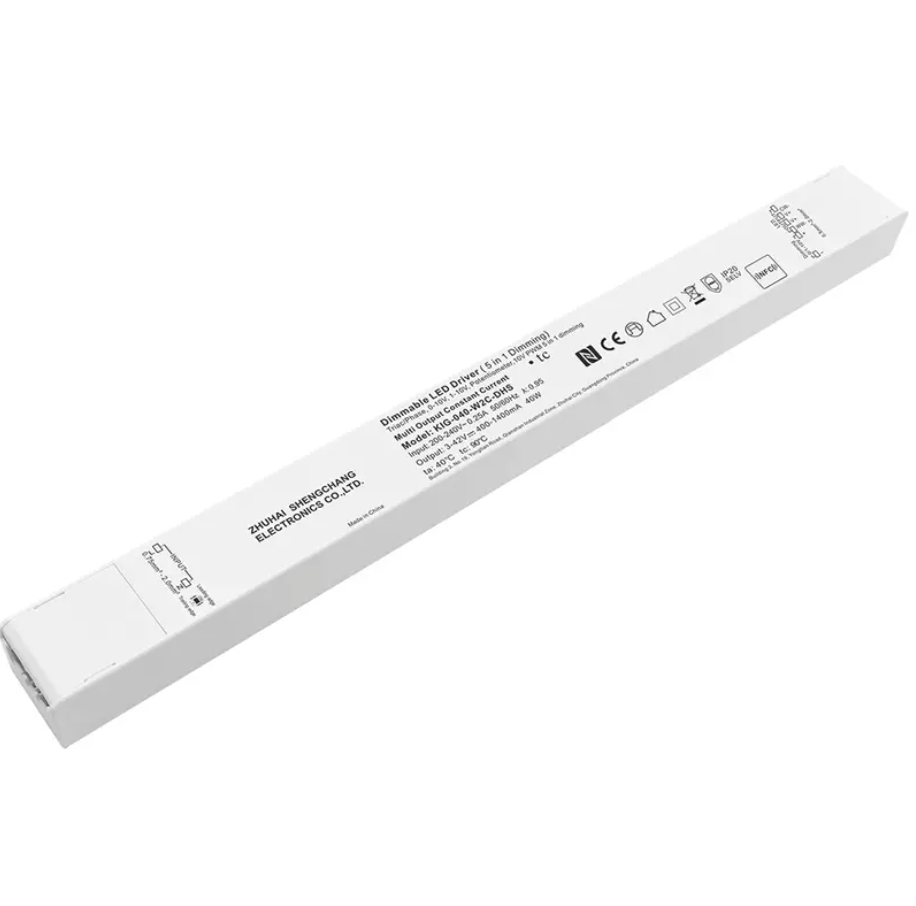

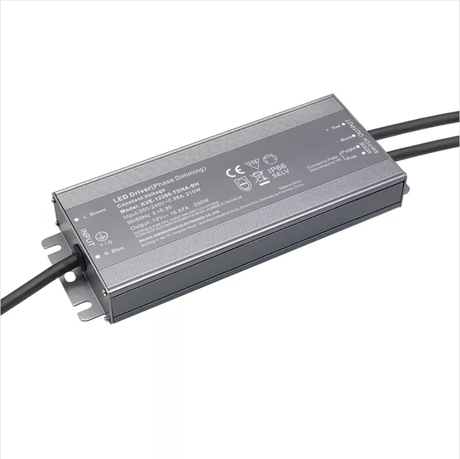

What is an LED Driver?
An LED driver is a power supply designed to control the electrical current going to an LED or a group of LEDs. Unlike traditional incandescent bulbs, LEDs require a regulated supply of electricity to operate efficiently. The LED driver ensures the correct voltage and current are delivered to the LED, adjusting to fluctuations in the power supply to maintain optimal performance.
Why LED Drivers Are Necessary
Without a driver, the LED would not receive a constant supply of electricity, which could lead to flickering, reduced lifespan, or complete failure. The LED driver serves a critical function: it converts high voltage from the power supply to a lower voltage that is appropriate for the LED. It also maintains a constant current flow to ensure the LED's light output remains stable.
In modern lighting systems, LED drivers are used to power everything from street lights to interior lighting in buildings. They are essential for ensuring that LEDs operate efficiently and for protecting the sensitive components inside the LED from fluctuations in voltage or current that could damage them. Proper functioning of the LED driver directly impacts the performance of the LED light source, making it essential to test them regularly.
Why Choose LED Drivers?
LED drivers are a popular choice for lighting systems due to their efficiency, reliability, and adaptability. Here’s why they’re so widely used:
Energy Efficiency
One of the key advantages of using LED drivers is energy efficiency. LEDs are already one of the most energy-efficient lighting solutions, consuming far less power than incandescent or fluorescent lights. However, without an appropriate driver, LEDs cannot perform at their best. LED drivers ensure that the LEDs use energy efficiently by regulating the power supplied, ensuring no excess energy is wasted in the form of heat or voltage spikes. This not only saves energy but also reduces overall electricity costs.
Improved Lifespan
The lifespan of an LED is directly linked to the performance of the LED driver. When the driver operates within the manufacturer’s specifications and provides a stable current and voltage, the LED light source will last much longer than if it were subjected to fluctuating power levels. Proper regulation of power helps to avoid premature burnout of the LED, allowing the system to work optimally for many years.
Reliable Light Output
LED drivers ensure that your lighting remains stable. Unstable voltage or current fluctuations can lead to inconsistent light output, causing flickering or dimming, which can be disruptive in environments like offices, retail stores, and homes. A reliable LED driver ensures smooth, consistent lighting over the life of the fixture.
Key Features of LED Drivers
LED drivers come with several essential features that make them suitable for modern lighting systems. Understanding these features helps when testing the drivers for optimal performance.
Current and Voltage Regulation
The most crucial function of an LED driver is regulating the current and voltage supplied to the LED lights. LEDs are current-driven, meaning that their brightness depends directly on the current supplied. If the current is too high, it can lead to overheating and premature failure. If the current is too low, the LED won’t operate efficiently, and light output will be reduced.
LED drivers come in two primary categories: constant current drivers and constant voltage drivers. The type of driver you need depends on the specifications of your LED light. Constant current drivers are typically used in high-power applications, where a consistent current is needed to power the LED, while constant voltage drivers are used in low-power, standard applications.
Type of Driver | Best Use Case | Current Regulation |
Constant Current Driver | High-power LEDs or specific configurations | Provides constant current output |
Constant Voltage Driver | Low-power or standard LED lighting | Provides constant voltage output |
Overload and Short Circuit Protection
Another key feature is the protection against overloads and short circuits. If the LED driver is exposed to excessive load or a short circuit, these protection mechanisms will shut down the driver to prevent damage. This safety feature is essential for preventing system failures and ensuring the longevity of the driver and LEDs.
Dimming Capabilities
Many LED drivers come equipped with dimming features that allow the lighting intensity to be adjusted based on environmental factors or user preference. Dimming capability is particularly important in energy-efficient lighting systems, where reducing light output at certain times can result in significant energy savings. When testing the LED driver, it’s essential to check whether the dimming function works smoothly without causing flickering or irregular light output.
How to Test an LED Driver
Testing an LED driver involves checking its electrical performance, temperature regulation, and functionality to ensure that it meets the necessary operational standards. Below, we outline a step-by-step process to test your LED driver thoroughly.
Step 1: Safety Precautions
Before beginning any testing, it’s essential to take proper safety precautions. Ensure that the power supply to the driver is turned off to avoid electrical hazards. Use insulated tools and wear protective gloves and goggles. Always test the LED driver in a dry, clean area to prevent any accidents caused by electrical shocks.
Step 2: Visual Inspection
A visual inspection is the first step in the testing process. Check the LED driver for any visible damage such as burnt areas, discolored components, or loose connections. Inspect the wiring to ensure there are no frayed or exposed wires, as these can lead to short circuits or other issues. This initial check can often identify problems before further testing is done.
Step 3: Measuring Output Voltage and Current
Once the visual inspection is complete, use a multimeter to measure the output voltage and current. Compare these readings to the manufacturer’s specifications for the driver. The voltage should be consistent with the driver’s rating, and the current should match the requirements of the LED it powers. If the voltage or current readings are outside the expected range, it may indicate that the driver is malfunctioning and needs repair or replacement.
Test Parameter | Expected Outcome | Tools Needed |
Output Voltage | Matches the manufacturer’s specification | Multimeter |
Output Current | Matches LED specifications | Multimeter |
Load Test | LED should light up steadily | Dummy load resistor |
Step 4: Conducting a Load Test
Testing the LED driver under load is important to simulate real-world conditions. To do this, connect the driver to an actual LED light or use a dummy load resistor that mimics the electrical characteristics of an LED. This allows you to assess how the driver performs when supplying power to the LED. Check for any signs of instability, flickering, or irregular light output during the load test.
Step 5: Thermal Testing
LED drivers generate heat during operation, and prolonged exposure to high temperatures can damage both the driver and the LEDs. Use a thermal camera to check the temperature of the LED driver during operation. The driver should not overheat, and the temperature should stay within the recommended range set by the manufacturer. If the driver is overheating, this could indicate poor ventilation, faulty components, or excessive load.
Test Type | Measurement Tool | Ideal Temperature Range |
Thermal Testing | Thermal Camera | Below the driver’s rated maximum |
|
| (typically 40-60°C depending on model) |

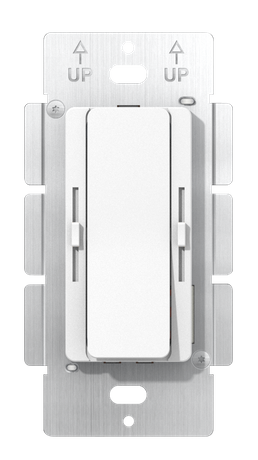

Step 6: Testing for Dimmer Compatibility
If your LED driver is designed to be compatible with a dimmer, it’s essential to test its dimming functionality. Use a compatible dimmer switch and check for smooth dimming without flickering or instability. Flickering at lower brightness levels can indicate a problem with the driver or its compatibility with the dimming system.
Troubleshooting Common LED Driver Problems
Even with regular maintenance, issues can arise with LED drivers. Here are some common problems and how to troubleshoot them:
Voltage Instabilities
Voltage instabilities can cause flickering or dimming of LED lights. If you notice that your LED lights are flickering or not operating at full brightness, it could be due to voltage fluctuations. To resolve this, check the driver’s output voltage using a multimeter. If the voltage is inconsistent, the driver may need to be replaced or repaired.
Overheating Issues
Overheating is a common issue with LED drivers, especially in systems that are used for extended periods. Overheating can damage the driver and reduce its lifespan. To address this, ensure that the driver is adequately ventilated and that any cooling fans or heat sinks are functioning properly. If the driver is still overheating, it may need to be replaced or repaired.
Inconsistent Dimming
If your LED driver is connected to a dimmer and exhibits flickering or inconsistent light output, the problem could be due to compatibility issues or faulty components within the driver. Check the driver’s dimming specifications and ensure that it’s compatible with the dimmer switch you are using. If the problem persists, the driver may need to be repaired or replaced.
Preventative Maintenance Tips for LED Drivers
Preventative maintenance is crucial for extending the lifespan of your LED drivers and ensuring consistent performance. Below are some tips for keeping your LED drivers in good working condition:
Regular Visual Inspections
Perform routine visual inspections of your LED drivers to check for any signs of damage or wear. Look for burnt components, frayed wires, or any physical damage. Catching problems early can prevent more serious issues from developing later on.
Ensuring Proper Ventilation
Proper ventilation is crucial for keeping the LED driver cool. Ensure that the driver is installed in a location with adequate airflow. Clean any dust or debris from vents, heat sinks, or cooling fans to maintain optimal performance. Overheating is one of the most common causes of LED driver failure, so ventilation should be a priority.
Updating Firmware and Replacing Components
Some LED drivers feature firmware updates that can improve performance or fix known issues. Check periodically for any available updates and install them as needed. Additionally, replace components like capacitors or resistors before they fail, especially if they show signs of wear.
Conclusion
Testing your LED driver is crucial for maintaining the functionality and efficiency of your lighting system. Regular testing can help identify potential issues such as voltage inconsistencies, overheating, or faulty dimming features, allowing you to address them before they cause further problems. By using the right tools and following the proper testing methods, you can ensure that your LED drivers continue to operate efficiently and extend the lifespan of your lighting system.
Testing an LED driver ensures optimal performance and longevity of your lighting system. By using proper tools and following step-by-step methods, you can diagnose and resolve issues early. Regular testing helps prevent malfunctions and maximizes energy efficiency. Companies like Zhuhai Shengchang Electronics Co., Ltd. offer high-quality LED drivers that provide reliable performance, ensuring your lighting systems operate smoothly and efficiently.
FAQ
Q: How do I test an LED driver?
A: To test an LED driver, use tools like a multimeter to measure voltage and current. Perform a functionality test to ensure proper operation.
Q: What are common methods for testing LED driver performance?
A: Common methods include measuring output voltage, checking current stability, and testing efficiency to ensure the LED driver is working optimally.
Q: Why should I test my LED driver?
A: Regular testing of your LED driver ensures it operates efficiently, preventing potential failures and extending the lifespan of your lighting system.
Q: What tools are used to test an LED driver?
A: Tools for testing LED drivers include a multimeter, oscilloscope, and LED driver diagnostic tools to measure current, voltage, and efficiency.
Q: How can I measure the current of my LED driver?
A: To measure the current, use a digital multimeter in series with the LED driver to check if it matches the expected output.
Q: What is LED driver efficiency testing?
A: LED driver efficiency testing measures how effectively the driver converts power without excessive heat or wasted energy. It ensures energy savings and proper functionality.
Q: How do I troubleshoot a malfunctioning LED driver?
A: Check the LED driver’s circuit for faults using diagnostic tools. Test the voltage and current output, and ensure no short circuits are present.
Q: What is the cost of LED driver testing equipment?
A: LED driver testing equipment, such as multimeters and oscilloscopes, can range in price based on brand and capabilities. Some tools are affordable, while others are specialized.
