| Ouput Power: | |
|---|---|
DALI-2 D4i Push
Isolated
Constant Voltage
1CH (Dimming), 2CH (CCT)
IP66, Dry & Damp, Wet
100-277VAC
150W, 200W
12/ 24/ 36/ 48V
UL & cUL, FCC, CE, RoHS

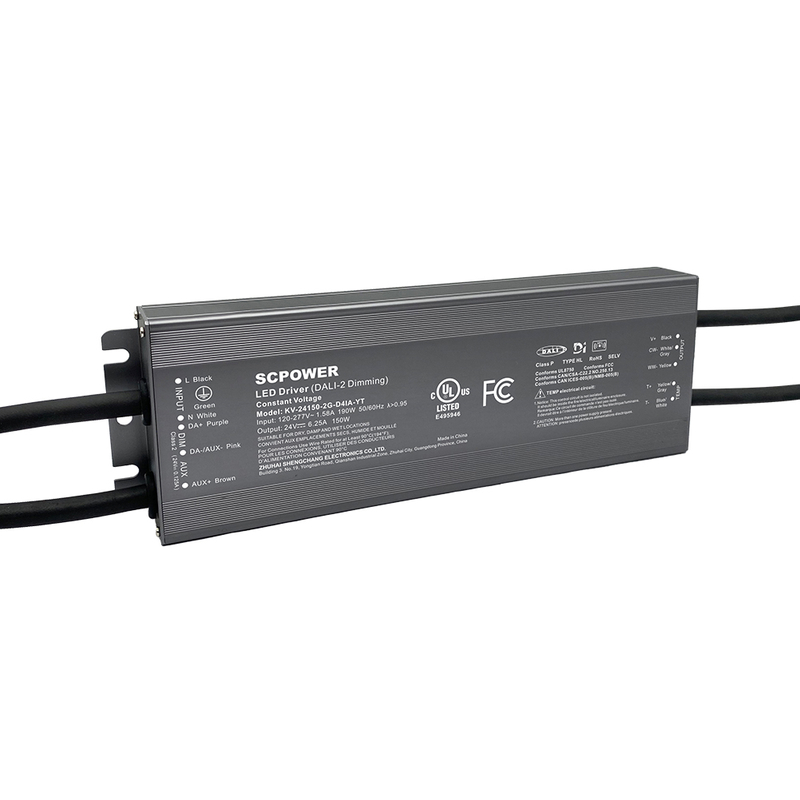

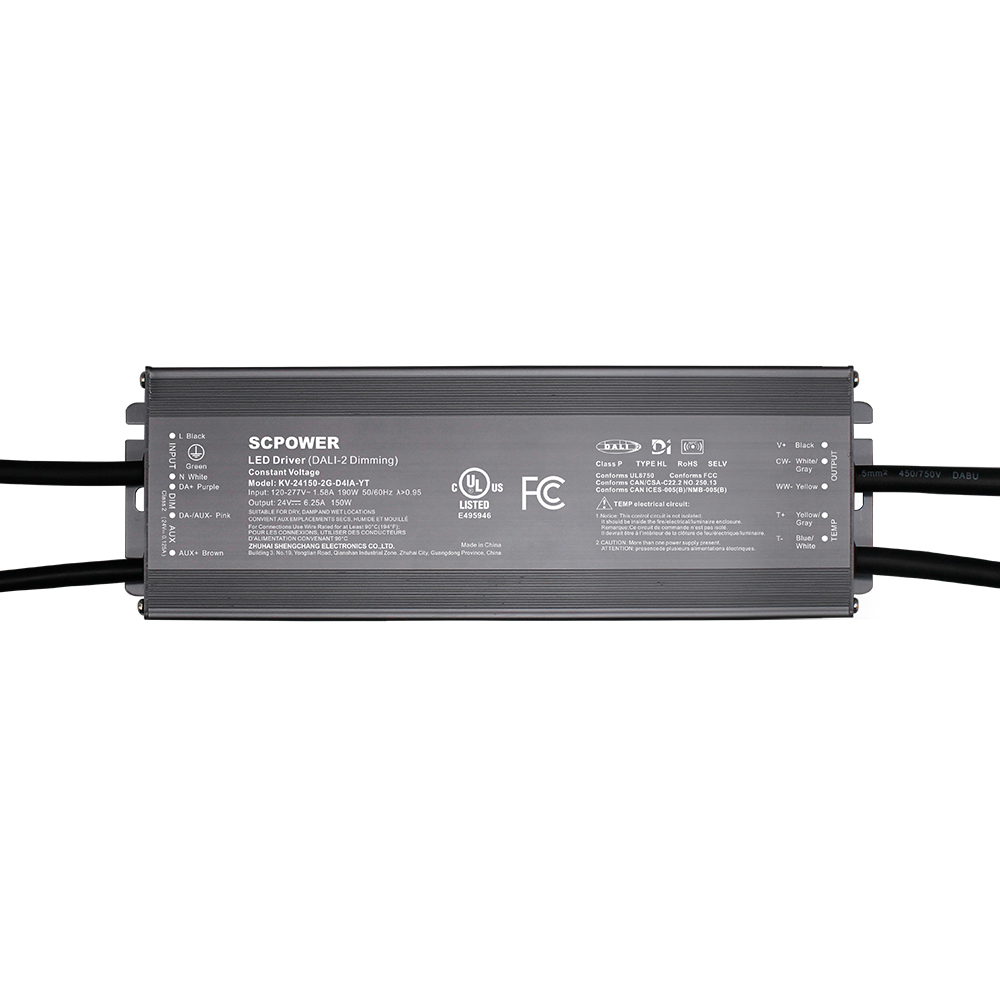

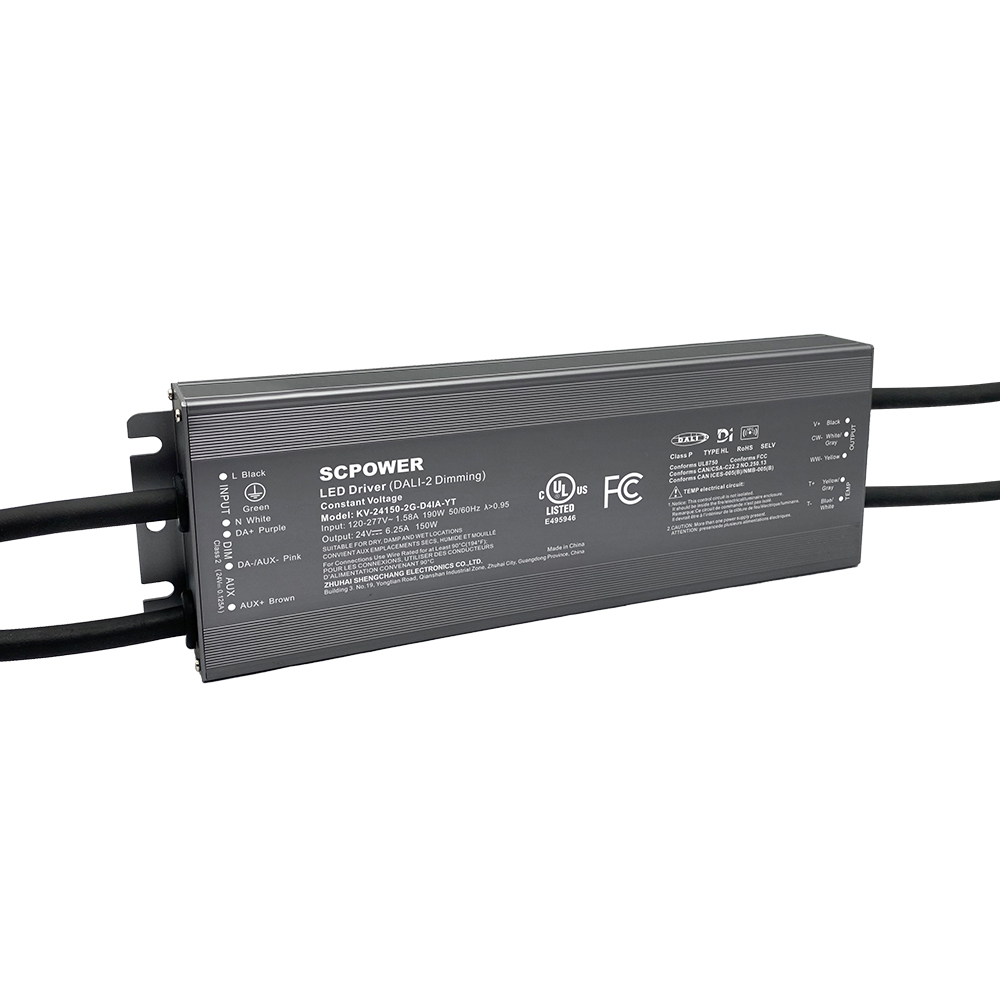

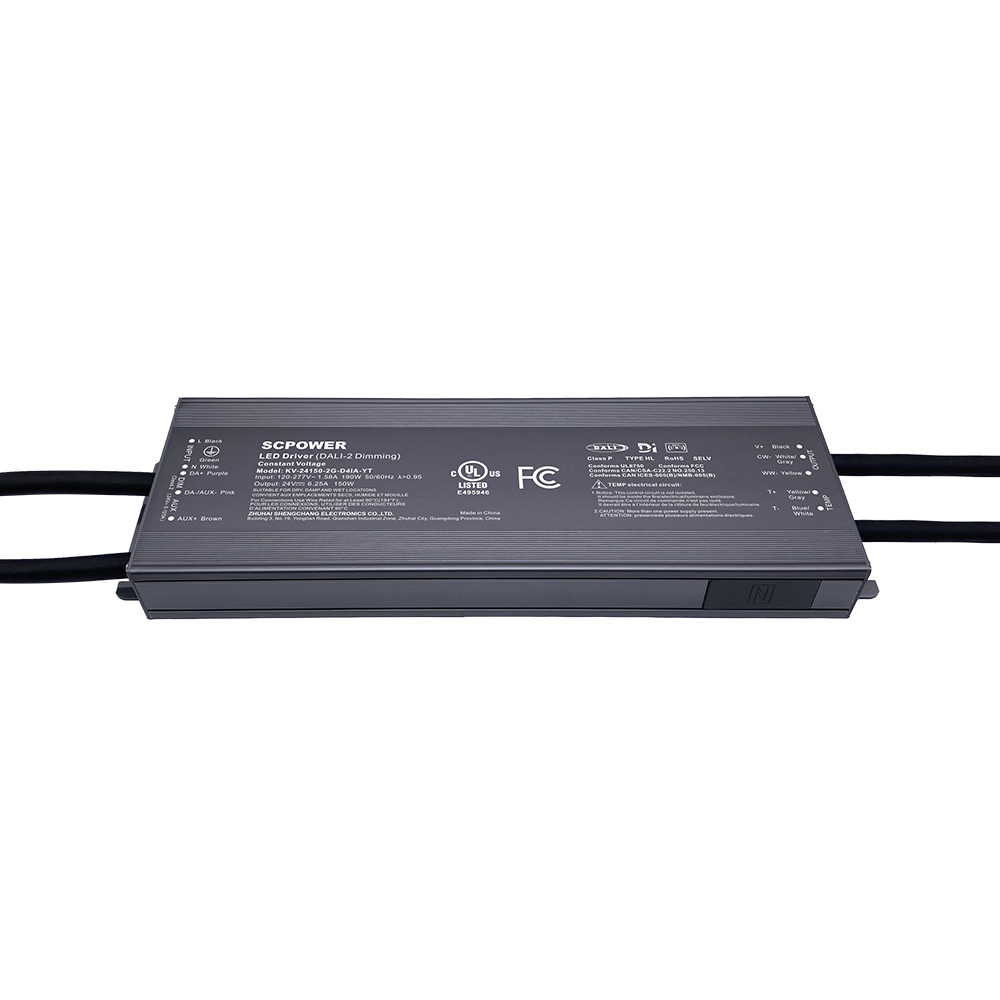

150W 200W DALI-2 D4i certificate 2 Channels LED Drivers are designed for DALI dimming application, the DALI dimming mode can be set to DT8 CCT mode, DT6 CCT mode, DT6 Solo address mode, DT6 Dual addresses mode.
·Input Voltage 100-277V AC
·4K Hz PWM frequency, Flicker Free, smooth dimming
·Built-in active PFC function
·Efficiency up to 92%
·Protections: short circuit, over load, over temperature
·Cooling by free air convection
·Full aluminum protection housing, for dry, damp & wet locations（US）
·Dimming function: DALI-2 D4I dimming, Push Dimming

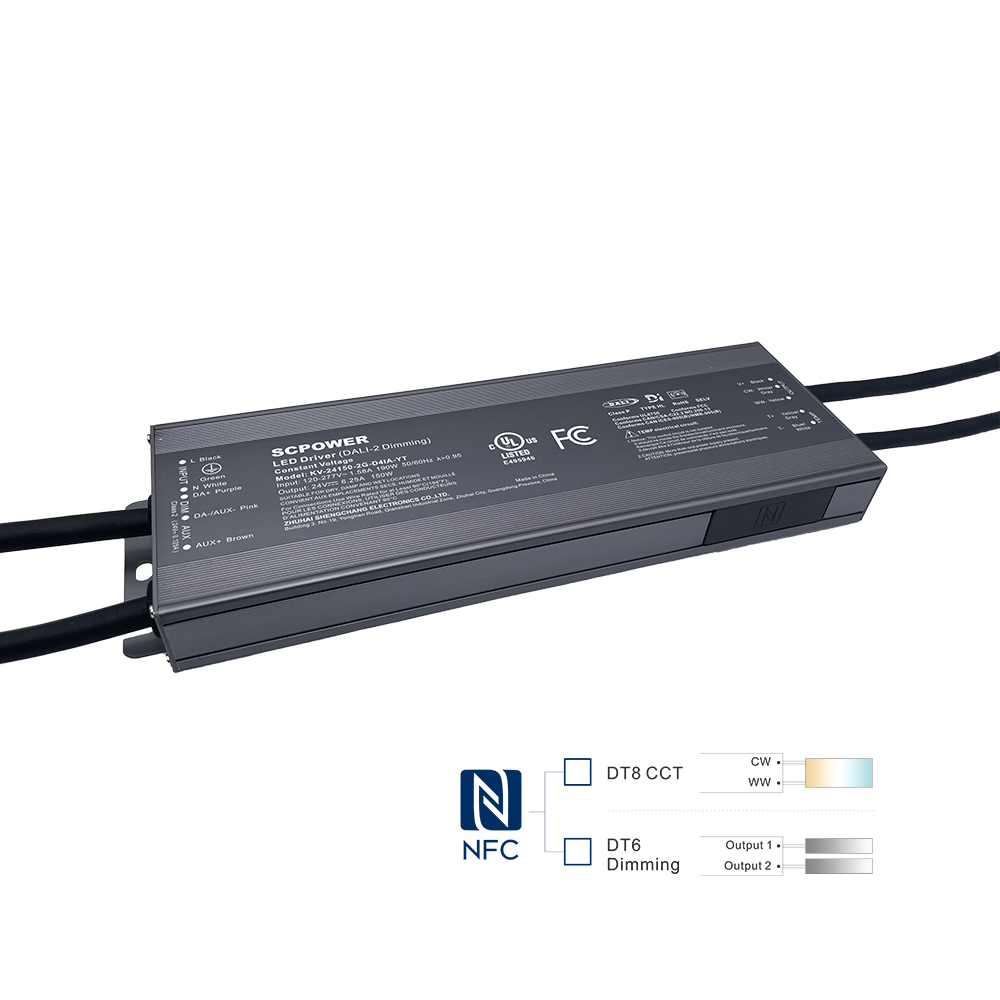

·NFC function:
Adjust output voltage slightly
set up address
·Dimming range: 0-100%
·Suitable for the application of lighting with digital dimming
·5-year Warranty
Output Channel | Model Number | Output Power | Output Voltage | Output Current | Size | Weight |
1 Channel | KV-12150-1G-D4PA | 150W | 12V | 12.5A | 279*78*25mm | 1.05kg |
KV-24150-1G-D4PA | 24V | 6.25A | ||||
KV-36150-1G-D4PA | 36V | 4.17A | ||||
KV-48150-1G-D4PA | 48V | 3.13A | ||||

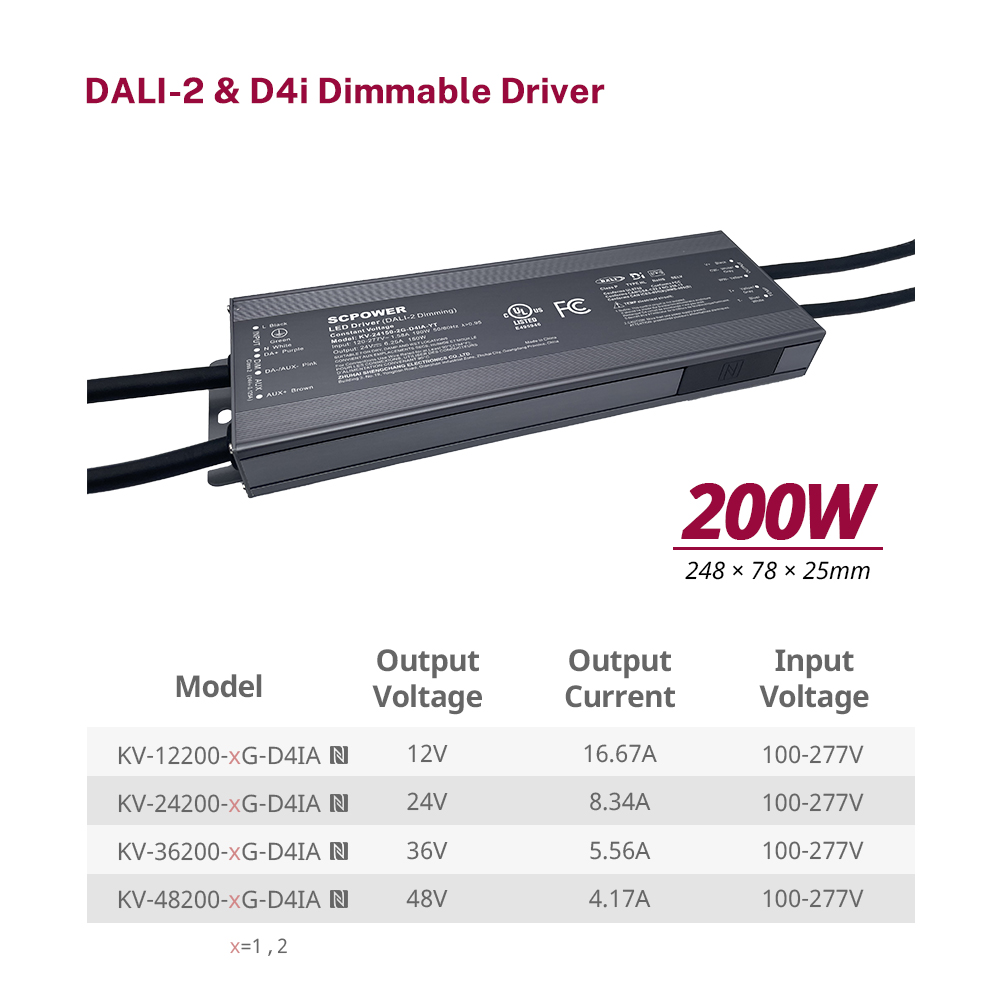

KV-12200-1G-D4PA | 200W | 12V | 16.67A | |||
KV-24200-1G-D4PA | 24V | 8.34A | ||||
KV-36200-1G-D4PA | 36V | 5.56A | ||||
KV-48200-1G-D4PA | 48V | 4.17A | ||||
2 Channels | KV-12150-2G-D4PA | 150W | 12V | 12.5A | 279*78*25mm | 1.05kg |
KV-24150-2G-D4PA | 24V | 6.25A | ||||
KV-36150-2G-D4PA | 36V | 4.17A | ||||
KV-48150-2G-D4PA | 48V | 3.13A | ||||
KV-12200-2G-D4PA | 200W | 12V | 16.67A | |||
KV-24200-2G-D4PA | 24V | 8.34A | ||||
KV-36200-2G-D4PA | 36V | 5.56A | ||||
KV-48200-2G-D4PA | 48V | 4.17A | ||||
150W 200W DALI-2 D4i certificate 2 Channels LED Drivers are designed for DALI dimming application, the DALI dimming mode can be set to DT8 CCT mode, DT6 CCT mode, DT6 Solo address mode, DT6 Dual addresses mode.
·Input Voltage 100-277V AC
·4K Hz PWM frequency, Flicker Free, smooth dimming
·Built-in active PFC function
·Efficiency up to 92%
·Protections: short circuit, over load, over temperature
·Cooling by free air convection
·Full aluminum protection housing, for dry, damp & wet locations（US）
·Dimming function: DALI-2 D4I dimming, Push Dimming
·NFC function:
Adjust output voltage slightly
set up address
·Dimming range: 0-100%
·Suitable for the application of lighting with digital dimming
·5-year Warranty
Output Channel | Model Number | Output Power | Output Voltage | Output Current | Size | Weight |
1 Channel | KV-12150-1G-D4PA | 150W | 12V | 12.5A | 279*78*25mm | 1.05kg |
KV-24150-1G-D4PA | 24V | 6.25A | ||||
KV-36150-1G-D4PA | 36V | 4.17A | ||||
KV-48150-1G-D4PA | 48V | 3.13A | ||||
KV-12200-1G-D4PA | 200W | 12V | 16.67A | |||
KV-24200-1G-D4PA | 24V | 8.34A | ||||
KV-36200-1G-D4PA | 36V | 5.56A | ||||
KV-48200-1G-D4PA | 48V | 4.17A | ||||
2 Channels | KV-12150-2G-D4PA | 150W | 12V | 12.5A | 279*78*25mm | 1.05kg |
KV-24150-2G-D4PA | 24V | 6.25A | ||||
KV-36150-2G-D4PA | 36V | 4.17A | ||||
KV-48150-2G-D4PA | 48V | 3.13A | ||||
KV-12200-2G-D4PA | 200W | 12V | 16.67A | |||
KV-24200-2G-D4PA | 24V | 8.34A | ||||
KV-36200-2G-D4PA | 36V | 5.56A | ||||
KV-48200-2G-D4PA | 48V | 4.17A | ||||
