DALI-2 D4i Push
Isolated
Constant Voltage
IP66, Dry & Damp, Wet
100-277VAC
80W, 96W, 100W, 120W
12/ 24/ 36/ 48V
UL & cUL, FCC, CE, RoHS

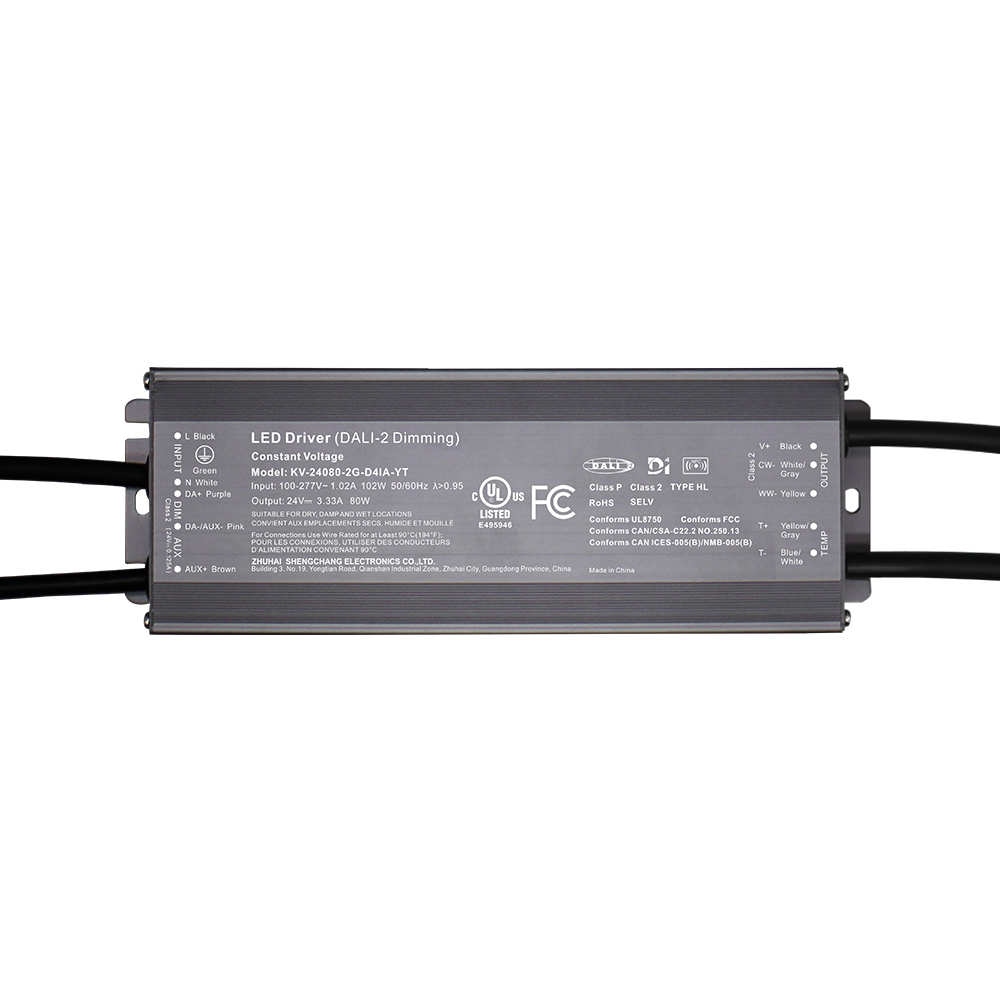

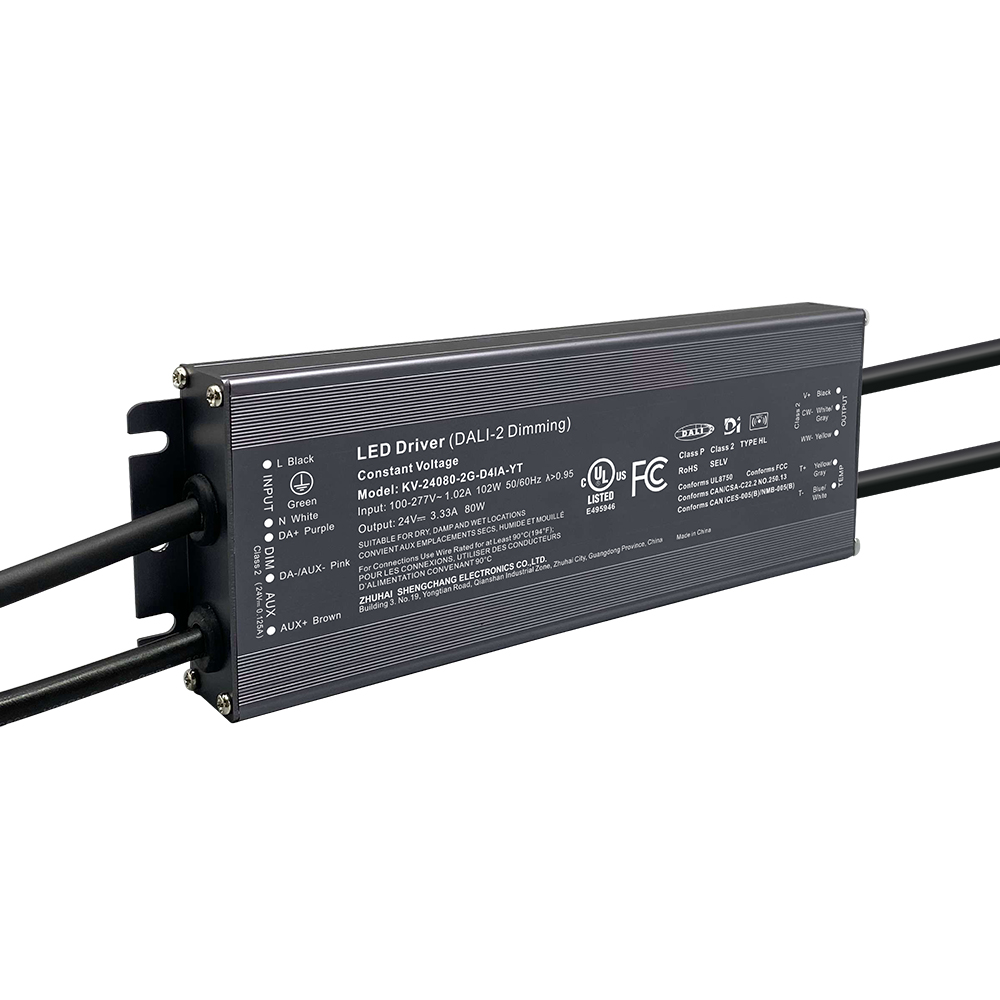

80 96 100 120 Watt DALI-2 D4i certificate 2 Channels LED Drivers

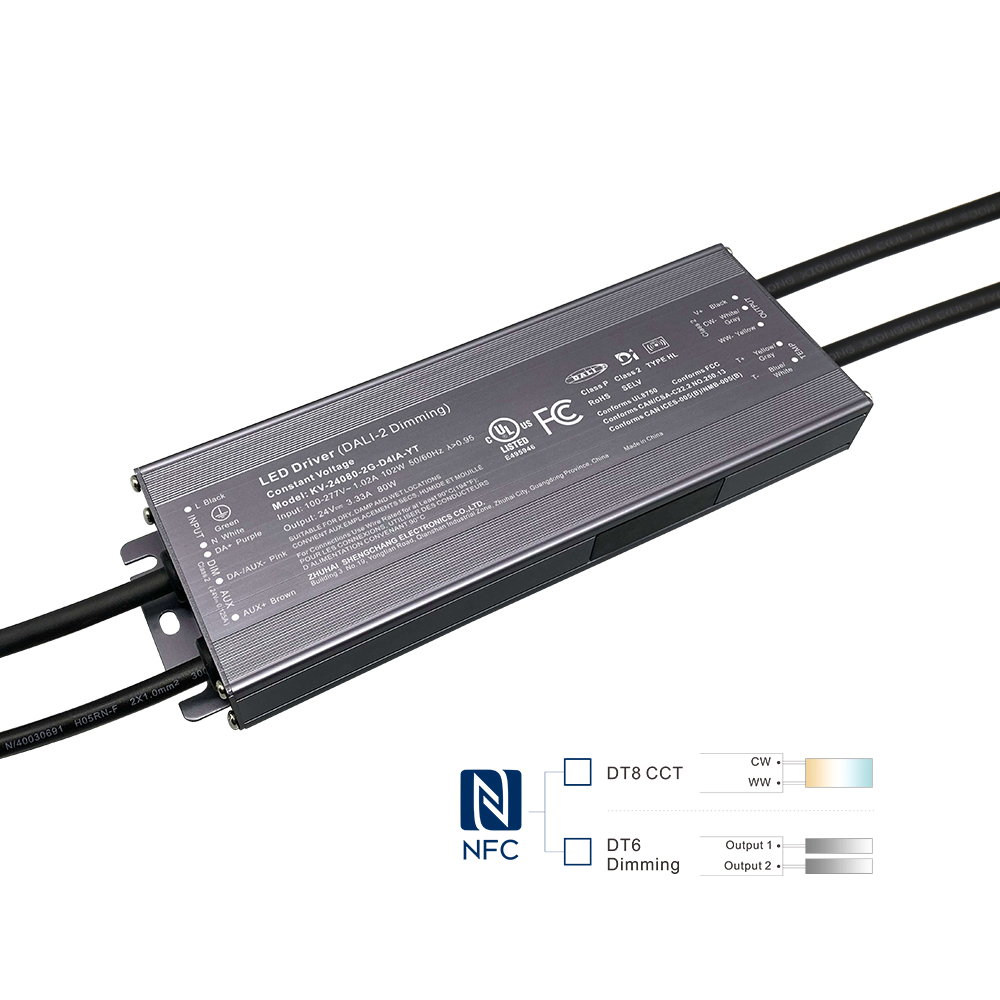

·Support tunable white applications using DT8/DT6 CCT address mode, and dimming using DT6 1/2 address mode
·NFC technology to program the driver
·Input Voltage 100-277V AC
·4K Hz PWM frequency, Flicker Free, smooth dimming
·Built-in active PFC function
·Efficiency up to%
·Protections: short circuit, over load, over temperature
·Cooling by free air convection
·Full aluminum protection housing, for dry, damp & wet locations（US）
·Dimming function: DALI-2 D4I dimming, Push Dimming
·NFC function:
Adjust output voltage slightly
set up address
·Dimming range: 0-100%
·Suitable for the application of lighting with digital dimming
·IP66 Design
·Warranty5 years
Output Channel | Model Number | Output Power | Output Voltage | Output Current | Size | N.W. |
1 Channel | KV-12080-1G-D4PA | 80W | 12V | 6.66A | 232*78*25mm | 0.83kg |
KV-24080-1G-D4PA | 24V | 3.34A | ||||
KV-36080-1G-D4PA | 36V | 2.22A | ||||
KV-46080-1G-D4PA | 48V | 1.67A | ||||

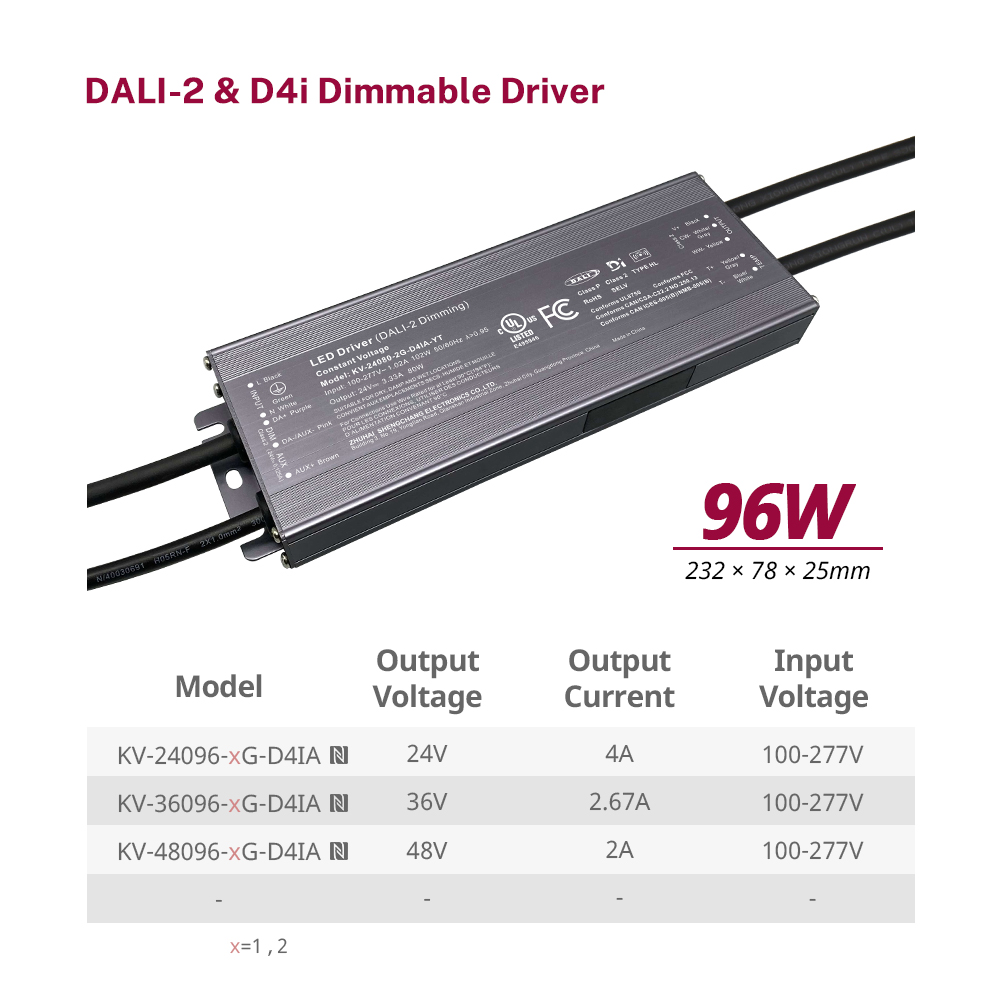

KV-24096-1G-D4PA | 96W | 24V | 4A | |||
KV-36096-1G-D4PA | 36V | 2.67A | ||||
KV-48096-1G-D4PA | 48V | 2A | ||||
KV-12100-1G-D4PA | 100W | 12V | 8.34A | |||
KV-24100-1G-D4PA | 24V | 4.17A | ||||
KV-36100-1G-D4PA | 36V | 2.78A | ||||
KV-48100-1G-D4PA | 48V | 2.09A | ||||
KV-12120-1G-D4PA | 120W | 12V | 10A | |||
KV-24120-1G-D4PA | 24V | 5A | ||||
KV-36120-1G-D4PA | 36V | 3.33A | ||||
KV-48120-1G-D4PA | 48V | 2.5A | ||||
2 Channels | KV-12080-2G-D4PA | 80W | 12V | 6.66A | 232*78*25mm | 0.83kg |
KV-24080-2G-D4PA | 24V | 3.34A | ||||
KV-36080-2G-D4PA | 36V | 2.22A | ||||
KV-46080-2G-D4PA | 48V | 1.67A | ||||
KV-24096-2G-D4PA | 96W | 24V | 4A | |||
KV-36096-2G-D4PA | 36V | 2.67A | ||||
KV-48096-2G-D4PA | 48V | 2A | ||||
KV-12100-2G-D4PA | 100W | 12V | 8.34A | |||
KV-24100-2G-D4PA | 24V | 4.17A | ||||
KV-36100-2G-D4PA | 36V | 2.78A | ||||
KV-48100-2G-D4PA | 48V | 2.09A | ||||
KV-12120-2G-D4PA | 120W | 12V | 10A | |||
KV-24120-2G-D4PA | 24V | 5A | ||||
KV-36120-2G-D4PA | 36V | 3.33A | ||||
KV-48120-2G-D4PA | 48V | 2.5A | ||||
