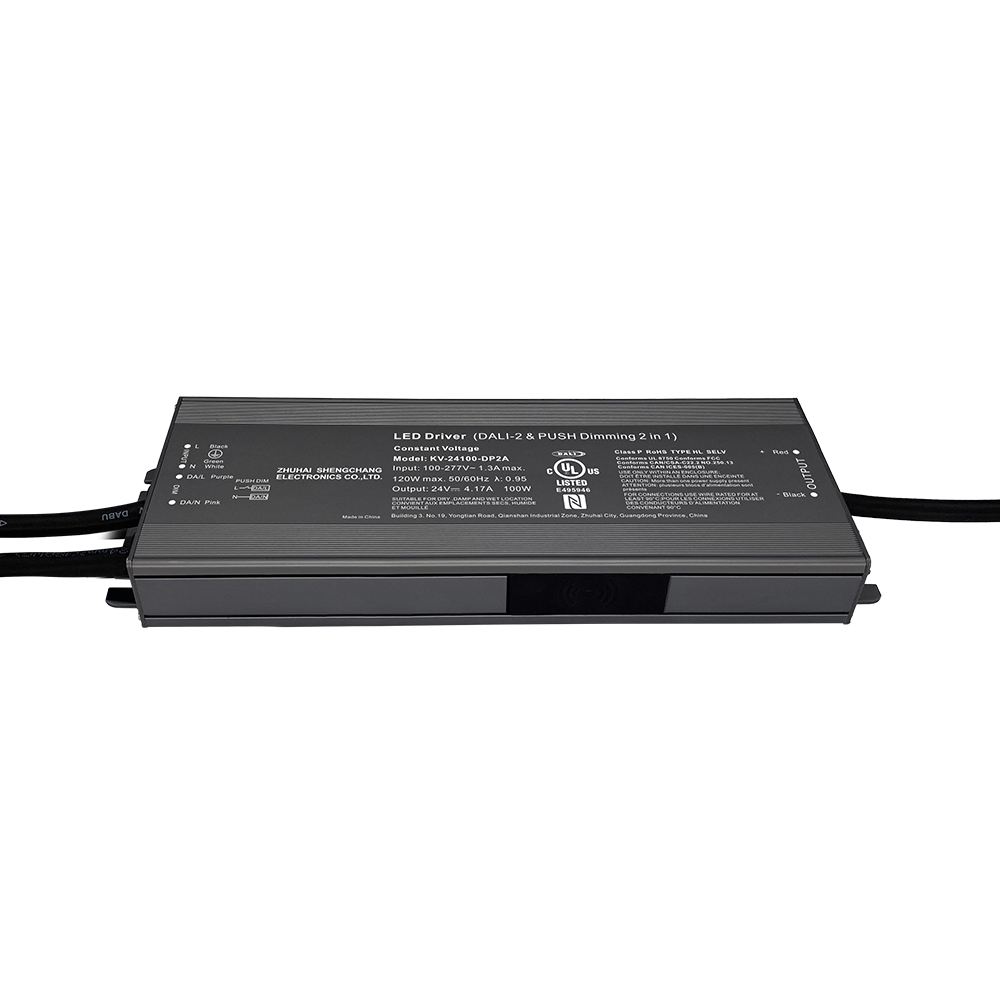

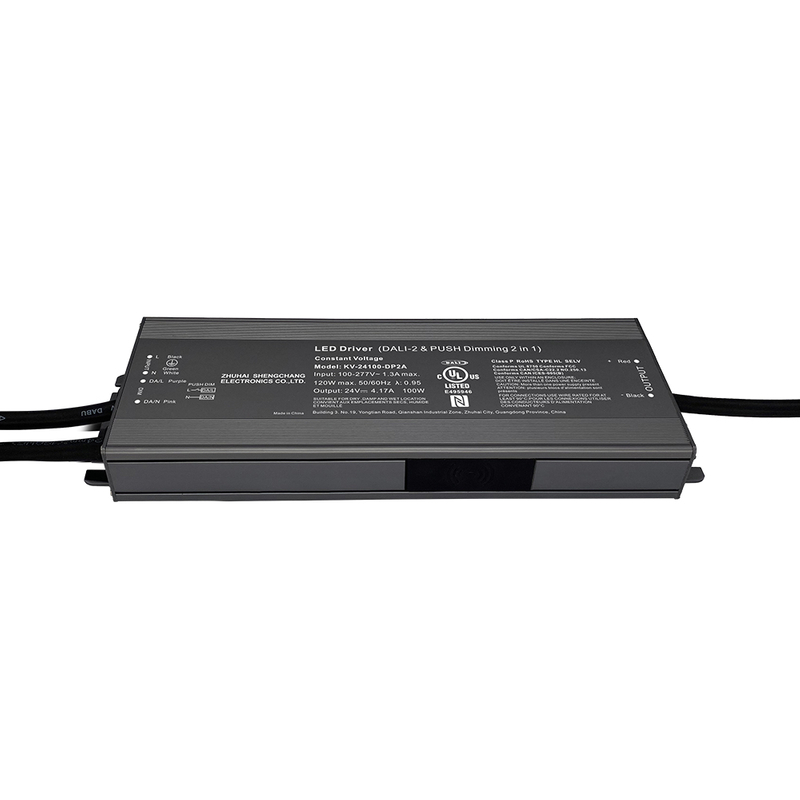

60W 75W 80W 96W 100W 120W 150W 200W 300W Push DALI 2 LED Driver Waterproof 12V 24V 36V 48V

Kapangyarihan ng Ouput:
60W
75W
80W
96W
100W
120W
150W
200W
300W
Availability:
Magtanong Idagdag sa Basket

  • DALI-2 Push

  • Nakahiwalay

  • Patuloy na Boltahe

  • Pagdidilim

  • IP66, Tuyo at Mamasa-masa, Basa

  • 100-277VAC

  • 60W, 75W, 80W, 96W, 100W, 120W, 150W, 200W, 300W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Class 2

Advantage

60W 75W 80W 96W 100W 120W 150W 200W Push DALI 2 LED Driver Waterproof 12V 24V 36V 48V


Output:

Patuloy na Boltahe

Saklaw:

100-277VAC

Disenyo ng PFC:

Built-in na aktibong PFC function

Mga Proteksyon:

Short circuit/ over load/ over temperature

Pagwawaldas ng init:

Paglamig sa pamamagitan ng libreng air convection

Hindi tinatagusan ng tubig na pagganap:

IP66 (EU); Full protection aluminum housing, para sa tuyo, mamasa at basa na mga lokasyon(US)

Mga tampok ng disenyo:

1) I-adjust nang bahagya ang output voltage 2) i-set up ang address
Flicker free, 4KHZ PWM output para maabot ang stroboscopic exemption level

Dimming function:

DALI-2 dimming. Digital dimming gamit ang Logarithmic curve (default) o Linear curve

Dimming range:

0-100% dimming depth: 0.1%

Pag-andar ng NFC

Fine tune ang output boltahe, isulat at basahin ang address

Application:

Angkop para sa LED lighting at moving sign na mga application

Warranty:

5 taon na warranty


Pagtutukoy


Lakas ng Output

Numero ng Modelo

Output Voltage

Kasalukuyang Output

Sukat

Timbang

60W

KV-12060-DP2A

12V

5A

200*78*25mm

0.83kg

KV-24060-DP2A

24V

2.5A

KV-36060-DP2A

36V

1.67

KV-46060-DP2A

48V

1.25A

75W

KV-12075-DP2A

12V

6.25A

KV-24075-DP2A

24V

3.13A

KV-36075-DP2A

36V

2.08A

KV-46075-DP2A

48V

1.56A

80W

KV-12080-DP2A

12V

6.66A

232*78*25mm

0.83kg

KV-24080-DP2A

24V

3.34A

KV-36080-DP2A

36V

2.22A

KV-46080-DP2A

48V

1.67A

96W

KV-24096-DP2A

24V

4A

KV-36096-DP2A

36V

2.67A

KV-48096-DP2A

48V

2A

100W

KV-12100-DP2A

12V

8.34A

KV-24100-DP2A

24V

4.17A

KV-36100-DP2A

36V

2.78A

KV-48100-DP2A

48V

2.09A

120W

KV-12120-DP2A

12V

10A

KV-24120-DP2A

24V

5A

KV-36120-DP2A

36V

3.33A

KV-48120-DP2A

48V

2.5A

150W

KV-12150-DP2A

12V

12.5A

279*78*25mm

1.05kg

KV-24150-DP2A

24V

6.25A

KV-36150-DP2A

36V

4.17A

KV-48150-DP2A

48V

3.13A

200W

KV-12200-DP2A

12V

16.67A

KV-24200-DP2A

24V

8.34A

KV-36200-DP2A

36V

5.56A

KV-48200-DP2A

48V

4.17A

300W

KV-12300-DP2A

12V

25A

302*78*25mm

1.15kg

KV-24300-DP2A

24V

12.5A

KV-36300-DP2A

36V

8.33A

KV-48300-DP2A

48V

6.25A


download spec_60W DALI-2 & PUSH dim. CV driver KV-DP2A 12V&24V&48V.pdf

download spec_96W DALI-2 & PUSH dim. CV driver KV-DP2A 24V&48V.pdf

download spec_100W DALI-2 at PUSH dim. CV driver KV-DP2A 12V&24V&48V.pdf

download spec_120W DALI-2 at PUSH dim. CV driver KV-DP2A 12V&24V&48V.pdf

download spec_150W DALI-2 at PUSH dim. CV driver KV-DP2A 12V&24V&48V.pdf

download spec_200W DALI-2 & PUSH dim. CV driver KV-DP2A 12V&24V&36V&48V.pdf

download spec_300W DALI-2 dim. CV driver KV-DP2A 12V&24V&48V.pdf
