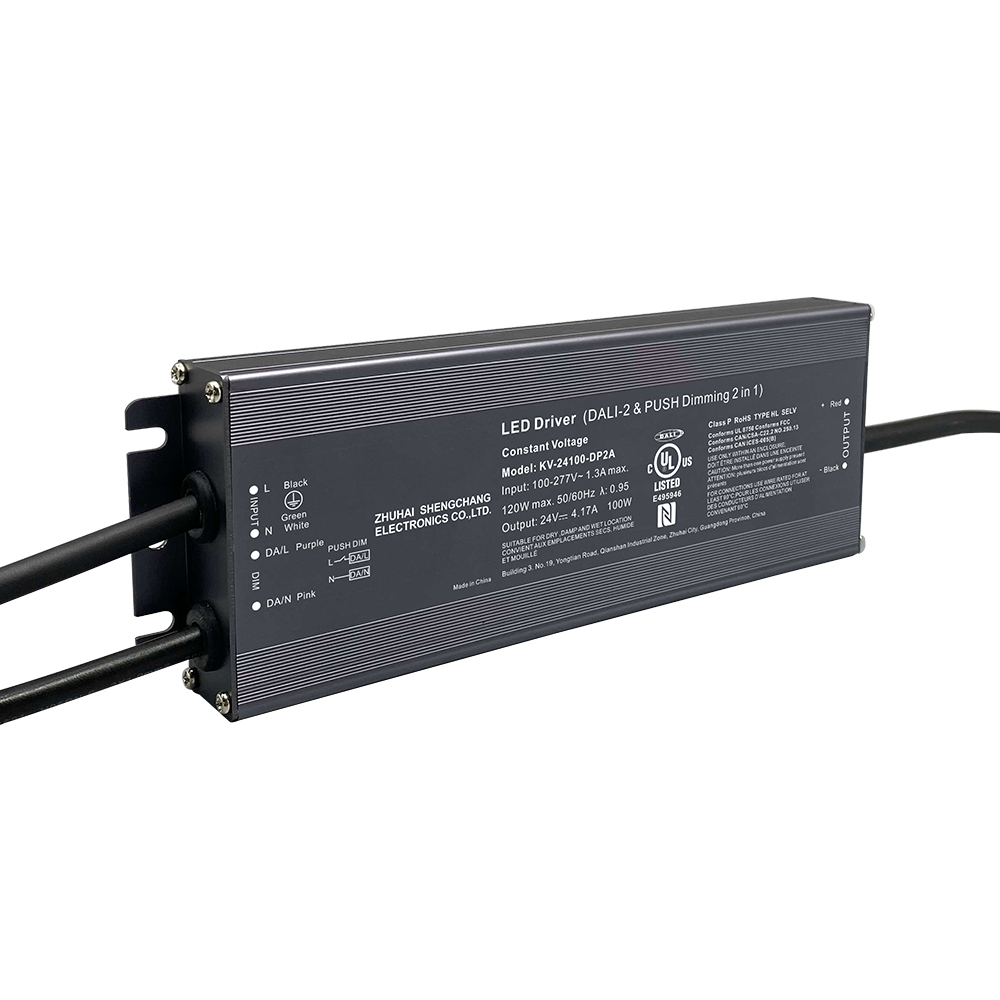

60W 75W 80W 96W 100W 120W 150W 200W 300W Push DALI 2 LED Driver Waterproof 12V 24V 36V 48V

Output Power:
60W
75W
80W
96W
100W
120W
150W
200W
300W
Beskikberens:
Freegje Taheakje oan Basket

  • DALI-2 Druk

  • Isolearre

  • Konstante spanning

  • Dimmen

  • IP66, droech en fochtich, wiet

  • 100-277VAC

  • 60W, 75W, 80W, 96W, 100W, 120W, 150W, 200W, 300W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Klasse 2

Foardiel

60W 75W 80W 96W 100W 120W 150W 200W Push DALI 2 LED Driver Waterproof 12V 24V 36V 48V


Utfier:

Konstante spanning

Berik:

100-277VAC

PFC ûntwerp:

Ynboude aktive PFC-funksje

Beskermings:

Koartesluting / oerbelêsting / oer temperatuer

Heat dissipation:

Cooling troch frije lucht konveksje

Waterproof prestaasjes:

IP66 (EU); Folsleine beskerming aluminium húsfesting, foar droege, fochtige en wiete lokaasjes (FS)

Untwerpfunksjes:

1) Oanpasse de útfierspanning wat
oan

Dimmen funksje:

DALI-2 dimming. Digitaal dimmen mei logaritmyske kromme (standert) of lineêre kromme

Dimming berik:

0-100% dimdjipte: 0,1%

NFC funksje

Fine tune de útfier spanning, skriuw en lês adres

Oanfraach:

Geskikt foar LED-ferljochting en ferpleatse tekenapplikaasjes

Garânsje:

5 jier garânsje


Spesifikaasje


Output Power

Model Number

Output Voltage

Output Strom

Grutte

Gewicht

60W

KV-12060-DP2A

12V

5A

200 * 78 * 25 mm

0.83kg

KV-24060-DP2A

24V

2.5A

KV-36060-DP2A

36V

1.67

KV-46060-DP2A

48V

1.25A

75W

KV-12075-DP2A

12V

6.25A

KV-24075-DP2A

24V

3.13A

KV-36075-DP2A

36V

2.08A

KV-46075-DP2A

48V

1.56A

80W

KV-12080-DP2A

12V

6.66A

232 * 78 * 25 mm

0.83kg

KV-24080-DP2A

24V

3.34A

KV-36080-DP2A

36V

2.22A

KV-46080-DP2A

48V

1.67A

96W

KV-24096-DP2A

24V

4A

KV-36096-DP2A

36V

2.67A

KV-48096-DP2A

48V

2A

100W

KV-12100-DP2A

12V

8.34A

KV-24100-DP2A

24V

4.17A

KV-36100-DP2A

36V

2.78A

KV-48100-DP2A

48V

2.09A

120W

KV-12120-DP2A

12V

10A

KV-24120-DP2A

24V

5A

KV-36120-DP2A

36V

3.33A

KV-48120-DP2A

48V

2.5A

150W

KV-12150-DP2A

12V

12.5A

279 * 78 * 25 mm

1,05kg

KV-24150-DP2A

24V

6.25A

KV-36150-DP2A

36V

4.17A

KV-48150-DP2A

48V

3.13A

200W

KV-12200-DP2A

12V

16.67A

KV-24200-DP2A

24V

8.34A

KV-36200-DP2A

36V

5.56A

KV-48200-DP2A

48V

4.17A

300W

KV-12300-DP2A

12V

25A

302 * 78 * 25 mm

1,15 kg

KV-24300-DP2A

24V

12.5A

KV-36300-DP2A

36V

8.33A

KV-48300-DP2A

48V

6.25A


download spec_60W DALI-2 & PUSH dim. CV-bestjoerder KV-DP2A 12V & 24V & 48V.pdf

download spec_96W DALI-2 & PUSH dim. CV stjoerprogramma KV-DP2A 24V & 48V.pdf

download spec_100W DALI-2 & PUSH dim. CV-bestjoerder KV-DP2A 12V & 24V & 48V.pdf

download spec_120W DALI-2 & PUSH dim. CV-bestjoerder KV-DP2A 12V & 24V & 48V.pdf

download spec_150W DALI-2 & PUSH dim. CV-bestjoerder KV-DP2A 12V & 24V & 48V.pdf

download spec_200W DALI-2 & PUSH dim. CV-bestjoerder KV-DP2A 12V & 24V & 36V & 48V.pdf

download spec_300W DALI-2 dim. CV-bestjoerder KV-DP2A 12V & 24V & 48V.pdf
