0-10V
Isolated
Constant Current
Dimming
IP67, Dry & Damp, Wet
220-480VAC
100W, 150W, 200W, 240W, 320W, 600W, 480W, 800W
12-54V 24-93V
UL & cUL, FCC, CE, RoHS, REACH

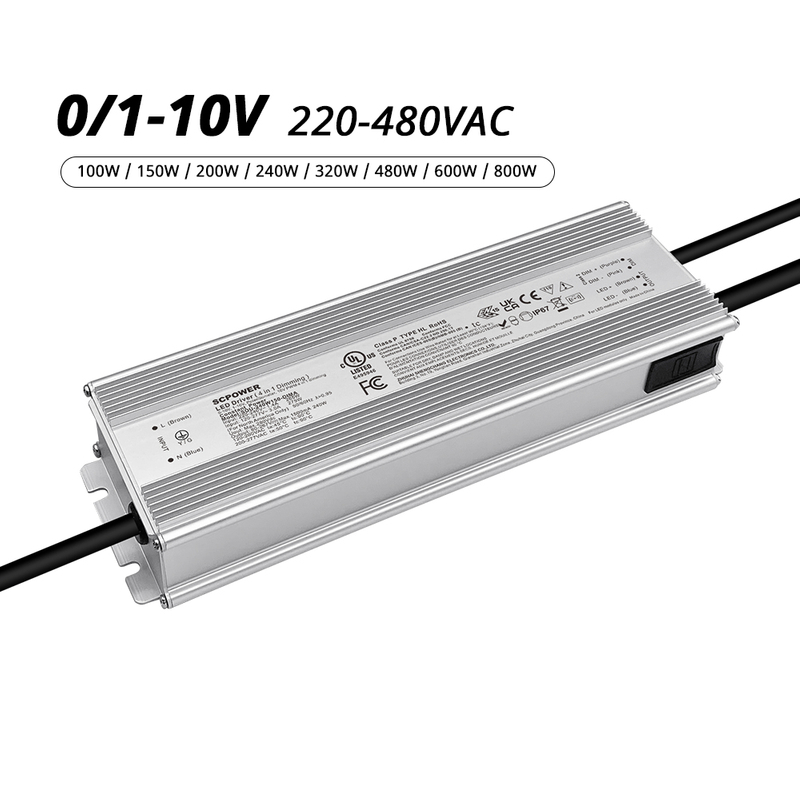

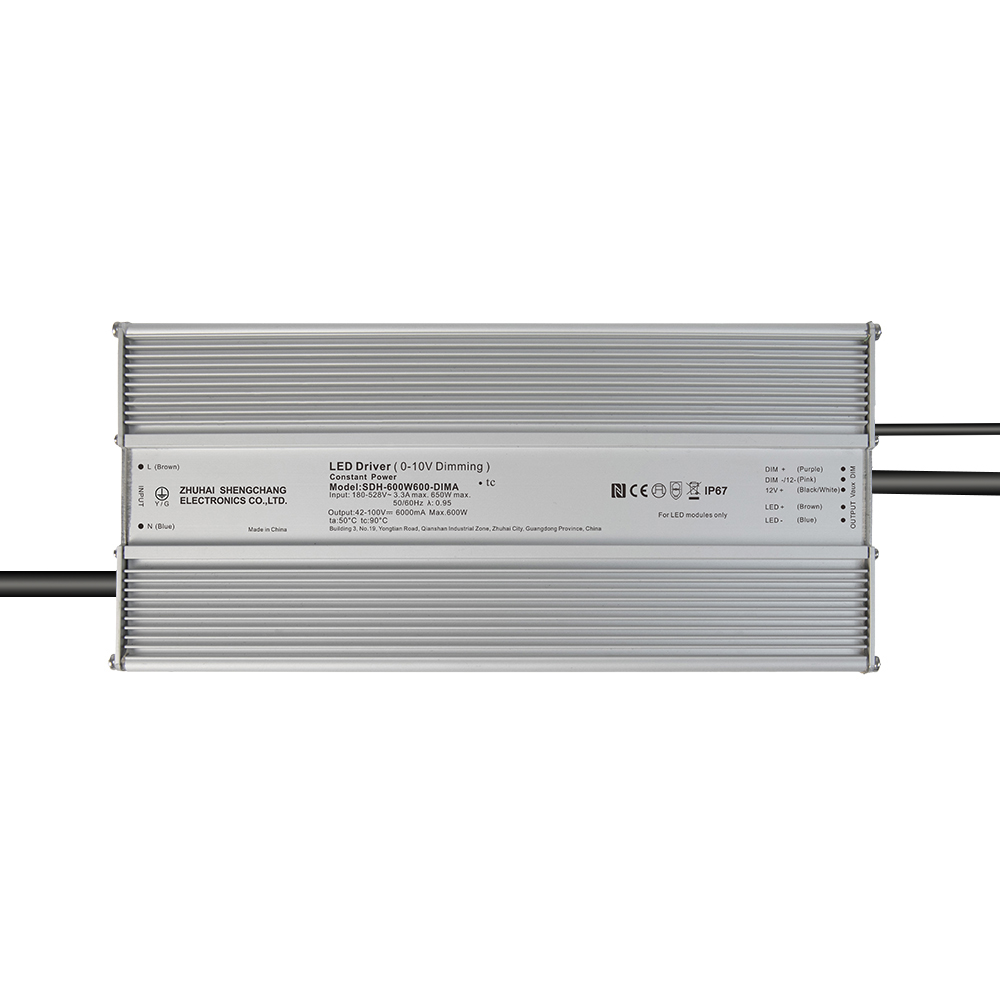

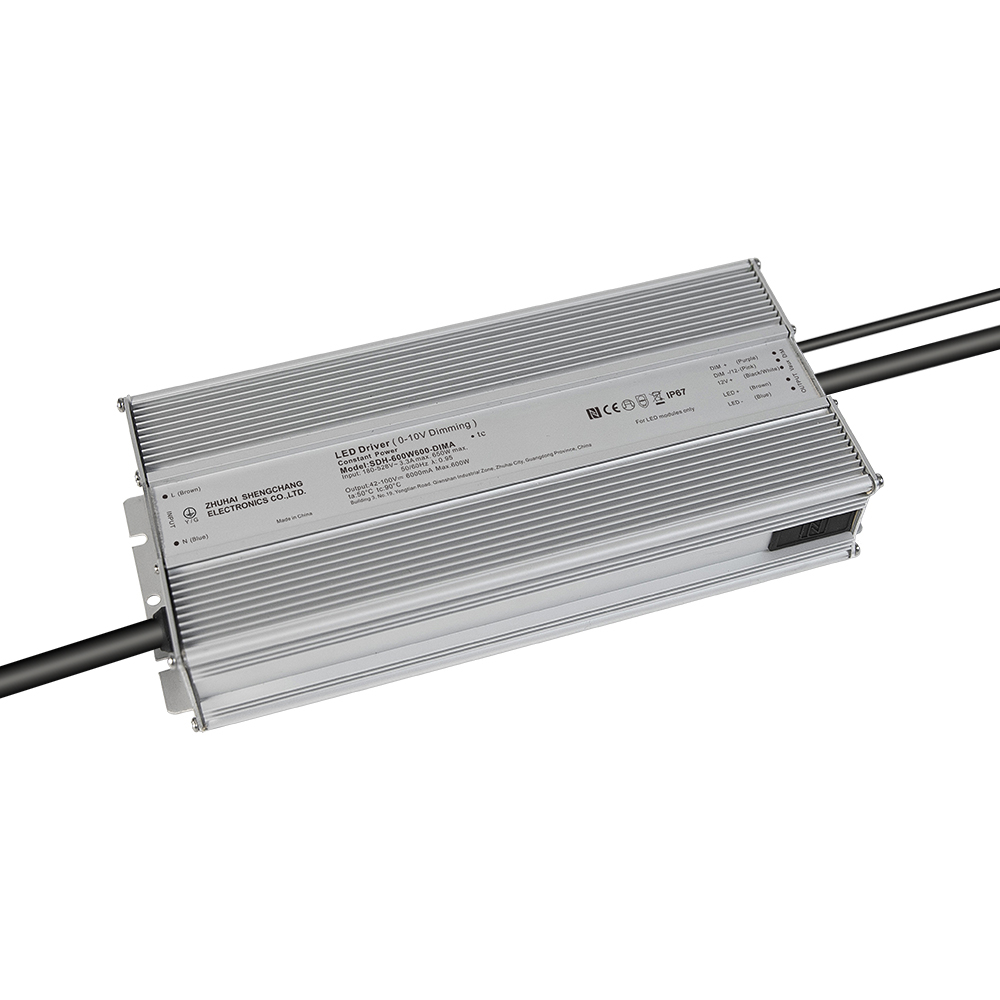

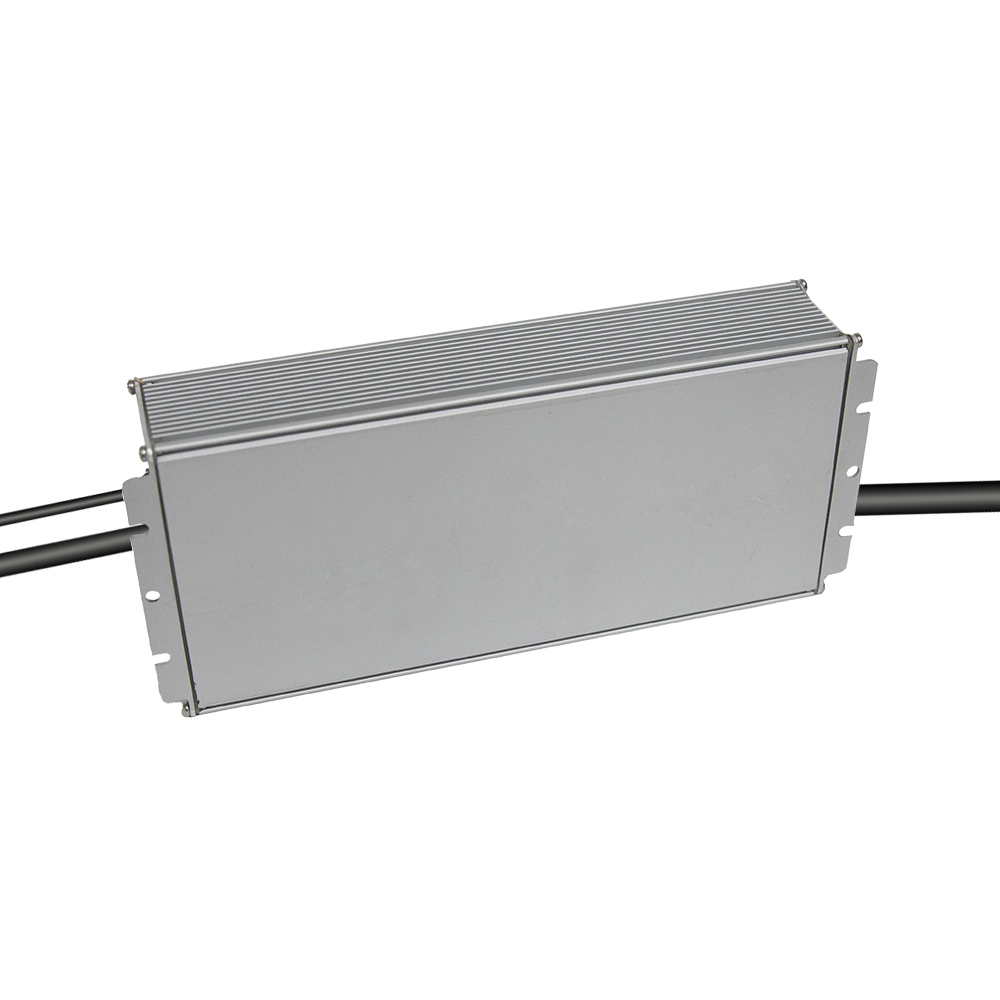

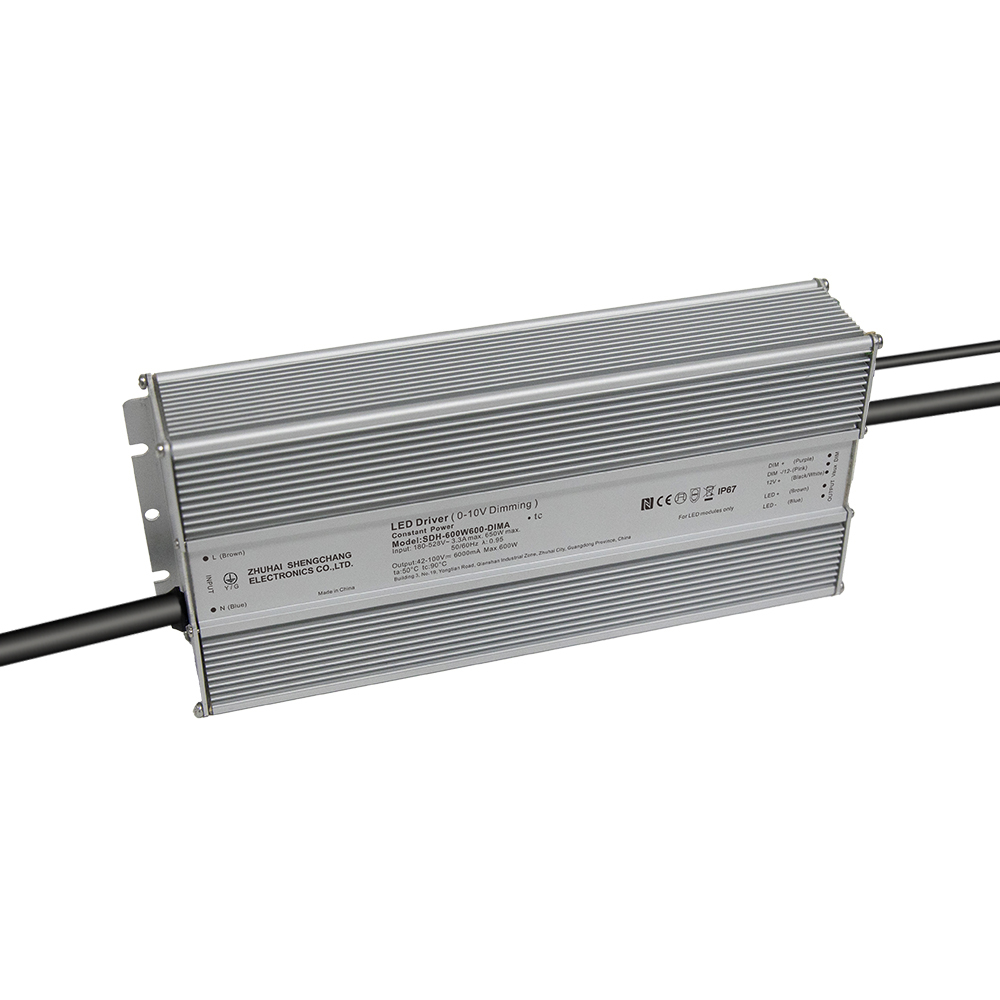

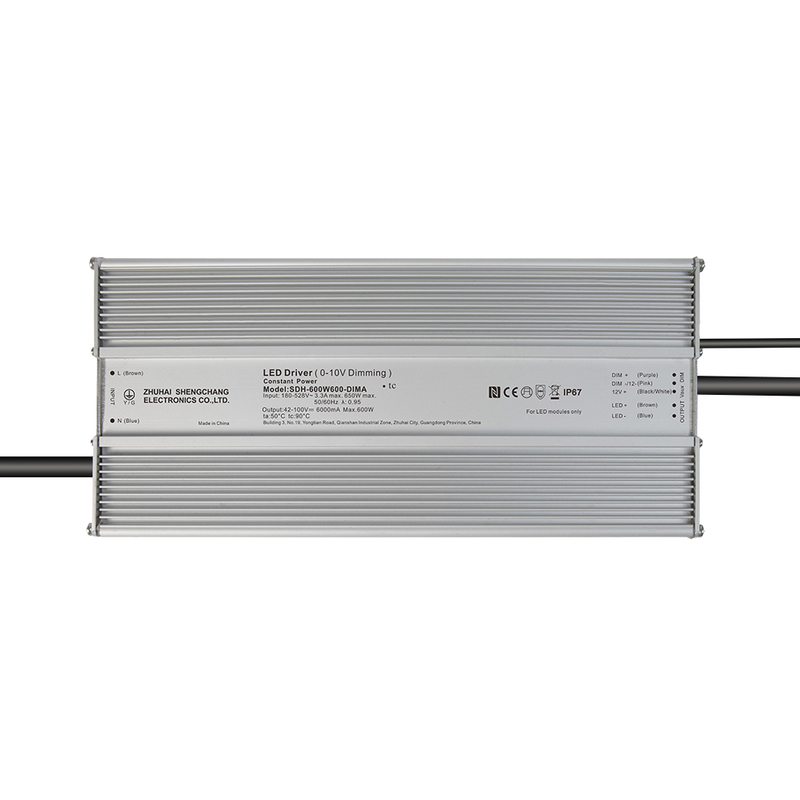

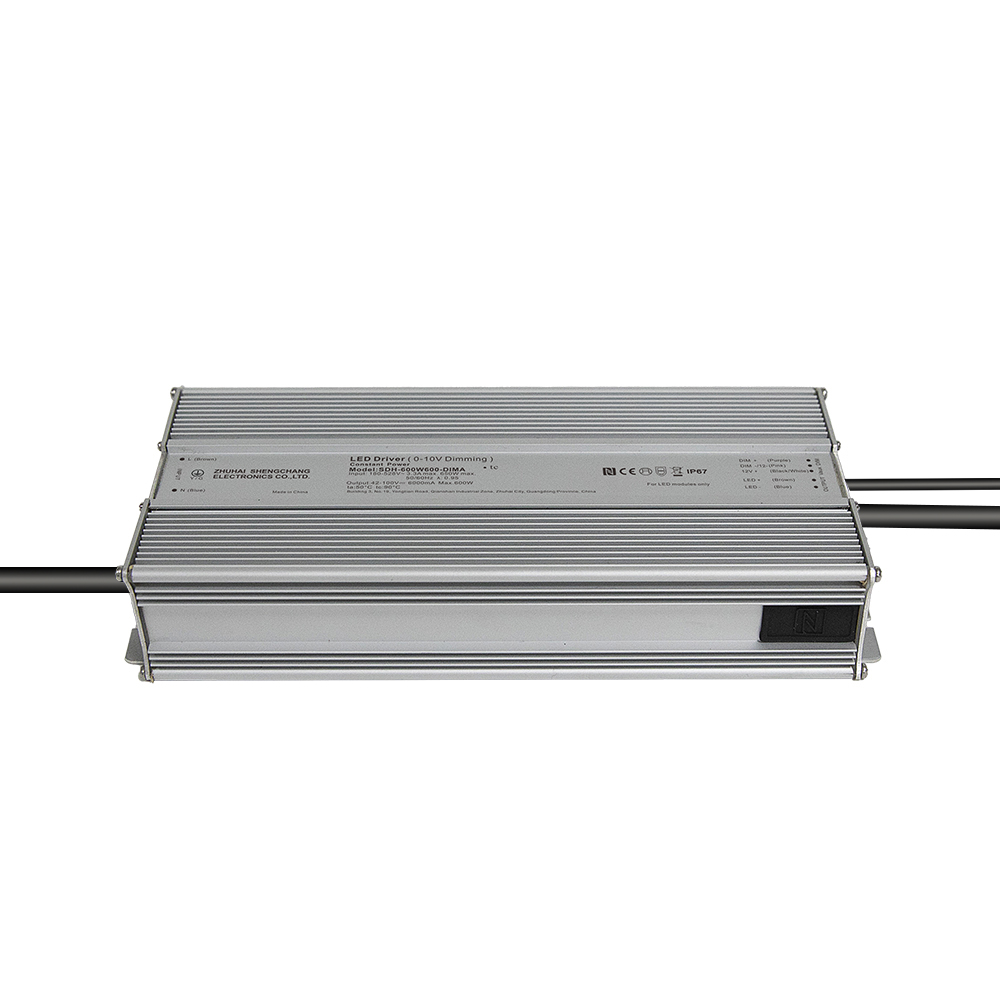

100W 150W 200W 240W 320W 480W 600W 800W 0-10V Isolated LED Driver 220-480V AC
Output Type: | Constant Current |
Input Range: | 220-480VAC |
Protections: | short circuit/over temperature/over voltage protection/undervoltage protection |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For Wet, dry and damp locations |
| Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free dimming |
Model Number | Output Power | Output Voltage | Output Current | Size |

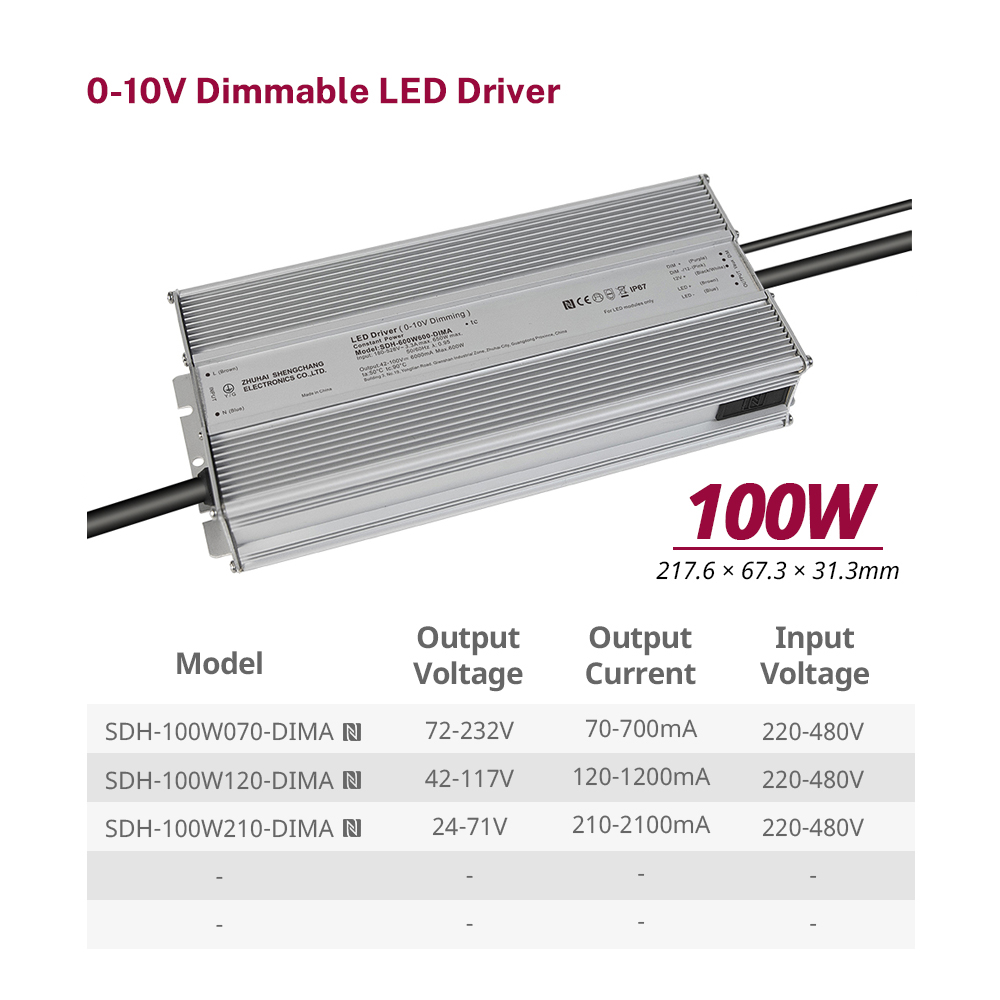

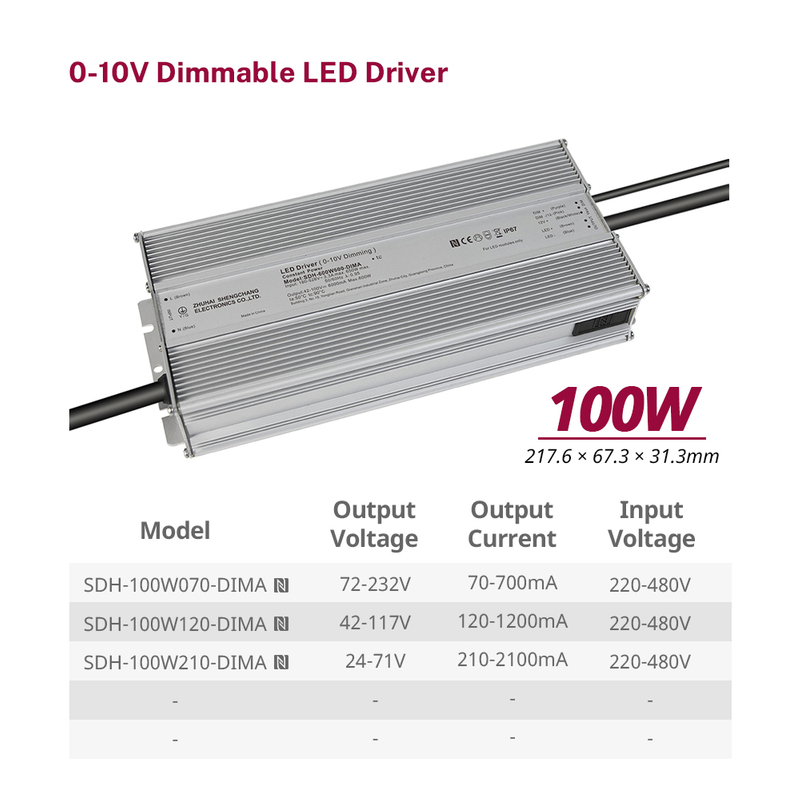

SDH-100WO70-DIMA | 100W | 72-232V | 70-700mA | 217*67.3*31.3mm |
SDH-100W120-DIMA | 42-117V | 120-1200mA | ||
SDH-100W210-DIMA | 24-71V | 210-2100mA | ||
SDH-150W105-DIMA | 150W | 71-214V | 105-1050mA | 232.6*67.3*31.3mm |
SDH-150W140-DIMA | 54-143V | 140-1400mA | ||
SDH-150W210-DIMA | 36-107V | 210-2100mA | ||
SDH-150W280-DIMA | 27-71V | 280-2800mA | ||
SDH-150W420-DIMA | 18-54V | 420-4200mA | ||
SDH-200W105-DIMA | 200W | 95-285V | 105-1050mA | |
SDH-200W140-DIMA | 71-190V | 140-1400mA | ||
SDH-200W210-DIMA | 48-143V | 210-2100mA | ||
SDH-200W280-DIMA | 36-91V | 280-2800mA | ||
SDH-200W420-DIMA | 24-71V | 420-4200mA | ||
SDH-240W105-DIMA | 240W | 114-342V | 105-1050mA | 253.6*78*42.5mm |
SDH-240W150-DIMA | 80-267V | 150-1500mA | ||
SDH-240W240-DIMA | 50-150V | 240-2400mA | ||
SDH-240W320-DIMA | 38-96V | 320-3200mA | ||
SDH-240W490-DIMA | 24-73V | 490-4900mA | ||
SDH-240W630-DIMA | 19-49V | 630-6300mA | ||
SDH-320W120-DIMA | 320W | 133-410V | 120-1200mA | 253.6*78*42.5mm |
SDH-320W220-DIMA | 72-213V | 220-2200mA | ||
SDH-320W320-DIMA | 50-128V | 320-3200mA | ||
SDH-320W510-DIMA | 31-86V | 510-5100mA | ||
SDH-320W700-DIMA | 23-60V | 700-7000mA | ||
SDH-480W140-DIMA | 480W | 171-480V | 140-1400mA | 279*89.5*44.5mm |
SDH-480W240-DIMA | 100-300V | 240-2400mA | ||
SDH-480W440-DIMA | 55-171V | 440-4400mA | ||
SDH-480W460-DIMA | 38-100V | 640-6400mA | ||
SDH-480W840-DIMA | 29-70V | 840-8400mA | ||
SDH-600W170-DIMA | 600W | 214-428V | 170-1700mA | 265*115*49.5mm |
SDH-600W270-DIMA | 143-286V | 270-2700mA | ||
SDH-600W400-DIMA | 94-188V | 400-4000mA | ||
SDH-600W860-DIMA | 42-100V | 860-8600mA | ||
SDH-600W12A-DIMA | 27-54V | 1250-12500mA | ||
SDH-800W260-DIMA | 800W | 190-380V | 260-2600mA | 295*115*49.5mm |
SDH-800W330-DIMA | 143-286V | 330-3300mA | ||
SDH-800W460-DIMA | 110-205V | 460-4600mA | ||
SDH-800W620-DIMA | 77-154V | 620-6200mA | ||
SDH-800W860-DIMA | 55-110V | 860-8600mA | ||
Description
100W-800W 0-10V Dimmable Isolated LED Power Supply It is a high efficiency, stable and dimmable LED driver power supply for many commercial and industrial lighting scenarios. Wide input voltage range (220-480V AC), support 0-10V analog dimming, to meet the light requirements of different environments.
Features
High-Power Dimmable: IP67-rated outdoor dimming drivers ensure stable, efficient performance in rainy, and humid conditions.
Intelligent Dimming Driver: High-power outdoor dimming driver features NFC programming, fault feedback, 95% efficiency, and robust environmental adaptability.
Flicker-free: Flicker-free design eliminates visual strain and health risks from flickering light.
Five-year Warranty: Multiple protection, prolong the service life.
Global certification: RoHS, REACH, FCC and so on international certifications.
Applications
Outdoor Landscape Lighting (building outline, billboards): Support 0-10v dimming to realize dynamic lighting effects and enhance visual appeal.
Road and Tunnel Lighting: Matching LED street lights and tunnel lights, wide voltage input to adapt to different grid environments, high efficiency and energy saving, reducing maintenance costs.
Agricultural lighting (plant factories, greenhouses): adjustable light intensity to meet the needs of different crop growth and improve planting efficiency.
Order Now and Transform Your Lighting Experience
