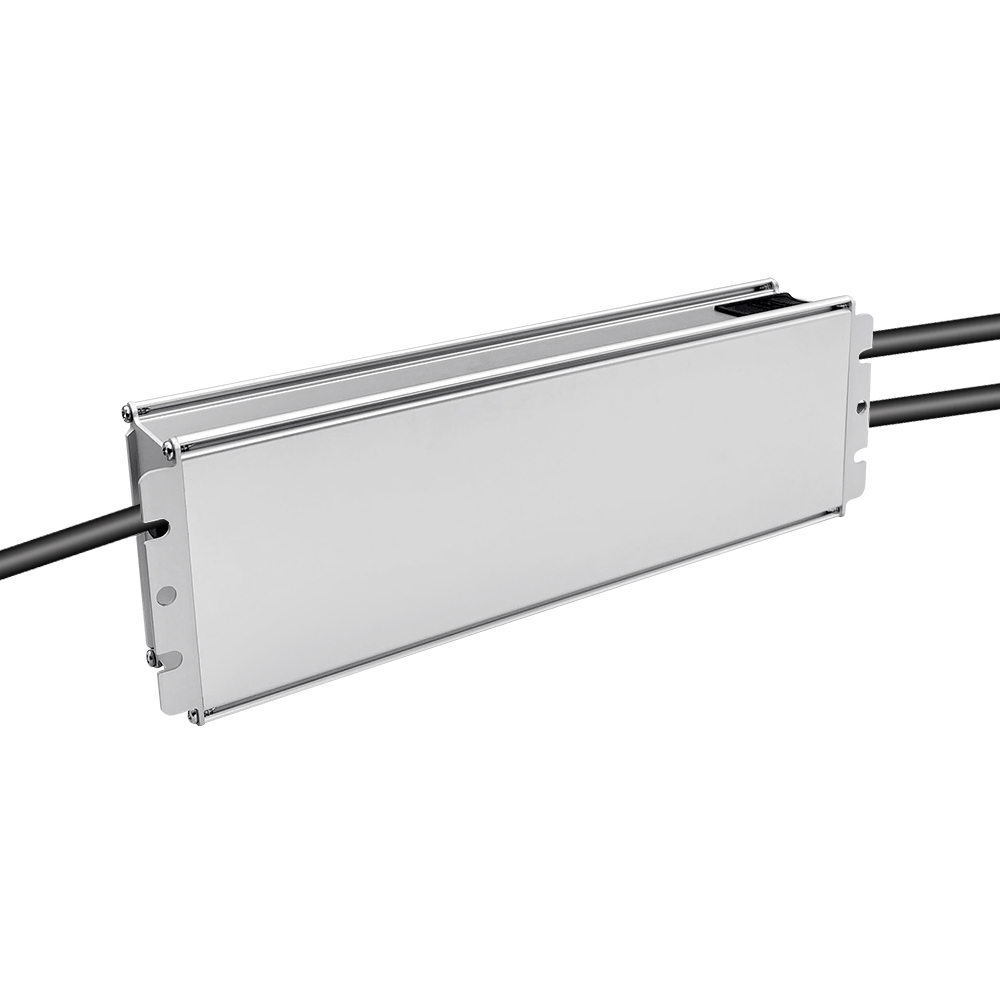

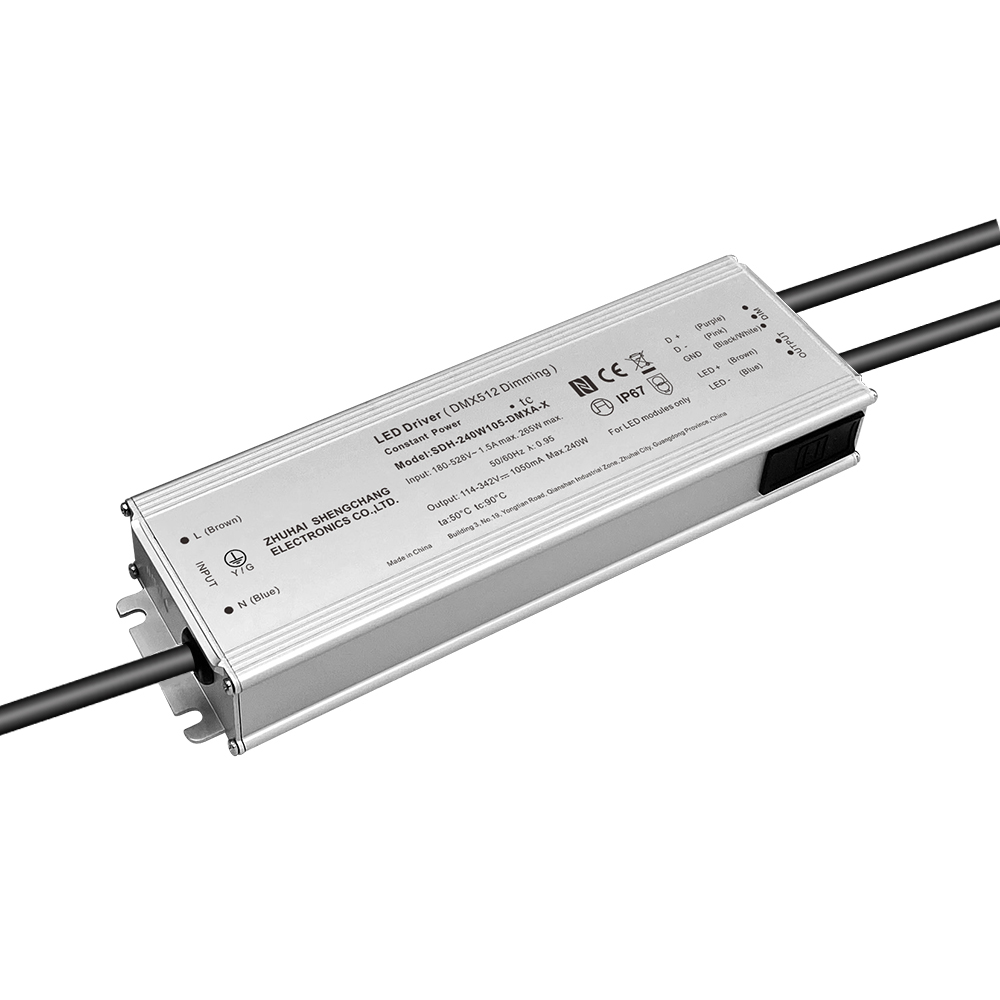

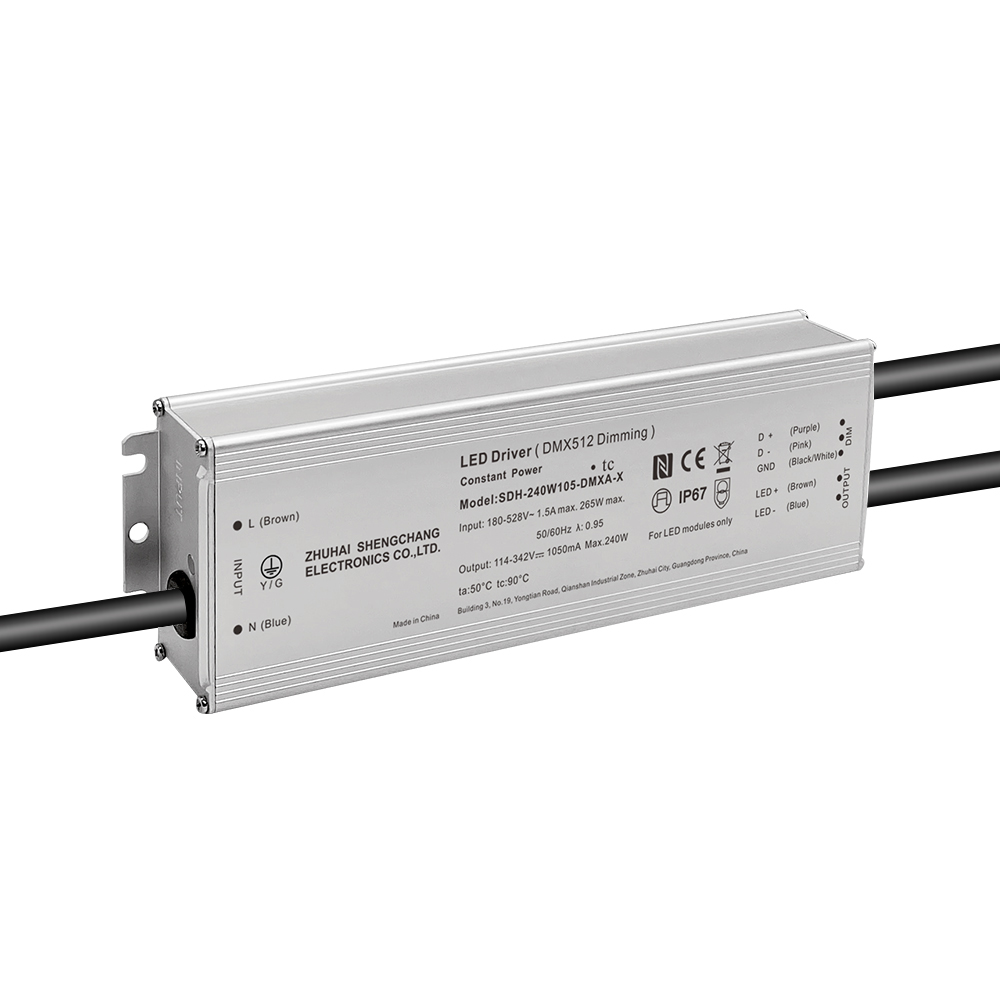

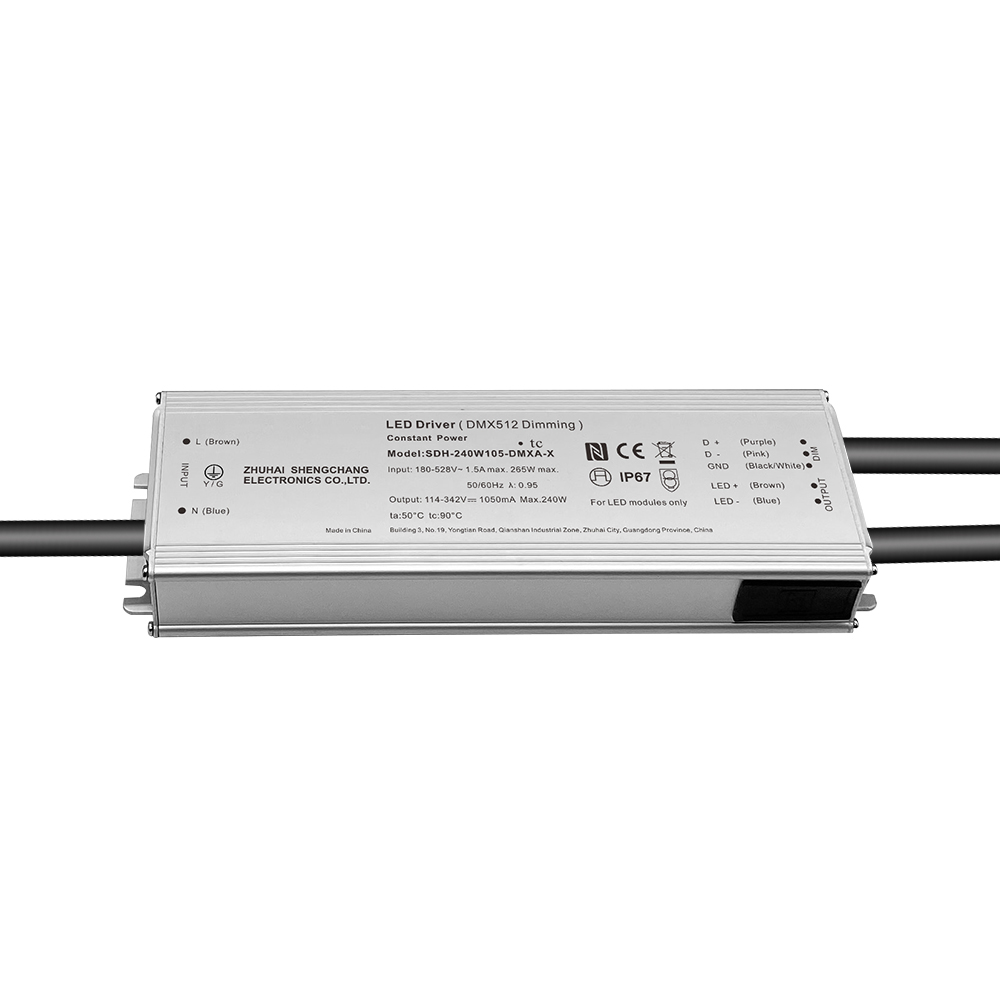

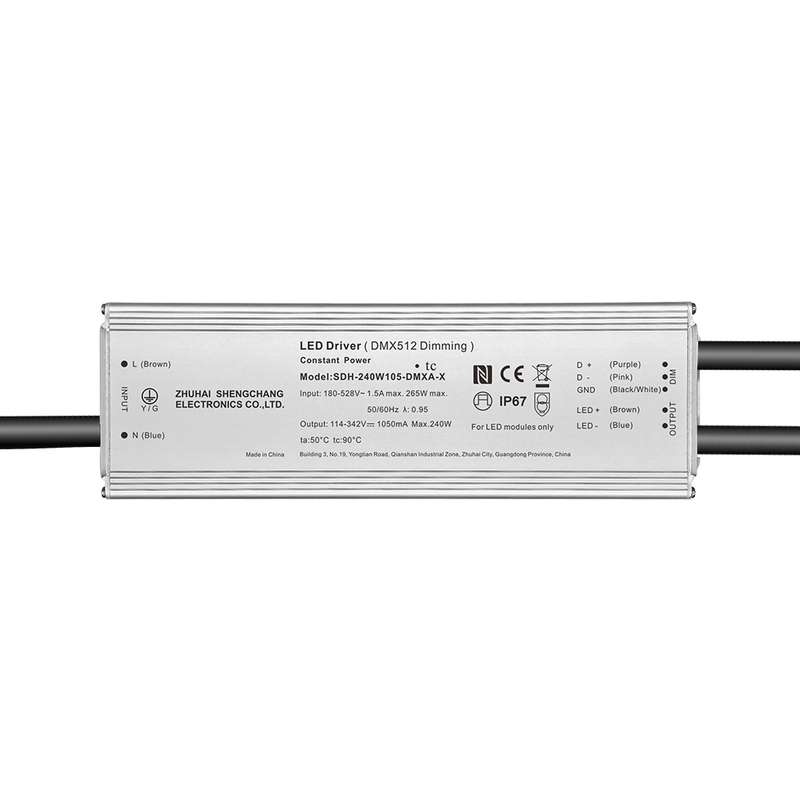

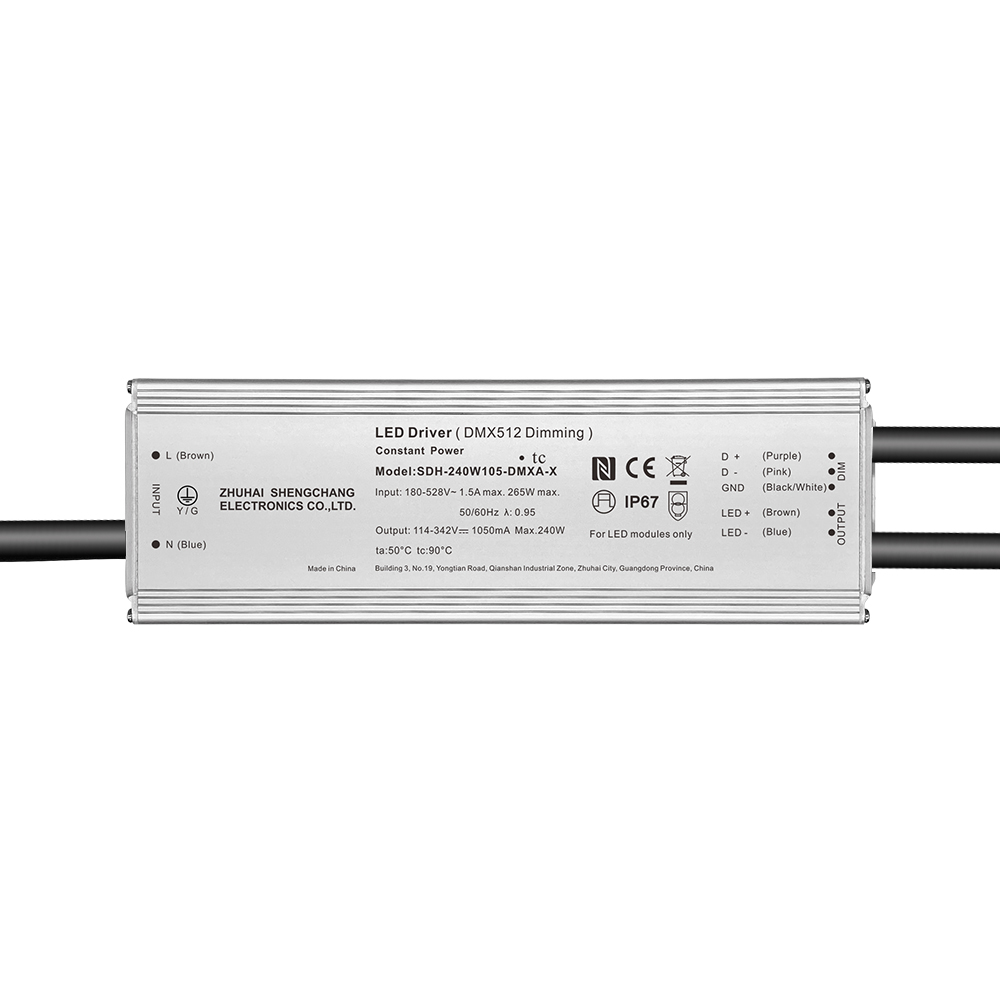

100W 150W 200W 240W 320W 480W 600W 800W DMX Isolated LED Driver 220-480V AC
Output Type:
Constant Current
Input Range:
220-480VAC
Protections:
short circuit/over temperature/over voltage protection/undervoltage protection
Heat dissipation:
Cooling by free air convection
Waterproof performance:
For Wet, dry and damp locations
Application:
Suitable for the application of LED lighting
Warranty:
5 years warranty
Others:
Flicker-free dimming
Specification
Model Number
Output Power
Output Voltage
Output Current
Size

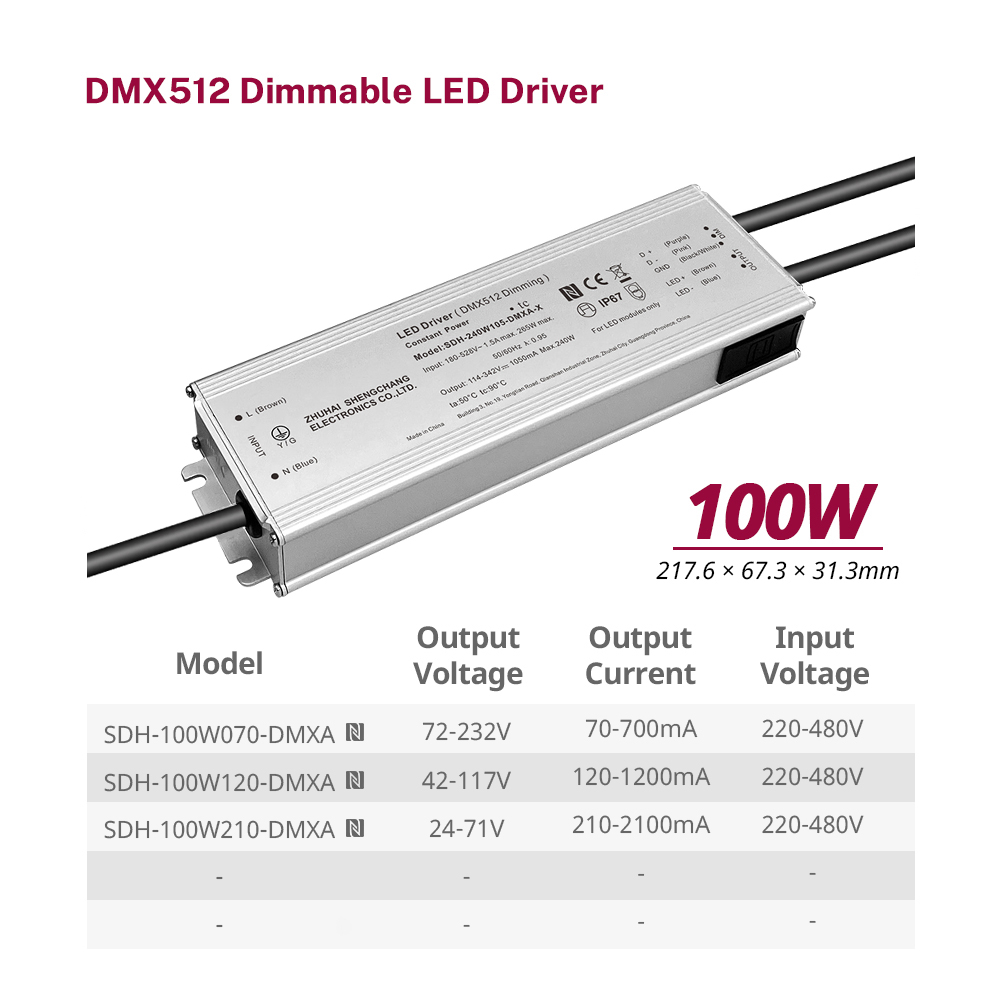

SDH-100WO70-DMXA
100W
72-232V
70-700mA
217*67.3*31.3mm
SDH-100W120-DMXA
42-117V
120-1200mA
SDH-100W210-DMXA
24-71V
210-2100mA
SDH-150W105-DMXA
150W
71-214V
105-1050mA
232.6*67.3*31.3mm
SDH-150W140-DMXA
54-143V
140-1400mA
SDH-150W210-DMXA
36-107V
210-2100mA
SDH-150W280-DMXA
27-71V
280-2800mA
SDH-150W420-DMXA
18-54V
420-4200mA
SDH-200W105-DMXA
200W
95-285V
105-1050mA
SDH-200W140-DMXA
71-190V
140-1400mA
SDH-200W210-DMXA
48-143V
210-2100mA
SDH-200W280-DMXA
36-91V
280-2800mA
SDH-200W420-DMXA
24-71V
420-4200mA
SDH-240W105-DMXA
240W
114-342V
105-1050mA
253.6*78*42.5mm
SDH-240W150-DMXA
80-267V
150-1500mA
SDH-240W240-DMXA
50-150V
240-2400mA
SDH-240W320-DMXA
38-96V
320-3200mA
SDH-240W490-DMXA
24-73V
490-4900mA
SDH-240W630-DMXA
19-49V
630-6300mA
SDH-320W120-DMXA
320W
133-410V
120-1200mA
253.6*78*42.5mm
SDH-320W220-DMXA
72-213V
220-2200mA
SDH-320W320-DMXA
50-128V
320-3200mA
SDH-320W510-DMXA
31-86V
510-5100mA
SDH-320W700-DMXA
23-60V
700-7000mA
SDH-480W140-DMXA
480W
171-480V
140-1400mA
279*89.5*44.5mm
SDH-480W240-DMXA
100-300V
240-2400mA
SDH-480W440-DMXA
55-171V
440-4400mA
SDH-480W460-DMXA
38-100V
640-6400mA
SDH-480W840-DMXA
29-70V
840-8400mA
SDH-600W170-DMXA
720W
214-428V
170-1700mA
265*115*49.5mm
SDH-600W270-DMXA
143-286V
270-2700mA
SDH-600W400-DMXA
94-188V
400-4000mA
SDH-600W860-DMXA
42-100V
860-8600mA
SDH-600W12A-DMXA
27-54V
1250-12500mA
SDH-800W260-DMXA
800W
190-380V
260-2600mA
295*115*49.5mm
SDH-800W330-DMXA
143-286V
330-3300mA
SDH-800W460-DMXA
110-205V
460-4600mA
SDH-800W620-DMXA
77-154V
620-6200mA
SDH-800W860-DMXA
55-110V
860-8600mA
DMX Isolated LED Driver Wiring Diagram
Description
100W-800W DMX Isolated LED Driver Power Supply (220-480V AC) is a high-performance, high-stability constant-current LED power supply designed for DMX512 control system for stage lighting, architectural lighting, landscape lighting and so on. This series power supply adopts advanced isolated design to ensure safety and reliability.
Features
Wide Input, Efficient & Stable: Multiple protection functions such as short circuit, over temperature, over voltage protection, undervoltage protection, etc. ensure long-term stable operation.
DMX512 Intelligent Control: Compatible with DMX512 protocol, it can realize smooth and strobe-free dimming to meet the complex lighting needs of stage, building and other scenes.
High Power Factor: High efficiency 95%, in line with international energy-efficiency standards, effectively reducing the grid load, energy saving and environmental protection.
Isolated safety design: Adopting isolation transformer design, the input and output are completely isolated to prevent the risk of leakage, which is in line with CE, RoHS and other certifications, safe and reliable.
Strong Heat Dissipation Performance: 100W/150W/200W/240W/320W/480W/600W/800W multiple power options, the shell is made of aluminum alloy for efficient heat dissipation.
Applications
Intelligent landscape lighting: applied to parks, squares, LED line lights, spotlights, point light sources, etc., supporting remote dimming and color adjustment to create energy-saving and intelligent light shows.
Industrial and special environment lighting: can be used for warehouse, factory and other high-power LED lighting, wide voltage input to adapt to unstable power grid, isolation design to protect the safety of electricity.
Building facade lighting: for building lighting, bridge landscape lighting, with DMX controller to achieve color change, running water effect, to enhance the beauty of the building at night.
