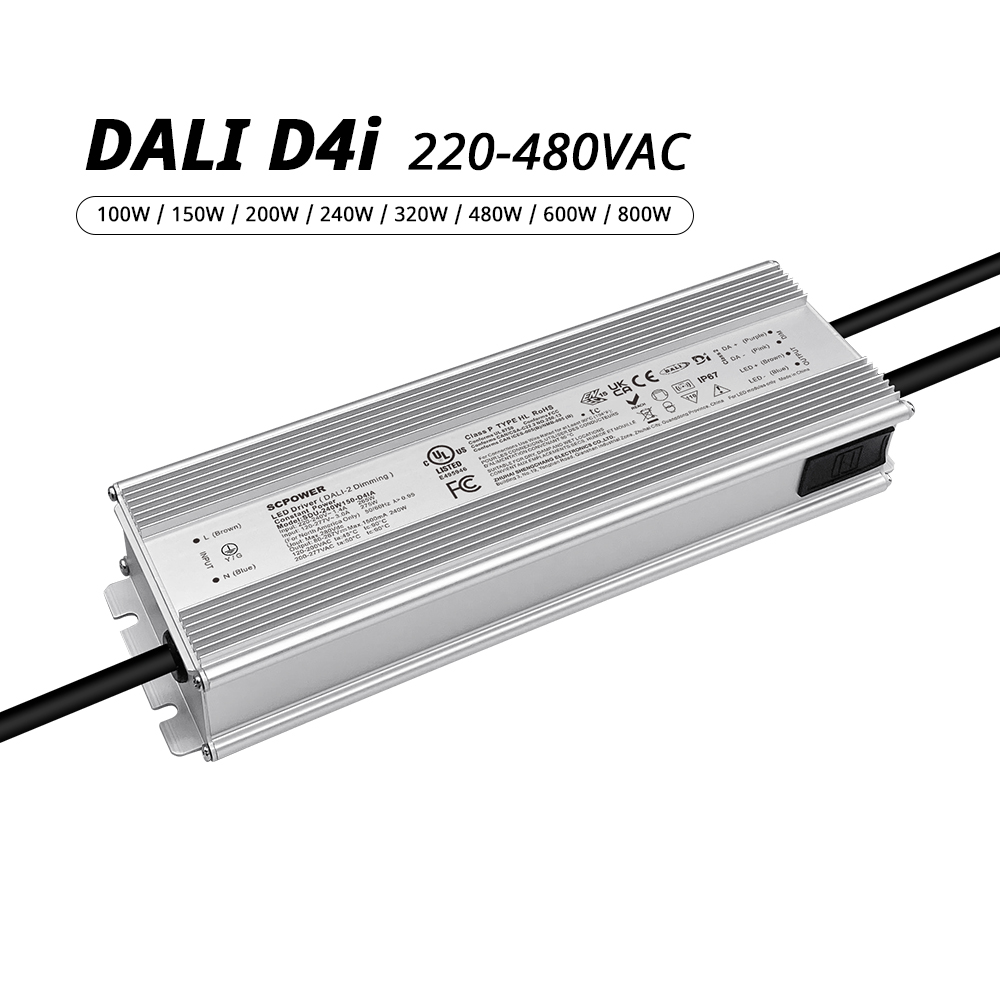

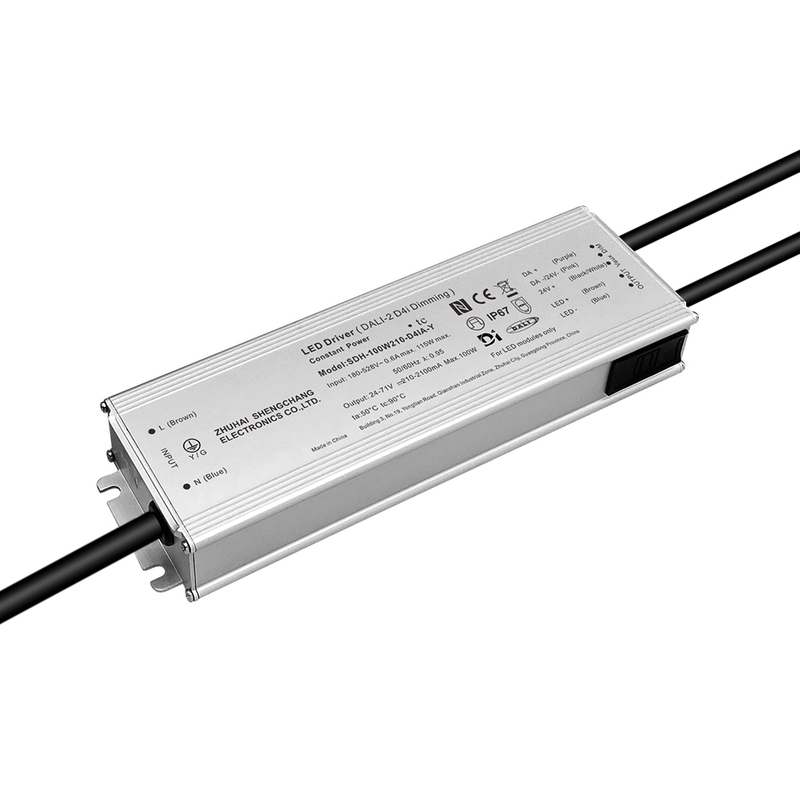

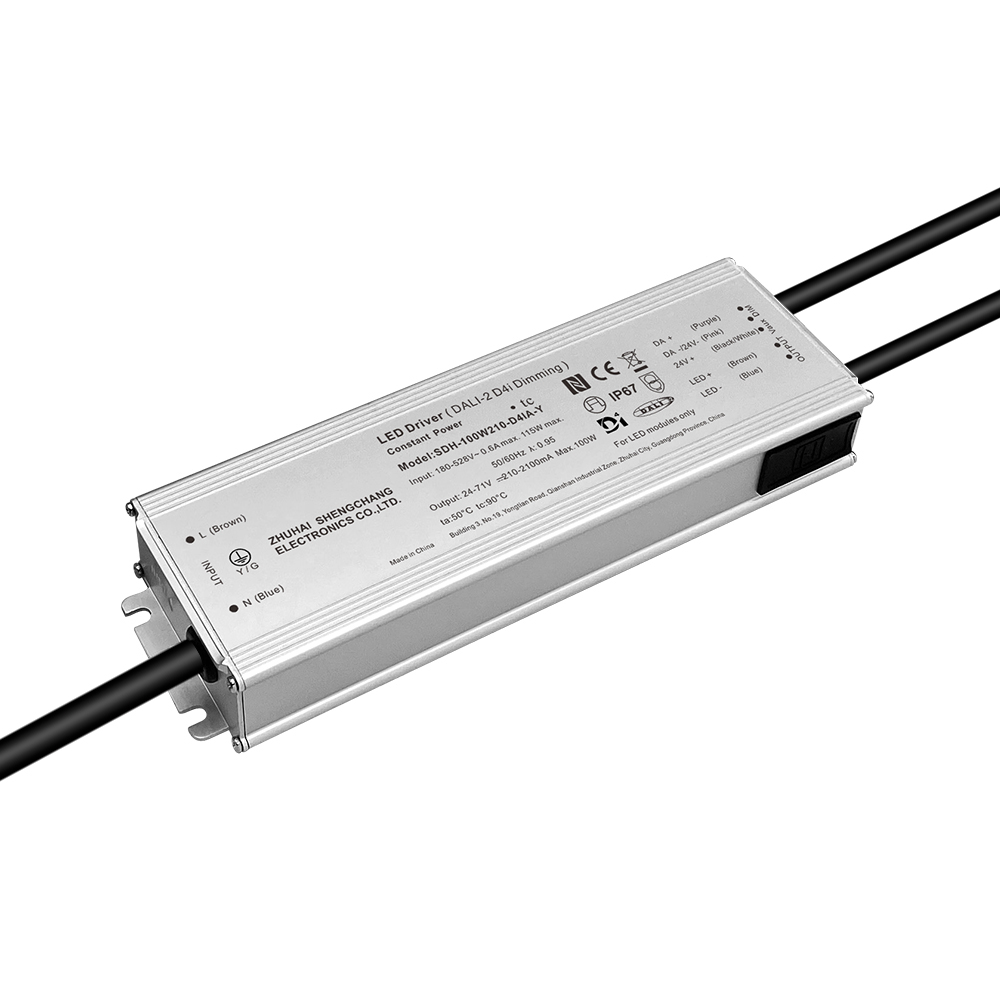

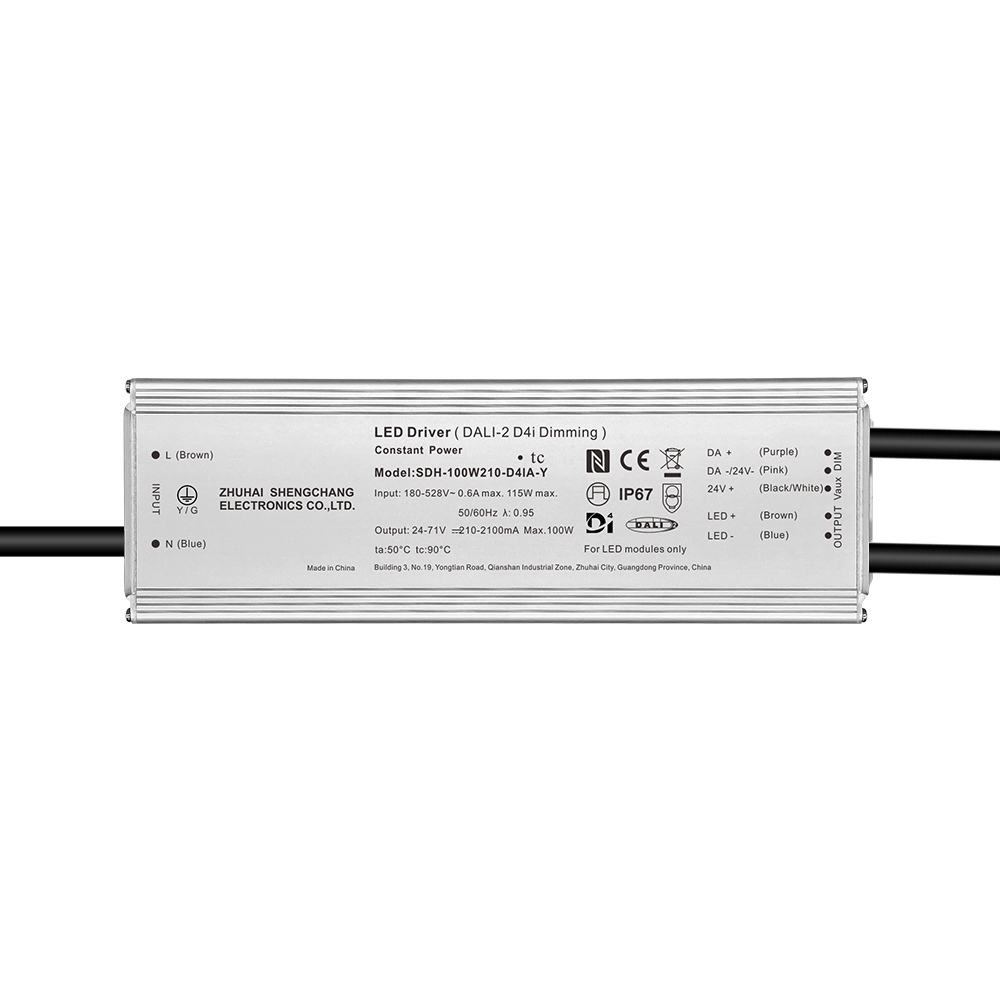

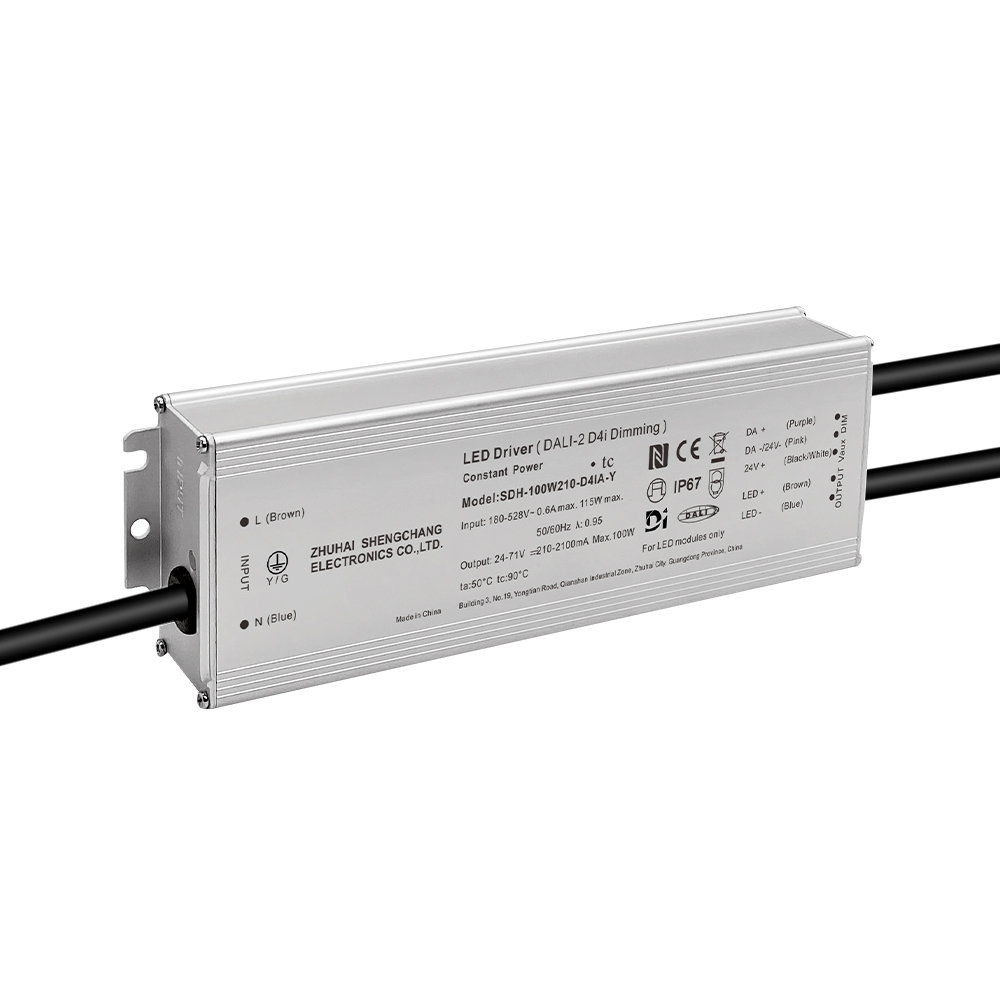

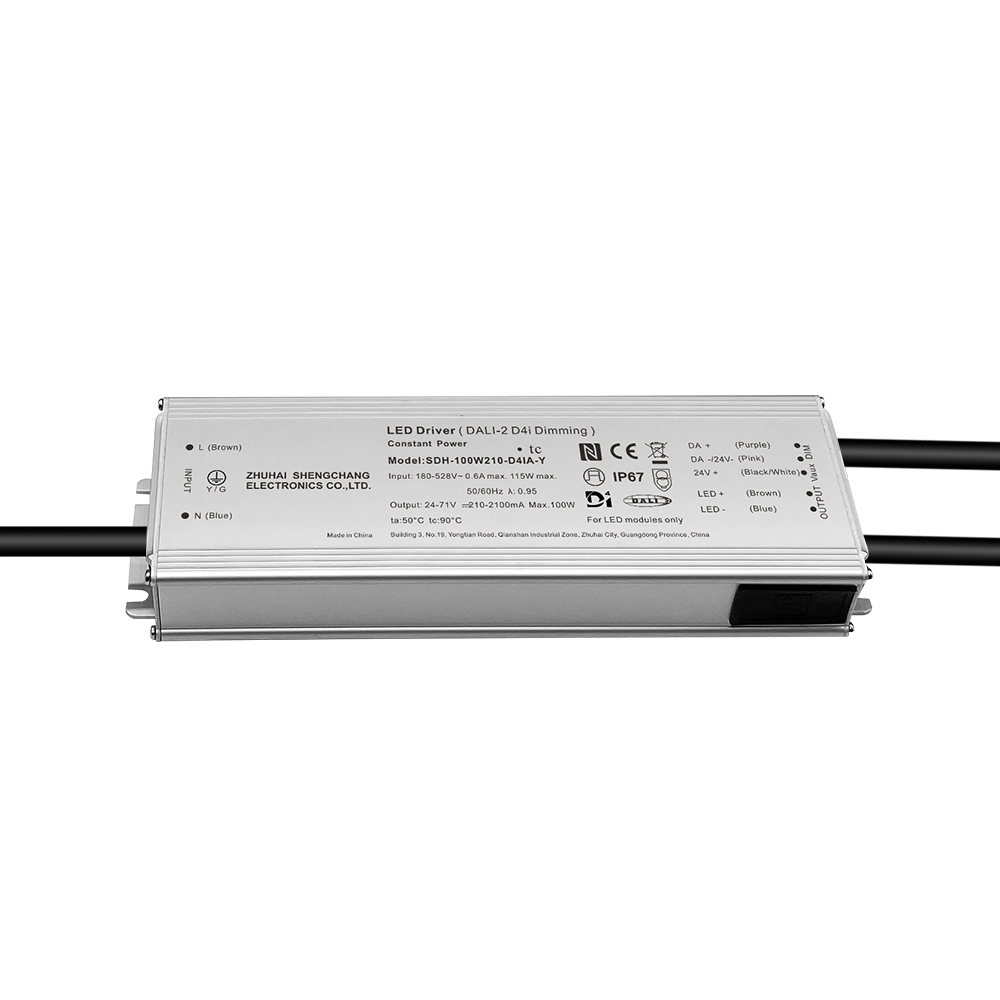

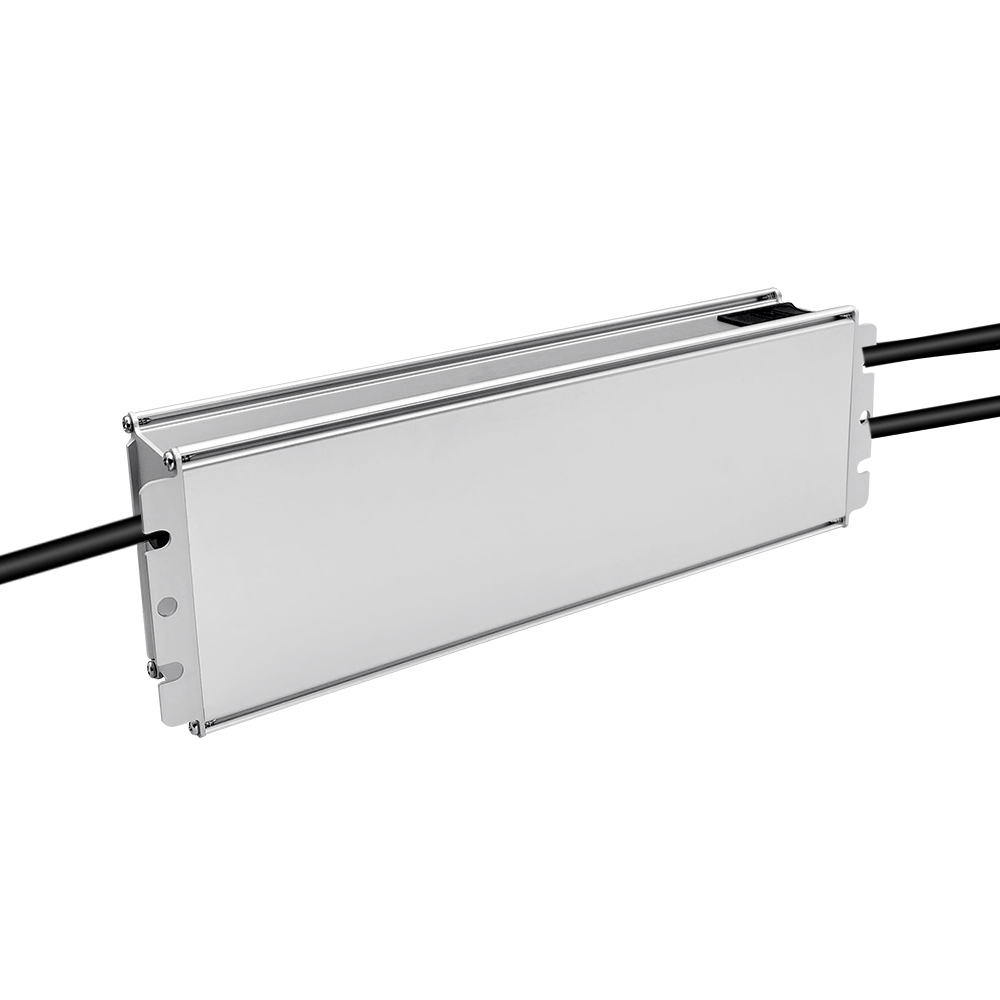

100W 150W 200W 240W 320W 480W 600W 800W DALI-2 D4i Isolated LED Driver 220-480V AC
Output Type:
Constant Current
Input Range:
220-480VAC
Protections:
short circuit/over temperature/over voltage protection/undervoltage protection
Heat dissipation:
Cooling by free air convection
Waterproof performance:
For Wet, dry and damp locations
Application:
Suitable for the application of LED lighting
Warranty:
5 years warranty
Others:
Flicker-free dimming
Specification
Model Number
Output Power
Output Voltage
Output Current
Size

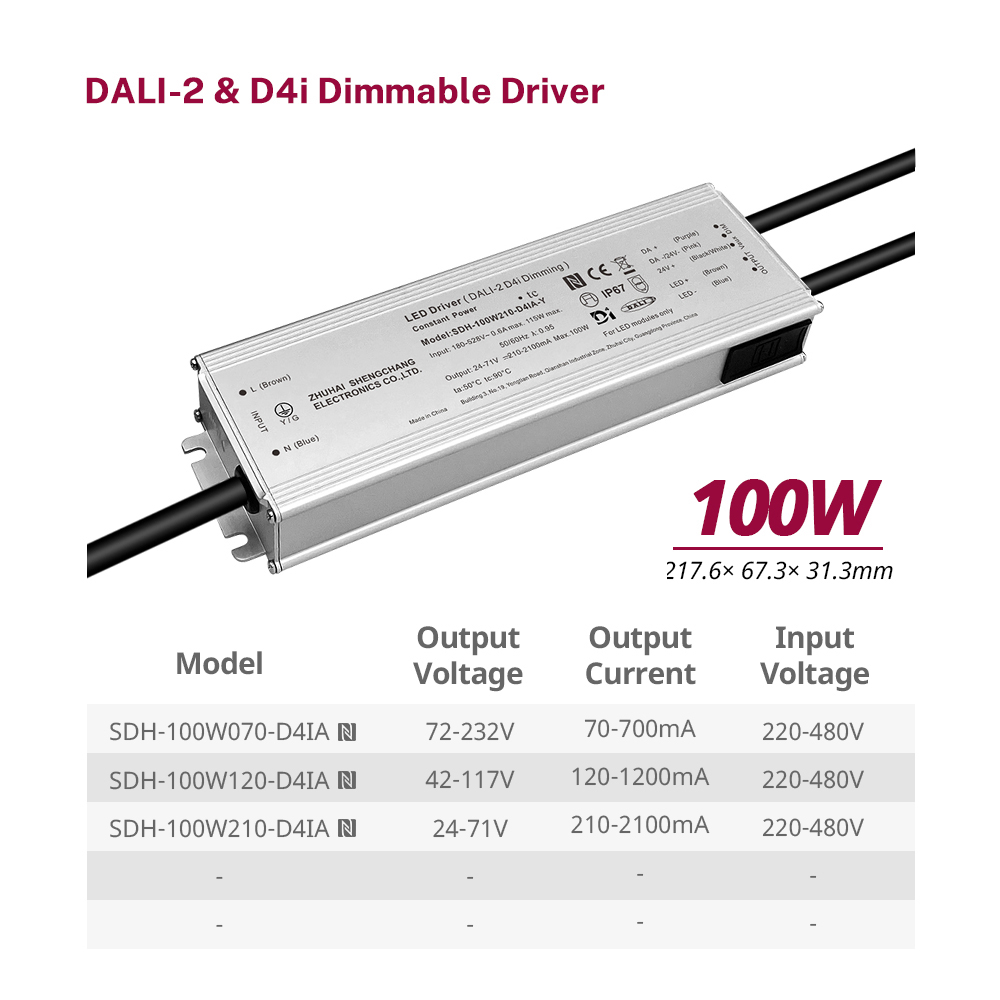

SDH-100WO70-D4IA
100W
72-232V
70-700mA
217*67.3*31.3mm
SDH-100W120-D4IA
42-117V
120-1200mA
SDH-100W210-D4IA
24-71V
210-2100mA
SDH-150W105-D4IA
150W
71-214V
105-1050mA
232.6*67.3*31.3mm
SDH-150W140-D4IA
54-143V
140-1400mA
SDH-150W210-D4IA
36-107V
210-2100mA
SDH-150W280-D4IA
27-71V
280-2800mA
SDH-150W420-D4IA
18-54V
420-4200mA
SDH-200W105-D4IA
200W
95-285V
105-1050mA
SDH-200W140-D4IA
71-190V
140-1400mA
SDH-200W210-D4IA
48-143V
210-2100mA
SDH-200W280-D4IA
36-91V
280-2800mA
SDH-200W420-D4IA
24-71V
420-4200mA
SDH-240W105-D4IA
240W
114-342V
105-1050mA
253.6*78*42.5mm
SDH-240W150-D4IA
80-267V
150-1500mA
SDH-240W240-D4IA
50-150V
240-2400mA
SDH-240W320-D4IA
38-96V
320-3200mA
SDH-240W490-D4IA
24-73V
490-4900mA
SDH-240W630-D4IA
19-49V
630-6300mA
SDH-320W120-D4IA
320W
133-410V
120-1200mA
253.6*78*42.5mm
SDH-320W220-D4IA
72-213V
220-2200mA
SDH-320W320-D4IA
50-128V
320-3200mA
SDH-320W510-D4IA
31-86V
510-5100mA
SDH-320W700-D4IA
23-60V
700-7000mA
SDH-480W140-D4IA
480W
171-480V
140-1400mA
279*89.5*44.5mm
SDH-480W240-D4IA
100-300V
240-2400mA
SDH-480W440-D4IA
55-171V
440-4400mA
SDH-480W460-D4IA
38-100V
640-6400mA
SDH-480W840-D4IA
29-70V
840-8400mA
SDH-600W170-D4IA
600W
214-428V
170-1700mA
265*115*49.5mm
SDH-600W270-D4IA
143-286V
270-2700mA
SDH-600W400-D4IA
94-188V
400-4000mA
SDH-600W860-D4IA
42-100V
860-8600mA
SDH-600W12A-D4IA
27-54V
1250-12500mA
SDH-800W260-D4IA
800W
190-380V
260-2600mA
295*115*49.5mm
SDH-800W330-D4IA
143-286V
330-3300mA
SDH-800W460-D4IA
110-205V
460-4600mA
SDH-800W620-D4IA
77-154V
620-6200mA
SDH-800W860-D4IA
55-110V
860-8600mA
DALI-2 D4i Isolated LED Driver Wiring Diagram
DALI-2 D4i Isolated LED Driver Wiring Diagram
Description
This is a highly efficient and intelligent DALI-2 D4i isolated LED driver for commercial, industrial and high-end lighting applications. It supports a wide range of power outputs from 100W to 800W (100W/150W/200W/240W
/320W/480W/600W/800W), with an input voltage range of 220-480V AC, and is equipped with DALI-2 and D4i intelligent lighting control systems. Isolated design to ensure safe and stable operation.
Features
Efficient isolation design: Adopting electrical isolation technology, high safety protection level, effectively avoiding short-circuit and overload risk, prolonging the life of LED lamps.
IP67 Protection: This series of products have high waterproof grade and are suitable for street lamps, court lamps, square lamps and plant lamps.
Warranty 5 years: Aluminum housing design, super high efficiency, good heat dissipation, greatly improves the reliability of the product and prolongs the life of the product.
Applications
Intelligent Buildings: Combined with D4i's energy data feedback function, it is used in scenarios such as office buildings and airports to optimize energy consumption and meet green building certification requirements.
Commercial Lighting: Suitable for shopping malls, hotels, exhibition halls and other high-demand environments, through the DALI-2 to achieve zoned dimming, energy-saving strategies and remote centralized management.
LED Fixtures: Downlights, spotlights, panel lights, Flood light and so on.
