0-10V
Isolated
Constant Current
Dimming
IP67, Dry & Damp, Wet
100-277VAC
100W, 150W, 200W, 240W, 320W, 480W, 720W
12-54V 24-93V
UL & cUL, FCC, CE, RoHS, REACH

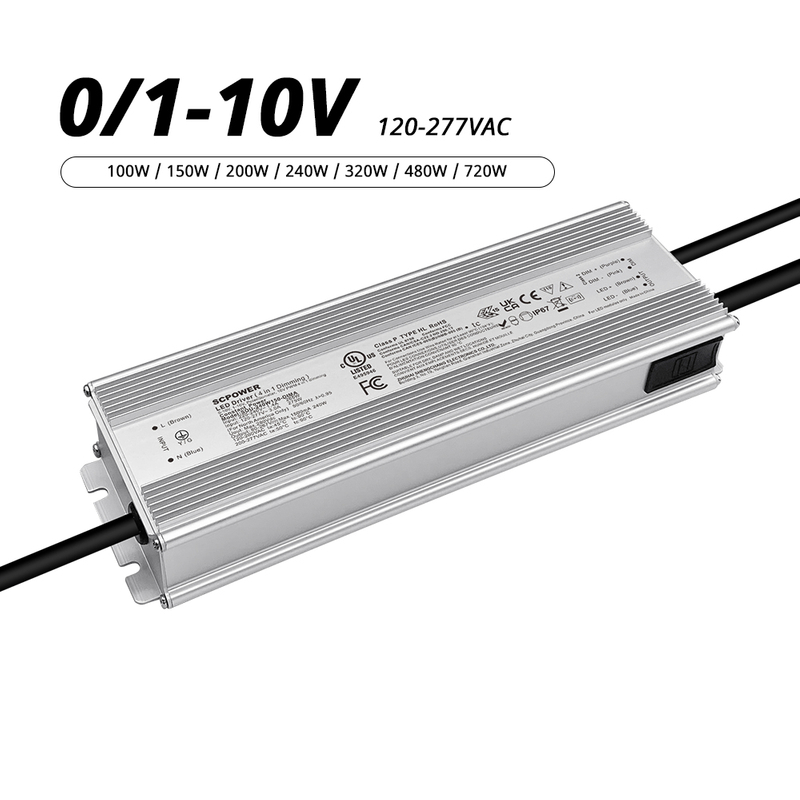

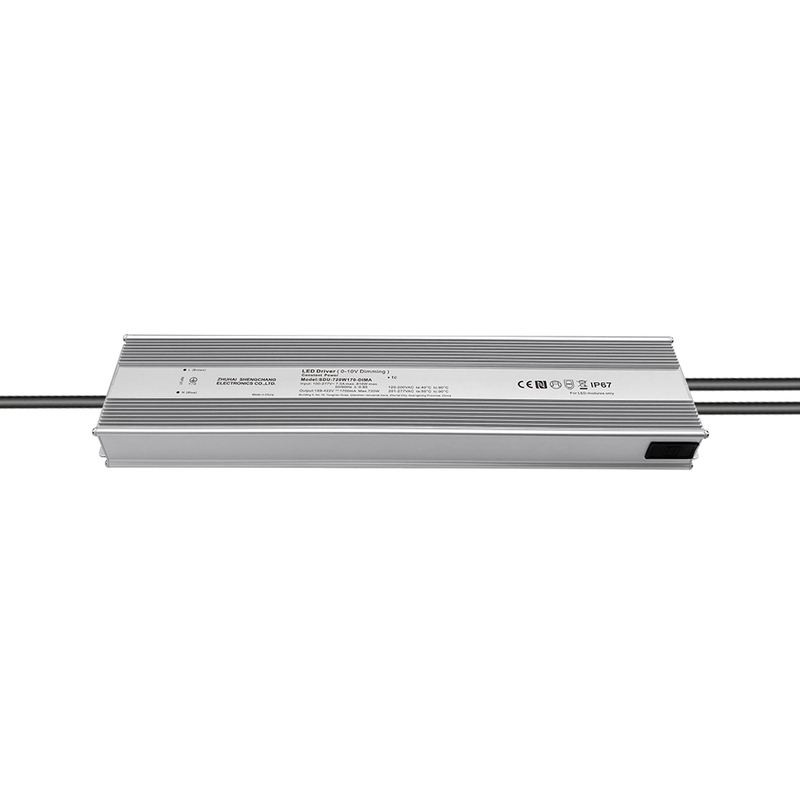

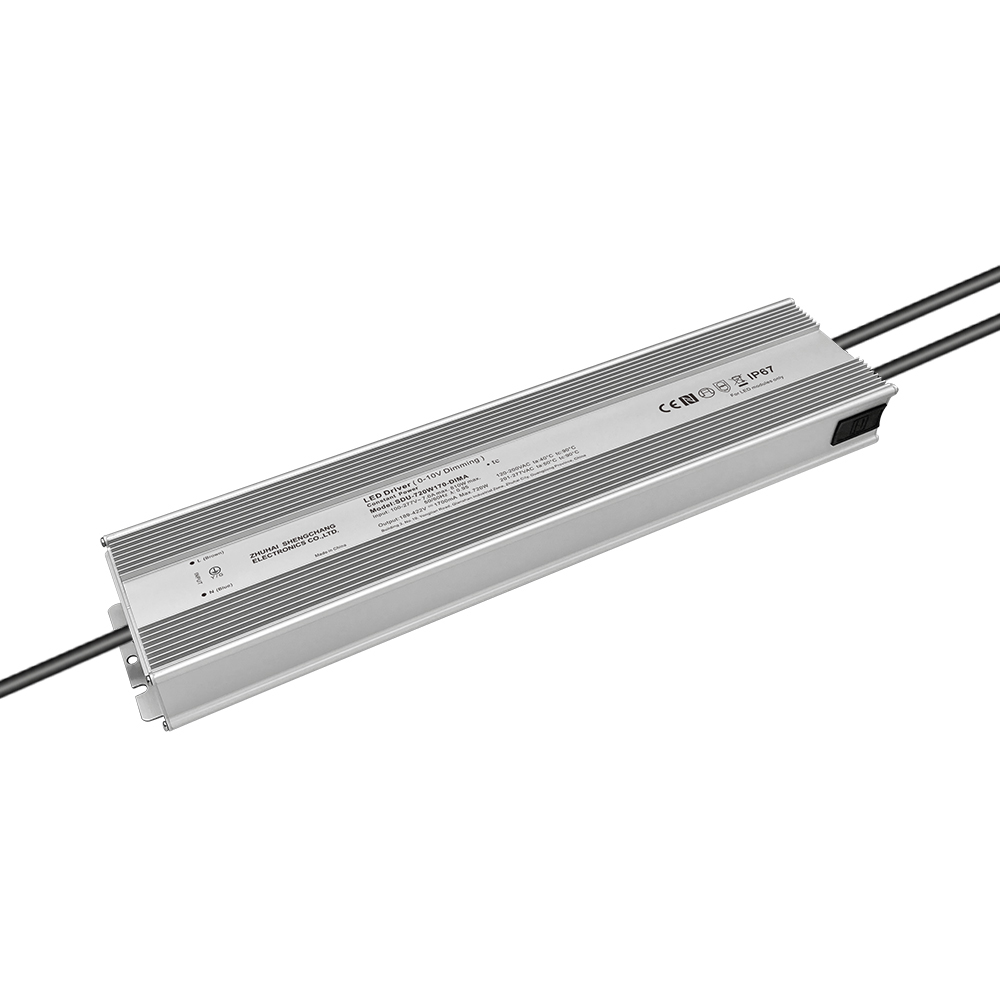

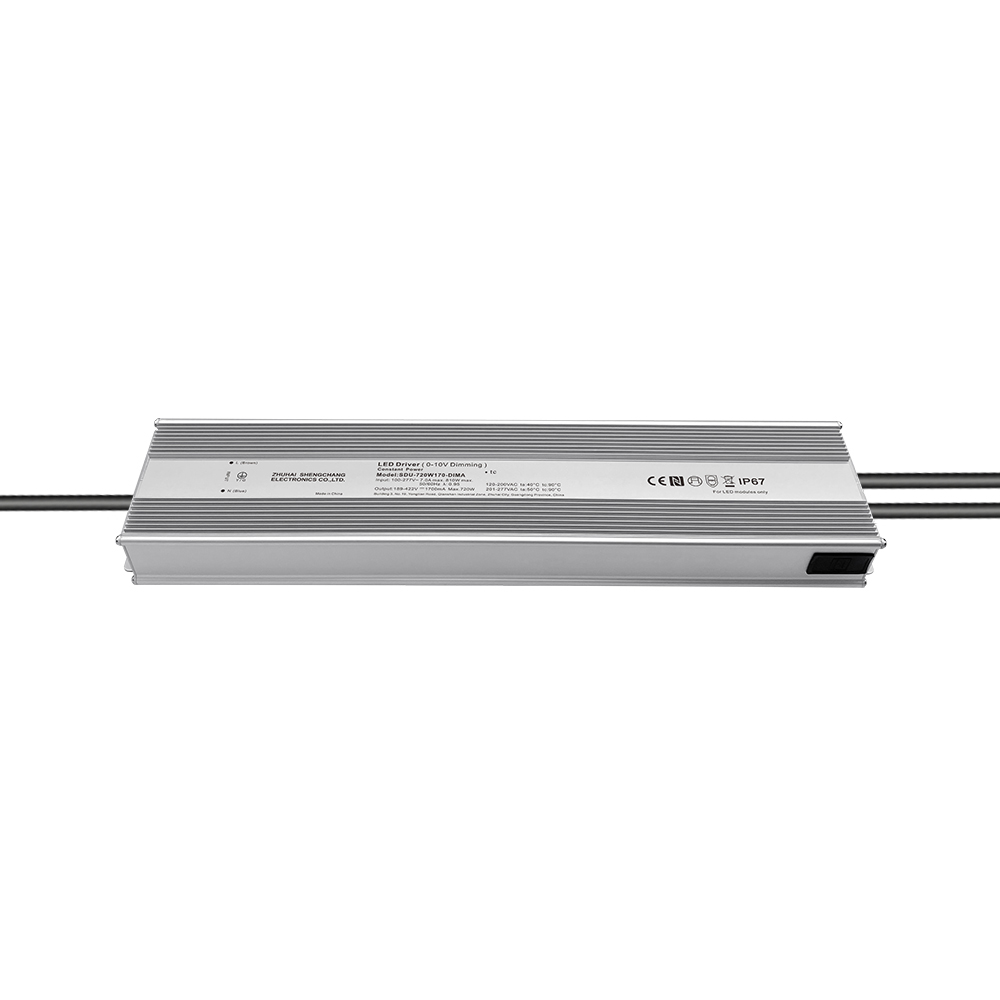

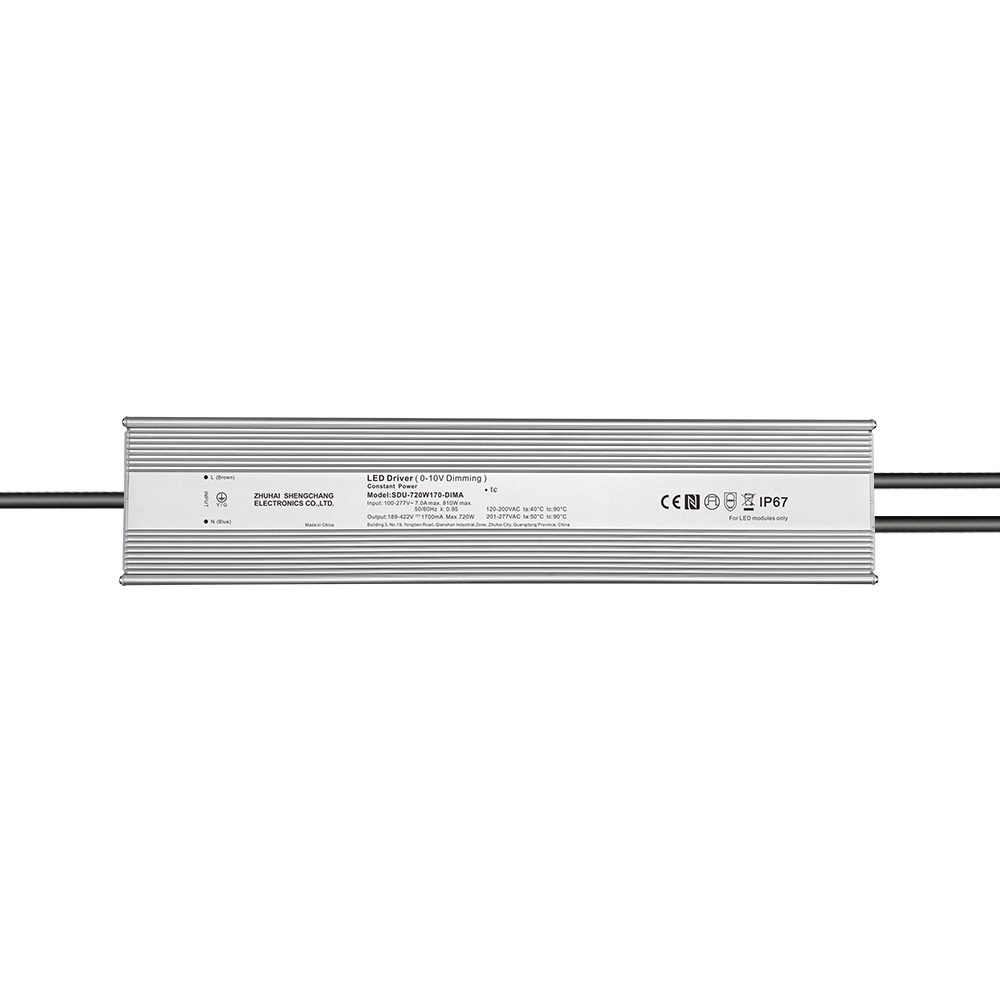

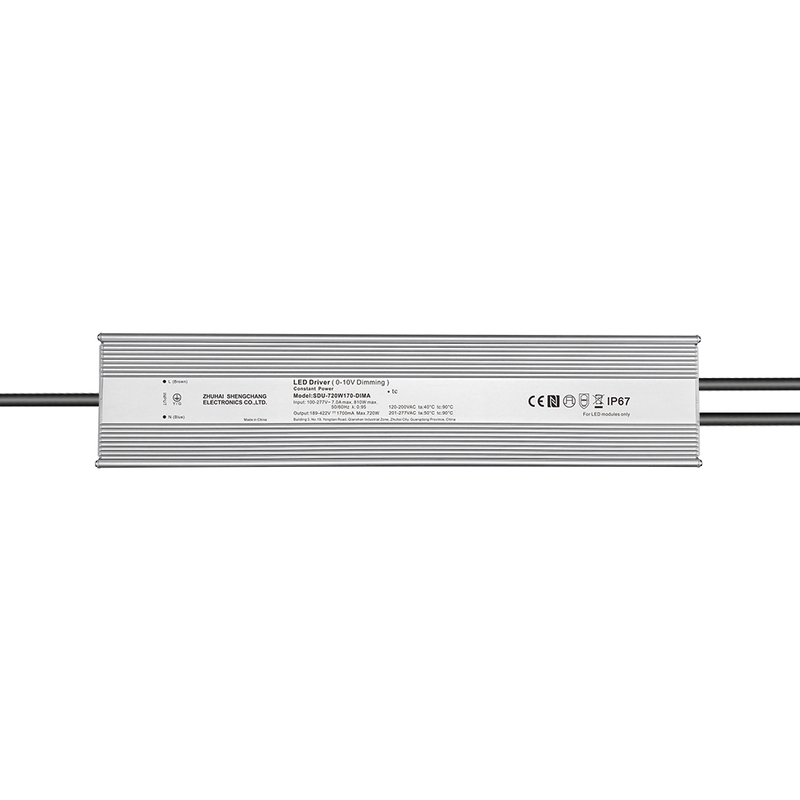

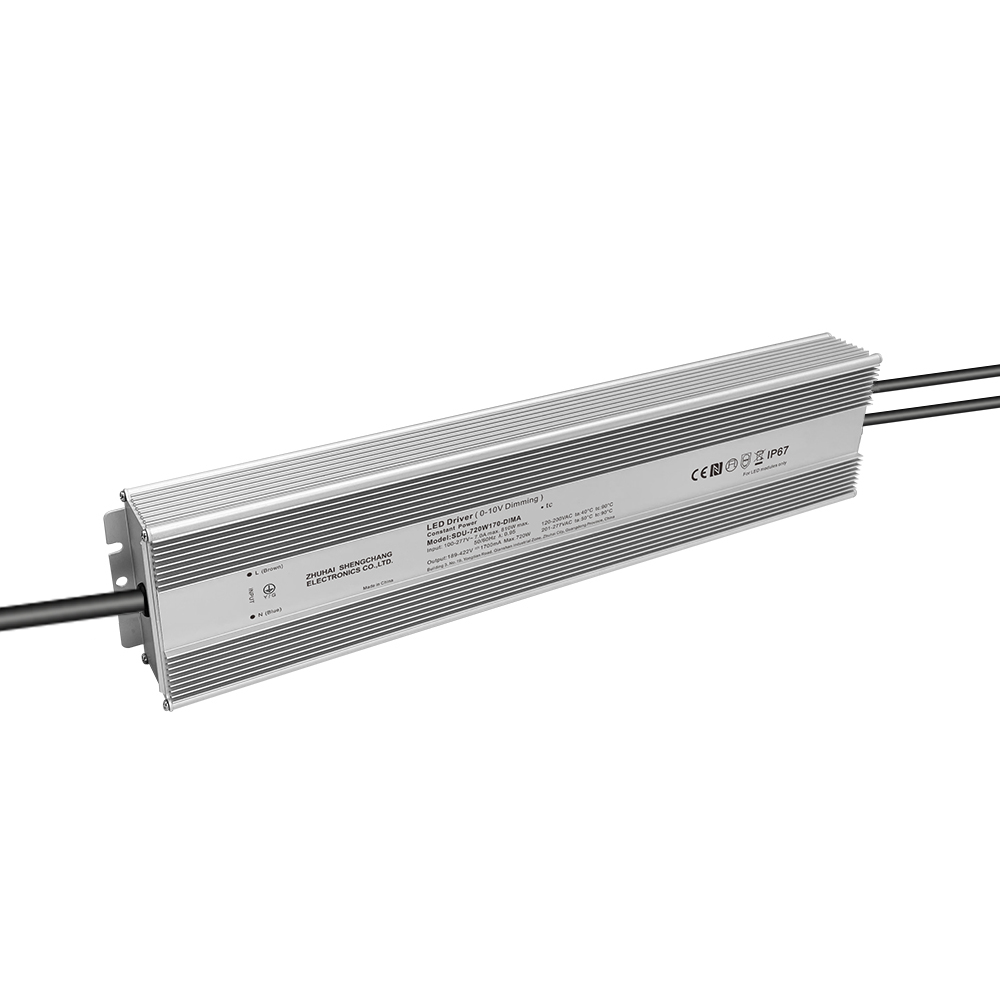

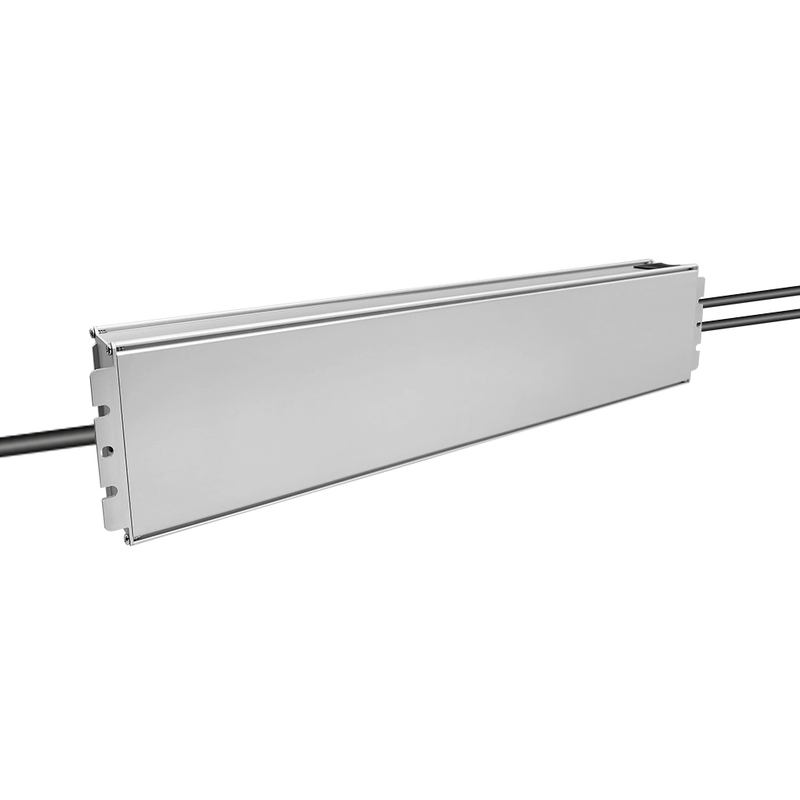

100W 150W 200W 240W 320W 480W 720W 18-422 Volt DC 0-10V IP67 Waterproof LED Driver 120-277V AC
Output Type: | Constant Current |
Input Range: | 120-277VAC |
Protections: | short circuit/over temperature/over voltage protection/undervoltage protection |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For Wet, dry and damp locations |
| Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free dimming |
Model Number | Output Power | Output Voltage | Output Current | Size |

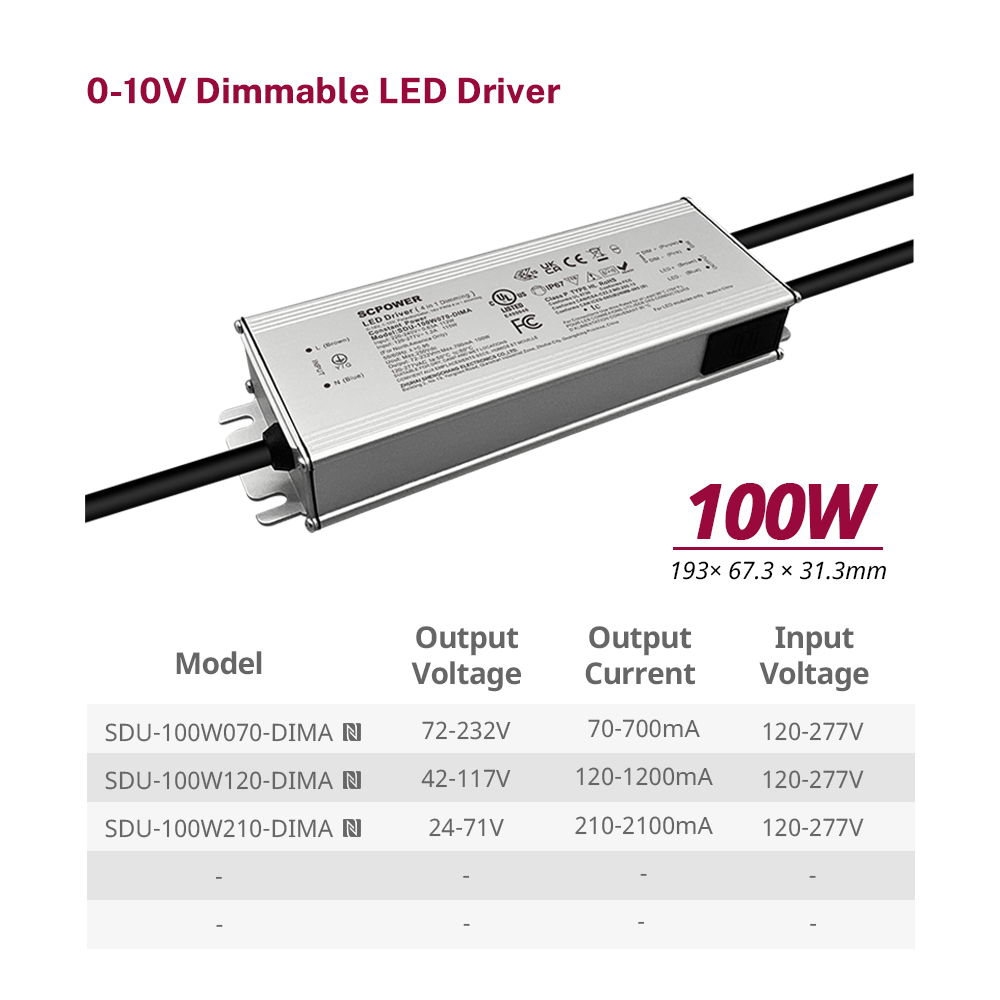

SDU-100WO70-DIMA | 100W | 72-232V | 70-700mA | 193*67.3*31.3mm |
SDU-100W120-DIMA | 42-117V | 120-1200mA | ||
SDU-100W210-DIMA | 24-71V | 210-2100mA | ||
SDU-150W105-DIMA | 150W | 71-214V | 105-1050mA | 217.6*67.3*31.3mm |
SDU-150W140-DIMA | 54-143V | 140-1400mA | ||
SDU-150W210-DIMA | 36-107V | 210-2100mA | ||
SDU-150W280-DIMA | 27-71V | 280-2800mA | ||
SDU-150W420-DIMA | 18-54V | 420-4200mA | ||
SDU-200W105-DIMA | 200W | 93-235V | 105-1050mA | |
SDU-200W140-DIMA | 71-190V | 140-1400mA | ||
SDU-200W210-DIMA | 48-143V | 210-2100mA | ||
SDU-200W280-DIMA | 36-91V | 280-2800mA | ||
SDU-200W420-DIMA | 24-71V | 420-4200mA | ||
SDU-240W150-DIMA | 240W | 80-267V | 150-1500mA | 253.6*78*42.5mm |
SDU-240W240-DIMA | 50-150V | 240-2400mA | ||
SDU-240W320-DIMA | 38-96V | 320-3200mA | ||
SDU-240W490-DIMA | 24-73V | 490-4900mA | ||
SDU-240W630-DIMA | 19-49V | 630-6300mA | ||
SDU-320W120-DIMA | 320W | 133-356V | 120-1200mA | |
SDU-320W220-DIMA | 72-213V | 220-2200mA | ||
SDU-320W320-DIMA | 50-128V | 320-3200mA | ||
SDU-320W510-DIMA | 31-86V | 510-5100mA | ||
SDU-320W700-DIMA | 23-60V | 700-7000mA | ||
SDU-320W140-DIMA | 480W | 171-480V | 140-1400mA | 279.4*89.5*44.5mm |
SDU-320W240-DIMA | 100-300V | 240-2400mA | ||
SDU-320W440-DIMA | 55-171V | 440-4400mA | ||
SDU-320W640-DIMA | 38-100V | 640-6400mA | ||
SDU-320W840-DIMA | 29-70V | 840-8400mA | ||
SDU-720W200-DIMA | 720W | 189-422V | 200-2000mA | 390.2*89.5*44.5mm |
SDU-720W320-DIMA | 116-260V | 320-3200mA | ||
SDU-720W530-DIMA | 70-156V | 530-5300mA | ||
SDU-720W15A-DIMA | 25-56V | 1500-15000mA | ||

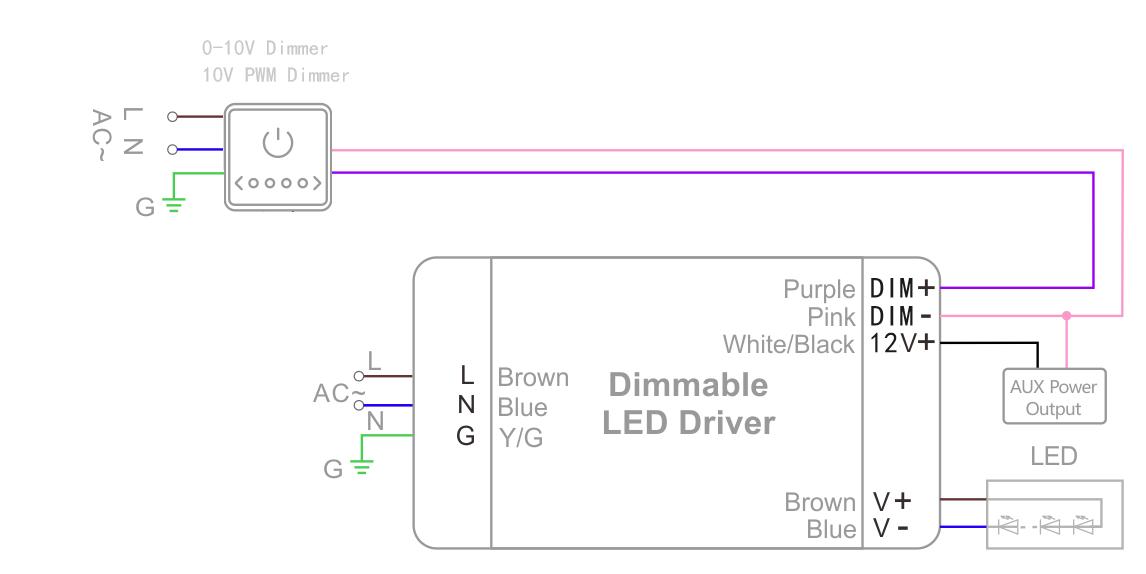

0-10V LED Driver Wiring Diagram
Description
This series of LED driver provides 100W, 150W, 200W, 240W, 320W, 480W and 720W power options, wide voltage input (120-277V AC), compatible with all kinds of high-power LED lamps. Support 0-10V dimming, dimming depth 1%, meet different scene requirements.
Features
Energy Efficient & Low Loss: 95% high efficiency, ultra-high PF value and low THD.
Intelligent dimming control: 0-10V dimming interface, can be matched with intelligent lighting system.
IP67 Protection: IP67 waterproof and dustproof design, suitable for outdoor, industrial, commercial and special environment lighting, such as street lamps, tunnel lights, billboards, stadiums and so on.
All-round Protection:High efficiency and stability, with short circuit/over temperature/over voltage protection/undervoltage protection and other multiple protections to ensure long-term reliable operation.
Applications
Outdoor lighting: for street lights, garden lights, landscape lights, etc. IP67 waterproof and dustproof, adapt to dry or wet weather.
Industrial Lighting: High power LED lighting for factories, warehouses, workshops, etc., stable power supply, support dimming and energy saving.
Commercial lighting: shopping malls, exhibition halls, billboards, etc., 0-10V dimming to achieve flexible brightness control.
Stadium lighting: high brightness LED floodlights, stadium lighting, high power output to ensure stable operation.
Tunnel lighting: strong weather resistance, adapt to humid, high temperature environment, to ensure long-term reliable use.
Order Now and Transform Your Lighting Experience
