DMX512
Isolated
Constant Current
Dimming
IP67, Dry & Damp, Wet
100-277VAC
100W, 150W, 200W, 240W, 320W, 480W, 720W
12-54V 24-93V
UL & cUL, FCC, CE, RoHS, REACH

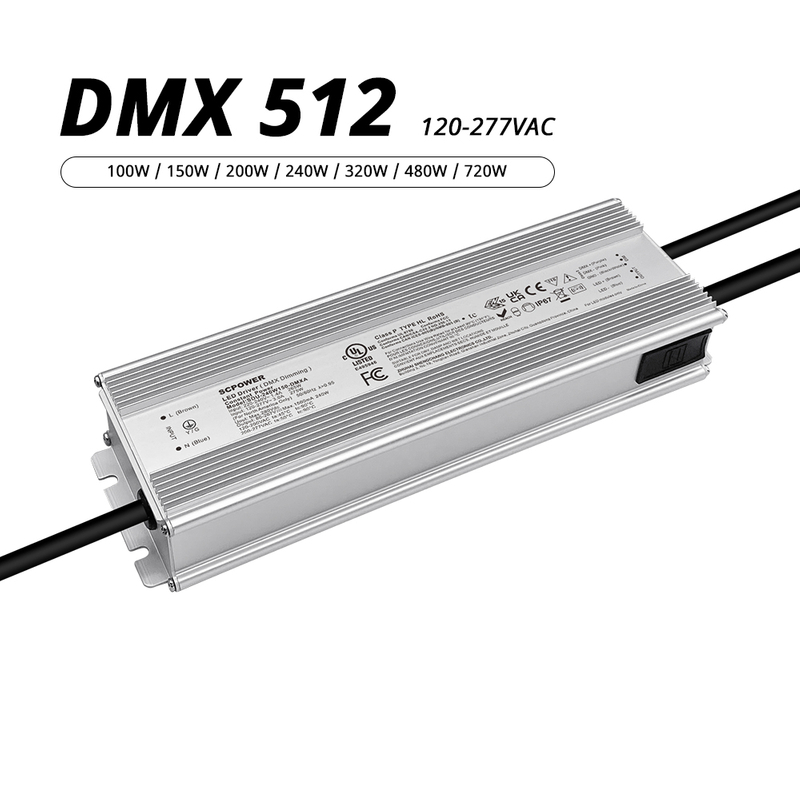

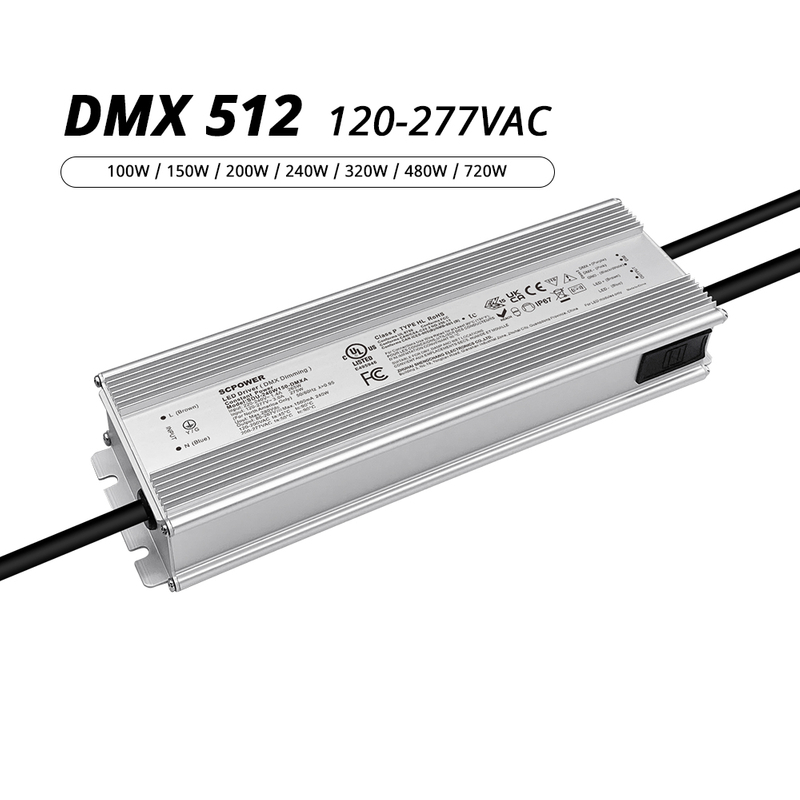

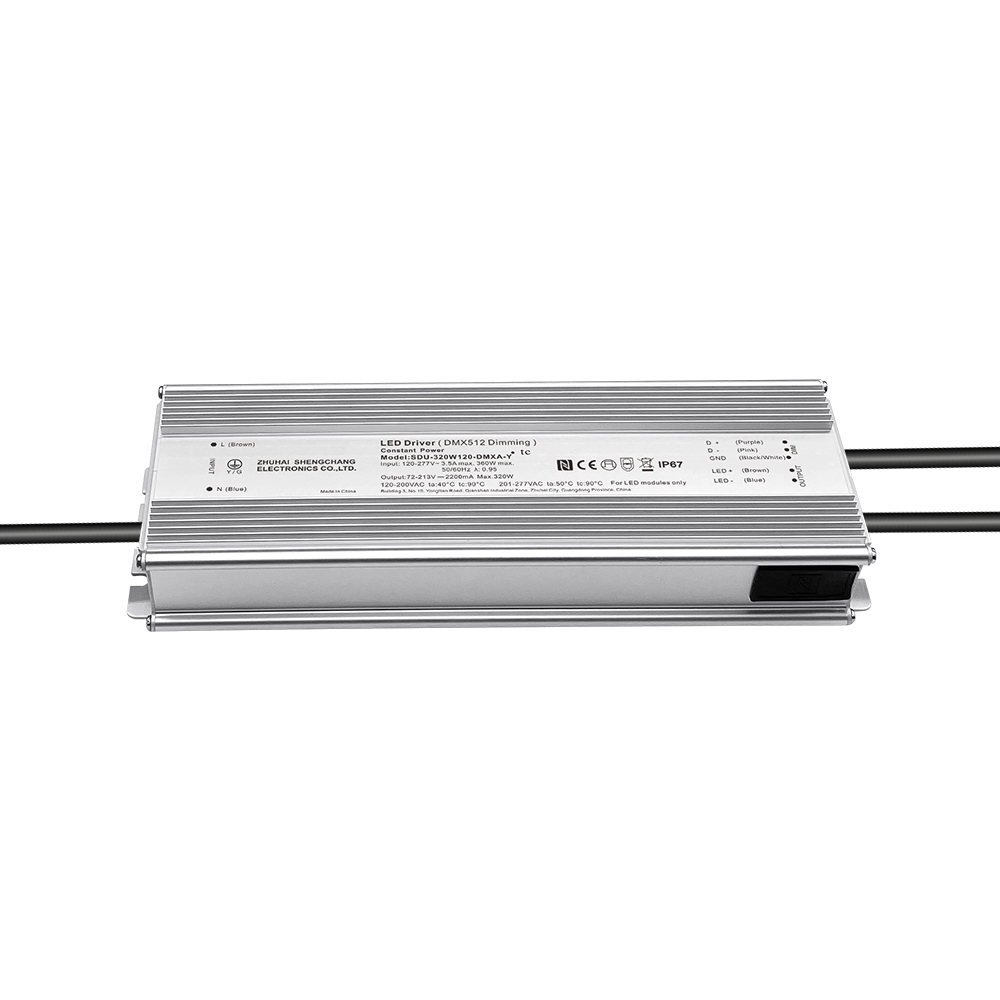

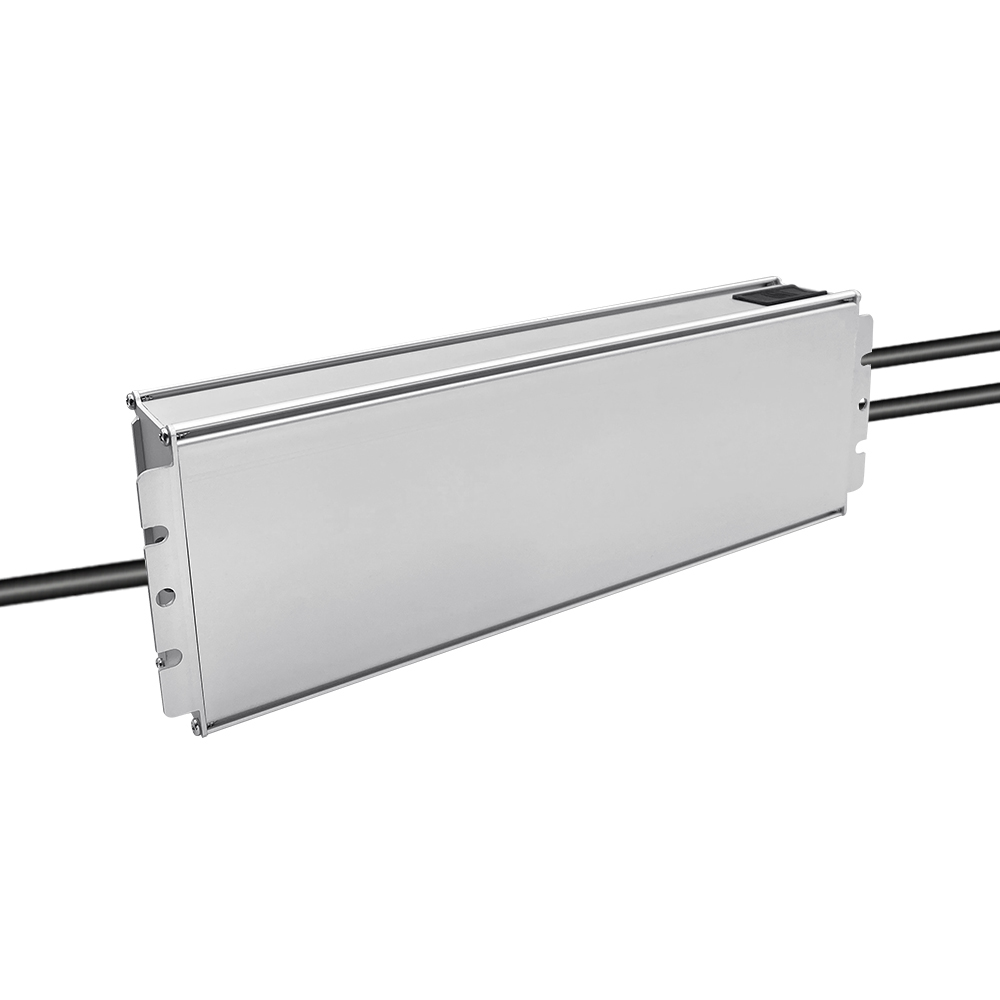

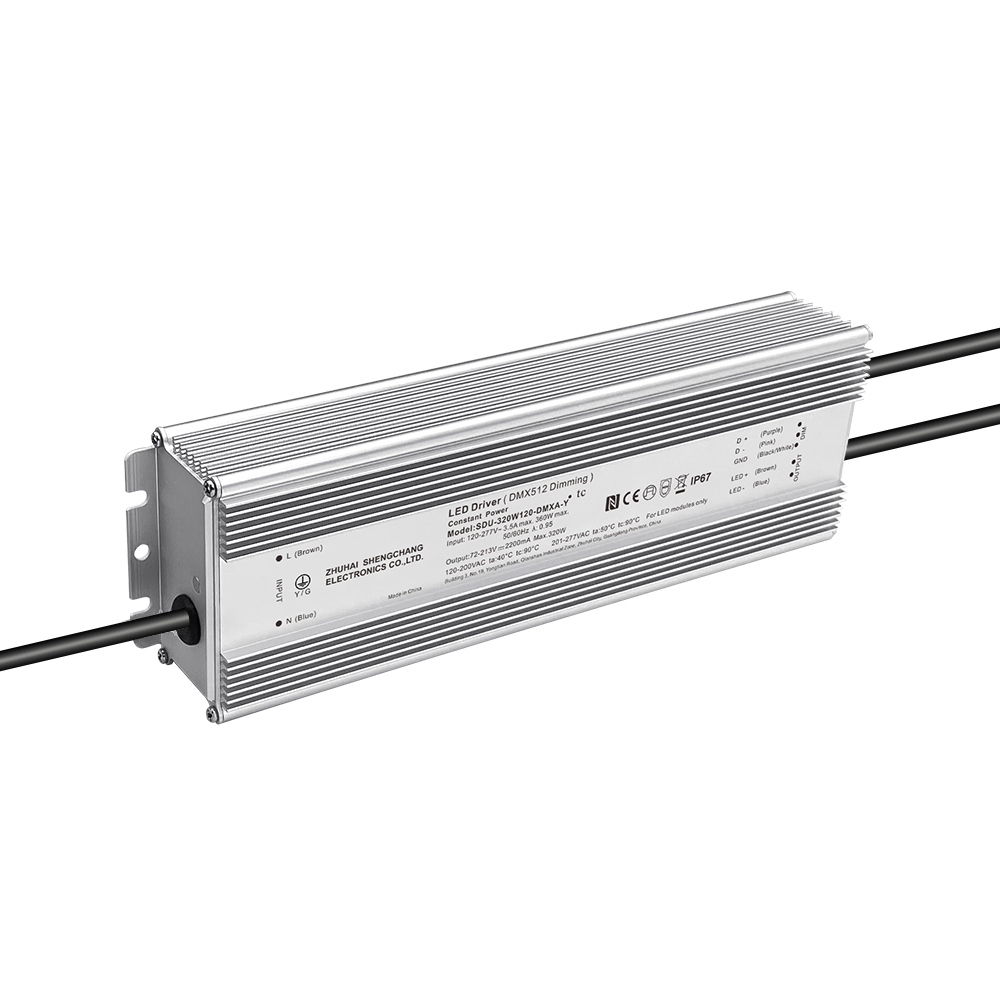

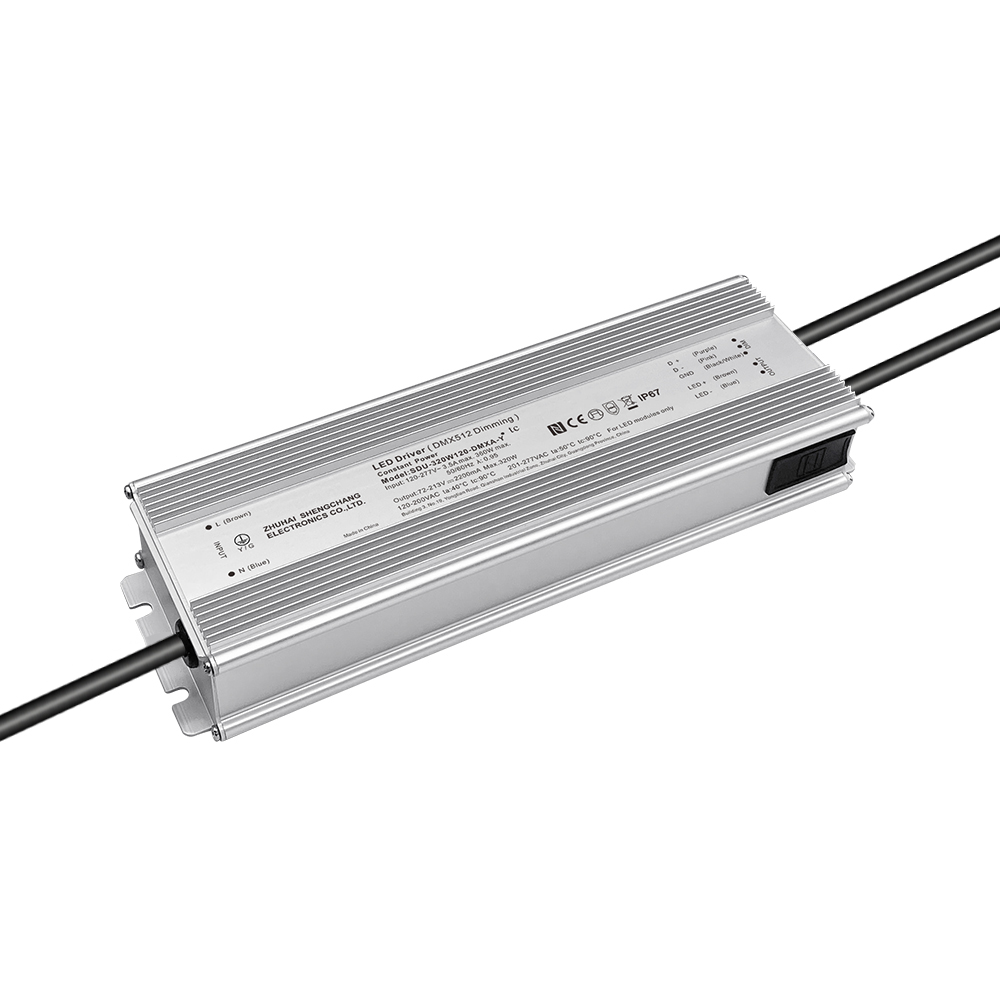

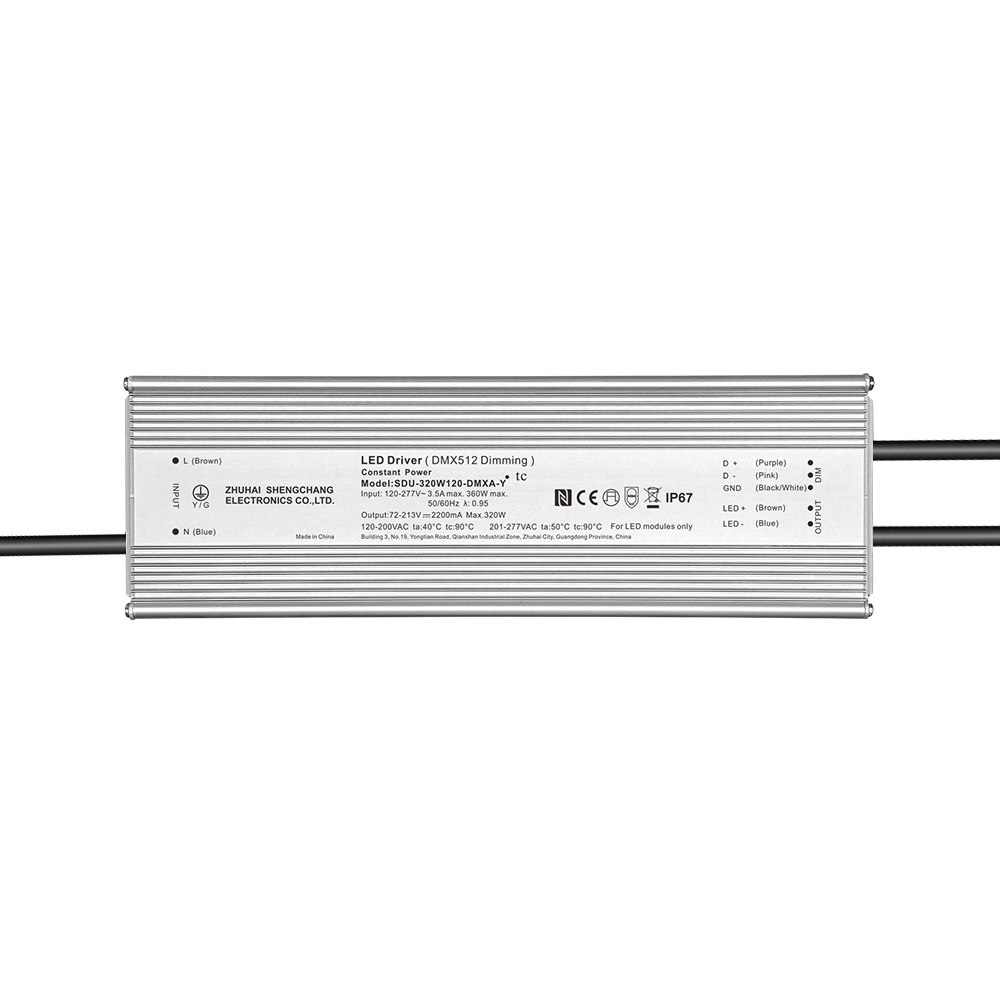

100W 150W 200W 240W 320W 480W 720W 18V-422V DC DMX IP67 Waterproof LED Driver 120-277V AC
Output Type: | Constant Current |
Input Range: | 120-277VAC |
PFC design: | High power factor active PFC correction 0.99 or more |
Protections: | short circuit/over temperature/over voltage protection/undervoltage protection |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For wet, dry and damp locations |
Design features: | Isolated dimmable |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free dimming |
Model Number | Output Power | Output Voltage | Output Current | Size |

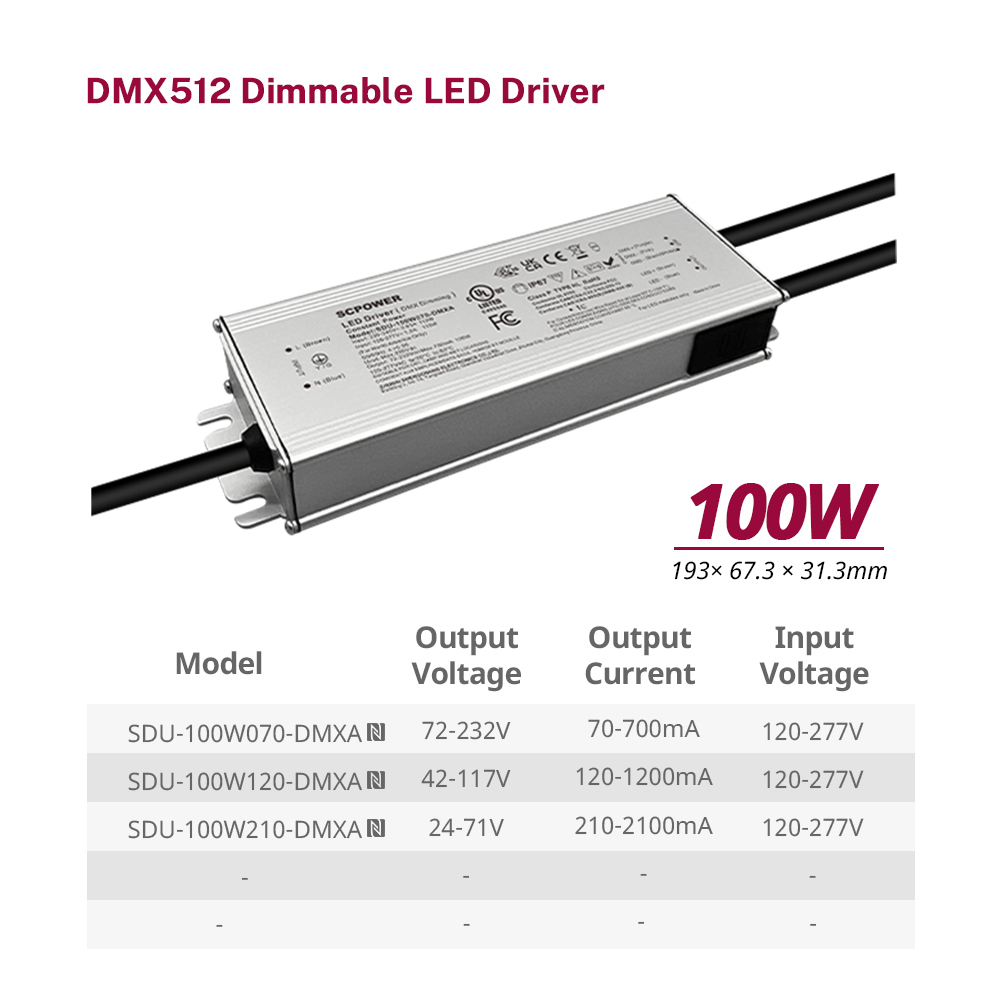

SDU-100WO70-DMXA | 100W | 72-232V | 70-700mA | 193*67.3*31.3mm |
SDU-100W120-DMXA | 42-117V | 120-1200mA | ||
SDU-100W210-DMXA | 24-71V | 210-2100mA | ||
SDU-150W105-DMXA | 150W | 71-214V | 105-1050mA | 217.6*67.3*31.3mm |
SDU-150W140-DMXA | 54-143V | 140-1400mA | ||
SDU-150W210-DMXA | 36-107V | 210-2100mA | ||
SDU-150W280-DMXA | 27-71V | 280-2800mA | ||
SDU-150W420-DMXA | 18-54V | 420-4200mA | ||
SDU-200W105-DMXA | 200W | 93-235V | 105-1050mA | |
SDU-200W140-DMXA | 71-190V | 140-1400mA | ||
SDU-200W210-DMXA | 48-143V | 210-2100mA | ||
SDU-200W280-DMXA | 36-91V | 280-2800mA | ||
SDU-200W420-DMXA | 24-71V | 420-4200mA | ||
SDU-240W150-DMXA | 240W | 80-267V | 150-1500mA | 253.6*78*42.5mm |
SDU-240W240-DMXA | 50-150V | 240-2400mA | ||
SDU-240W320-DMXA | 38-96V | 320-3200mA | ||
SDU-240W490-DMXA | 24-73V | 490-4900mA | ||
SDU-240W630-DMXA | 19-49V | 630-6300mA | ||
SDU-320W120-DMXA | 320W | 133-356V | 120-1200mA | |
SDU-320W220-DMXA | 72-213V | 220-2200mA | ||
SDU-320W320-DMXA | 50-128V | 320-3200mA | ||
SDU-320W510-DMXA | 31-86V | 510-5100mA | ||
SDU-320W700-DMXA | 23-60V | 700-7000mA | ||
SDU-320W140-DMXA | 480W | 171-480V | 140-1400mA | 279.4*89.5*44.5mm |
SDU-320W240-DMXA | 100-300V | 240-2400mA | ||
SDU-320W440-DMXA | 55-171V | 440-4400mA | ||
SDU-320W640-DMXA | 38-100V | 640-6400mA | ||
SDU-320W840-DMXA | 29-70V | 840-8400mA | ||
SDU-720W200-DMXA | 720W | 189-422V | 200-2000mA | 390.2*89.5*44.5mm |
SDU-720W320-DMXA | 116-260V | 320-3200mA | ||
SDU-720W530-DMXA | 70-156V | 530-5300mA | ||
SDU-720W15A-DMXA | 25-56V | 1500-15000mA | ||

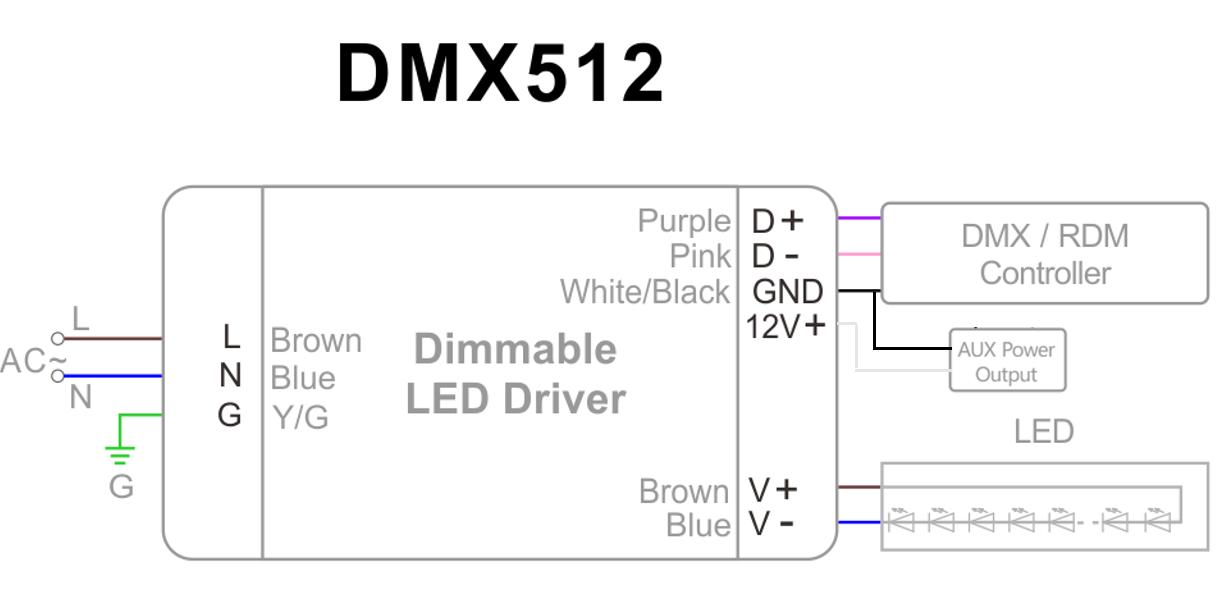

DMX LED Driver Wiring Diagram
Description
100W-720W wide voltage dimmable LED driver for outdoor environment.
Equipped with DMX512 intelligent control protocol for smooth dimming. IP67 waterproof and dustproof rating, fully sealed design to resist rain, dust and humidity. Suitable for architectural floodlighting, stage lighting, theme parks, harbors/tunnels and other outdoor scenes.
Features
Intelligent wide compatibility: Automatically adapts to 120V~277V AC voltage fluctuations, stable operation even in unstable power grid areas, reducing equipment loss.
IP67 protection level: Waterproof aluminum housing and full potting process, suitable for continuous output in outdoor environment.
DMX Dimming: Support 512 channels signal transmission, no strobe, belongs to the isolated dimming driver power supply.
High Efficiency Conversion Efficiency (>95%): CE international certification, effective energy saving and consumption reduction, reduce heat generation, extend the life of LED lamps and lanterns.
LED Fixtures: Grow light, mining lamp, garden light and street light.
Order Now and Transform Your Lighting Experience
