DMX512
Isolated
Constant Current
1CH (Dimming)
IP20, Dry & Damp
100-277VAC
10W, 20W, 40W, 60W
3V-42V
RoHS, REACH
10W 20W 40W 60W Constant Current DMX 512 Dimmable LED Driver for LED Room Lights
Output: | Constant Current |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 88% |
Protections: | Short circuit/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP20; Full protection plastic housing, for dry, damp locations |
Dimming function: | DMX512 dim. CCT dimming digital dimming, accurate and smooth, single lighting control, the control is more flexible |
Dimming range: | 0-100% Dimming depth: 1% |
NFC function: | read and write the address |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Output Power | Model Number | Output | Size | Weight |

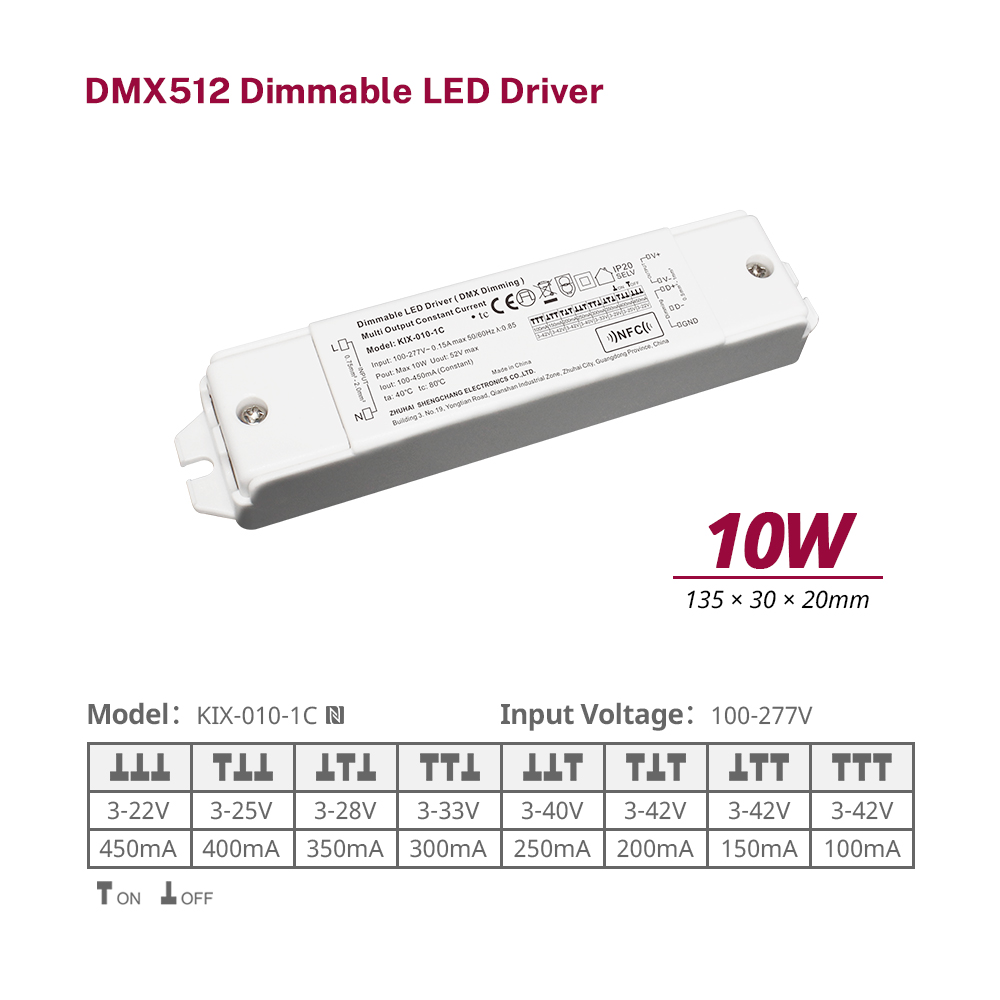

10W | KIX-010-1C | 3-42V 100mA | 135*30*20mm | 0.10kg |
3-42V 150mA | ||||
3-42V 200mA | ||||
3-40V 250mA | ||||
3-33V 300mA | ||||
3-29V 350mA | ||||
3-25V 400mA | ||||
3-22V 450mA | ||||

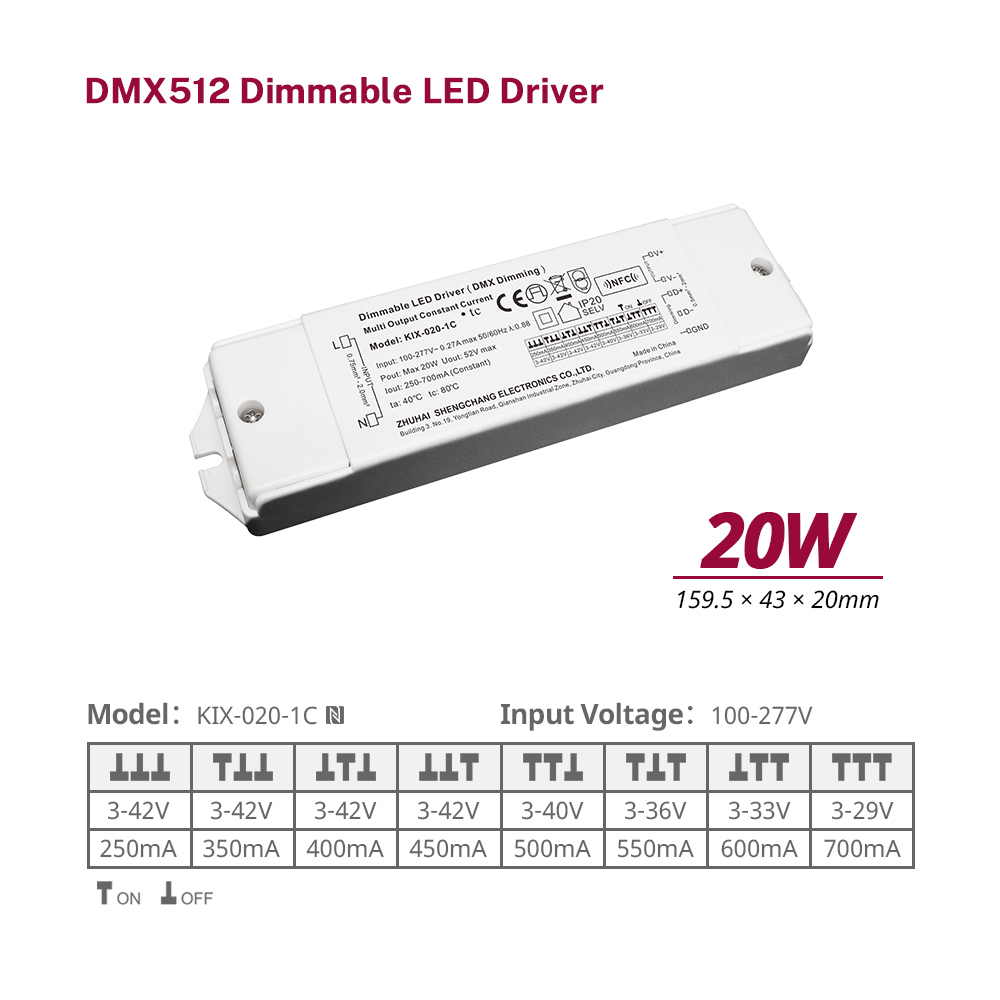

20W | KIX-020-1C | 3-42V 250mA | 159.5*43*20mm | 0.15kg |
3-42V 350mA | ||||
3-42V 400mA | ||||
3-42V 450mA | ||||
3-40V 500mA | ||||
3-36V 550mA | ||||
3-33V 600mA | ||||
3-29V 700mA | ||||

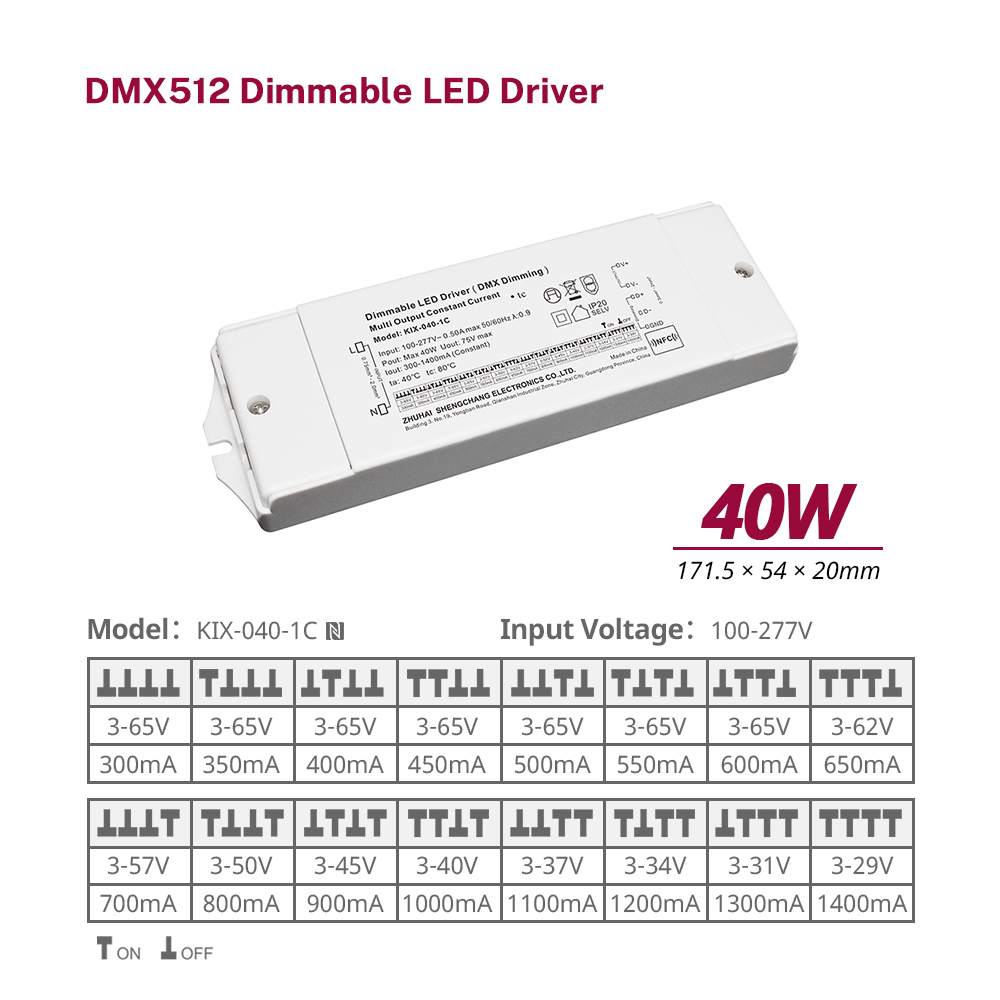

40W | KIX-040-1C | 3-50V 300mA | 171.5*54*20mm | 0.17kg |
3-50V 350mA | ||||
3-50V 400mA | ||||
3-50V 450mA | ||||
3-50V 500mA | ||||
3-50V 550mA | ||||
3-50V 600mA | ||||
3-50V 650mA | ||||
3-50V 700mA | ||||
3-50V 800mA | ||||
3-45V 900mA | ||||
3-40V 1000mA | ||||
3-37V 1100mA | ||||
3-34V 1200mA | ||||
3-31V 1300mA | ||||
3-29V 1400mA | ||||

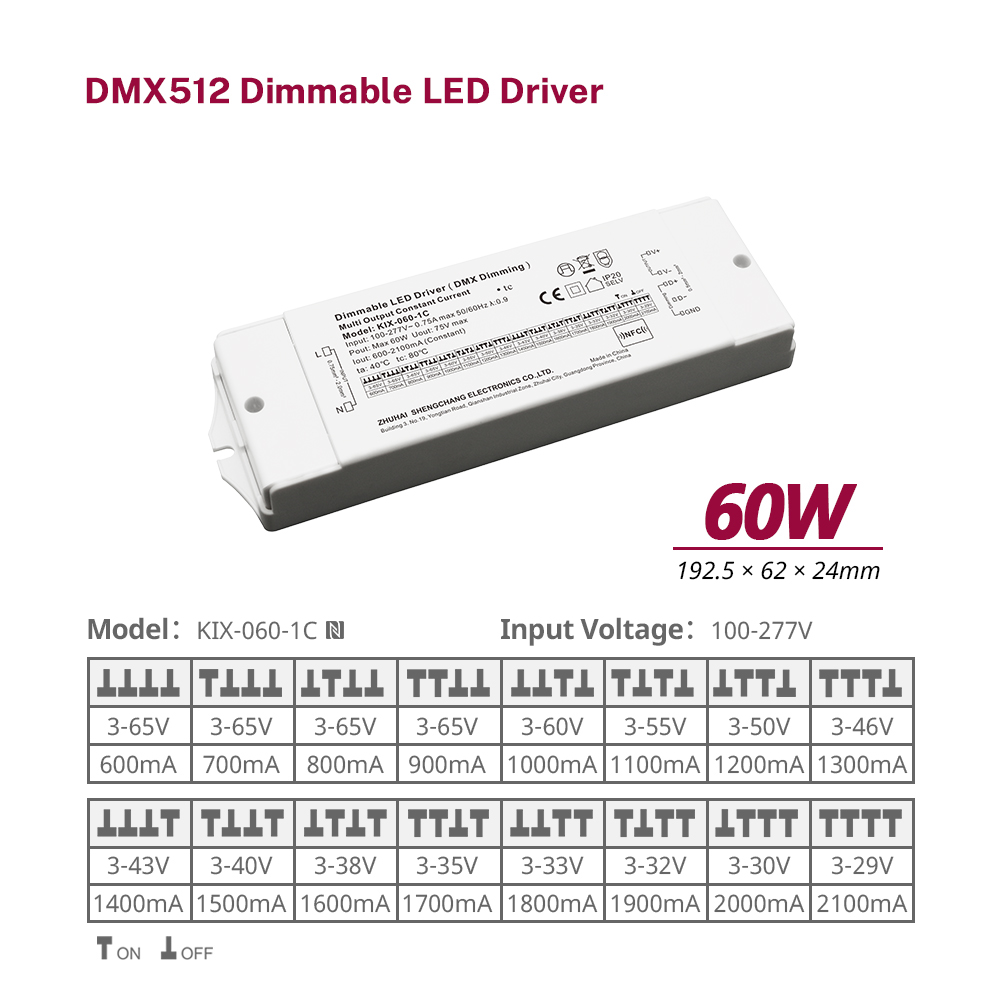

60W | KIX-060-1C | 3-50V 600mA | 192.5*62*24mm | 0.30kg |
3-50V 700mA | ||||
3-50V 800mA | ||||
3-50V 900mA | ||||
3-50V 1000mA | ||||
3-50V 1100mA | ||||
3-50V 1200mA | ||||
3-46V 1300mA | ||||
3-43V 1400mA | ||||
3-40V 1500mA | ||||
3-38V 1600mA | ||||
3-35V 1700mA | ||||
3-33V 1800mA | ||||
3-32V 1900mA | ||||
3-30V 2000mA | ||||
3-29V 2100mA |
