20-100W DMX Constant Current IP66 LED Driver

Product Introduction

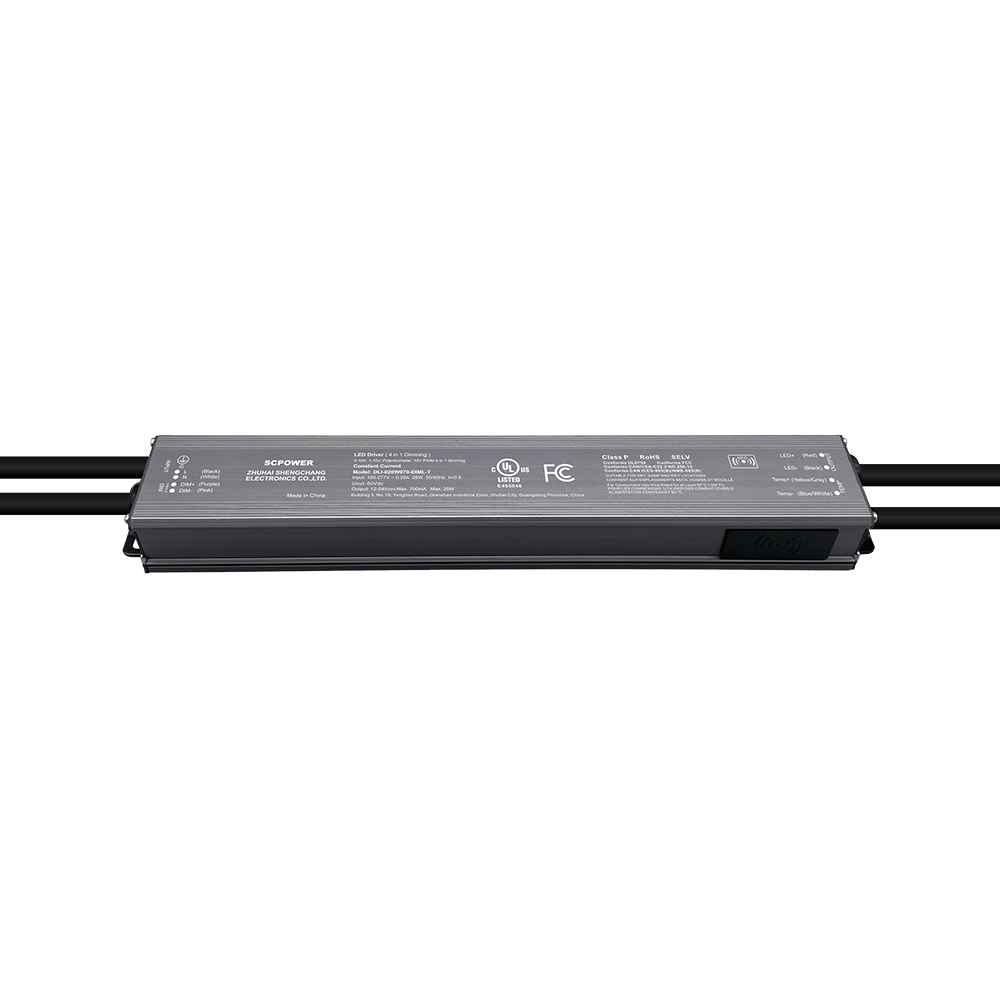

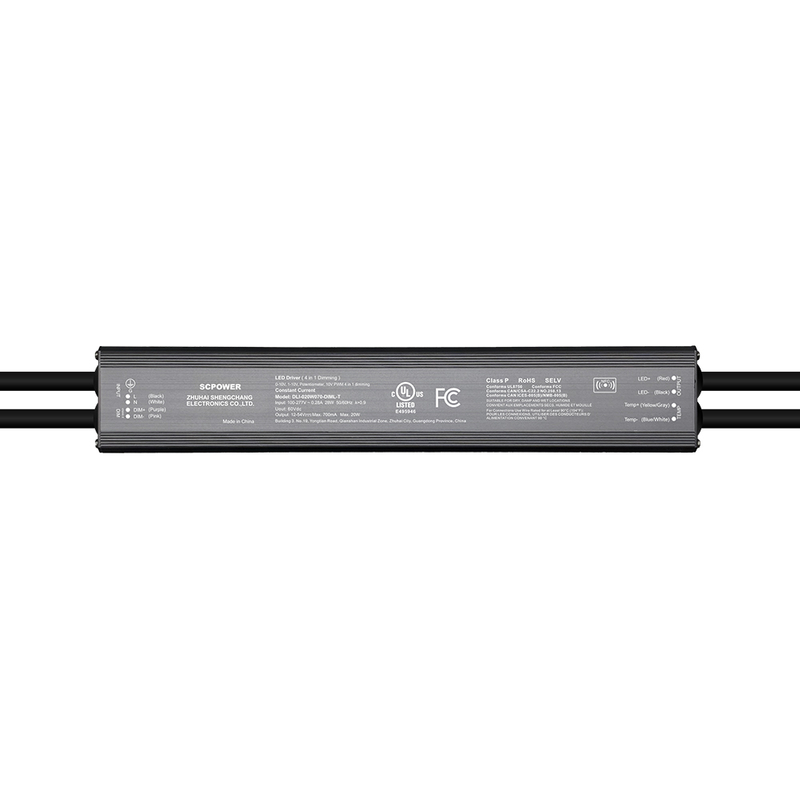

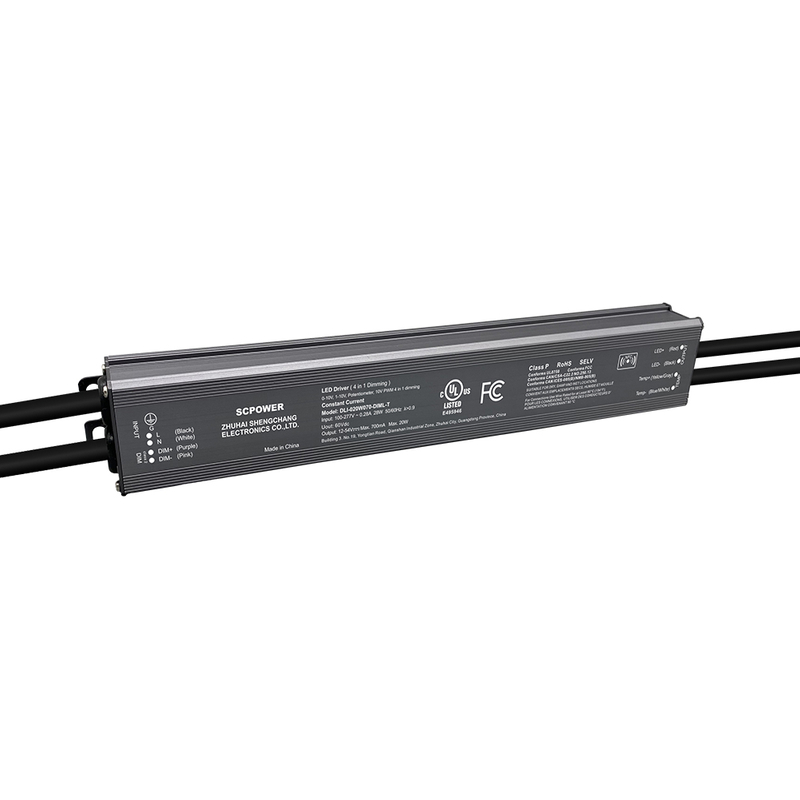

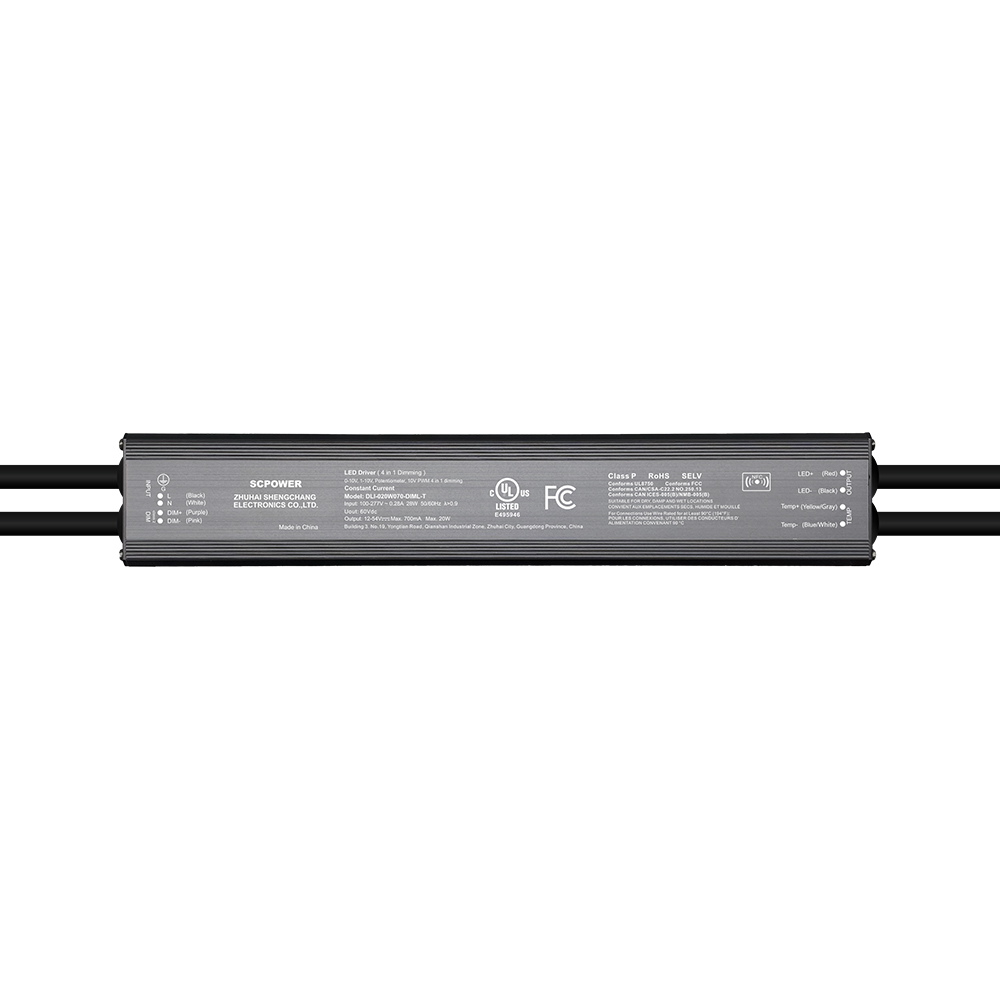

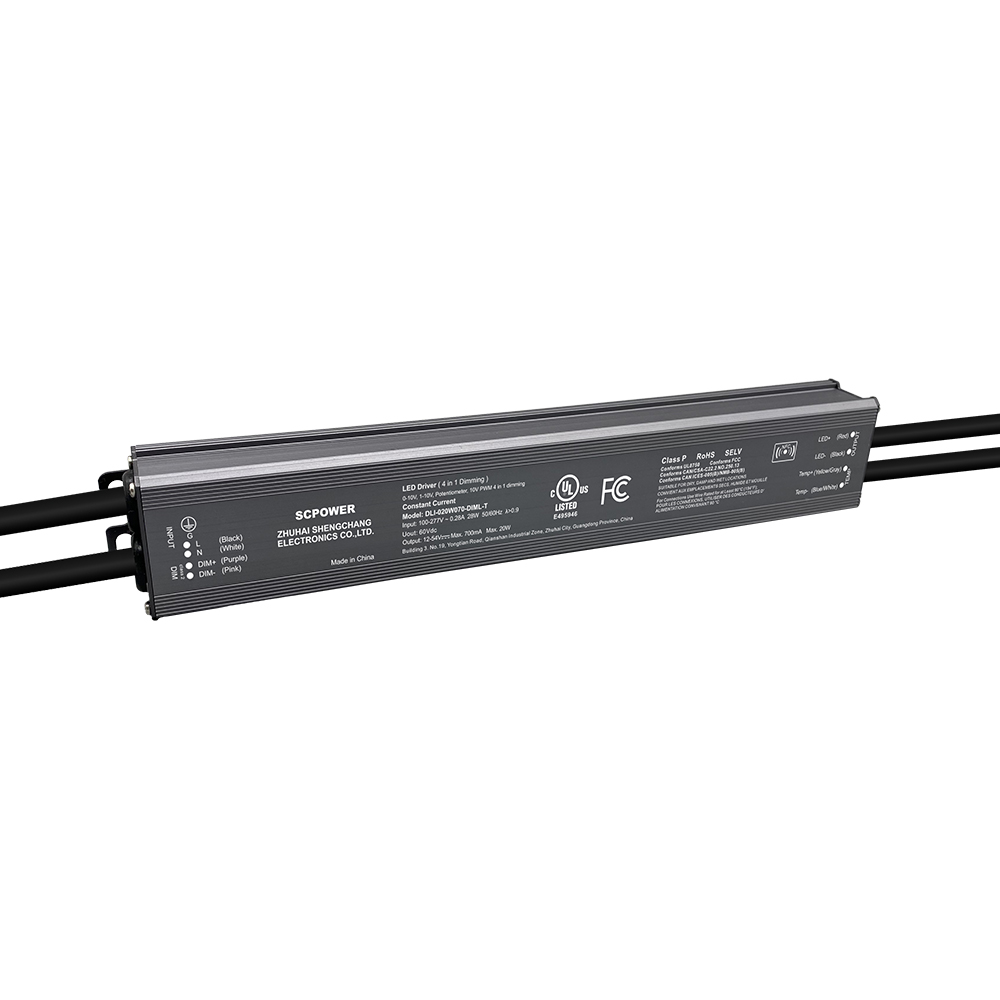

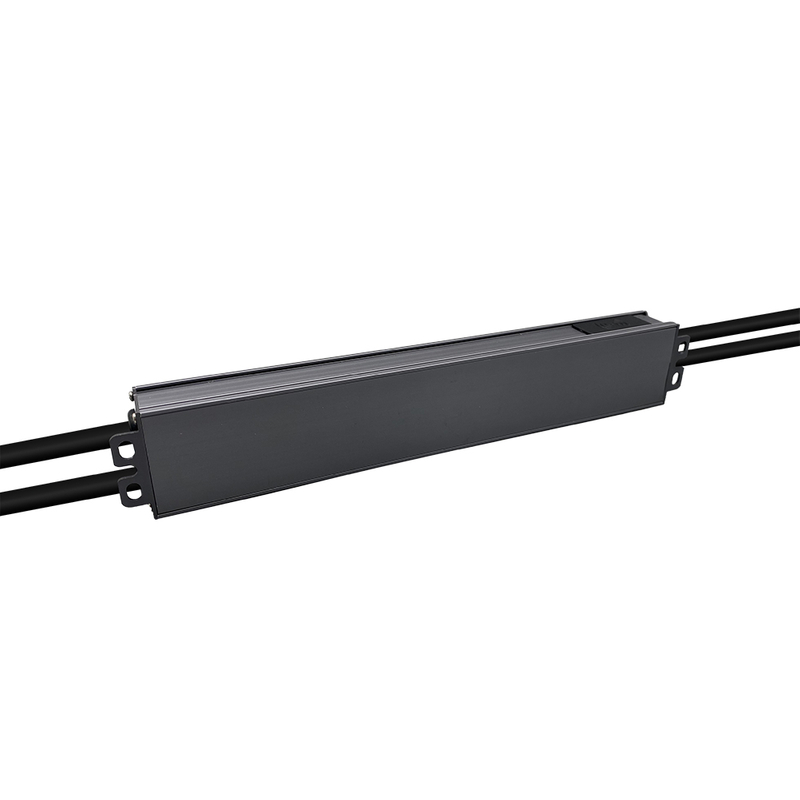

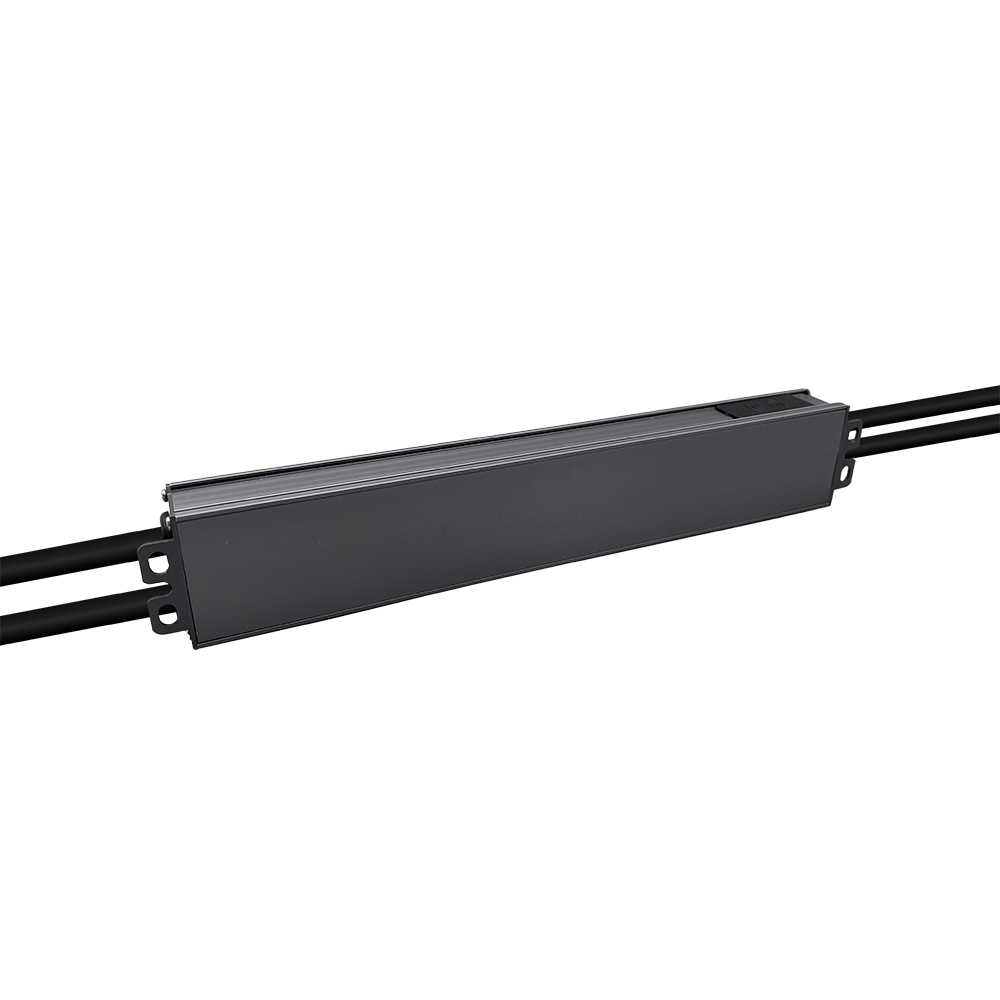

As a constant current driver, it delivers stable current output to connected fixtures, eliminating flicker and extending LED lifespan by up to 50,000 hours. Its linear aluminium housing serves dual purposes: acting as a natural heat sink to regulate operating temperature and providing robust structural support. With an IP66 rating, it achieves full dust tightness and resistance to strong water jets, making it suitable for both indoor and outdoor installations. Compatible with DMX512 protocols via RS485 differential signal transmission, it enables precise control over brightness and dynamic lighting effects.

Key Features

DMX512 Protocol Integration

This driver supports standard DMX512/A protocols, allowing seamless connection to professional lighting consoles. It offers 256 dimming levels, enabling transitions from 0% to 100% brightness and synchronization of multiple units for dynamic scenes—ideal for stage shows or architectural lighting displays. The digital signal ensures minimal interference even in large-scale installations with long wiring distances.

Reliable Constant Current Output

Optimized for 20-100W fixtures, the driver maintains consistent current (350mA-1500mA) despite input voltage fluctuations (100-240V AC). This stability prevents LED burnout from current spikes and ensures uniform brightness across all connected lights, reducing maintenance costs for commercial projects.

IP66 Weather Resistance & Heat Dissipation

The IP66 rating makes it suitable for exposed outdoor environments, including building facades and landscape lighting, as it withstands heavy rain and dust accumulation. The anodized aluminium housing accelerates heat dissipation, keeping operating temperatures between -20°C and 60°C to avoid performance degradation.

Scenario-Based Solutions

Architectural Facade Lighting

For high-rise buildings and historic structures, this driver powers LED floodlights and linear strips. DMX control enables programmable color transitions or logo projections, while the IP66 rating ensures durability against harsh weather. The constant current output guarantees uniform illumination across large facade sections.

Stage & Event Lighting

Concert venues and theaters benefit from the driver’s dynamic dimming capabilities. Lighting designers can program pulse effects, crossfades, and scene presets via DMX controllers, synchronizing lights with audio for immersive experiences. The aluminium housing’s heat resistance supports long hours of operation during extended events.

FAQ

Can this driver work with third-party DMX controllers?

Yes, it is compatible with all standard DMX512 controllers, including wireless transmitters and smart lighting hubs. It supports both 3-pin and 5-pin DMX connections for flexible integration.

Is outdoor installation requires additional protection?

No additional enclosures are needed. However, avoid direct sunlight exposure to prevent overheating—install in shaded areas to maintain warranty validity.

How to adjust the driver’s power output?

A side-mounted DIP switch allows easy selection of 20W/40W/60W/100W output levels. Ensure the selected power matches the total wattage of connected fixtures to avoid overloading.
