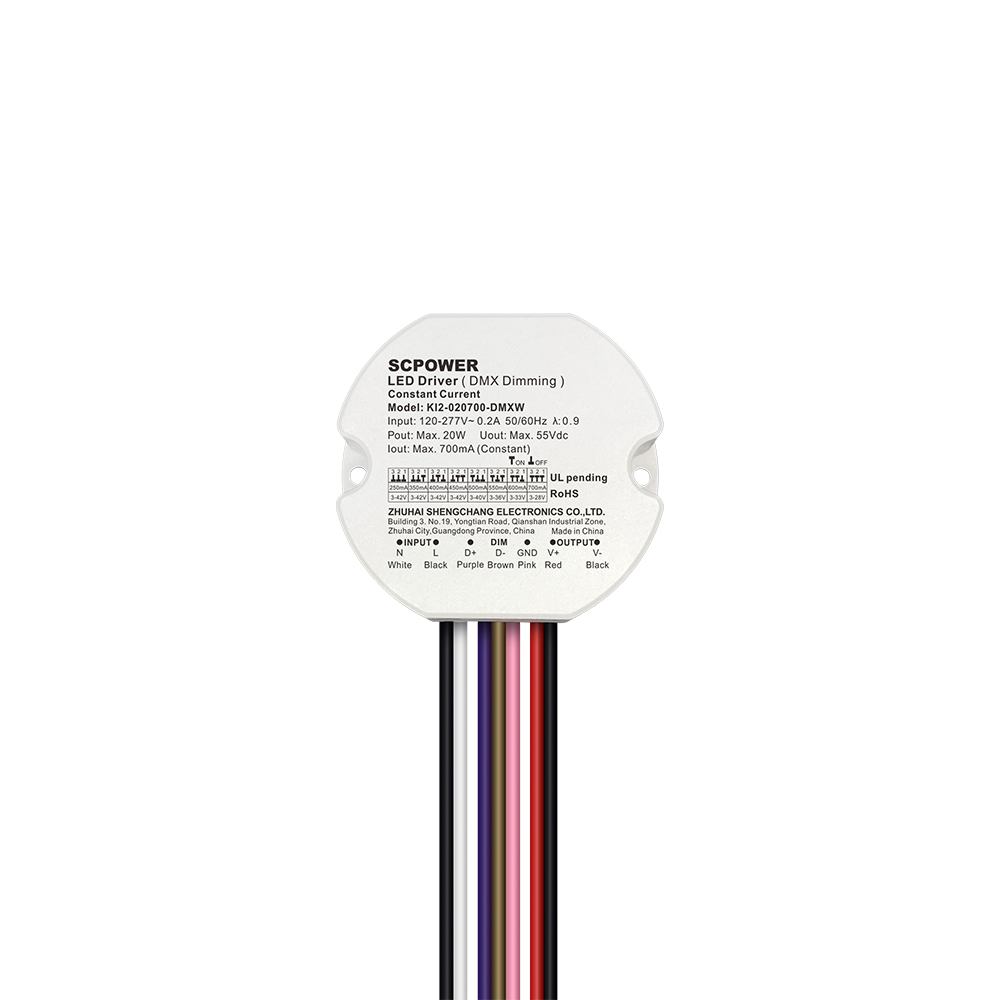

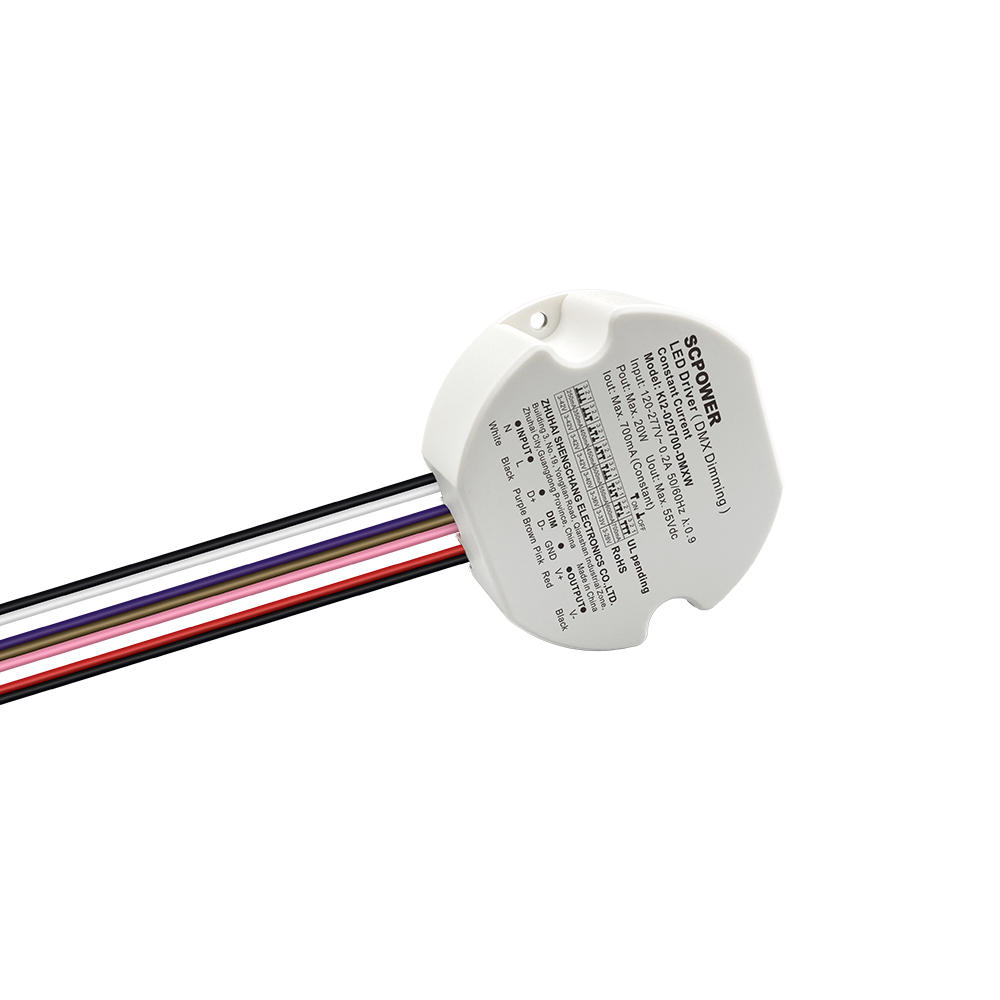

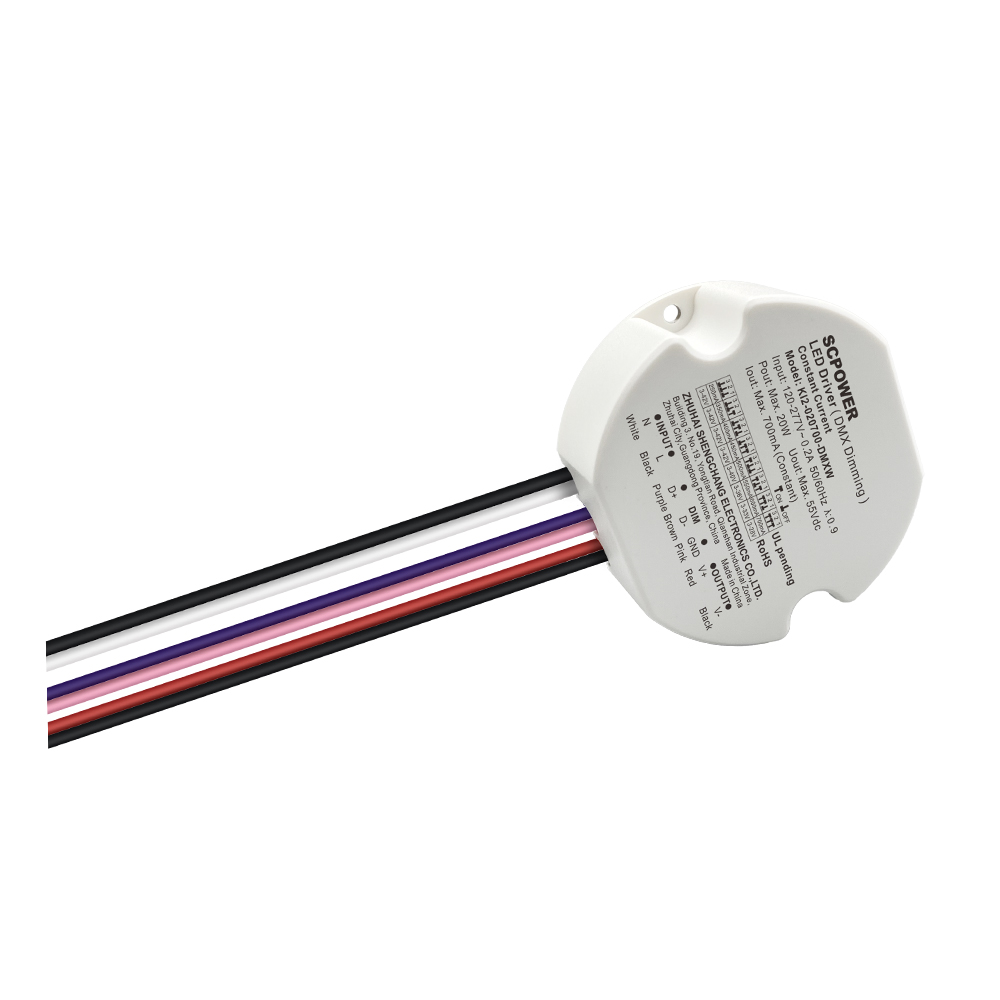

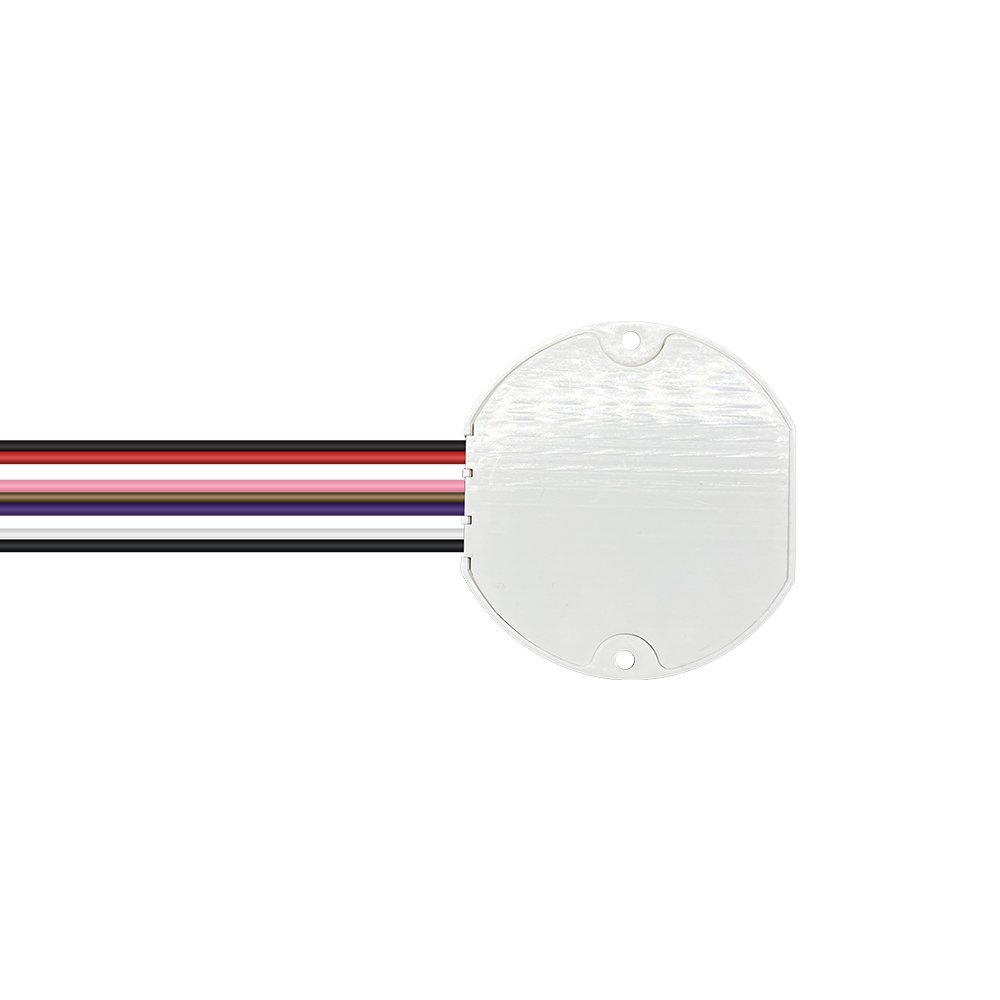

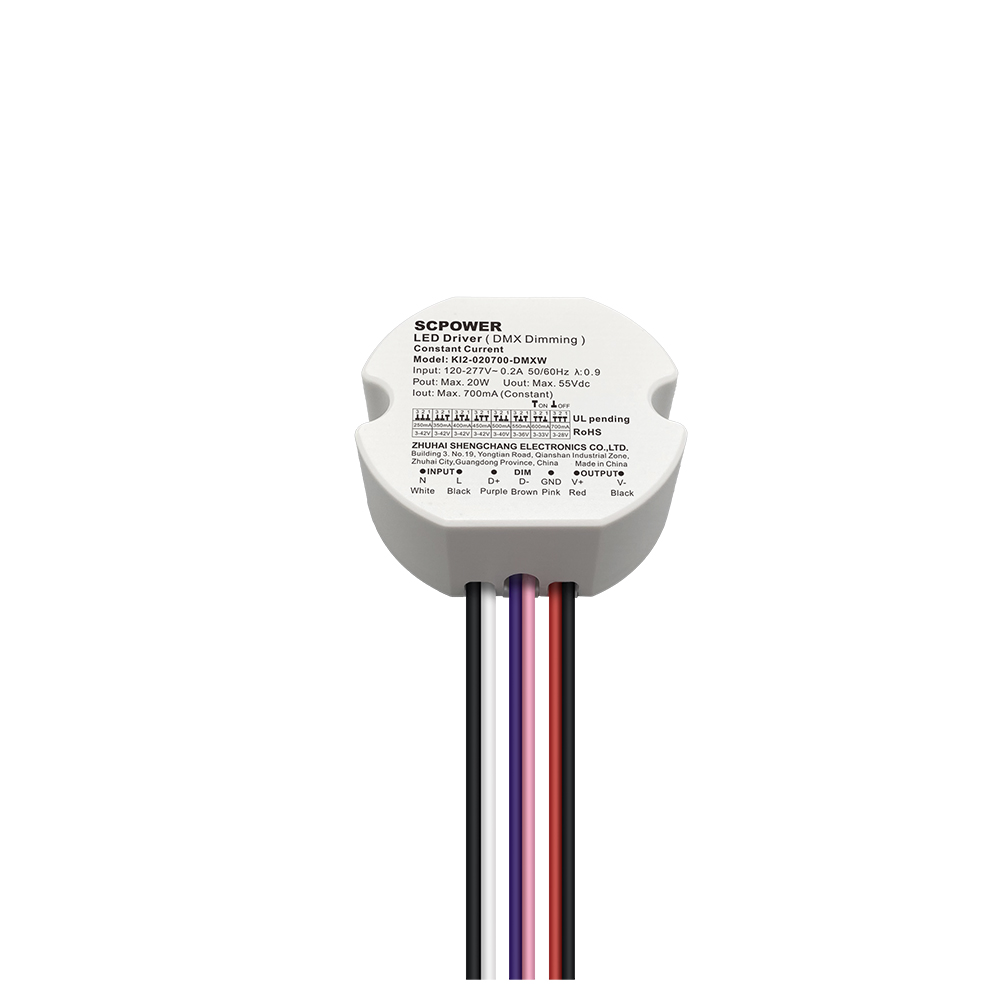

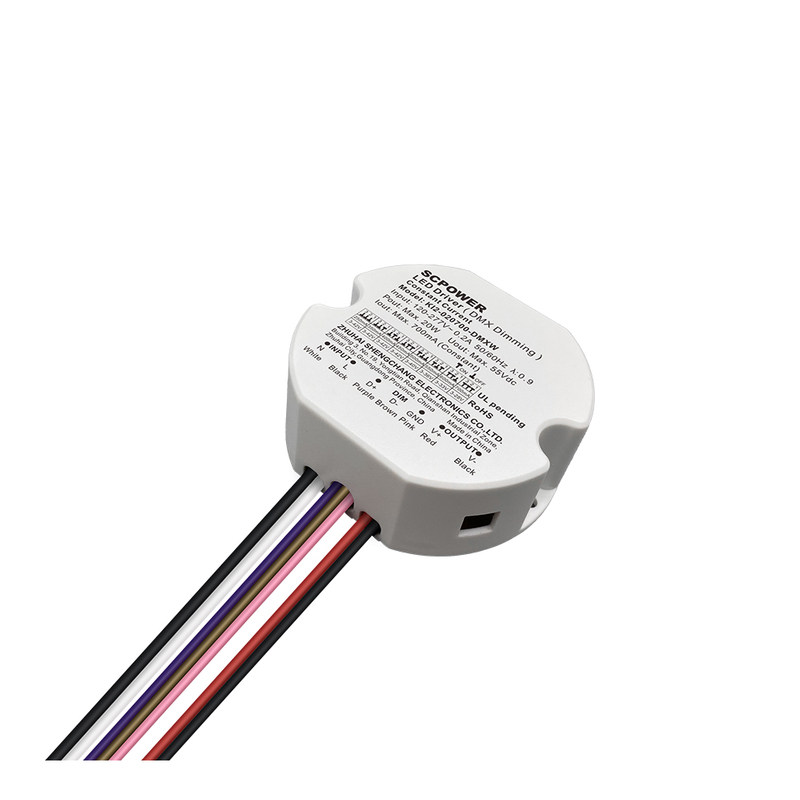

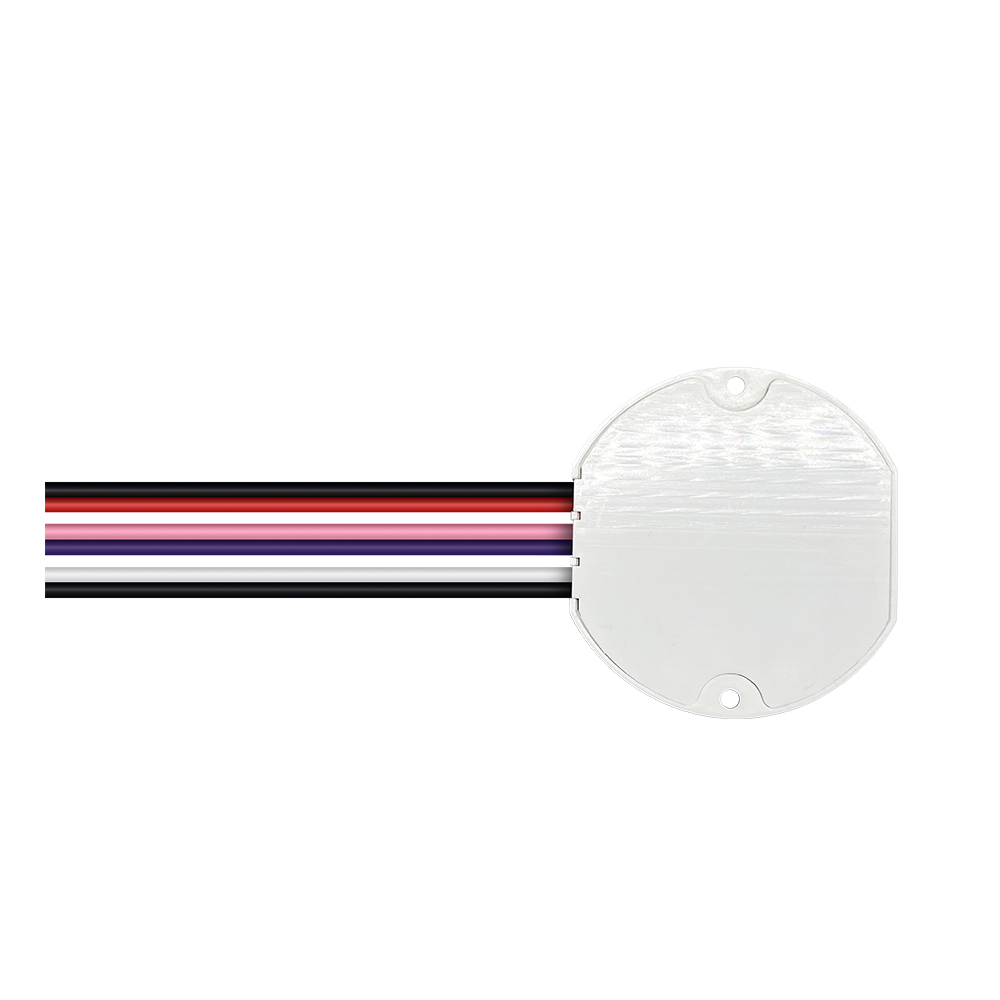

10W 15W 20W 30W 40W 50W CC DMX512 Dimmable LED Driver Flicker-free Class 2 Round Shape Lighting from China manufacturer

Products Detail

You are here: Home / Products / DMX512 Dimmable LED Driver / Constant Current / 10W 15W 20W 30W 40W 50W CC DMX512 Dimmable LED Driver Flicker-free Class 2 Round Shape Lighting

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Specification

Output Power	Model Number	Output Voltage	Output Current	Size	Weight

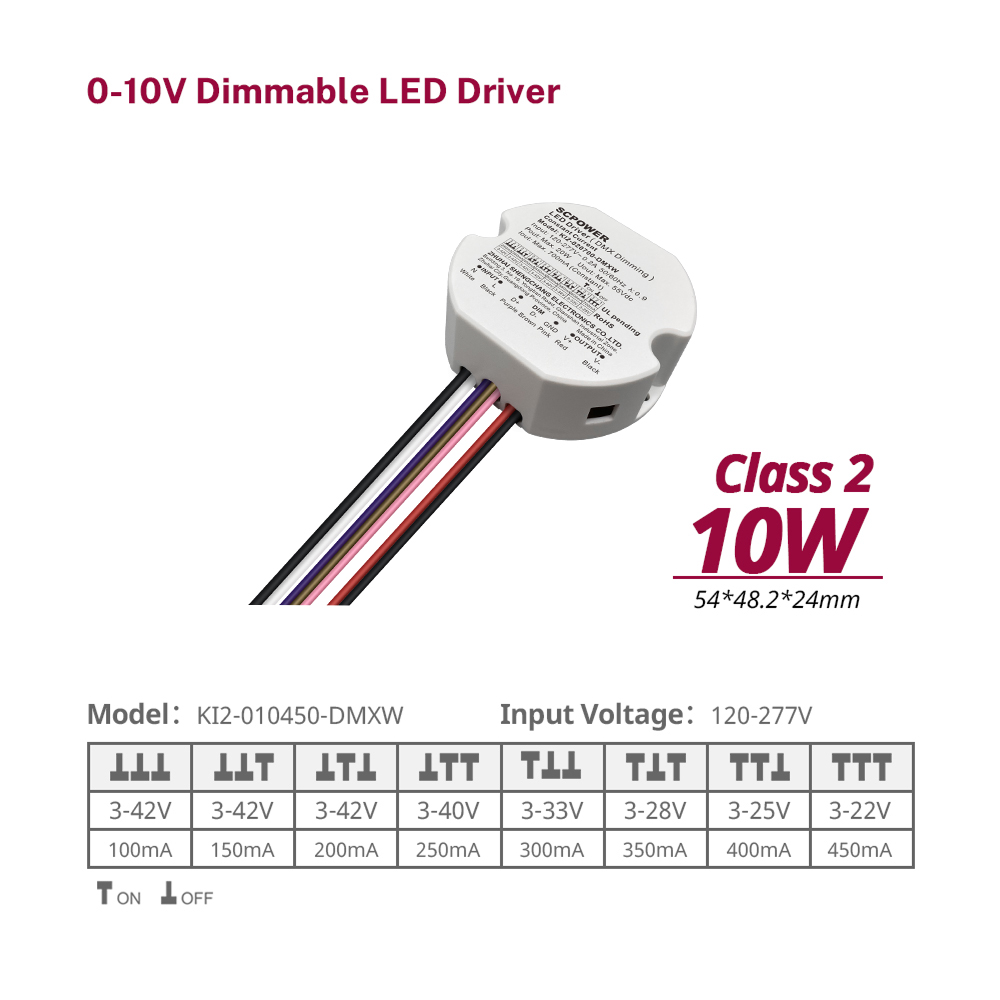

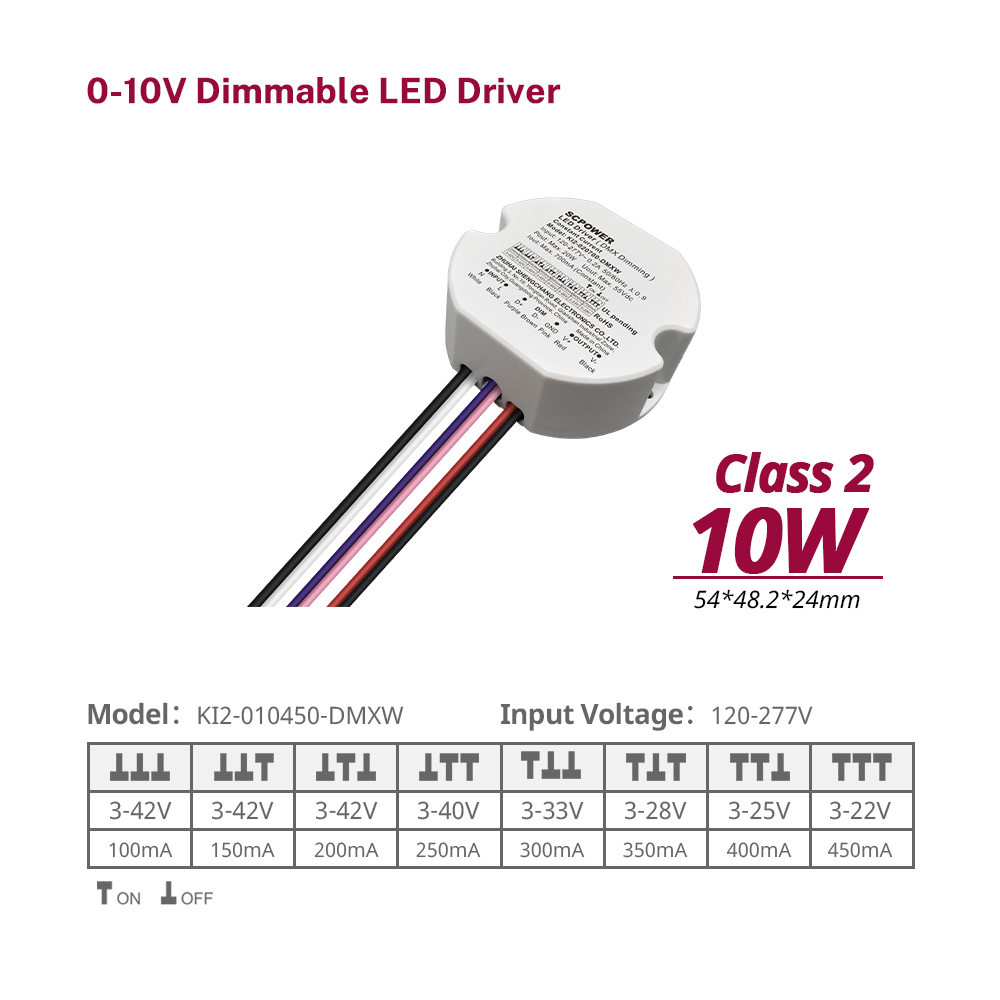

10W（Class 2）	KI2-010450-DMXW	3-42V	100mA	5448.224mm	/
		3-42V	150mA
		3-42V	200mA
		3-40V	250mA
		3-33V	300mA
		3-28V	350mA
		3-25V	400mA
		3-22V	450mA
15W（Class 2）	KI2-015500-DMXW	3-42V	150mA	5448.224mm	/
		3-42V	200mA
		3-42V	250mA
		3-42V	300mA
		3-42V	350mA
		3-37V	400mA
		3-33V	450mA
		3-30V	500mA

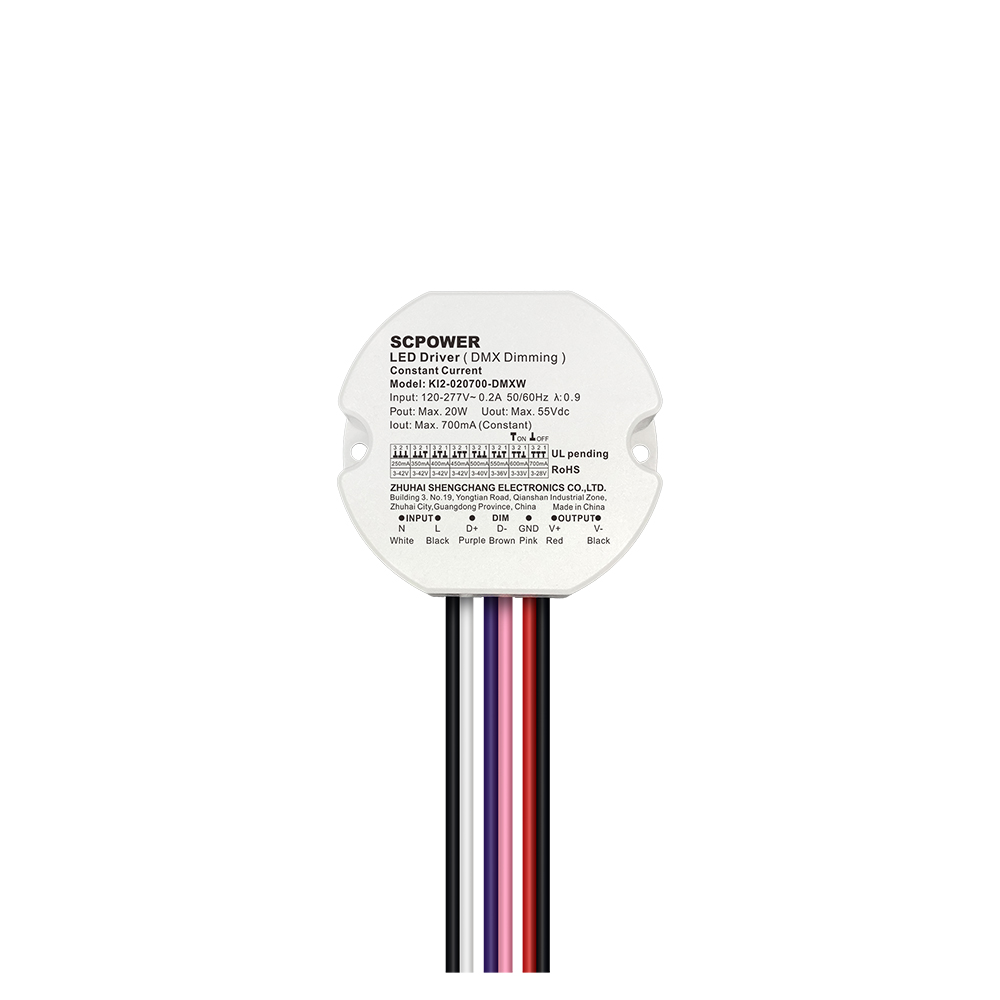

20W（Class 2）	KI2-020700-DMXW	3-42V	250mA	6458.424mm	/
		3-42V	350mA
		3-42V	400mA
		3-42V	450mA
		3-40V	500mA
		3-36V	550mA
		3-33V	600mA
		3-29V	700mA
30W（Class 2）	KI2-0301A05-DMXW	3-42V	300mA	6458.424mm	/
		3-42V	400mA
		3-42V	500mA
		3-42V	600mA
		3-42V	700mA
		3-37V	800mA
		3-33V	900mA
		3-28V	1050mA
40W（Class 2）	KI2-0401A4-DMXW	3-42V	400mA	74.466.424mm	0.15kg
		3-42V	500mA
		3-42V	600mA
		3-42V	700mA
		3-42V	900mA
		3-38V	1050mA
		3-33V	1200mA
		3-29V	1400mA
50W（Class 2）	KI2-0501A75-DMXW	3-42V	600mA	74.466.424mm	0.15kg
		3-42V	700mA
		3-42V	900mA
		3-42V	1050mA
		3-41V	1200mA
		3-38V	1350mA
		3-33V	1500mA
		3-29V	1750mA

Advantage

Output Type:	Constant Current
Input Range:	120-277VAC
PFC design:	With Power Factor Correct
Protections:	Short circuit / Over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	For dry and damp locations.
Design features:	1. Driver parameters can be adjusted by DIP switch. 2. Rated output 28V/1750mA.
Dimming function:	DMX dimming
Dimming range:	1%-100%
Application:	Suitable for the application of LED lighting
Warranty:	5 years warranty
Others:	flicker-free dimming

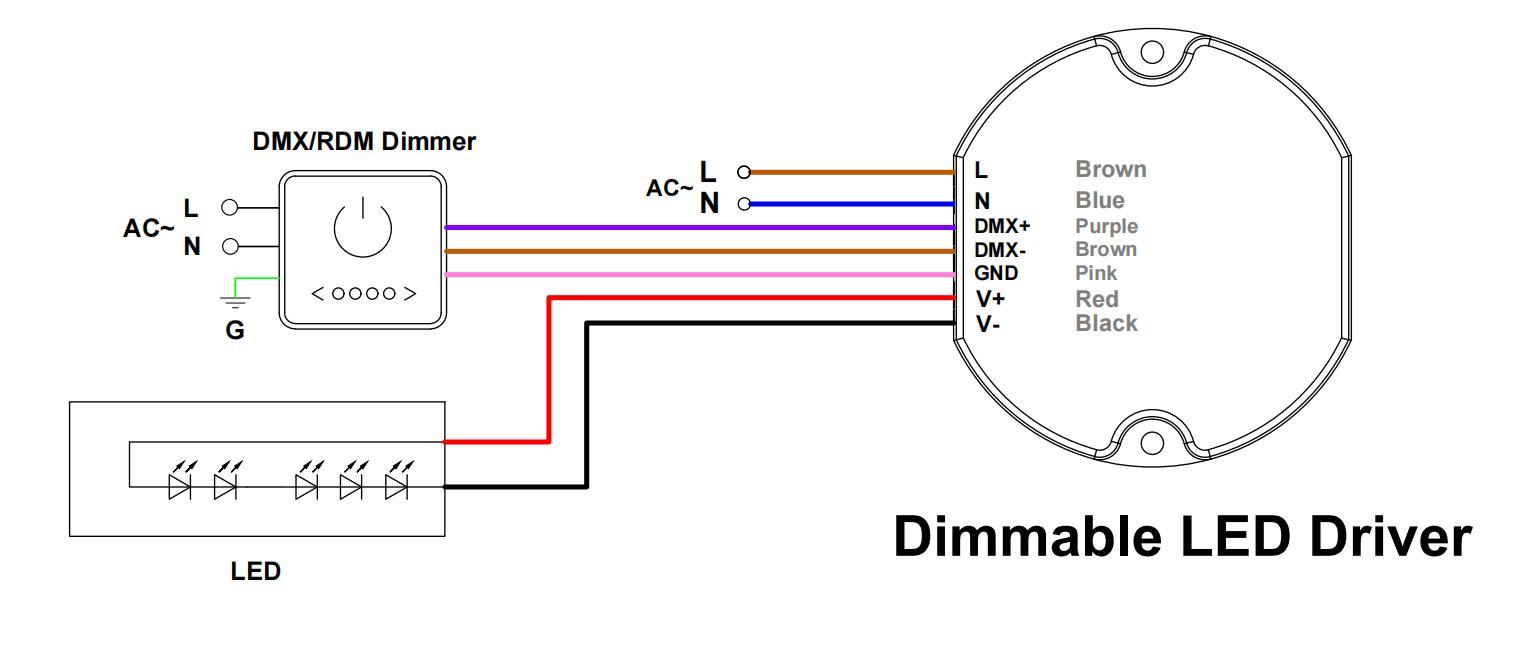

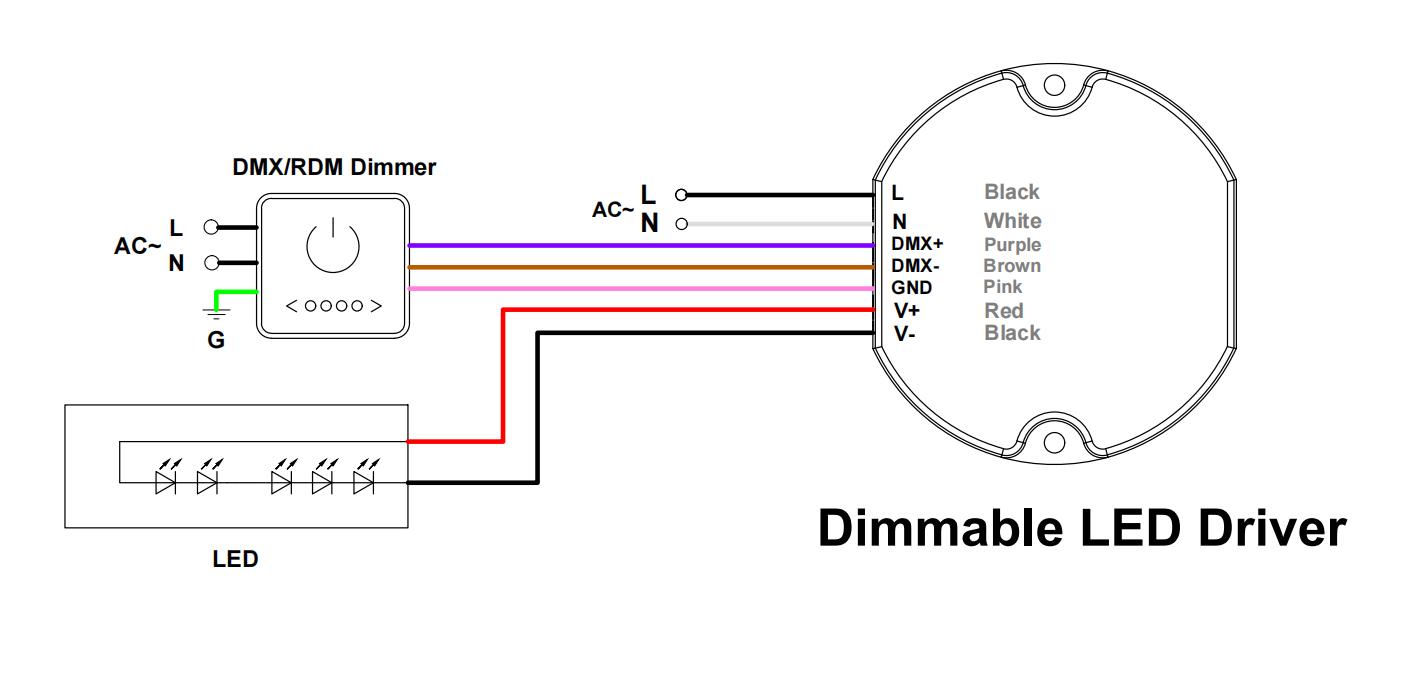

DMX Dimming Diagram

KV2-DMXW Dimmable led driver1 KV2-DMXW Dimmable led driver2

Precision control for professional lighting: Our 10W-50W constant current round driver offers flicker-free DMX512 dimming and Class 2 safety, expertly crafted in Vietnam for reliable, high-performance applications.
