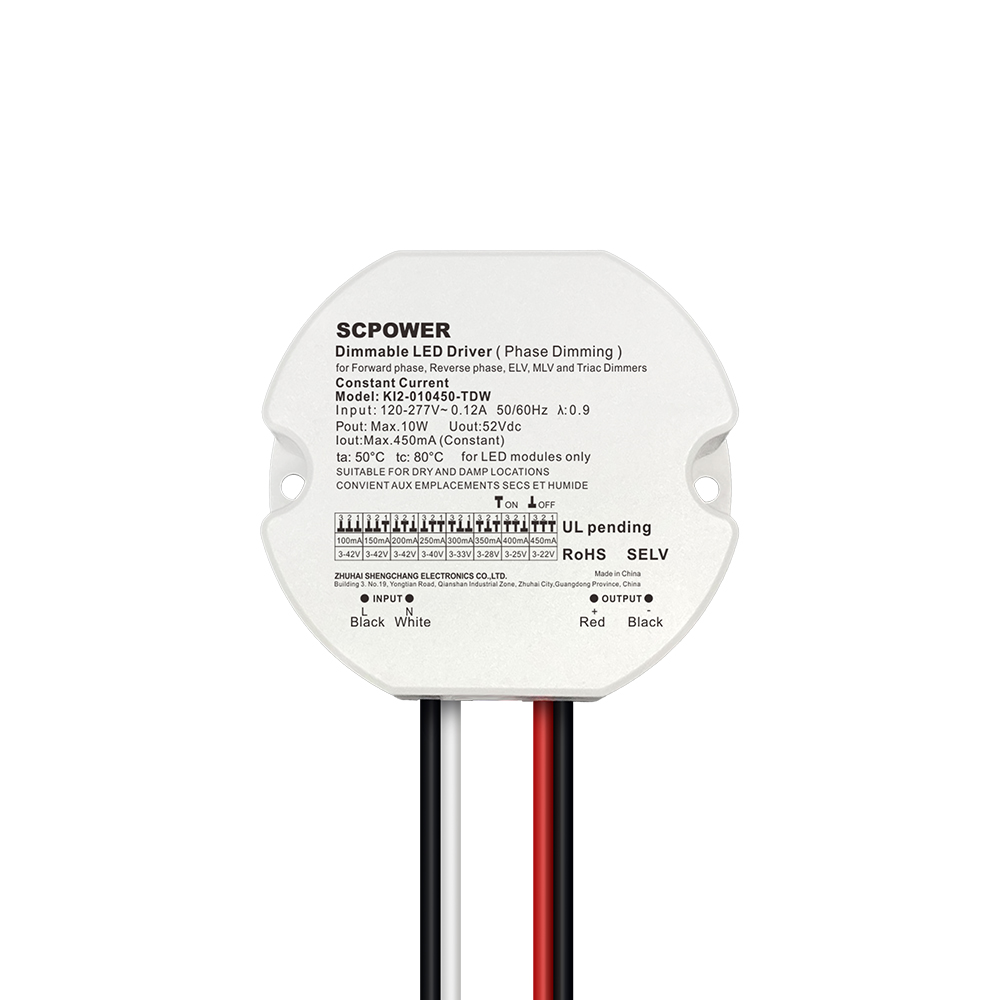

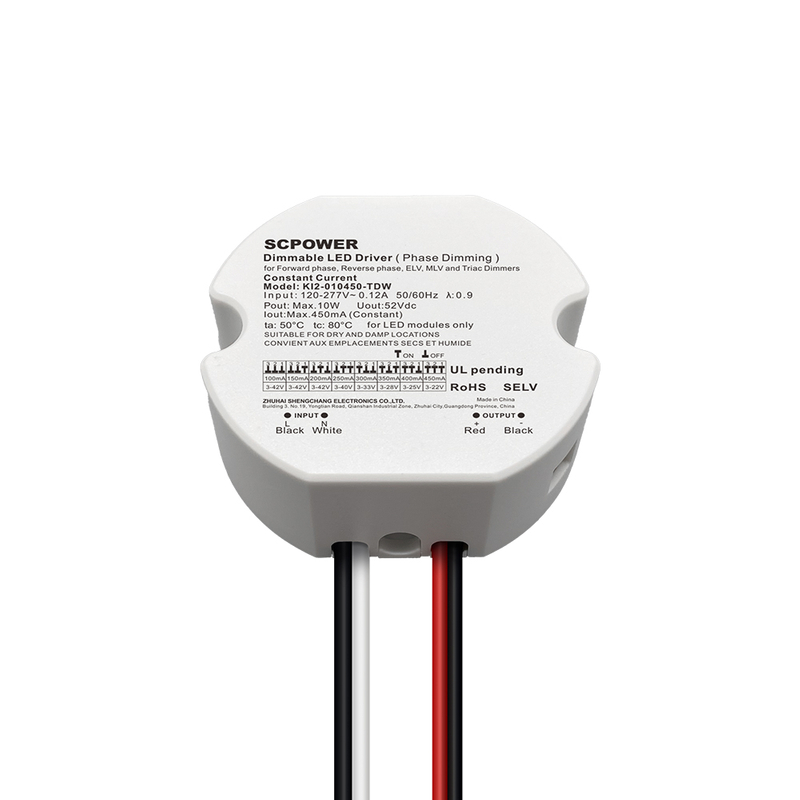

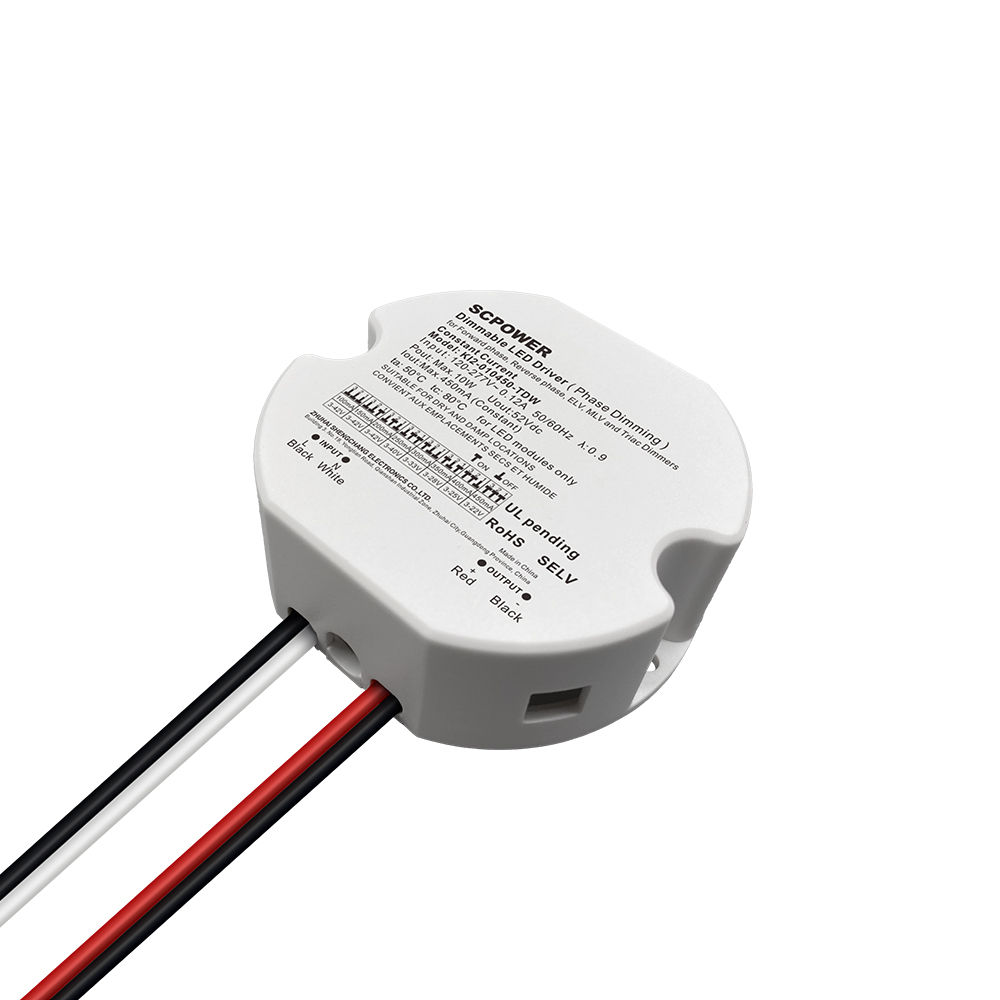

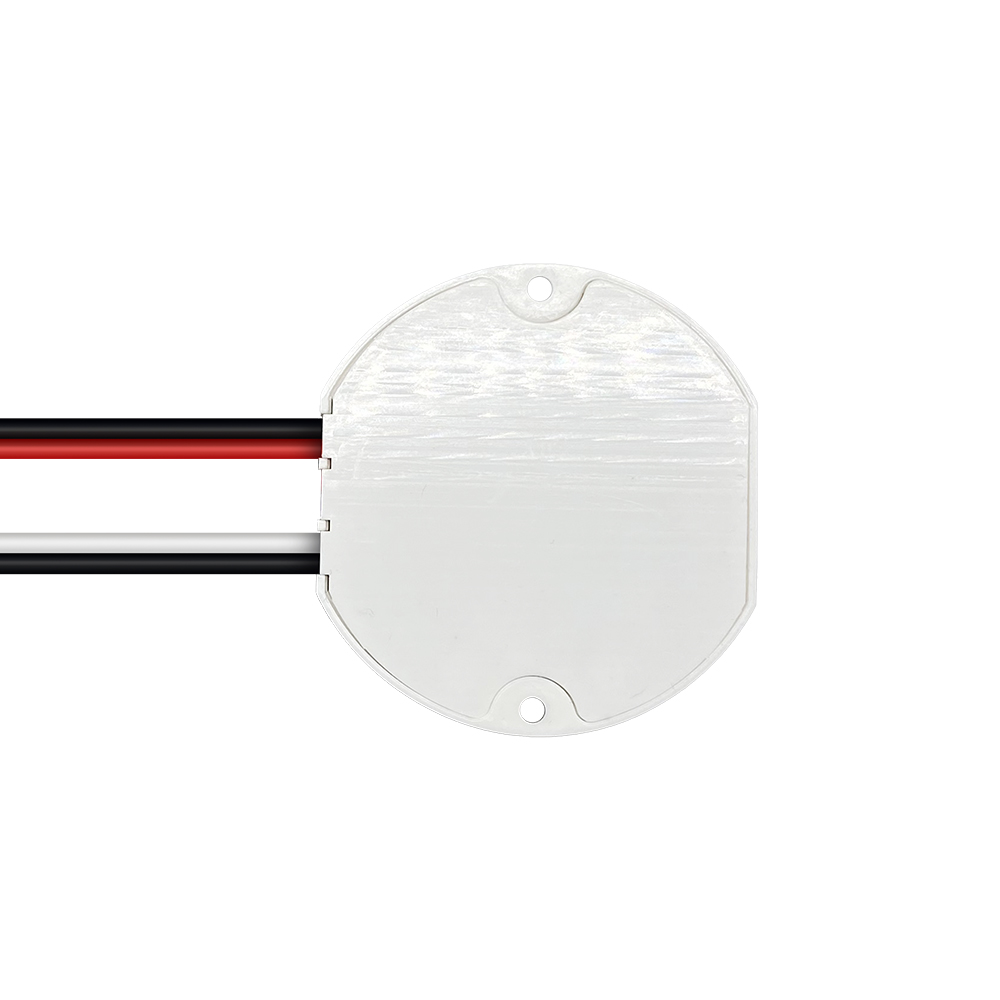

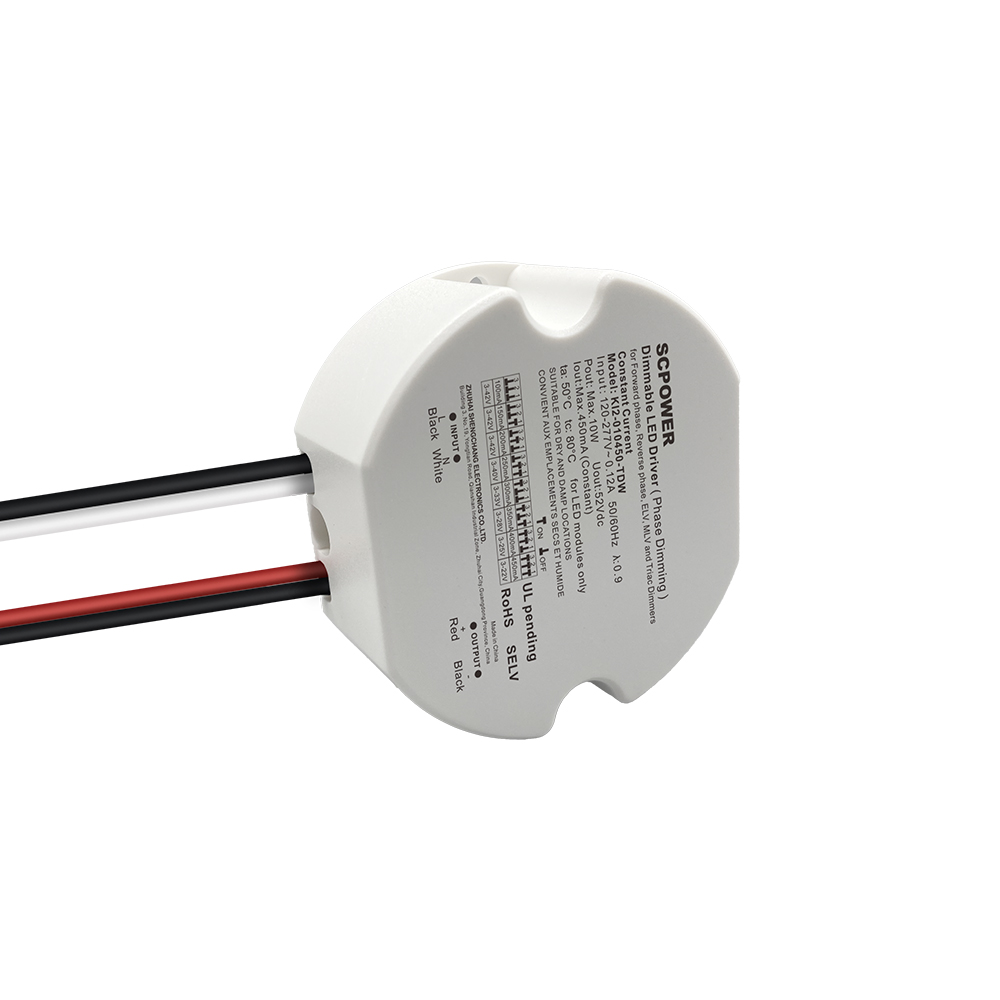

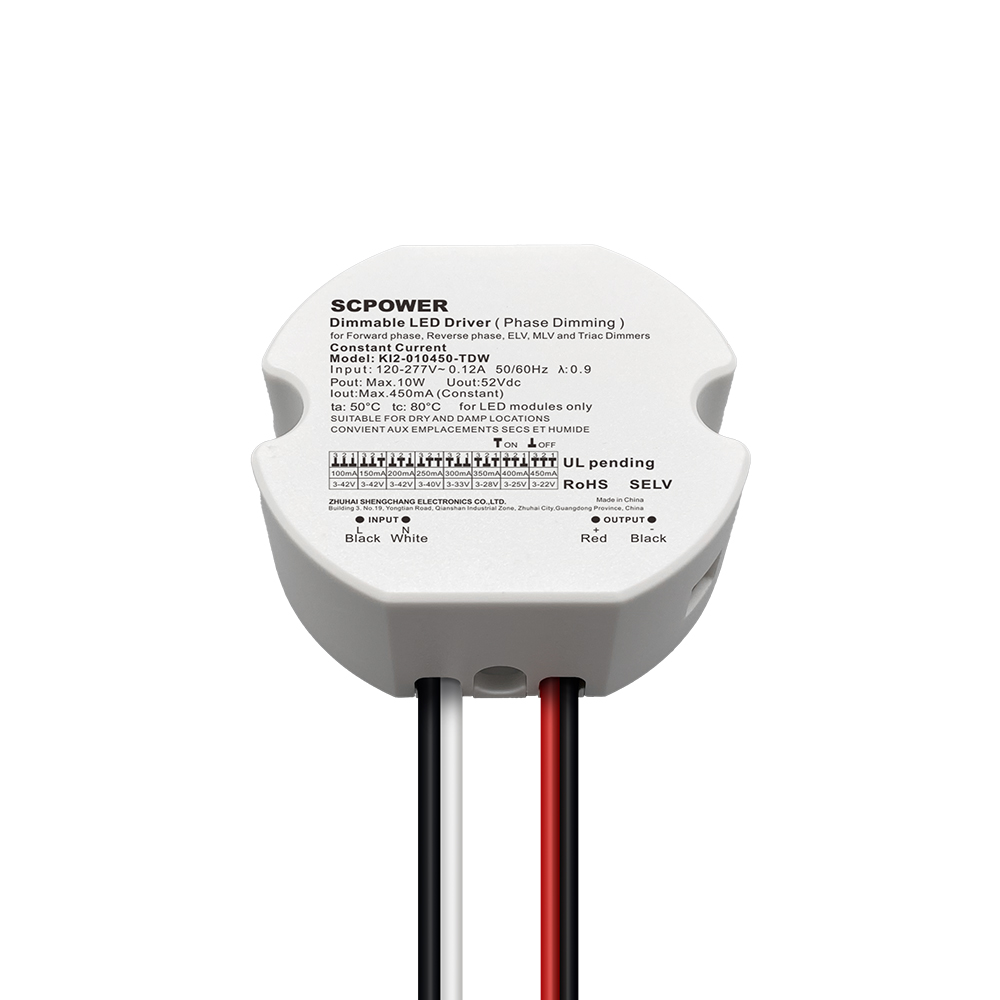

10W 15W 20W 30W 40W 50W Triac Dimmable LED Driver Constant Current Round LED Strip

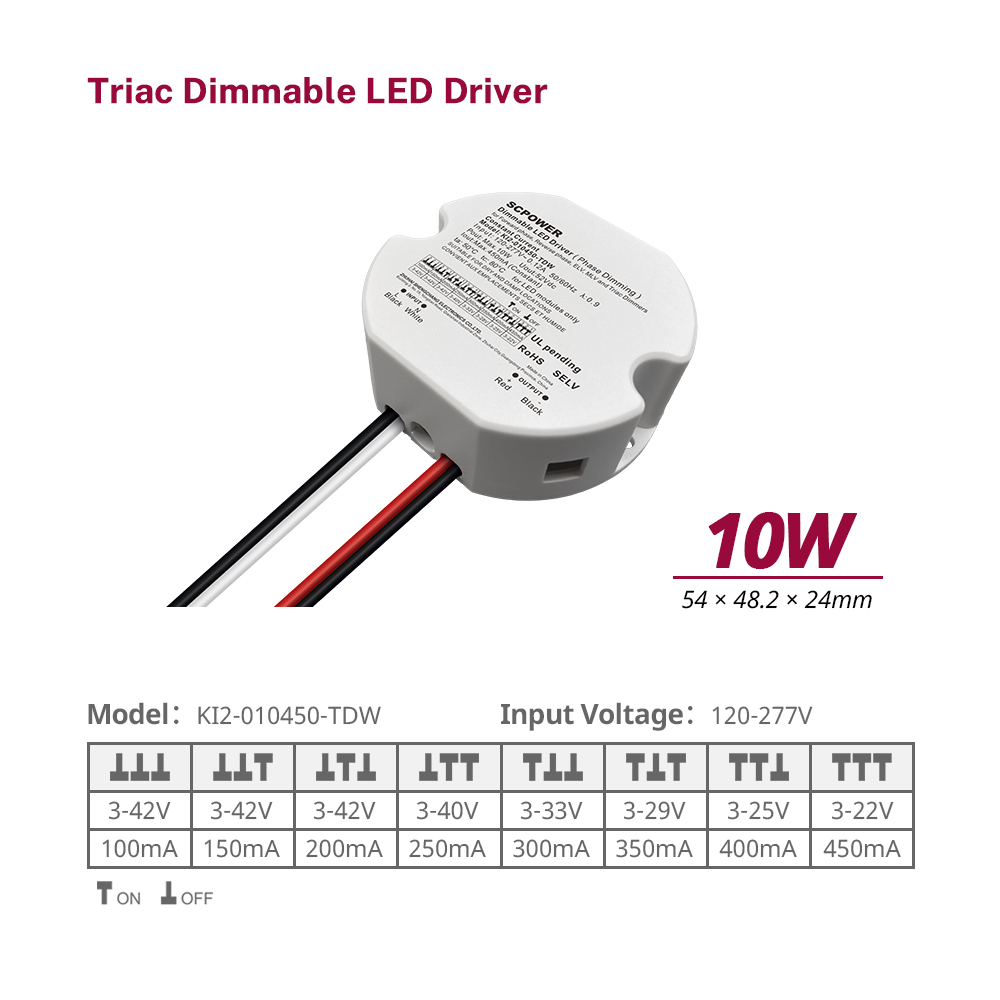

10W（Class 2）

KI2-010450-TDW

3-42V

100mA

54*48.2*24mm

0.083kg

3-42V

150mA

3-42V

200mA

3-40V

250mA

3-33V

300mA

3-29V

350mA

3-25V

400mA

3-22V

450mA

15W（Class 2）

KI2-015500-TDW

3-42V

150mA

54*48.2*24mm

0.083kg

3-42V

200mA

3-42V

250mA

3-42V

300mA

3-42V

350mA

3-37V

400mA

3-33V

450mA

3-30V

500mA

20W（Class 2）

KI2-020700-TDW

3-42V

250mA

64.4*58.4*24mm

0.11kg

3-42V

350mA

3-42V

400mA

3-42V

450mA

3-40V

500mA

3-36V

550mA

3-33V

600mA

3-29V

700mA

30W（Class 2）

KI2-0301A05-TDW

3-42V

300mA

64.4*58.4*24mm

/

3-42V

400mA

3-42V

500mA

3-42V

600mA

3-42V

700mA

3-37V

800mA

3-33V

900mA

3-28V

1050mA

40W（Class 2）

KI2-0401A4-TDW

3-42V

400mA

74.4*66.4*24mm

/

3-42V

500mA

3-42V

600mA

3-42V

700mA

3-42V

900mA

3-38V

1050mA

3-33V

1200mA

3-29V

1400mA

50W（Class 2）

KI2-0501A75-TDW

3-42V

600mA

74.4*66.4*24mm

/

3-42V

700mA

3-42V

900mA

3-42V

1050mA

3-41V

1200mA

3-37V

1350mA

3-33V

1500mA

3-29V

1750mA

Output:

Constant Current

Range:

120-277VAC

PFC design:

Built-in active PFC function

Efficiency:

Up to 77%

Protections:

Short circuit / Over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

For dry and damp locations.

Dimming function:

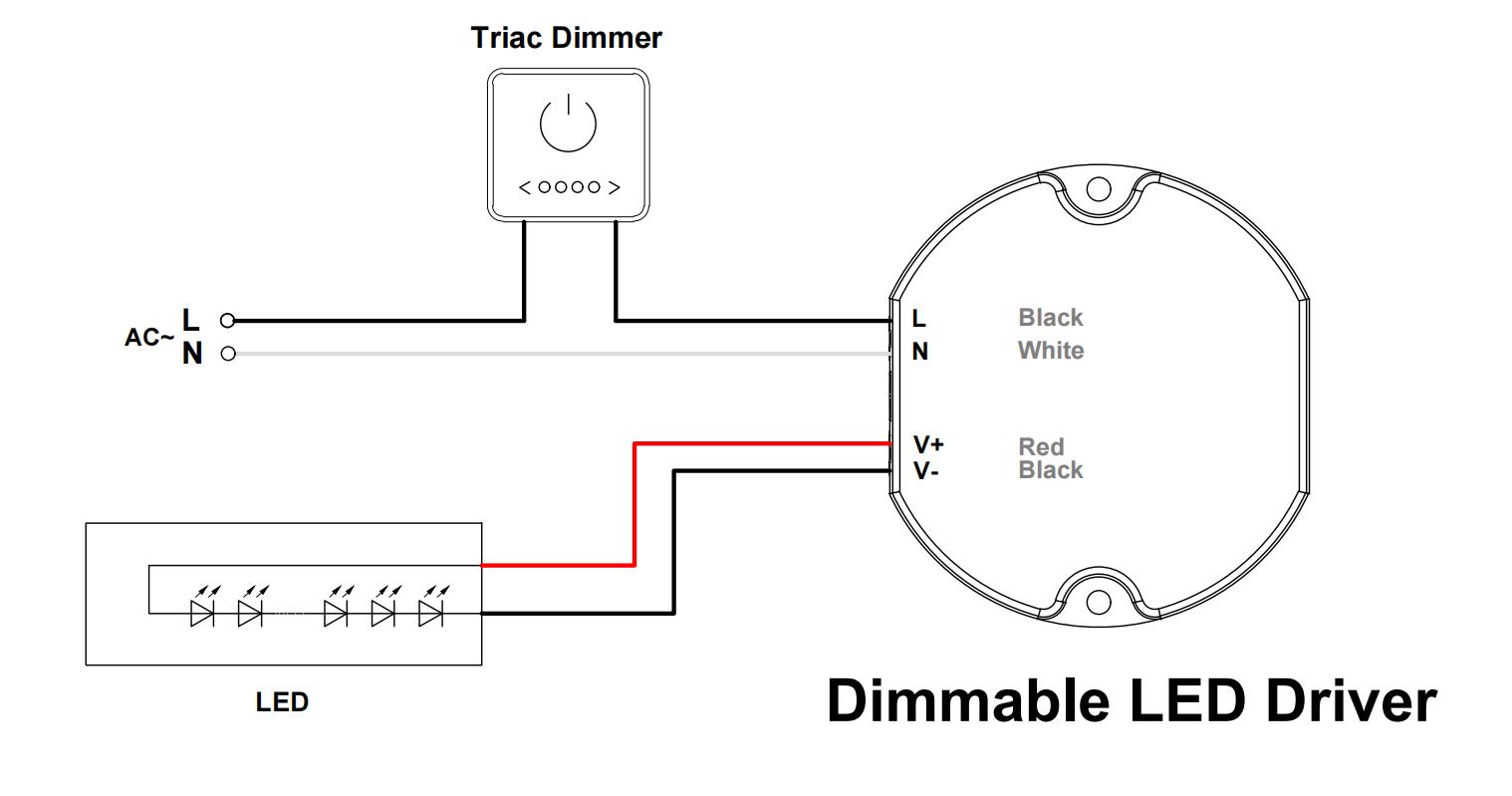

Phase dimming: work with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers.

Dimming range:

1-100%

Application:

Suitable for the application of LED lighting

Warranty:

5 years warranty
