1. Driver parameters can be adjusted by DIP switch.
2. Rated output 28V/1750mA.
Dimming function:
DALI dimming
Dimming range:
1%-100%
Application:
Suitable for the application of LED lighting
Warranty:
5 years warranty
Others:
flicker-free dimming
DALI Dimmer Diagram
Connectioon Diagram for DALI Dimmer (US):
Connection Diagram for DALI System (US):

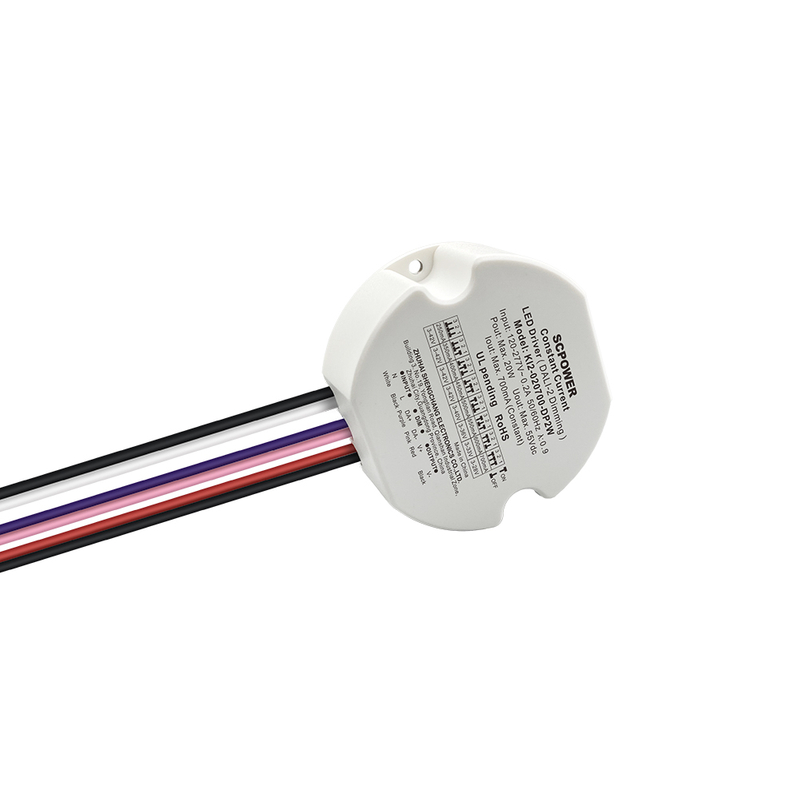

The DP2 series (10W-50W CC) offers wide 100mA-1750mA current range and certified DALI-2 push dimming, engineered in our Vietnam and China factory for reliable, flexible, and safe downlight installations.
Specification
Output Power
Model Number
Output Voltage
Output Current
Size
Weight

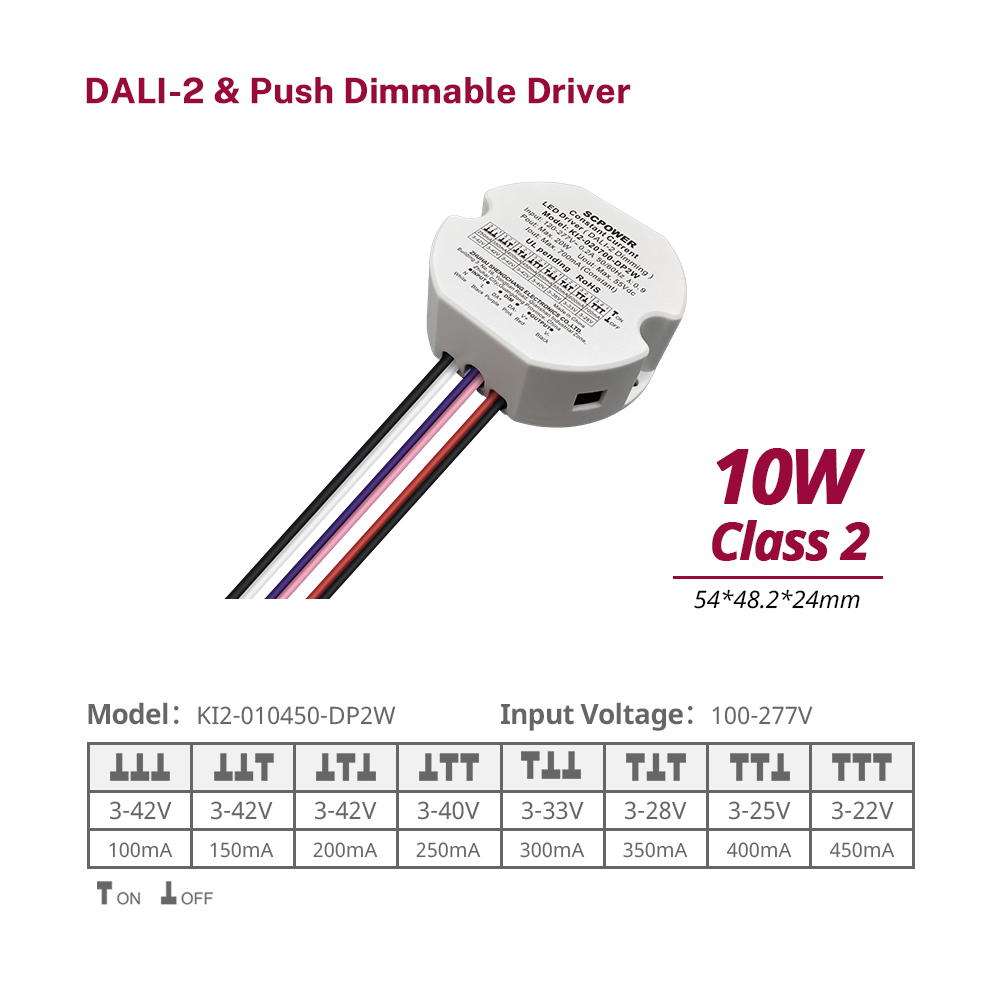

10W（Class 2）
KI2-010450-DP2W
3-42V
100mA
54*48.2*24mm
0.08kg
3-42V
150mA
3-42V
200mA
3-40V
250mA
3-33V
300mA
3-28V
350mA
3-25V
400mA
3-22V
450mA
15W（Class 2）
KI2-015500-DP2W
3-42V
150mA
54*48.2*24mm
/
3-42V
200mA
3-42V
250mA
3-42V
300mA
3-42V
350mA
3-37V
400mA
3-33V
450mA
3-30V
500mA

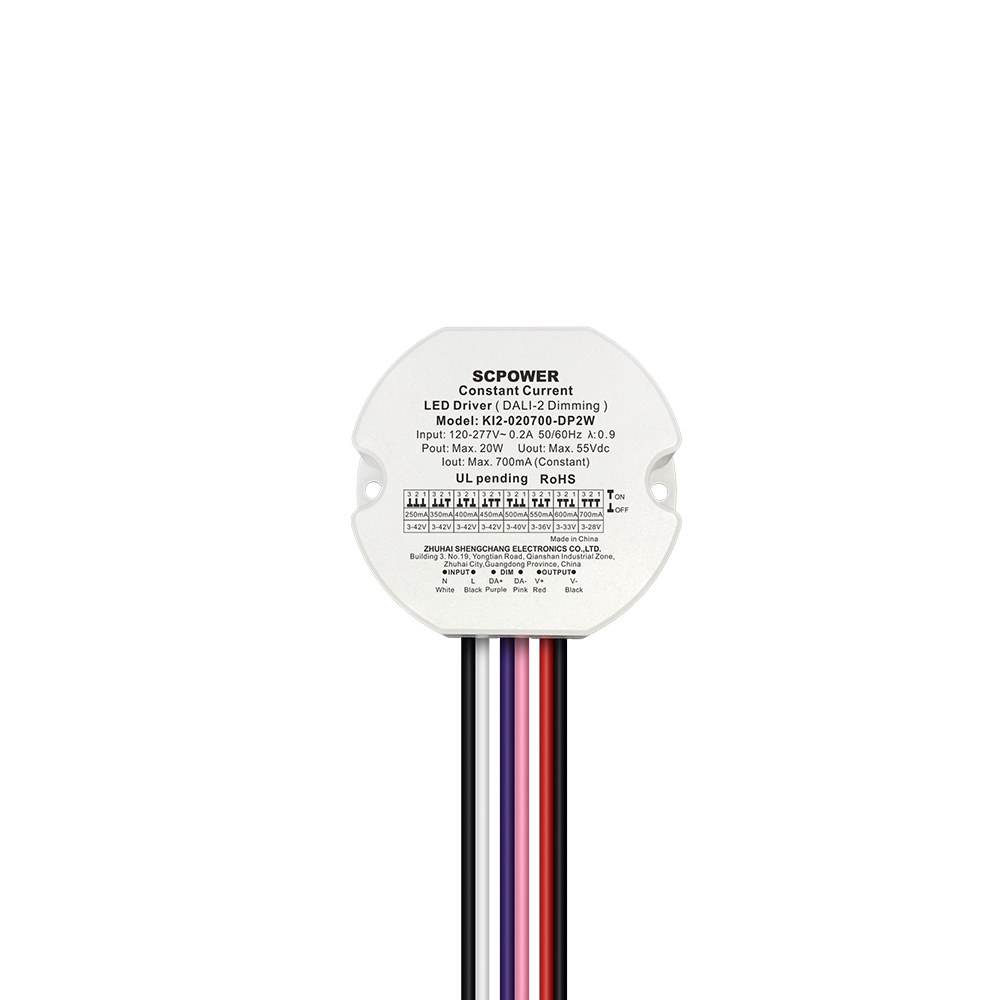

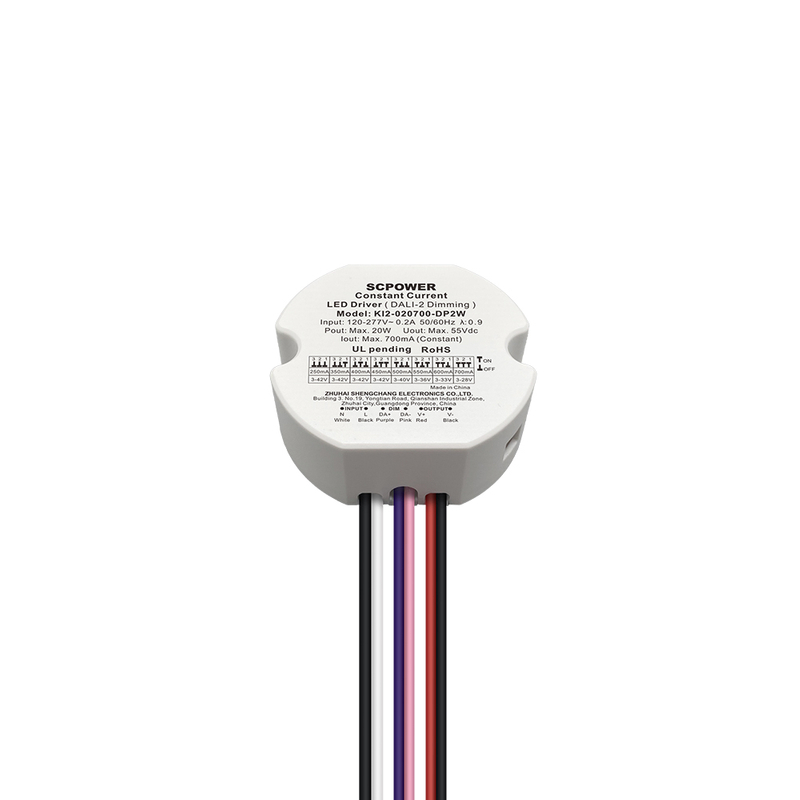

20W（Class 2）
KI2-020700-DP2W
3-42V
250mA
64.4*58.4*24mm
0.12kg
3-42V
350mA
3-42V
400mA
3-42V
450mA
3-40V
500mA
3-36V
550mA
3-33V
600mA
3-29V
700mA
30W（Class 2）
KI2-0301A05-DP2W
3-42V
300mA
64.4*58.4*24mm
/
3-42V
400mA
3-42V
500mA
3-42V
600mA
3-42V
700mA
3-37V
800mA
3-33V
900mA
3-28V
1050mA
40W（Class 2）
KI2-0401A4-DP2W
3-42V
400mA
74.4*66.4*24mm
0.15kg
3-42V
500mA
3-42V
600mA
3-42V
700mA
3-42V
900mA
3-38V
1050mA
3-33V
1200mA
3-29V
1400mA
50W（Class 2）
KI2-0501A75-DP2W
3-42V
600mA
74.4*66.4*24mm
0.15kg
3-42V
700mA
3-42V
900mA
3-42V
1050mA
3-41V
1200mA
3-38V
1350mA
3-33V
1500mA
3-29V
1750mA
Advantage
Output Type:
Constant Current
Input Range:
120-277VAC
PFC design:
With Power Factor Correct
Protections:
Short circuit/ Over temperature
Heat dissipation:
Cooling by free air convection
Waterproof performance:
For dry and damp locations.
Design features:
1. Driver parameters can be adjusted by DIP switch.
2. Rated output 28V/1750mA.
Dimming function:
DALI dimming
Dimming range:
1%-100%
Application:
Suitable for the application of LED lighting
Warranty:
5 years warranty
Others:
flicker-free dimming
DALI Dimmer Diagram
Connectioon Diagram for DALI Dimmer (US):
Connection Diagram for DALI System (US):
The DP2 series (10W-50W CC) offers wide 100mA-1750mA current range and certified DALI-2 push dimming, engineered in our Vietnam and China factory for reliable, flexible, and safe downlight installations.
