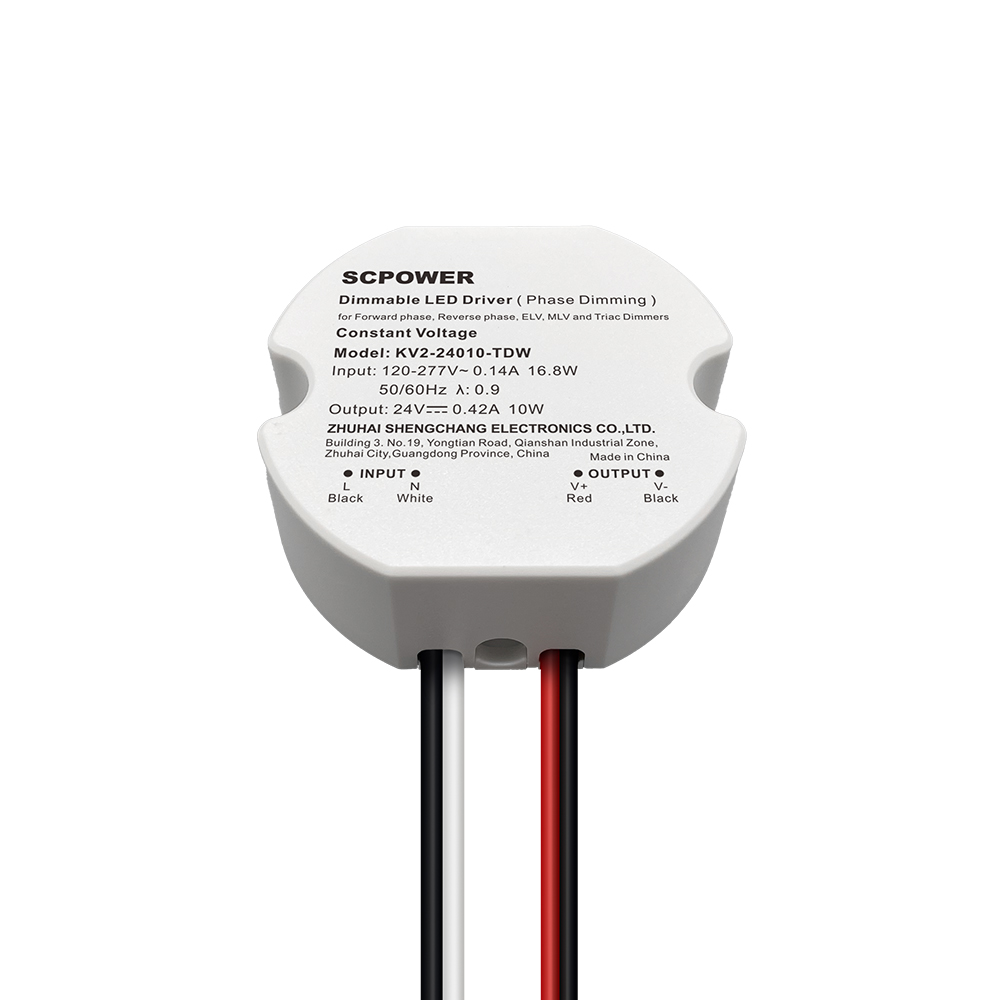

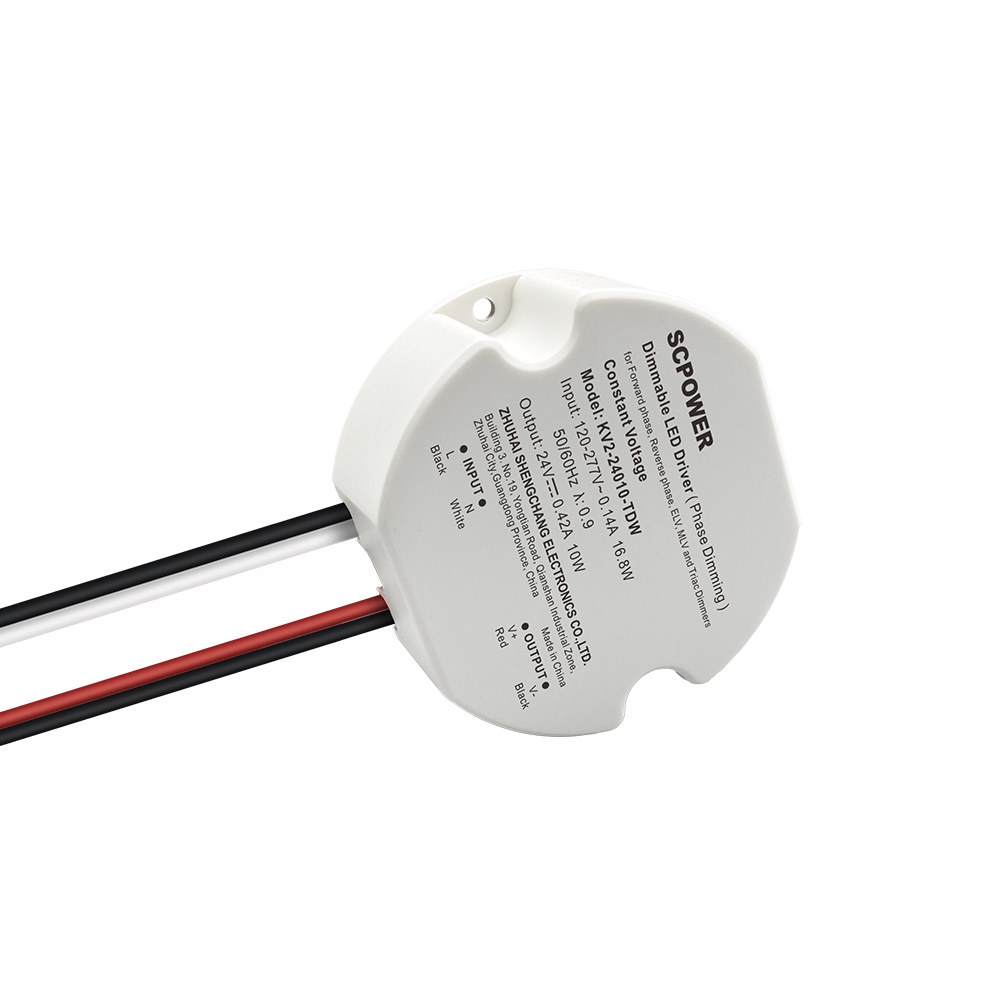

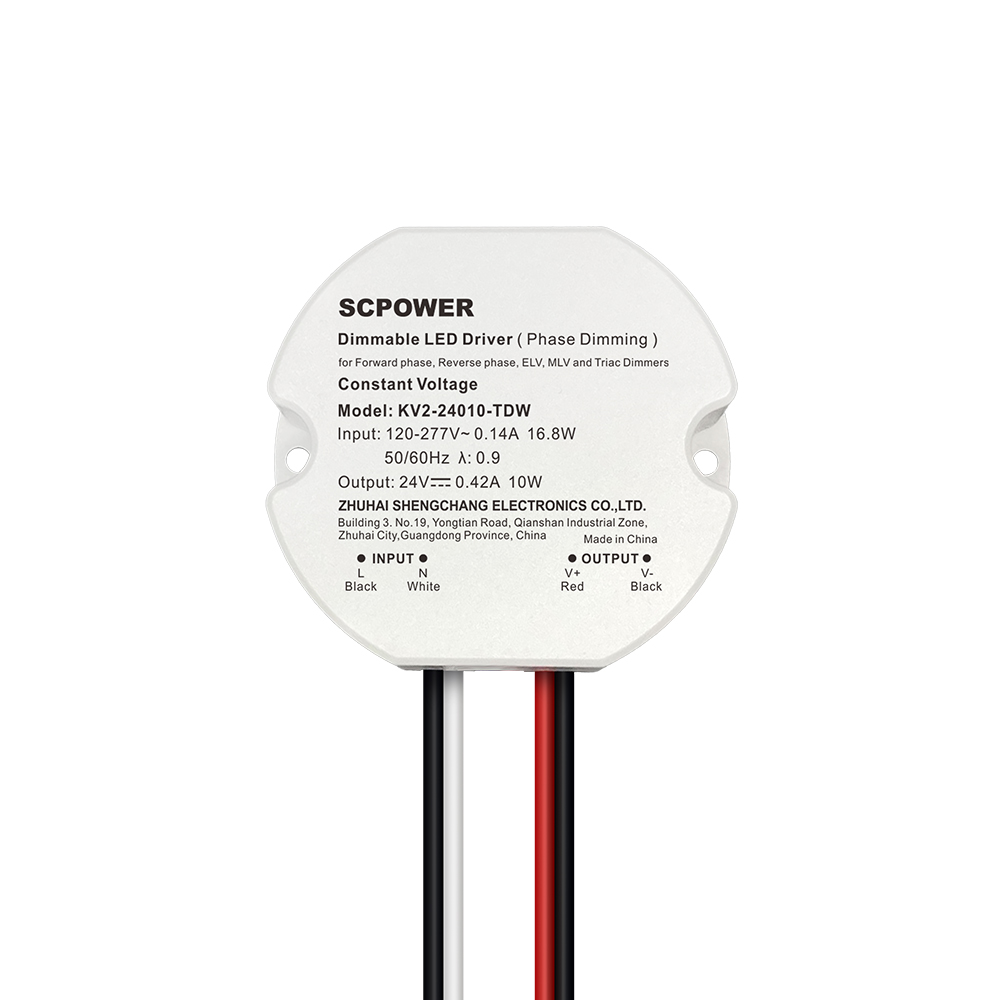

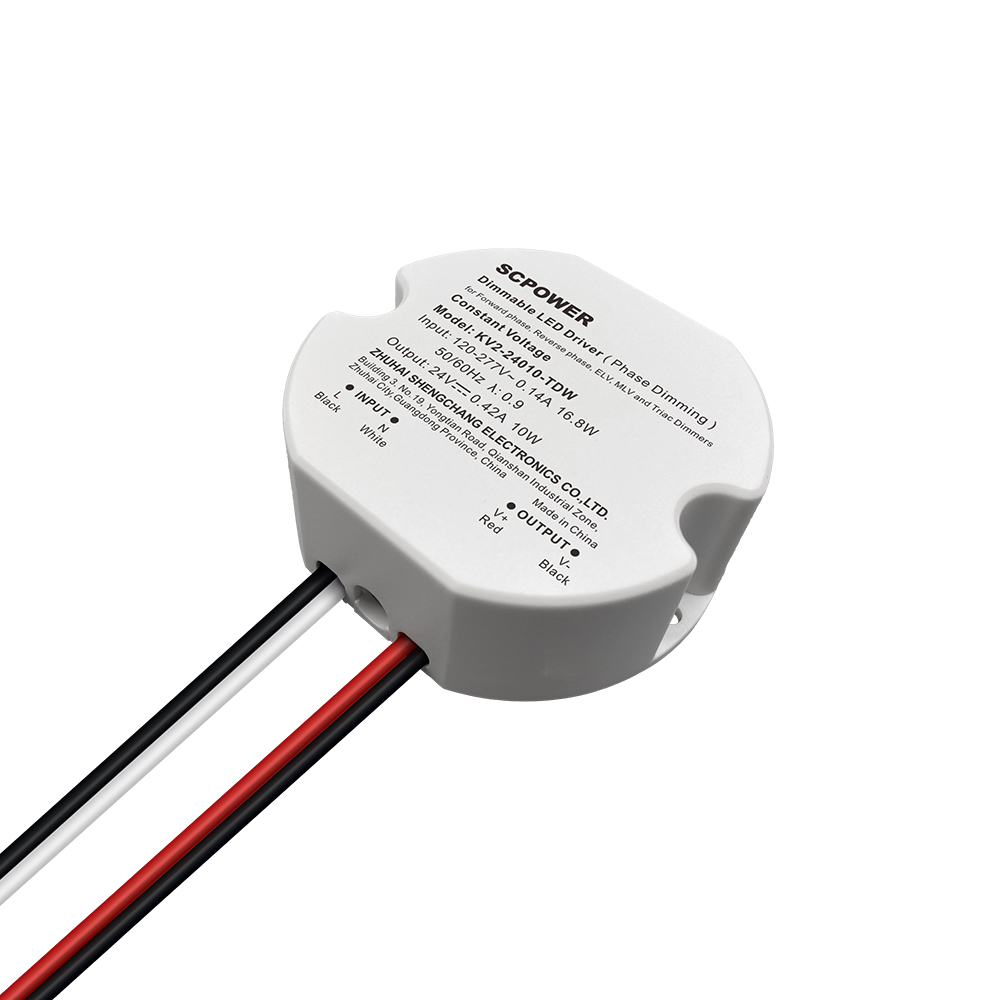

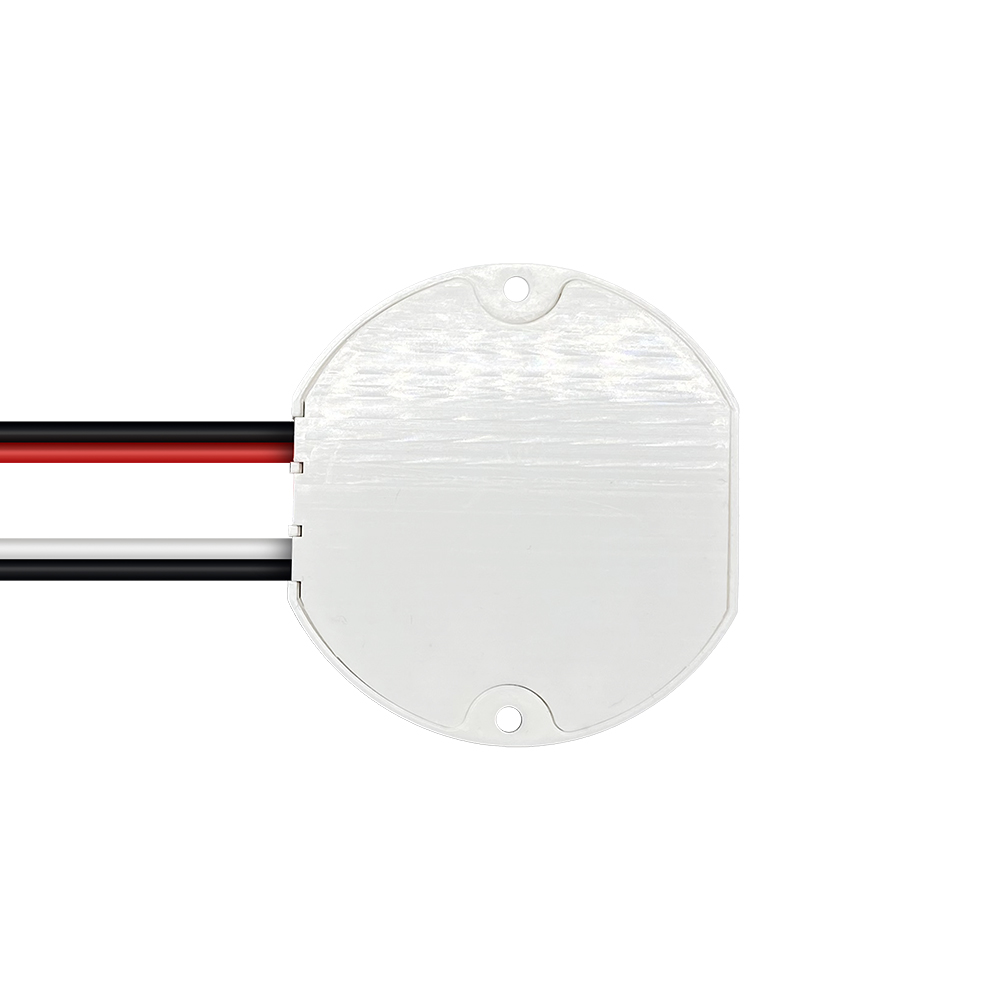

KV2-TDW
Triac
Isolated
Constant Voltage
Dimming
IP20
100-277VAC
10W, 15W, 20W, 25W, 30W, 40W
12/ 24/ 36/ 48V
RoHS, SELV
Output Power |
Model Number |
Output Voltage |
Output Current |
Size |
Weight |

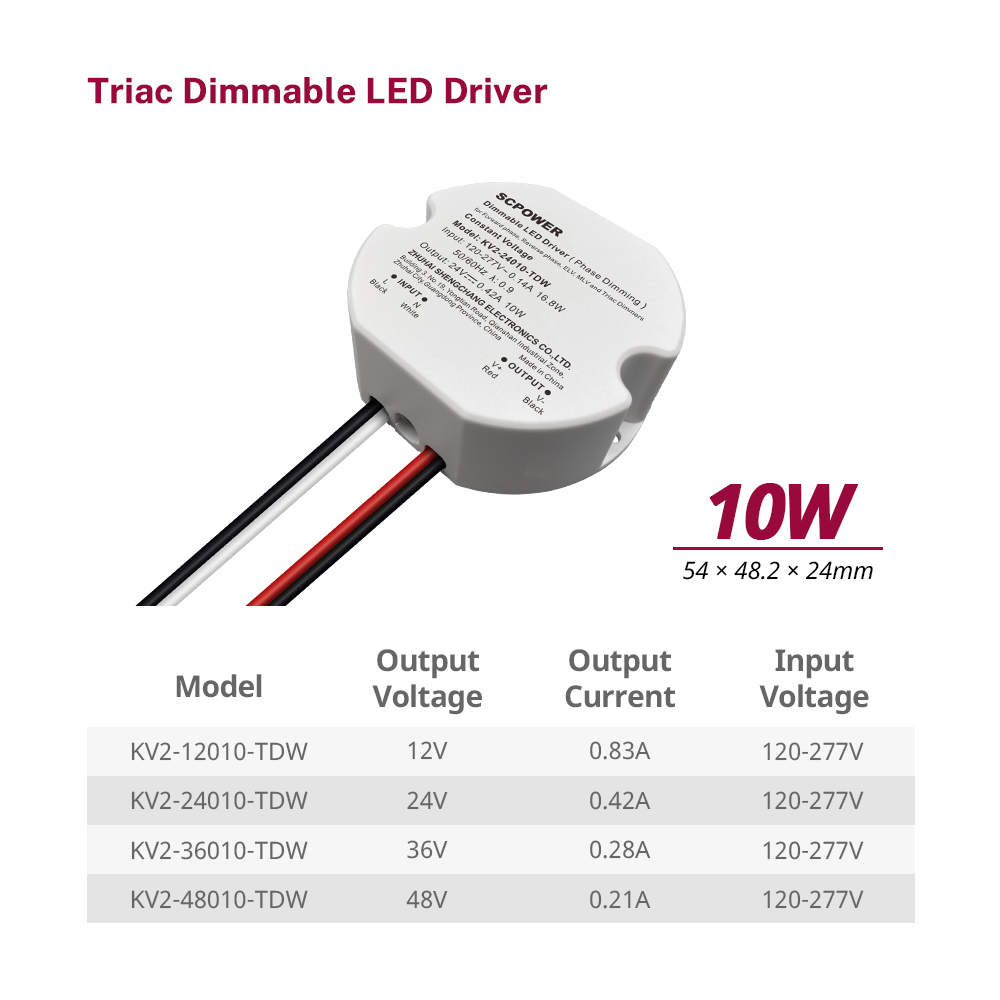

10W |
KV2-12010-TDW |
12V |
830mA |
54*48.2*24mm |
0.11kg |
KV2-24010-TDW |
24V |
420mA |
|||
KV2-36010-TDW |
36V |
280mA |
|||
KV2-48010-TDW |
48V |
210mA |
|||
15W |
KV2-12015-TDW |
12V |
1250mA |
54*48.2*24mm |
/ |
KV2-24015-TDW |
24V |
630mA |
|||
KV2-36015-TDW |
36V |
420mA |
|||
KV2-48015-TDW |
48V |
310mA |
|||
20W |
KV2-12020-TDW |
12V |
1670mA |
69.4*62.9*24mm |
/ |
KV2-24020-TDW |
24V |
830mA |
|||
KV2-36020-TDW |
36V |
560mA |
|||
KV2-48020-TDW |
48V |
420mA |
|||
25W |
KV2-12525-TDW |
12V |
2080mA |
69.4*62.9*24mm |
/ |
KV2-24025-TDW |
24V |
1040mA |
|||
KV2-36025-TDW |
36V |
690mA |
|||
KV2-48025-TDW |
48V |
520mA |
|||
30W |
KV2-12030-TDW |
12V |
2500mA |
74.4*66.4*24mm |
/ |
KV2-24030-TDW |
24V |
1250mA |
|||
KV2-36030-TDW |
36V |
830mA |
|||
KV2-48030-TDW |
48V |
630mA |
Features |
|
Output: |
Constant Voltage |
Range: |
120-277VAC |
PFC design: |
Built-in active PFC function |
Efficiency: |
Up to 75% |
Protections: |
Short circuit / Over load / Over temperature |
Heat dissipation: |
Cooling by free air convection |
Waterproof performance: |
Full plastic protection housing, for dry and damp locations. |
Dimming function: |
Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. |
Dimming range: |
0-100% dimming depth 1% |
Application: |
Suitable for the application of LED lighting |
Warranty: |
5 years warranty |
Others: |
Output frequency 20K Hz PWM, flicker-free |

TRIAC / Phase-cut Dimming Diagram

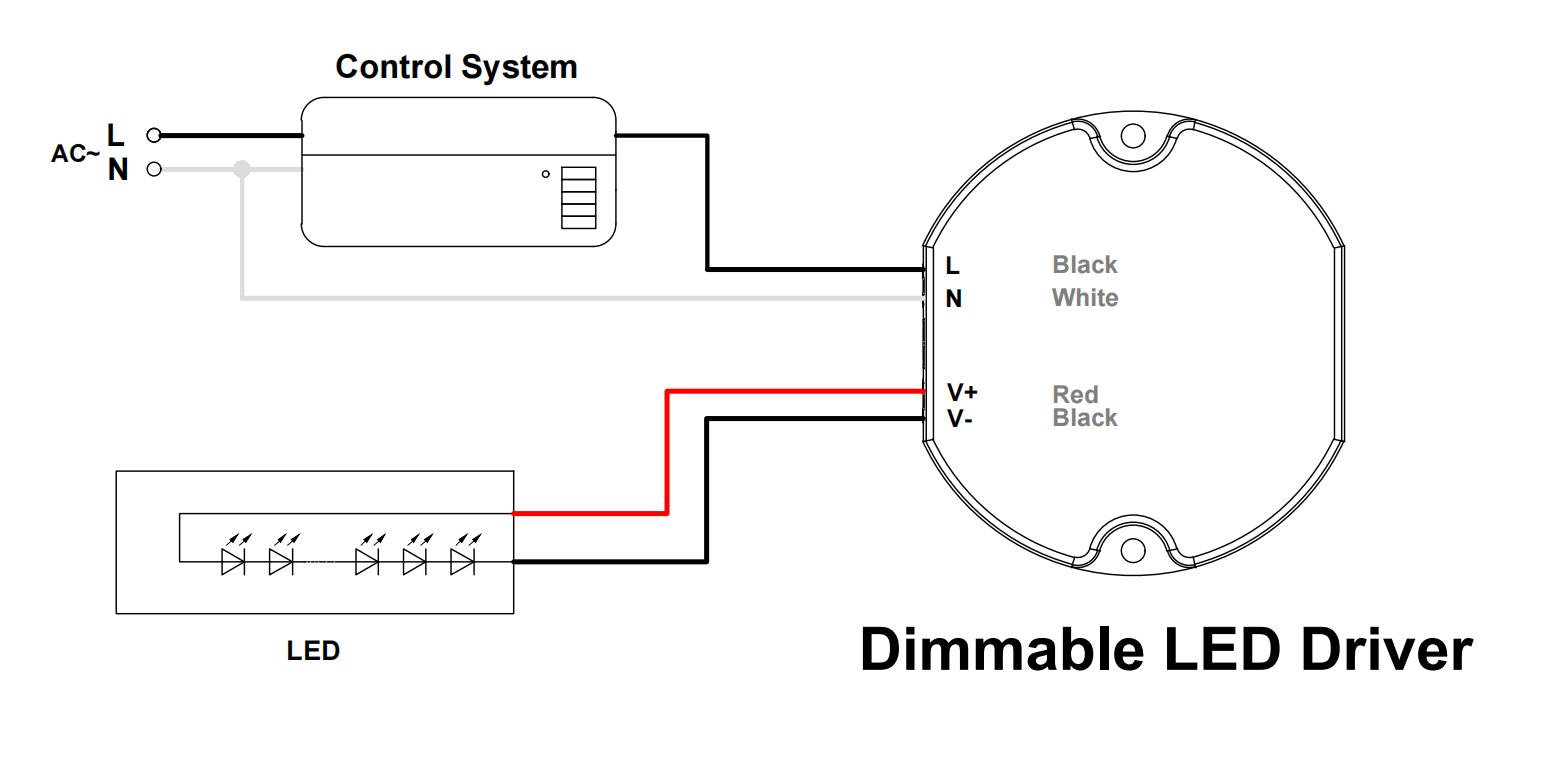

Triac / Phase-cut Dimming Wiring Diagram



LED driver triac dimming performance meets global manufacturing: Our 10W-40W CV Triac Dimmable Round LED Driver ensures seamless ELV/MLV lighting compatibility, crafted in Vietnam and China for unmatched reliability and value.
