Triac 0-10V
Isolated
Constant Voltage
Dimming
IP20, Dry & Damp
100-277VAC
10W
12/ 24/ 36/ 48V
CE, RoHS, REACH

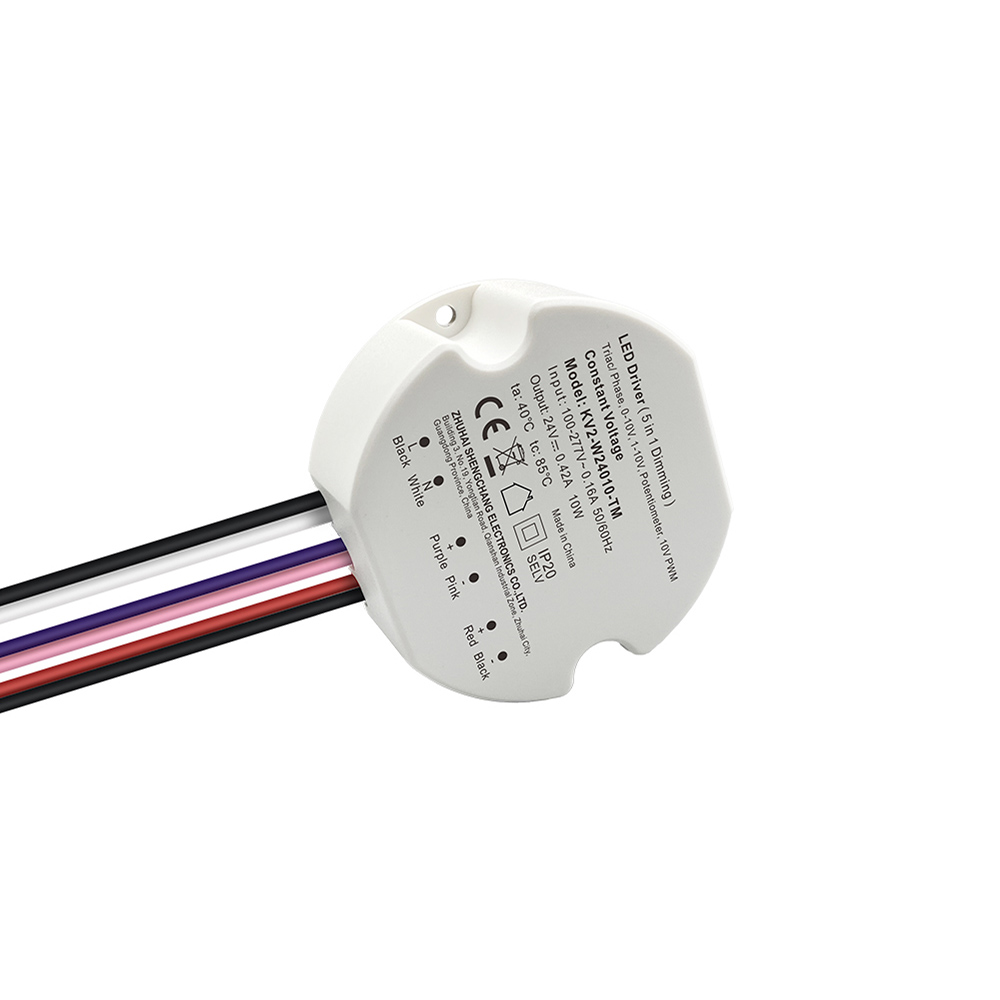

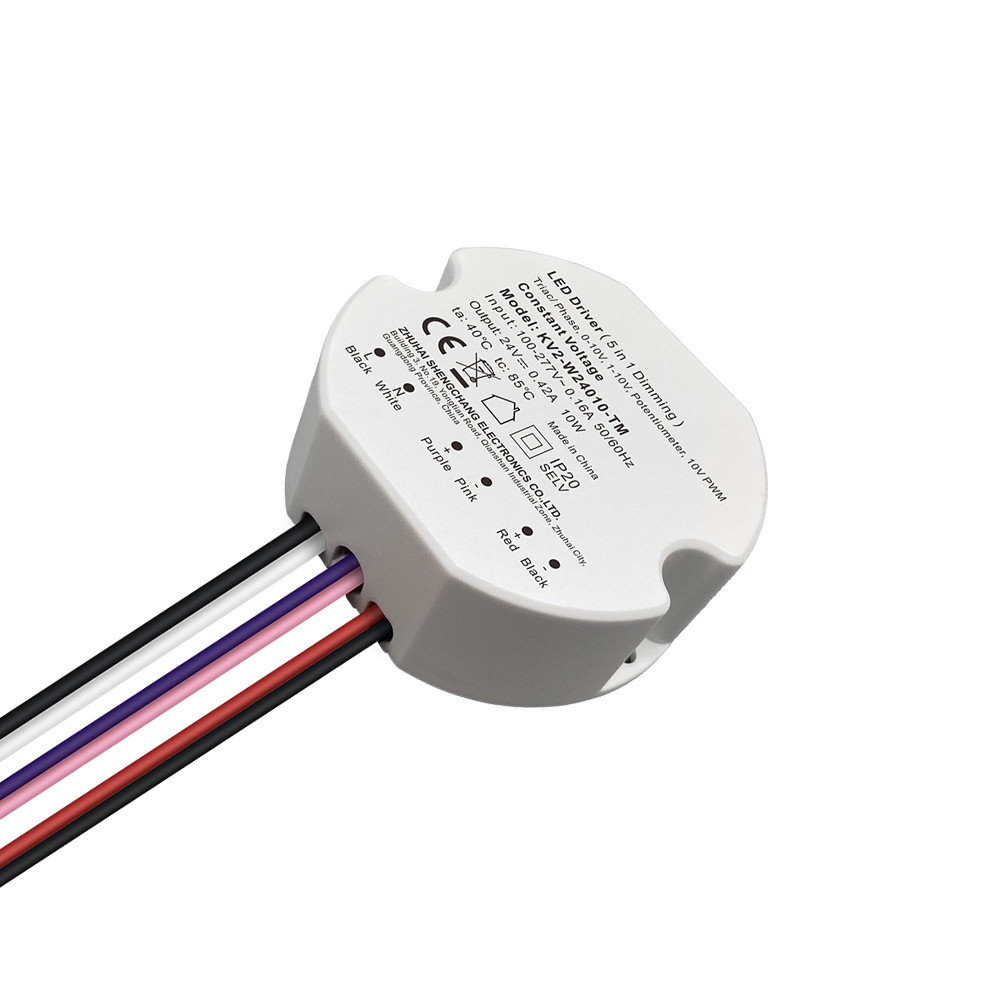

10W 15W 20W 25W 30W 40W Triac 0-10V Dimmable LED Driver CV Round Plastic
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function，PF≥0.88 |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full plastic protection housing,for dry and damp locations (US) |
Dimming function | Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Output frequency 20K Hz PWM, flicker-free |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
10W | KV2-12010-TMW | 12V | 0.83A | 54*48.2*24mm | 0.11kg |
KV2-24010-TMW | 24V | 0.42A | |||
KV2-36010-TMW | 36V | 0.28A | |||
KV2-48010-TMW | 48V | 0.21A | |||
15W | KV2-12015-TMW | 12V | 1.25A | 64.4*58.4*24mm | |
KV2-24015-TMW | 24V | 0.63A | |||
KV2-36015-TMW | 36V | 0.42A | |||
KV2-48015-TMW | 48V | 0.31A | |||
20W | KV2-12020-TMW | 12V | 1.67A | 69.4*62.9*24mm | |
KV2-24020-TMW | 24V | 0.83A | |||
KV2-36020-TMW | 36V | 0.56A | |||
KV2-48020-TMW | 48V | 0.42A | |||
25W | KV2-12025-TMW | 12V | 2.08A | 69.4*62.9*24mm | |
KV2-24025-TMW | 24V | 1.04A | |||
KV2-36025-TMW | 36V | 0.69A | |||
KV2-48025-TMW | 48V | 0.52A | |||
30W | KV2-12030-TMW | 12V | 2.5A | 74.4*66.4*24mm | |
KV2-24030-TMW | 24V | 1.25A | |||
KV2-36030-TMW | 36V | 0.83A | |||
KV2-48030-TMW | 48V | 0.63A | |||
40W | KV2-12040-TMW | 12V | 3.33A | 74.4*66.4*24mm | |
KV2-24040-TMW | 24V | 1.67A | |||
KV2-36040-TMW | 36V | 1.11A | |||
KV2-48040-TMW | 48V | 0.83A |
This high-quality LED driver is designed to provide reliable and efficient power to your LED lights, ensuring optimal performance and longevity.
With a power output of 10W, this LED driver is suitable for a wide range of LED light applications, from residential to commercial settings. It is compatible with a variety of LED light fixtures, making it a versatile and practical choice for your lighting projects.
Driver Mode: Triac 0-10V 0-10V Dimming, Constant Voltage
Technology: Single-stage PFC technology
Output Power: 10W Max.
Input Voltage: 100 to 277VAC，47-63HZ
Number of Outputs: One
Output Voltages: 12v, 24v, 36v, or 48v dc
Output Dimmable Currents: 210mA - 830mA
Output Dimmable Current Range: 0-100%
Plastic Shell, Up to 120°C; Compact, Lightweight Design;
Dust Proof Design: IP20 for Dry Locations;
Standard electrical box for installation;
Active Power Factor Correction technology to reduce power consumption;
Safety Isolation between Primary and Secondary.
