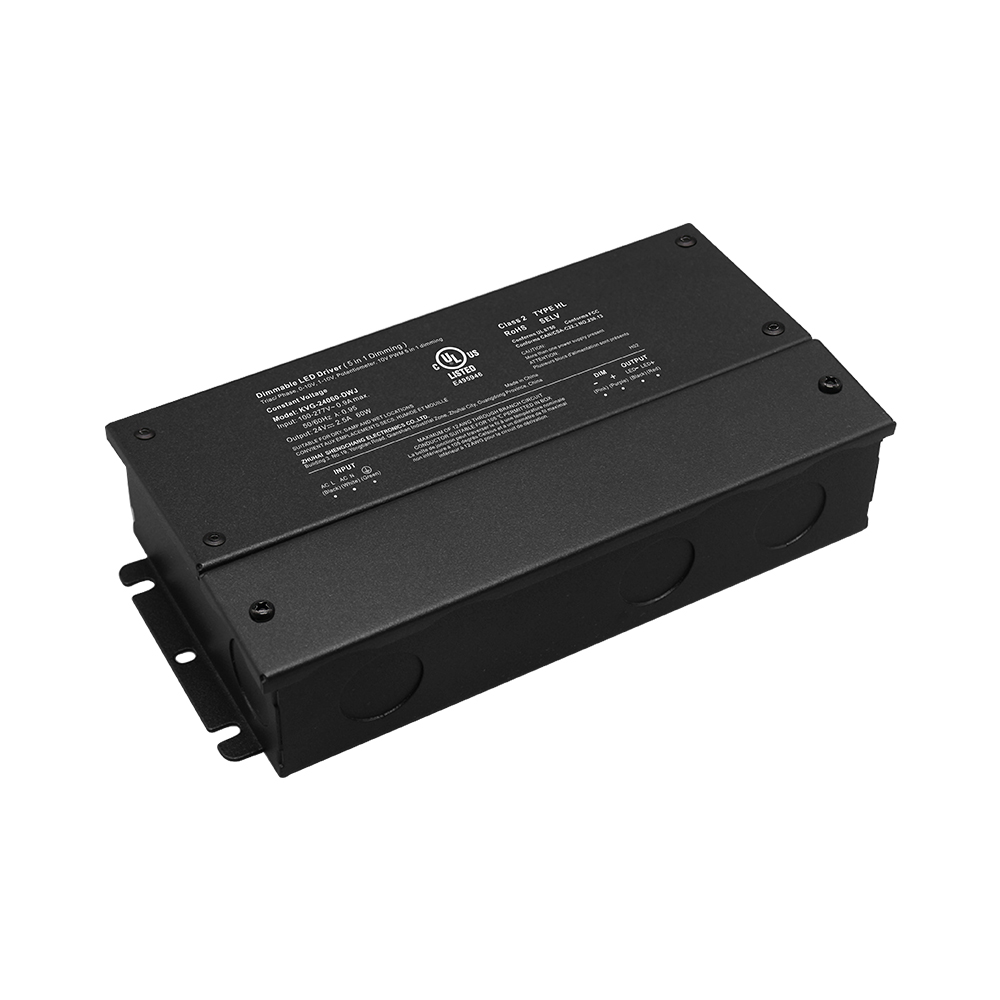

30W to 600W Triac 0-10V Dual Dimmable LED Driver CV with Junction box
30W to 600W Triac 0 - 10 v dimmable led driver with junction box 12v 24v 36v 48v dc output constant voltage
Can be installed in small spaces and very light. It also has overload protection, overheat protection, short circuit protection functions Can well protect 30w to 600w business lighting luminaires
Specification
Output Power
Model Number
Output Voltage
Output Current
Power Factor
Size
Weight

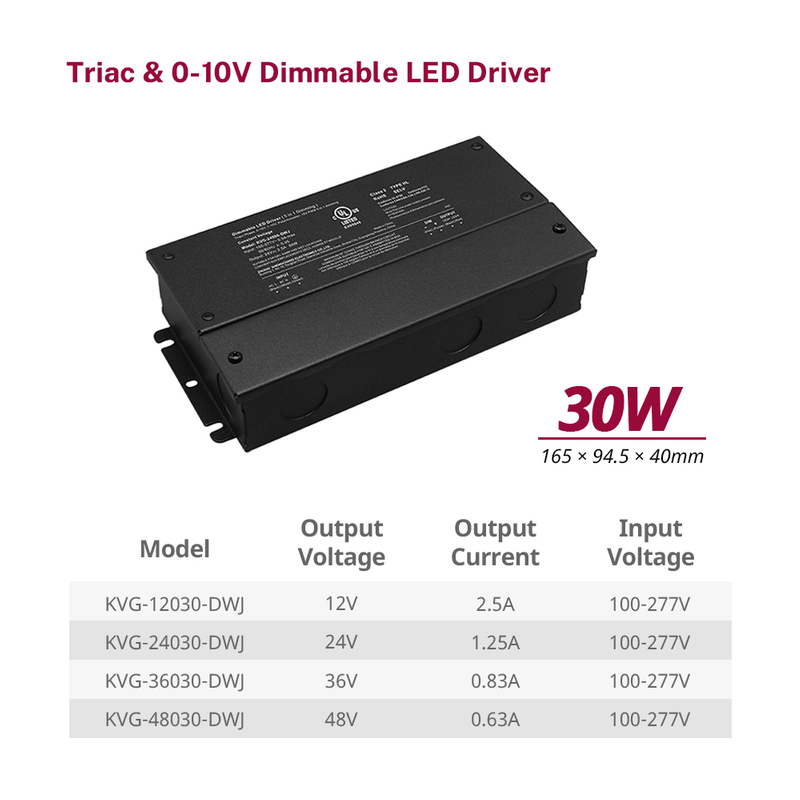

30W
KVG-12030-DWJ
12V
2.5A
PF 0.99
165*94.5*40mm
0.93kg
KVG-24030-DWJ
24V
1.25A
KVG-36030-DWJ
36V
0.83A
KVG-48030-DWJ
48V
0.63A
60W
KVG-12060-DWJ
12V
5A
PF 0.98
188*94.5*40mm
1.03kg
KVG-24060-DWJ
24V
2.5A
KVG-36060-DWJ
36V
1.67
KVG-48060-DWJ
48V
1.25A
80W
KVG-12080-DWJ
12V
6.66A
PF 0.98
220*94.5*42.7mm
1.26kg
KVG-24080-DWJ
24V
3.34A
KVG-36080-DWJ
36V
2.22A
KVG-48080-DWJ
48V
1.67A
96W
KVG-24096-DWJ
24V
4A
PF 0.98
KVG-36096-DWJ
36V
2.67A
KVG-48096-DWJ
48V
2A
100W
KVG-12100-DWJ
12V
8.34A
PF 0.99
KVG-24100-DWJ
24V
4.17A
KVG-36100-DWJ
36V
2.78A
KVG-48100-DWJ
48V
2.09A
120W
KVG-12120-DWJ
12V
10A
PF 0.99
KVG-24120-DWJ
24V
5A
KVG-36120-DWJ
36V
3.33A
KVG-48120-DWJ
48V
2.5A
150W
KVG-12150-DWJ
12V
12.5A
PF 0.99
260*105*45mm
1.81kg
KVG-24150-DWJ
24V
6.25A
KVG-36150-DWJ
36V
4.17A
KVG-48150-DWJ
48V
3.13A
200W
KVG-12200-DWJ
12V
16.67A
PF 0.98
KVG-24200-DWJ
24V
8.34A
KVG-36200-DWJ
36V
5.56A
KVG-48200-DWJ
48V
4.17A
300W
KVG-12300-DWJ
12V
25A
PF 0.99
278*110*45mm
2.15kg
KVG-24300-DWJ
24V
12.5A
KVG-36300-DWJ
36V
8.33A
KVG-48300-DWJ
48V
6.25A
500W
KVG-12500-DWJ
12V
41.67A
PF 0.99
280*140*50.2mm
2.70kg
KVG-24500-DWJ
24V
20.83A
KVG-36500-DWJ
36V
13.89A
KVG-48500-DWJ
48V
10.42A
600W
/
12V
/
PF 0.98
KVG-24600-DWJ
24V
25A
KVG-36600-DWJ
36V
16.67A
KVG-48600-DWJ
48V
12.5A
0-10V LED Power Supply Wiring Diagram
30W 36W 60W 96W 100W 150W 0-10V LED Power Supply
Dual-dimming 30W-600W LED driver (Triac & 0-10V) with IP66 junction box.
Black waterproof housing for dry, damp and wet locations.
Features auto-detect dimming protocol, and surge protection.
UL/cUL/FCC/Class 2/CE/RoHS certified.
5-year warranty service.
Solutions for hotels, historic buildings, and retail retrofits.
Installation advantages
Enables direct retrofit of incandescent systems without rewiring. （Commercial lighting project renovation）

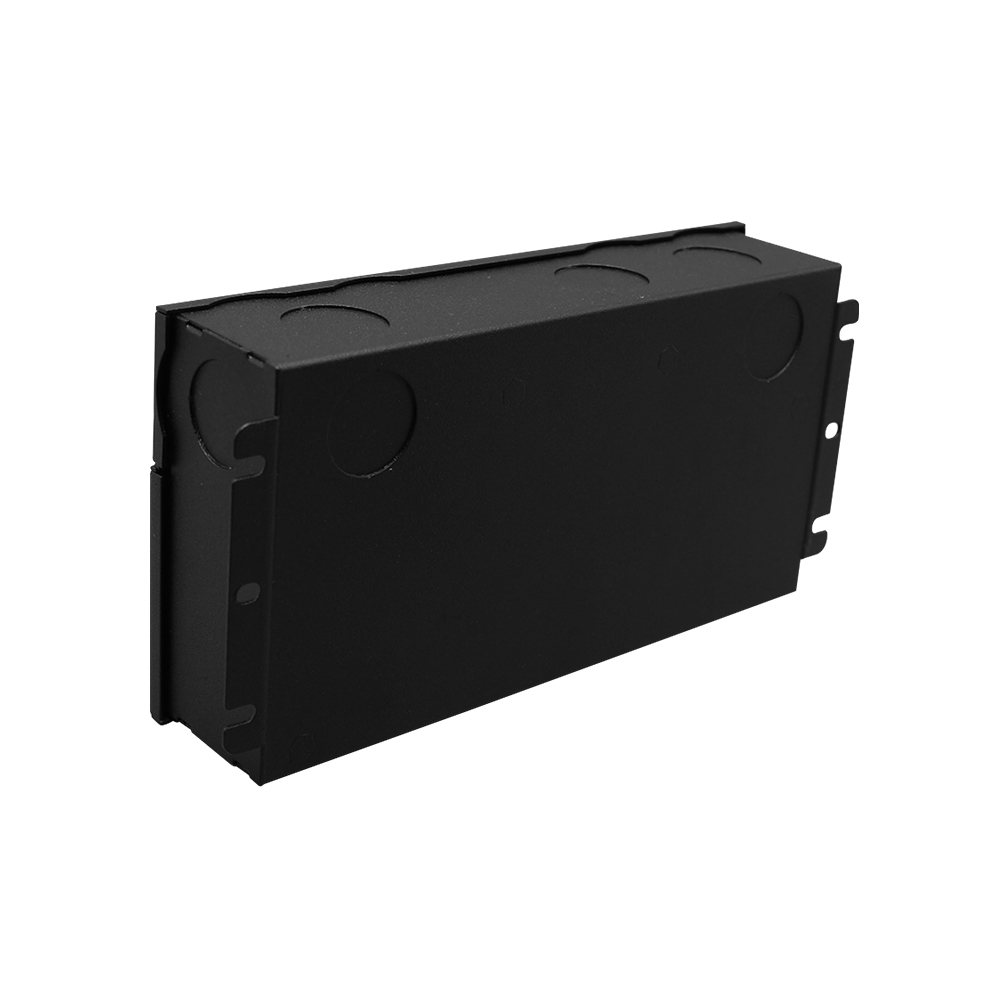

Integrated junction box：No need to purchase a junction box separately (more cost-effective)
