| Ouput Power: | |
|---|---|
Triac 0-10V
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
100-277VAC
60W, 96W, 180W, 192W, 288W, 384W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2, CE, RoHS, REACH
180W 192W 288W 300W 384W 60W 96W Triac 0 - 10 V Dimmable Class 2 output LED Driver CV with Junction box
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection aluminum housing, for dry, damp and wet locations(24V); for dry and damp locations(48V) |
Dimming function: | Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, High power factor PF≥0.95, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Power Factor | Size | Weight |
60W | KVG-12060-DWJ | 12V | 1 x 5A | PF 0.98 | 188*94.5*40mm | 1.03kg |
KVG-24060-DWJ | 24V | 1 x 2.5A | ||||
KVG-36060-DWJ | 36V | 1 x 1.67 | ||||
KVG-48060-DWJ | 48V | 1 x 1.25A | ||||

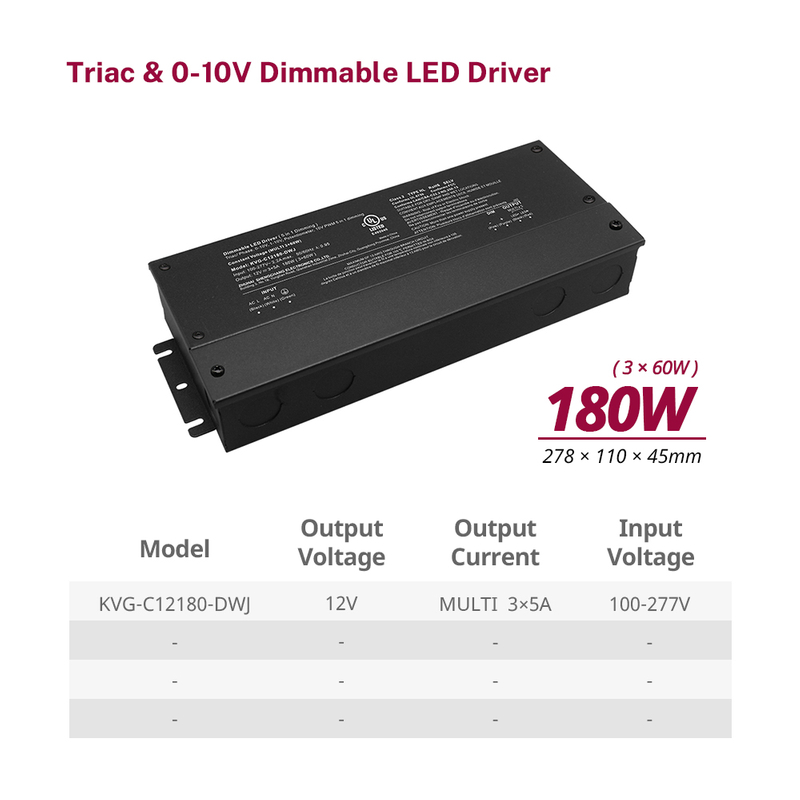

180W | KVG-C12180-DWJ | 12V | 3 x 5A | PF 0.98 | 278*110*45mm | 2.15kg |
300W | KVG-C12300-DWJ | 12V | 5 x 5A | PF 0.99 | 301*110*45mm | 2.37kg |
96W | KVG-24096-DWJ | 24V | 1 x 4A | PF 0.98 | 220*94.5*42.7mm | 1.26kg |
KVG-36096-DWJ | 36V | 1 x 2.67A | ||||
KVG-48096-DWJ | 48V | 1 x 2A | ||||
192W | KVG-C24192-DWJ | 24V | 2 x 4A | PF 0.99 | 278*110*45mm | 2.15kg |
KVG-C36192-DWJ | 36V | 2 x 2.67A | ||||
KVG-C48192-DWJ | 48V | 2 x 2A | ||||
288W | KVG-C24288-DWJ | 24V | 3 x 4A | PF 0.99 | 301*110*45mm | 2.37kg |
KVG-C36288-DWJ | 36V | 3 x 2.67A | ||||
KVG-C48288-DWJ | 48V | 3 x 2A | ||||
384W | KVG-C24384-DWJ | 24V | 4 x 4A | PF 0.99 | 325*140*48mm | 2.85kg |
KVG-C36384-DWJ | 36V | 4 x 2.67A | ||||
KVG-C48384-DWJ | 48V | 4 x 2A | ||||
The class 2 UL listed output triac 0 - 10v dimmable constant voltage led drivers offer reliable power and seamless dimming for led lighting systems using Triac dimmers or 0 10 volt dimmers. They operate within an input voltage range of 100V to 277V, ensuring compatibility with various electrical systems. Available in 12V, 24V, 36V or 48V output options, these drivers suit different low-voltage LED applications, including strips and modules. With a wattage range from 60W to 384W, they provide stable and precise voltage for optimal performance across a wide range of LED lighting setups.
Class 2 UL listed safety standards output LED Driver 60W 96W 180W 192W 288W 300W 384W
5A 4A 2.67A 2.5A 2A 1.67A output current options
