10W 15W 20W 30W 40W 50W Constant Current Triac 0-10V 5 in 1 Dimmable LED Driver Round Type Driver for Indoor Light from China manufacturer

Products Detail

You are here: Home / Products / Triac 0-10V Dimmable LED Driver / KI2 Series 100-277VAC CC Standard / 10W 15W 20W 30W 40W 50W Constant Current Triac 0-10V 5 in 1 Dimmable LED Driver Round Type Driver for Indoor Light

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Specification

Output Power	Model Number	Output Voltage	Output Current	Size	Weight

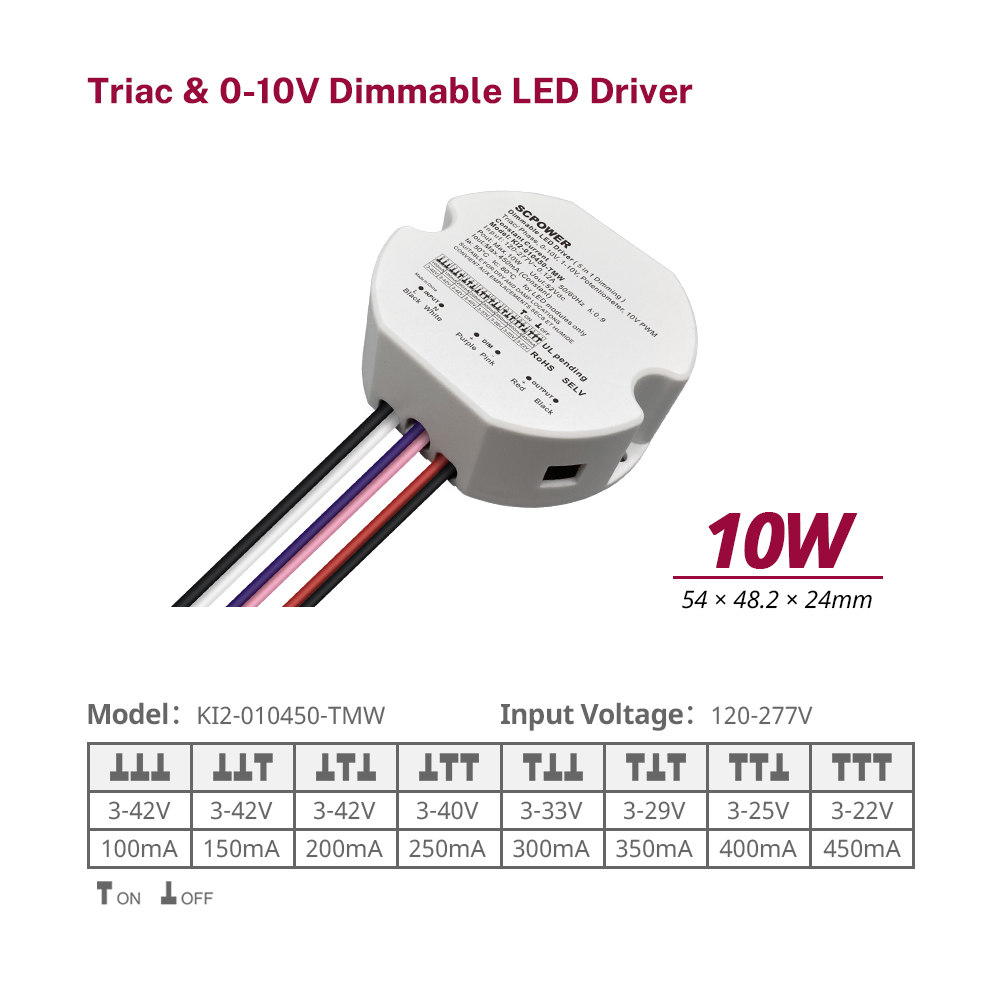

10W（Class 2）	KI2-010450-TMW	3-42V	100mA	5448.224mm	0.083kg
		3-42V	150mA
		3-42V	200mA
		3-40V	250mA
		3-33V	300mA
		3-29V	350mA
		3-25V	400mA
		3-22V	450mA
15W（Class 2）	KI2-015500-TMW	3-42V	150mA	5448.224mm	0.083kg
		3-42V	200mA
		3-42V	250mA
		3-42V	300mA
		3-42V	350mA
		3-37V	400mA
		3-33V	450mA
		3-30V	500mA
20W（Class 2）	KI2-020700-TMW	3-42V	250mA	64.458.424mm	0.11kg
		3-42V	350mA
		3-42V	400mA
		3-42V	450mA
		3-40V	500mA
		3-36V	550mA
		3-33V	600mA
		3-29V	700mA
30W（Class 2）	KI2-0301A05-TMW	3-42V	300mA	64.458.424mm	/
		3-42V	400mA
		3-42V	500mA
		3-42V	600mA
		3-42V	700mA
		3-37V	800mA
		3-33V	900mA
		3-28V	1050mA
40W（Class 2）	KI2-0401A4-TMW	3-42V	400mA	74.466.424mm	/
		3-42V	500mA
		3-42V	600mA
		3-42V	700mA
		3-42V	900mA
		3-38V	1050mA
		3-33V	1200mA
		3-29V	1400mA
50W（Class 2）	KI2-0501A75-TMW	3-42V	600mA	74.466.424mm	/
		3-42V	700mA
		3-42V	900mA
		3-42V	1050mA
		3-41V	1200mA
		3-37V	1350mA
		3-33V	1500mA
		3-29V	1750mA

Advantage

Features
Output:	Constant Current
Range:	120-277VAC
PFC design:	Built-in active PFC function
Efficiency:	Up to 79%
Protections:	Short circuit / Over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	For dry and damp location
Dimming function:	Phase dimming: work with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers. 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range:	1-100%
Application:	Suitable for LED lighting and moving sign applications
Warranty:	5 years warranty

TRIAC / Phase-cut Dimming Diagram

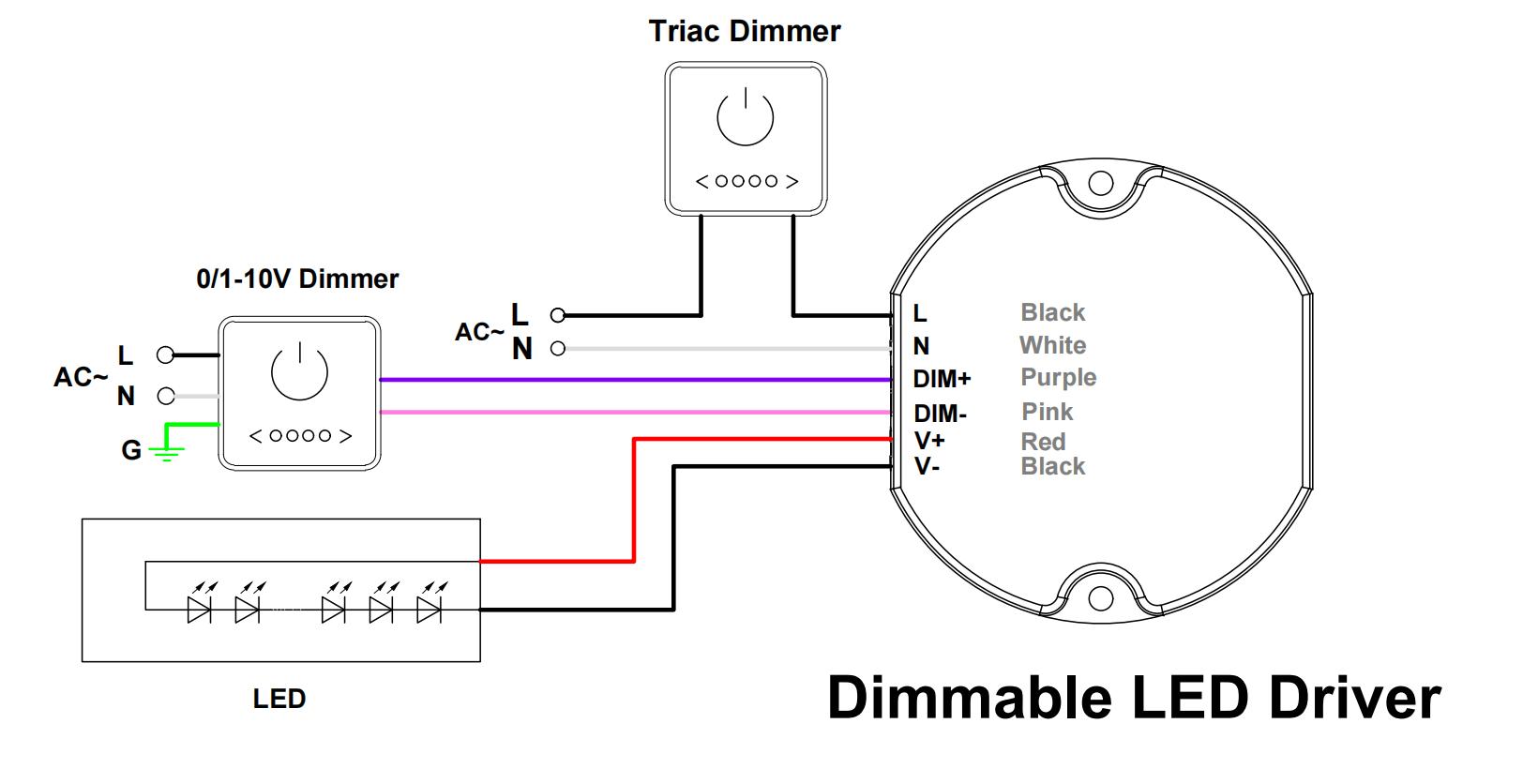

Triac / Phase-cut Dimming Wiring Diagram

LED driver dimming connection diagram showing TRIAC/phase-cut dimming compatibility and simultaneous dual-mode dimming operation.

Simplify indoor dimming with universal 5-in-1 compatibility. This 10W-50W constant current round driver supports Triac & 0-10V for flexible control, engineered for reliable, flicker-free indoor lighting, precisely manufactured in Vietnam & China.
