Full plastic protection housing,for dry & damp locations.(US)
Design features:
1. Flicker-free dimming
2. Small volume
3. Output voltage and address can be adjusted by NFC APP.
Dimming function:
DALI-2 dimming
Dimming range:
0.1%-100%
Application:
Suitable for LED lighting and moving sign applications
Warranty:
5 years warranty
Others:
PWM output
DALI Dimmer Diagram

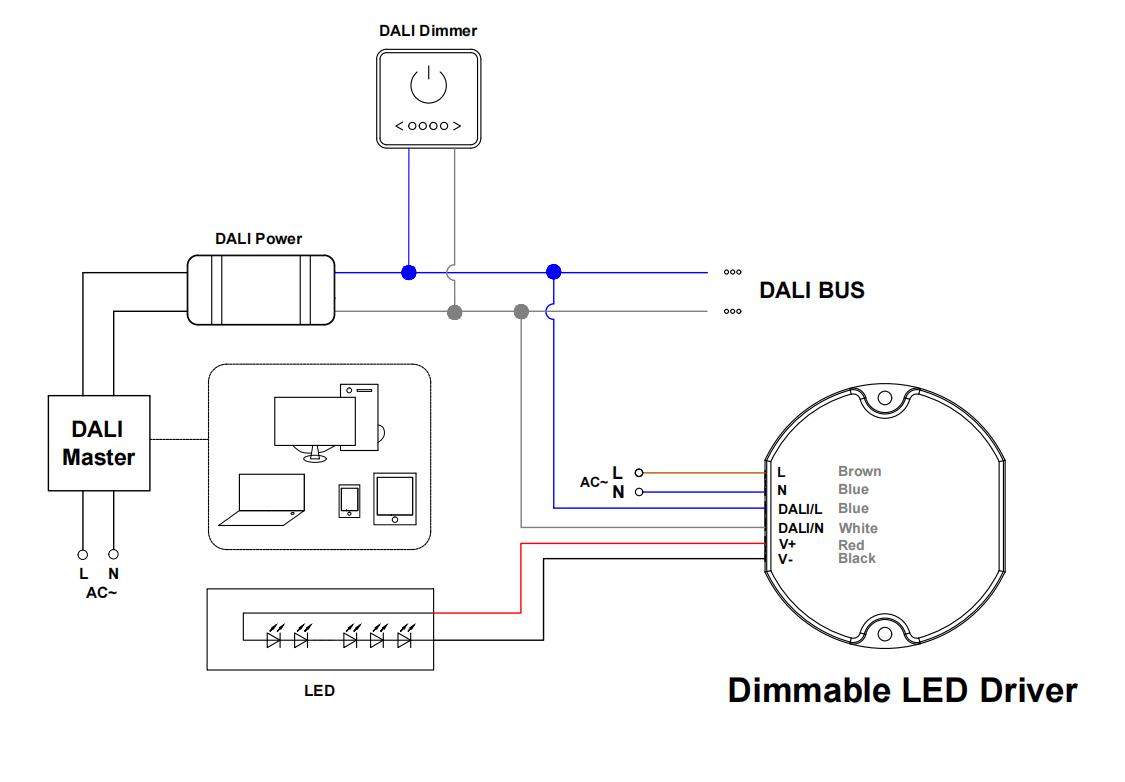

Connectioon Diagram for DALI Dimmer (EU):

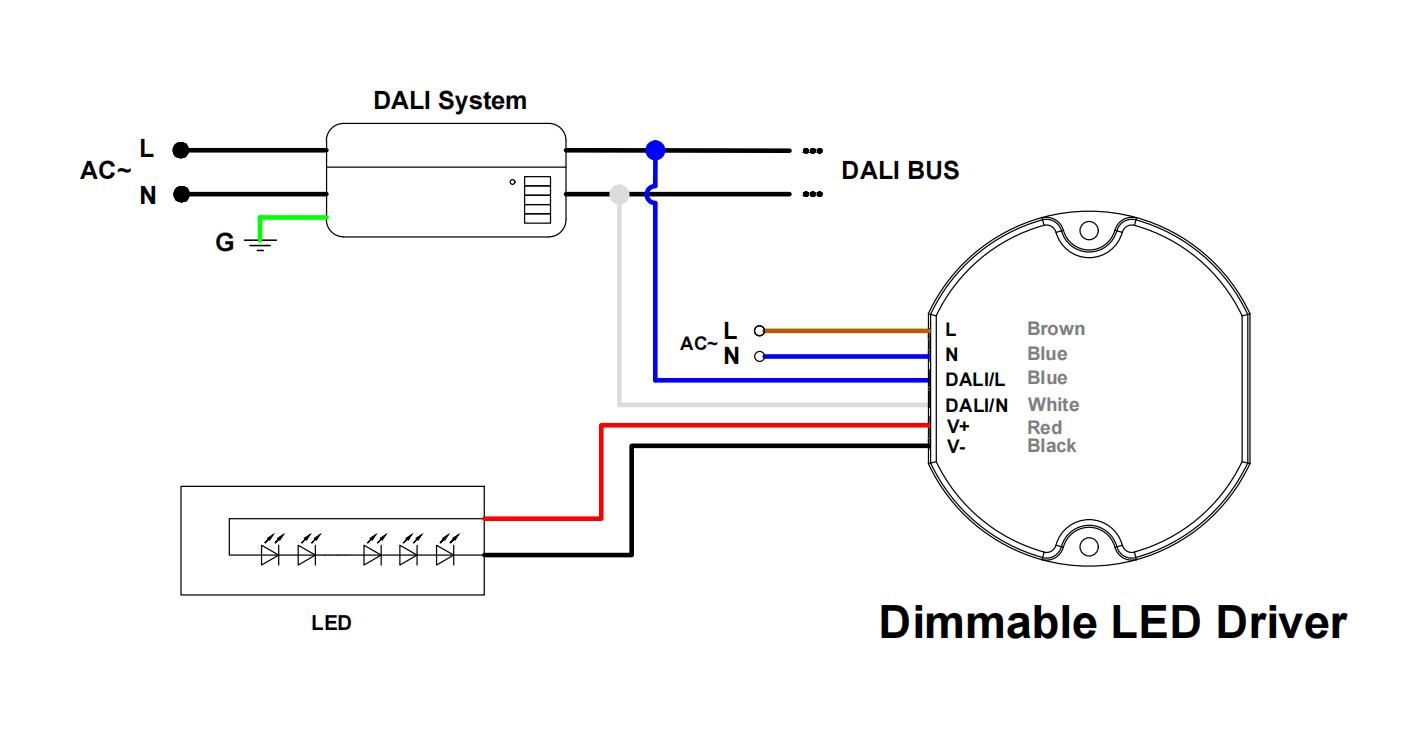

Connection Diagram for DALI System (EU):

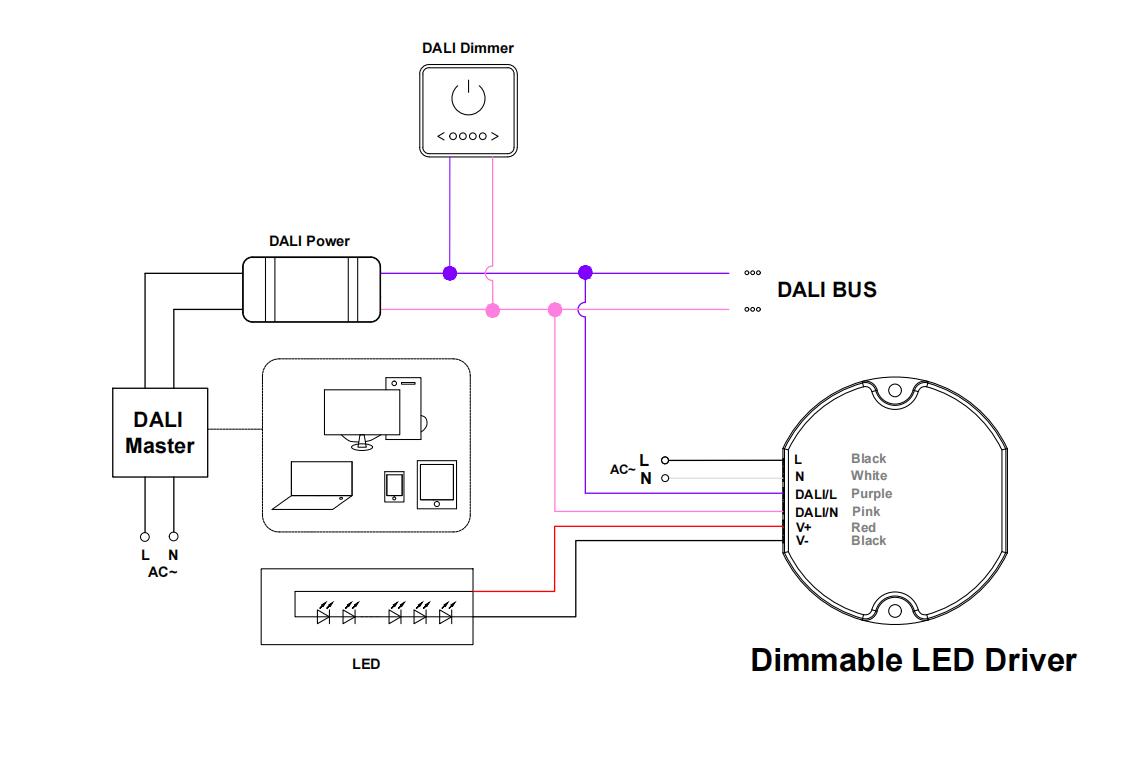

Connectioon Diagram for DALI Dimmer (US):

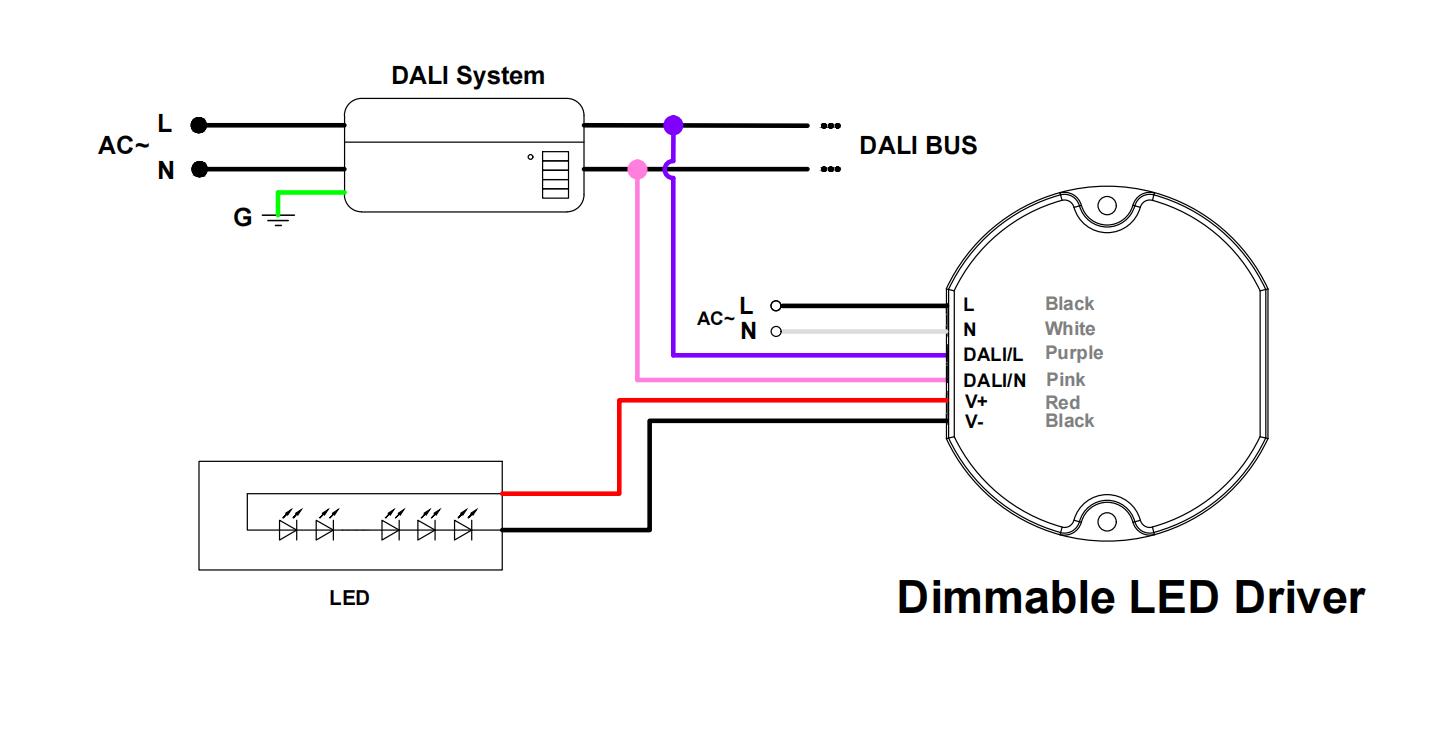

Connection Diagram for DALI System (US):

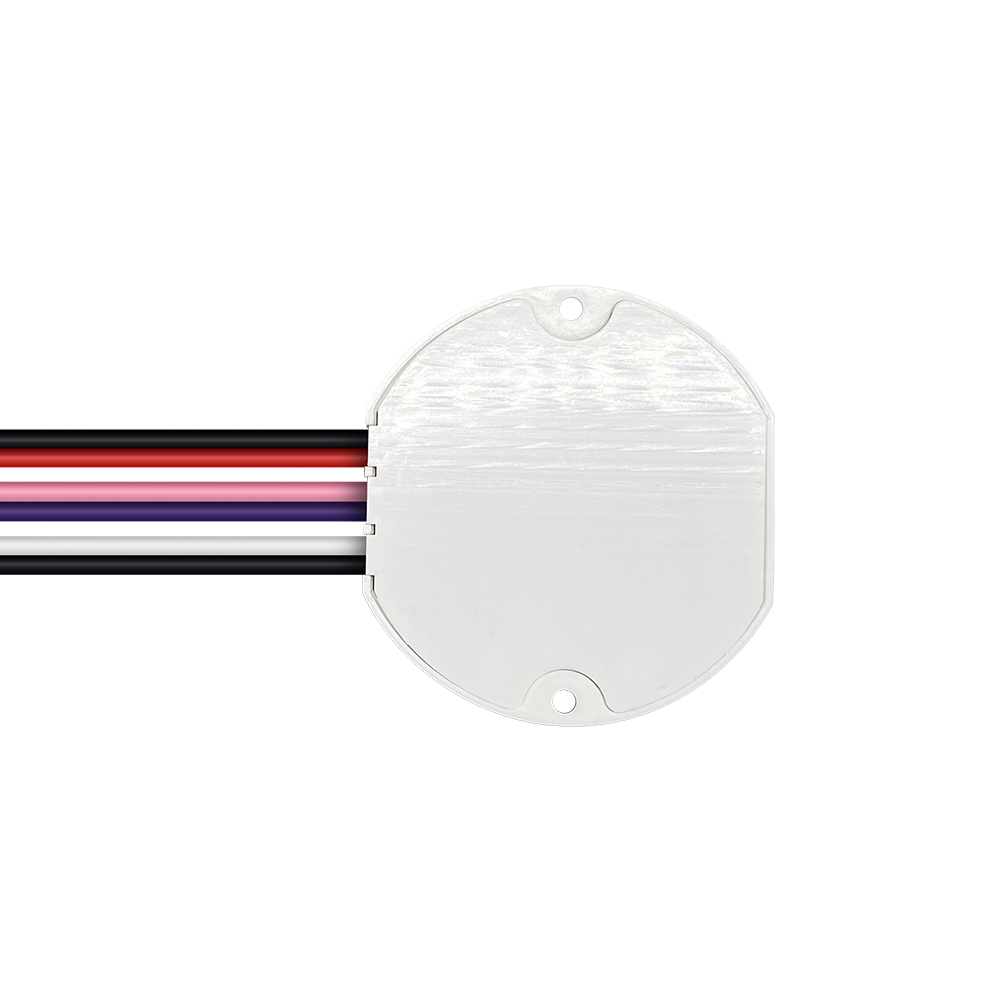

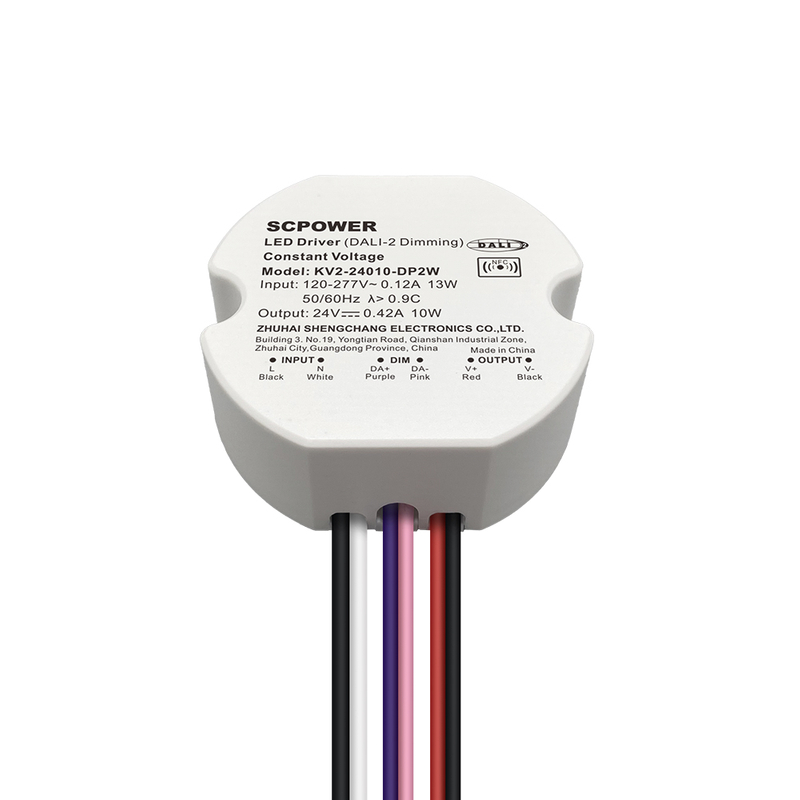

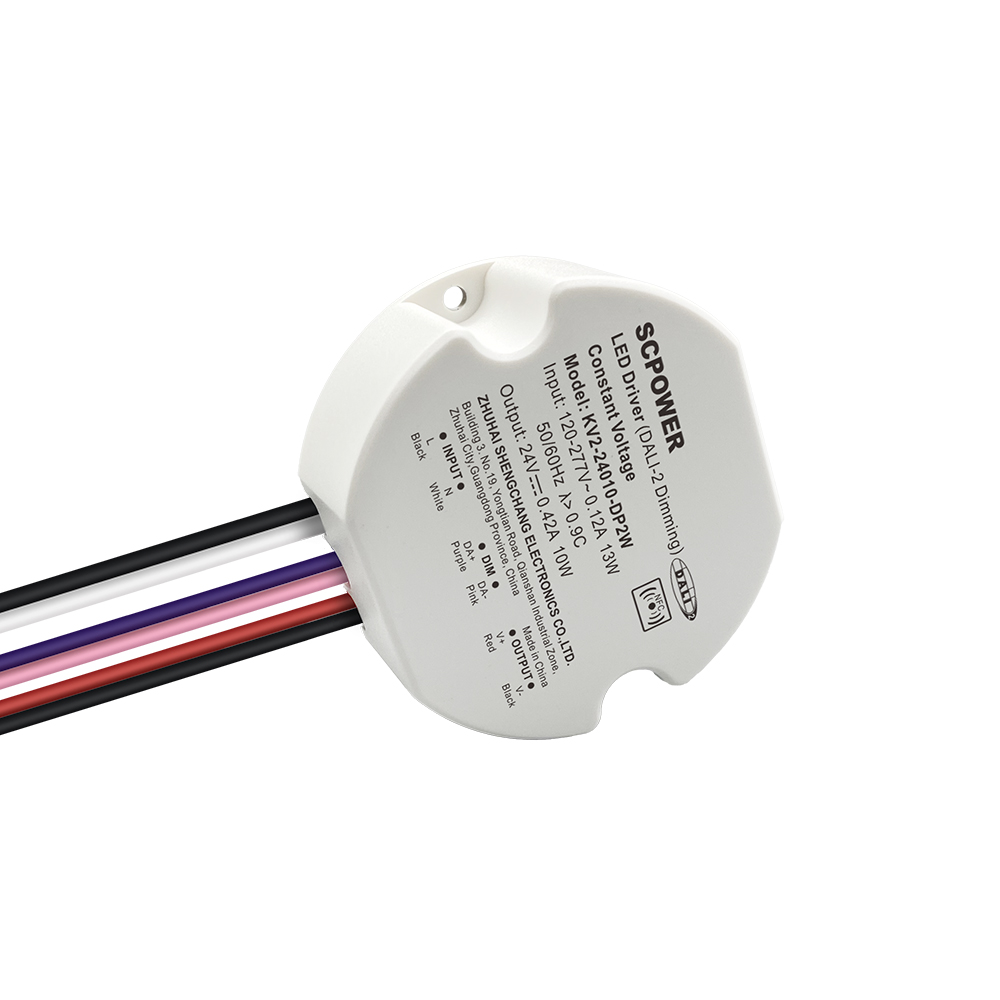

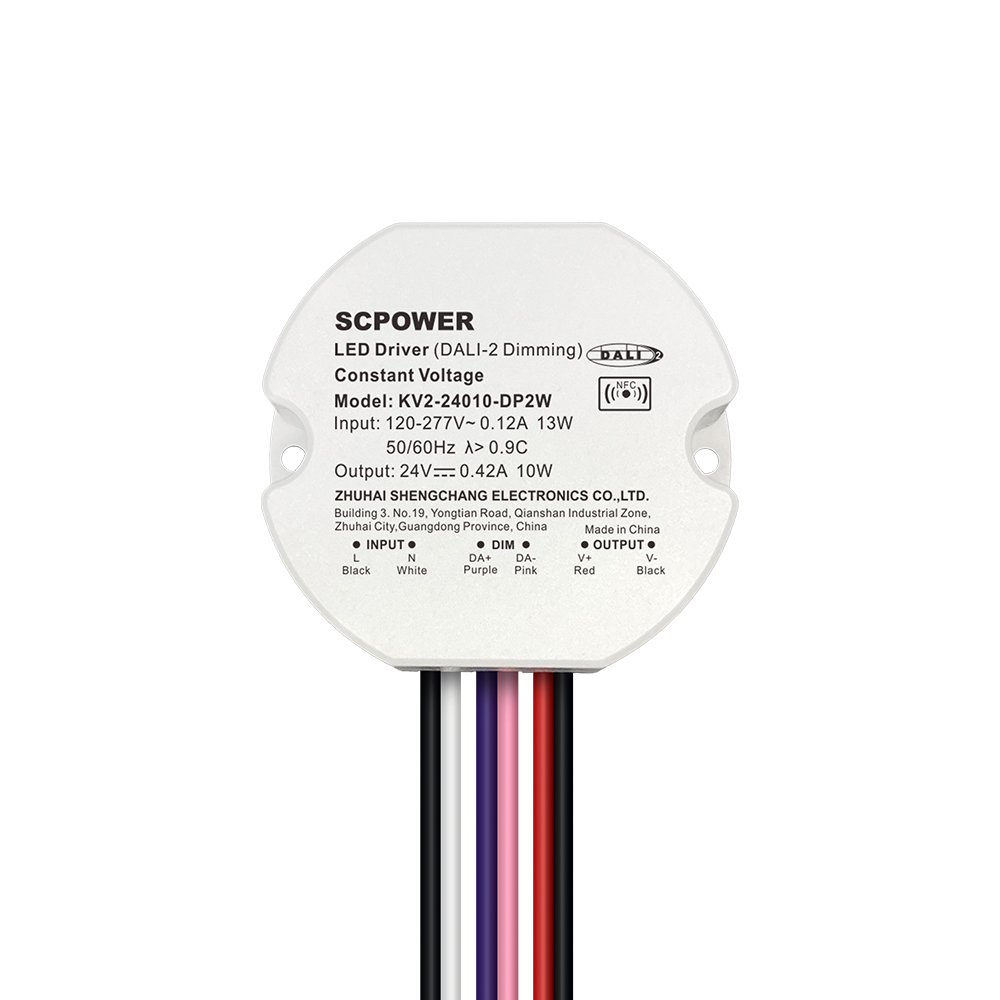

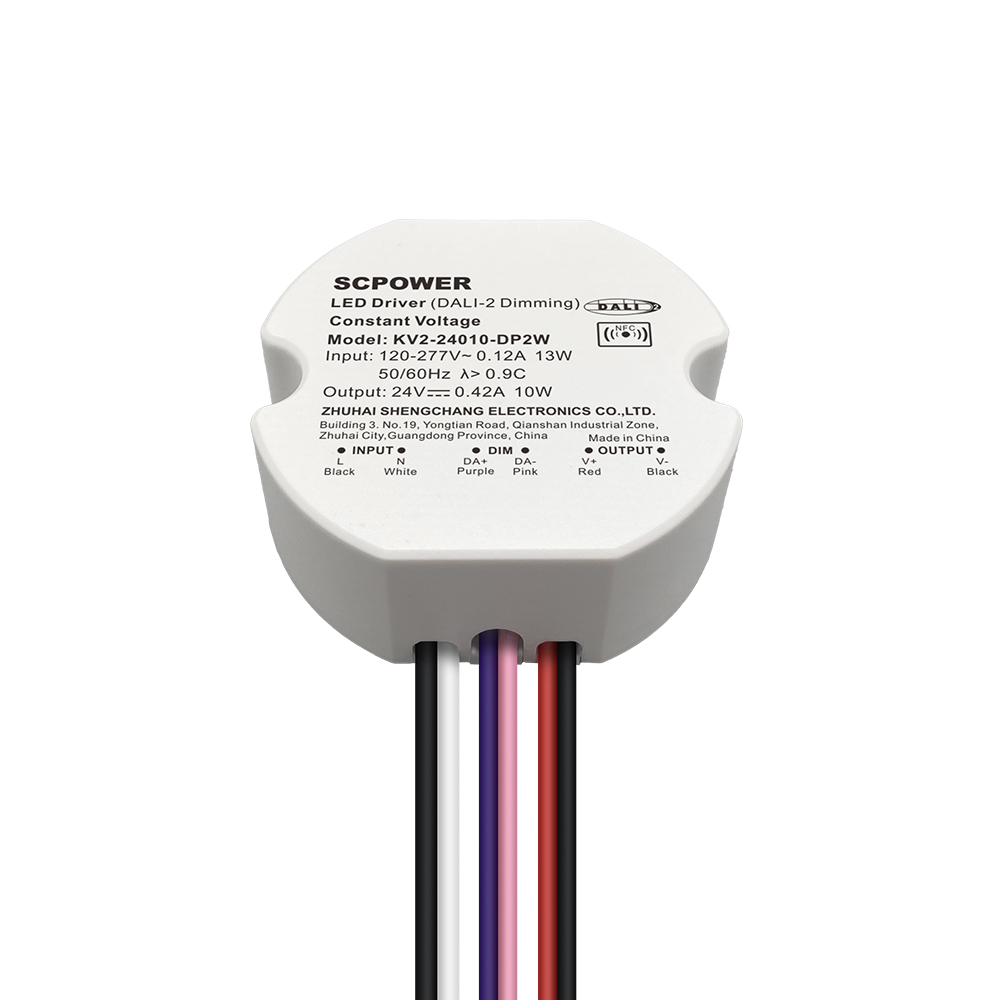

Dual safety meets versatile dimming: The DP2 series (10W-40W CV) circular plastic driver features Class 2 & Class P certification for flexible, reliable performance, precision-engineered in our Vietnam and China factory.
Specification
Output Power
Model Number
Output Voltage
Output Current
Size
Weight

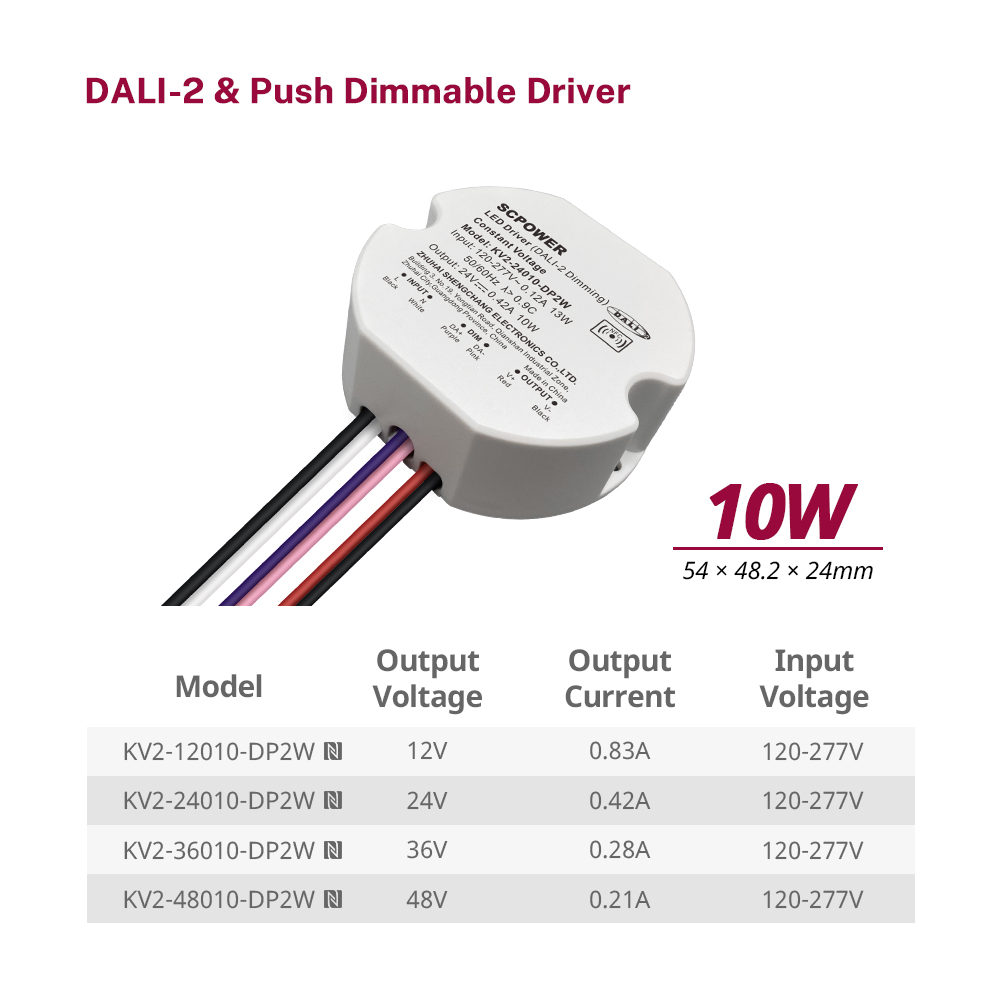

10W
KV2-12010-DP2W
12V
830mA
54*48.2*24mm
0.11kg
KV2-24010-DP2W
24V
420mA
KV2-36010-DP2W
36V
280mA
KV2-48010-DP2W
48V
210mA
15W
KV2-12015-DP2W
12V
1250mA
54*48.2*24mm
/
KV2-24015-DP2W
24V
630mA
KV2-36015-DP2W
36V
420mA
KV2-48015-DP2W
48V
310mA
20W
KV2-12020-DP2W
12V
1670mA
69.4*62.9*24mm
/
KV2-24020-DP2W
24V
830mA
KV2-36020-DP2W
36V
560mA
KV2-48020-DP2W
48V
420mA
25W
KV2-12525-DP2W
12V
2080mA
69.4*62.9*24mm
/
KV2-24025-DP2W
24V
1040mA
KV2-36025-DP2W
36V
690mA
KV2-48025-DP2W
48V
520mA
30W
KV2-12030-DP2W
12V
2500mA
74.4*66.4*24mm
/
KV2-24030-DP2W
24V
1250mA
KV2-36030-DP2W
36V
830mA
KV2-48030-DP2W
48V
630mA
40W
KV2-12040-DP2W
12V
3330mA
74.4*66.4*24mm
0.193kg
KV2-24040-DP2W
24V
1670mA
KV2-36040-DP2W
36V
1110mA
KV2-48040-DP2W
48V
830mA
Advantage
Features
Output Type:
Constant Voltage
Input Range:
120-277VAC
PFC design:
Built-in active PFC function
Efficiency:
Up to 85%
Protections:
Short circuit/Over load/ Over temperature
Heat dissipation:
Cooling by free air convection
Waterproof performance:
IP20canbeusedindoor.(EU)
Full plastic protection housing,for dry & damp locations.(US)
Design features:
1. Flicker-free dimming
2. Small volume
3. Output voltage and address can be adjusted by NFC APP.
Dimming function:
DALI-2 dimming
Dimming range:
0.1%-100%
Application:
Suitable for LED lighting and moving sign applications
Warranty:
5 years warranty
Others:
PWM output
DALI Dimmer Diagram
Connectioon Diagram for DALI Dimmer (EU):
Connection Diagram for DALI System (EU):
Connectioon Diagram for DALI Dimmer (US):
Connection Diagram for DALI System (US):
Dual safety meets versatile dimming: The DP2 series (10W-40W CV) circular plastic driver features Class 2 & Class P certification for flexible, reliable performance, precision-engineered in our Vietnam and China factory.
