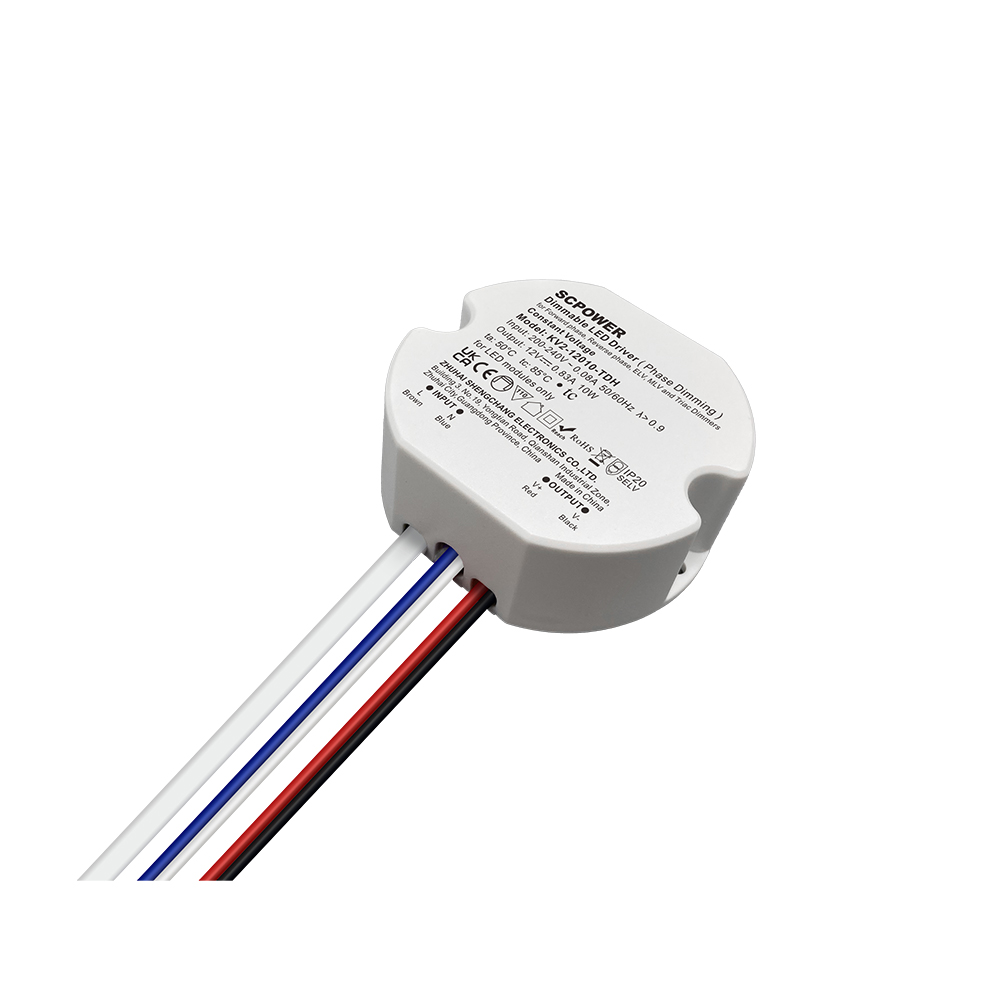

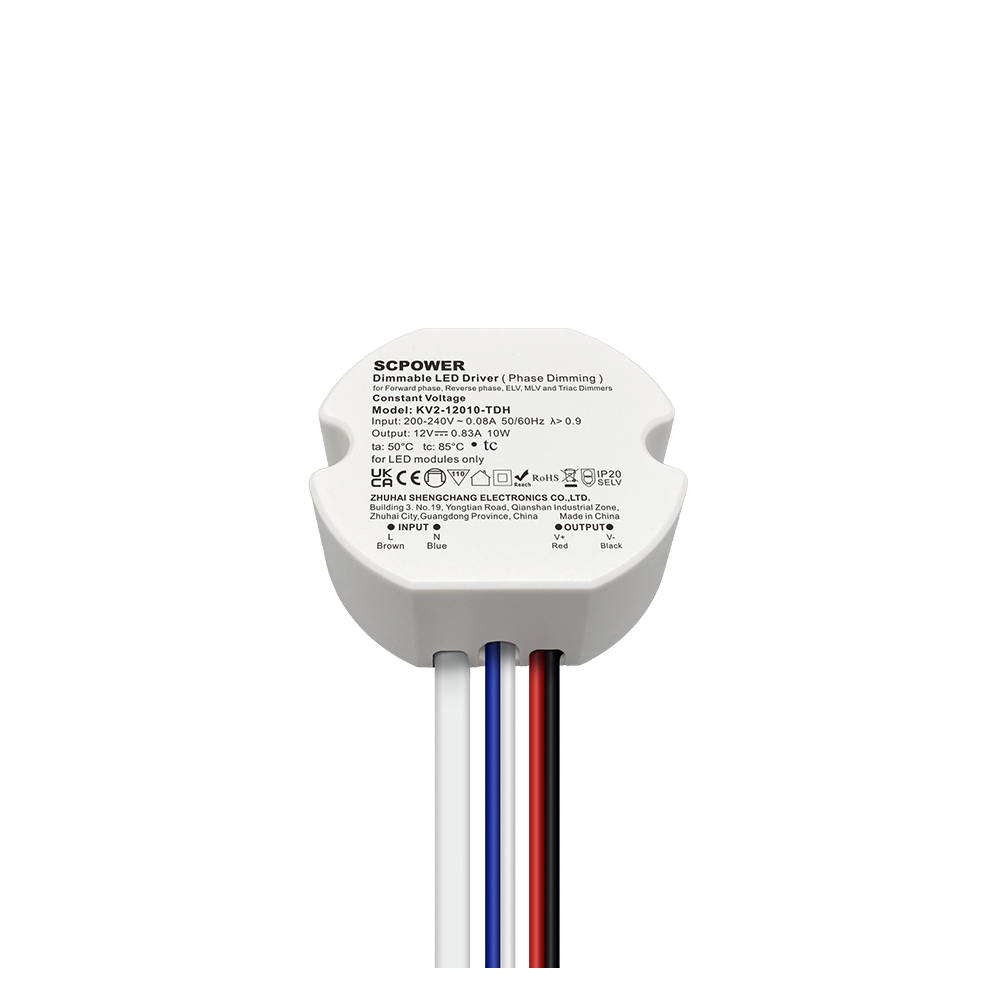

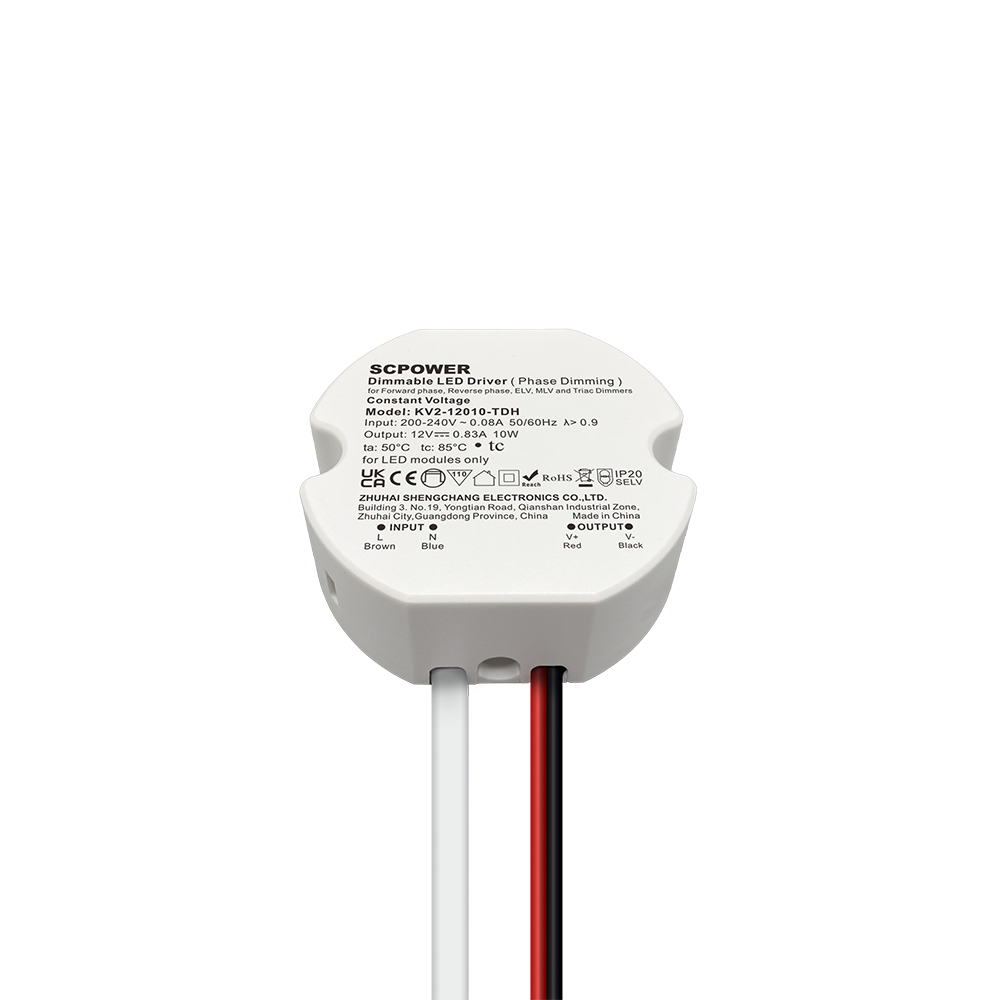

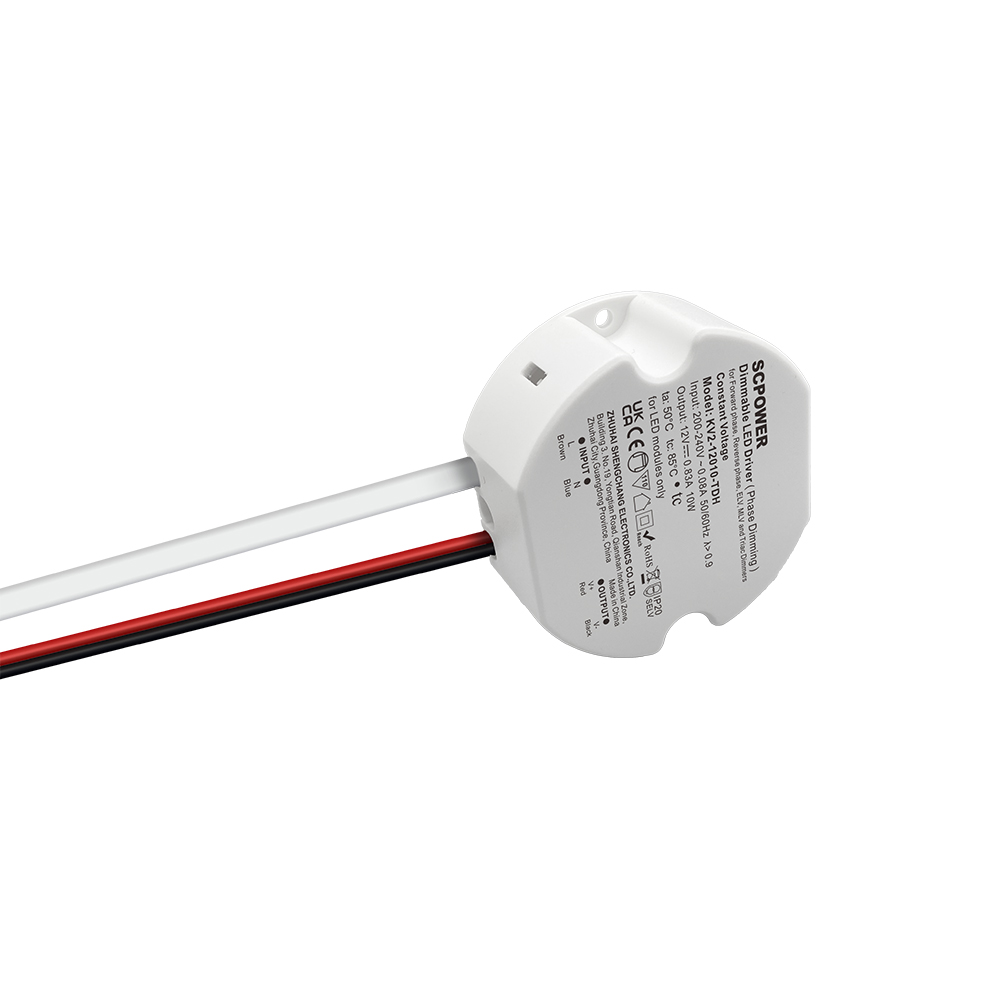

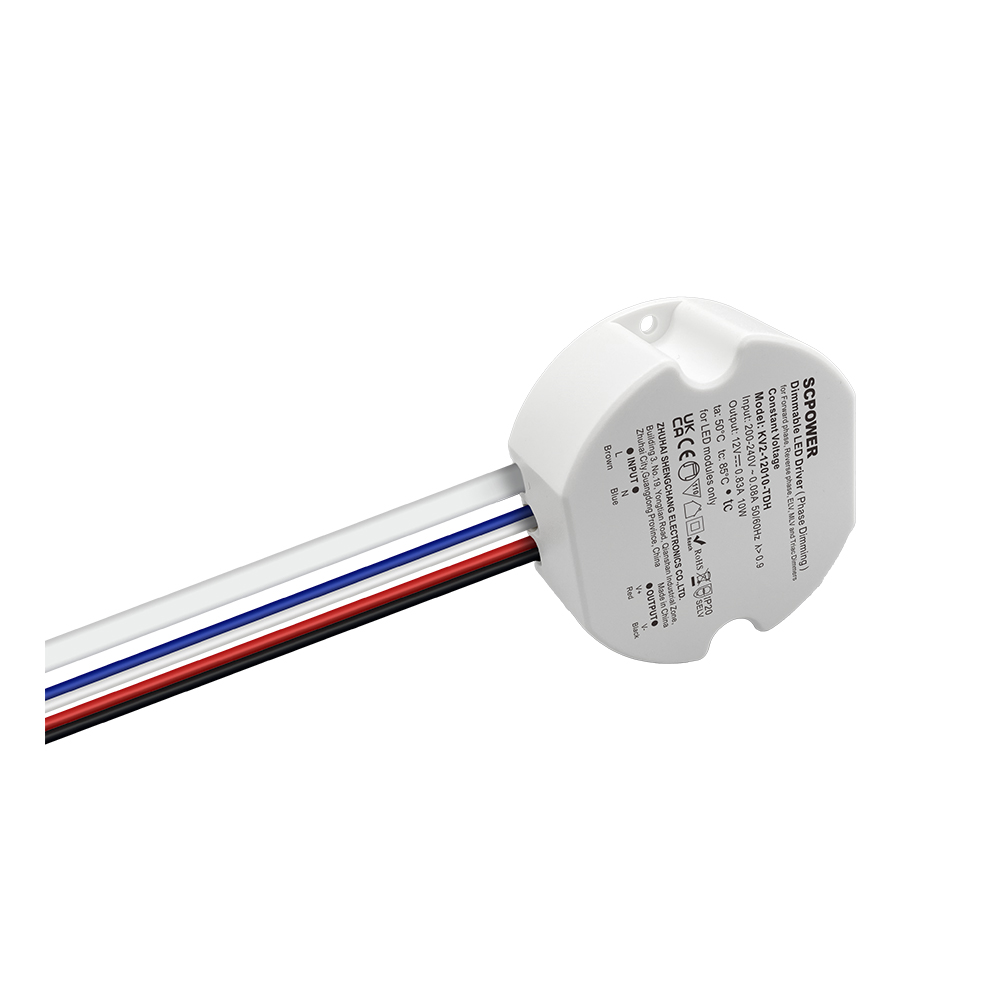

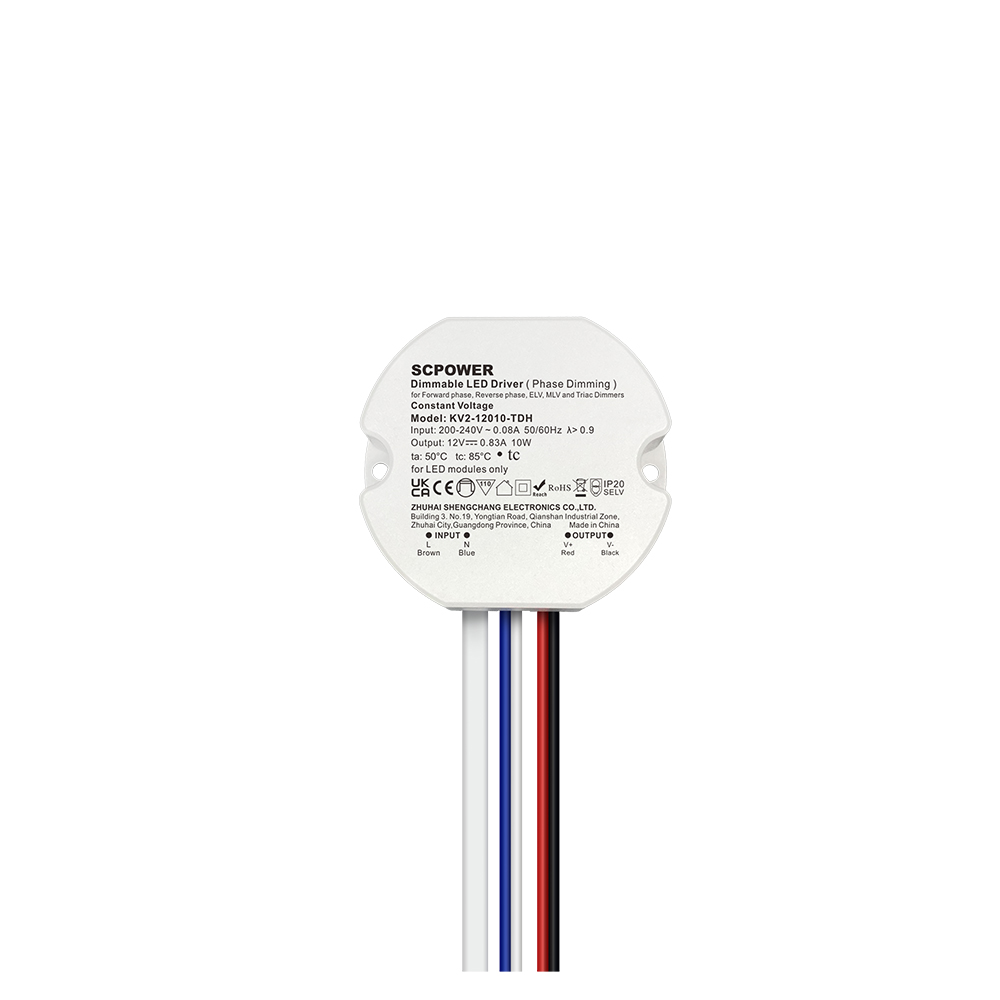

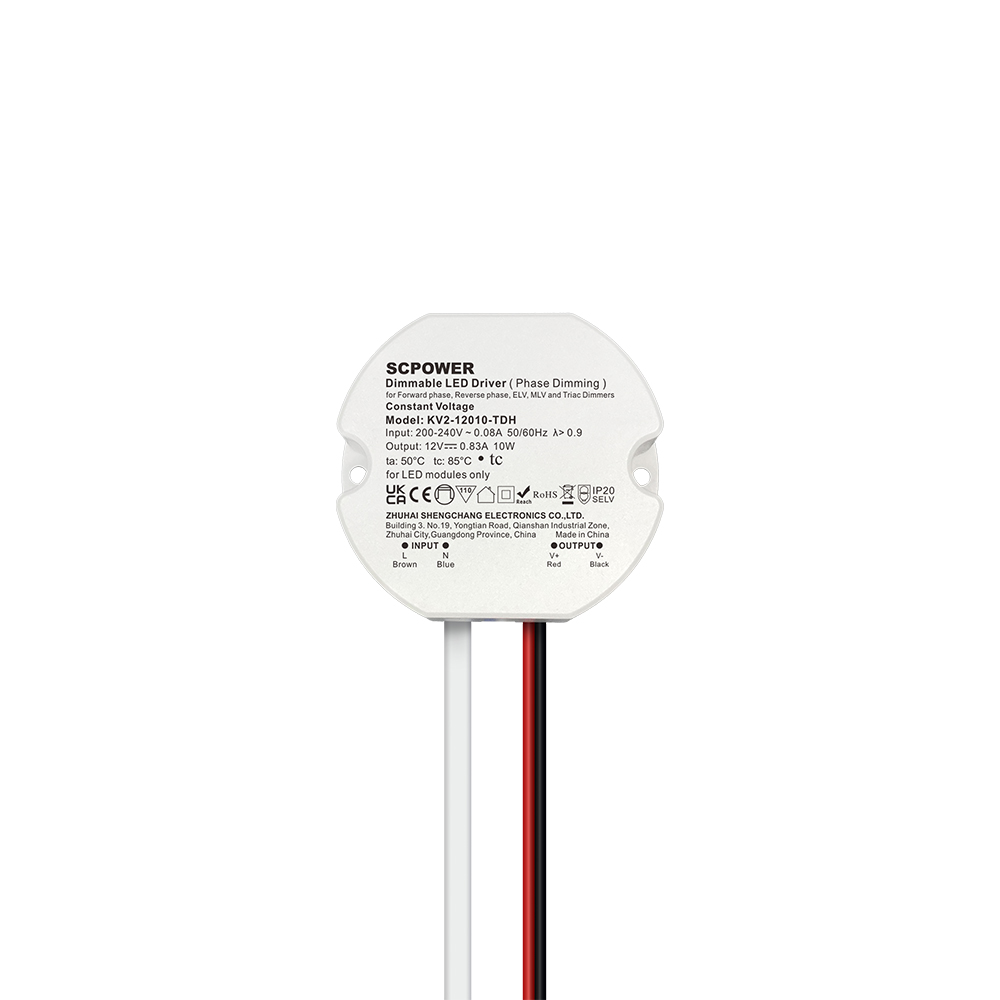

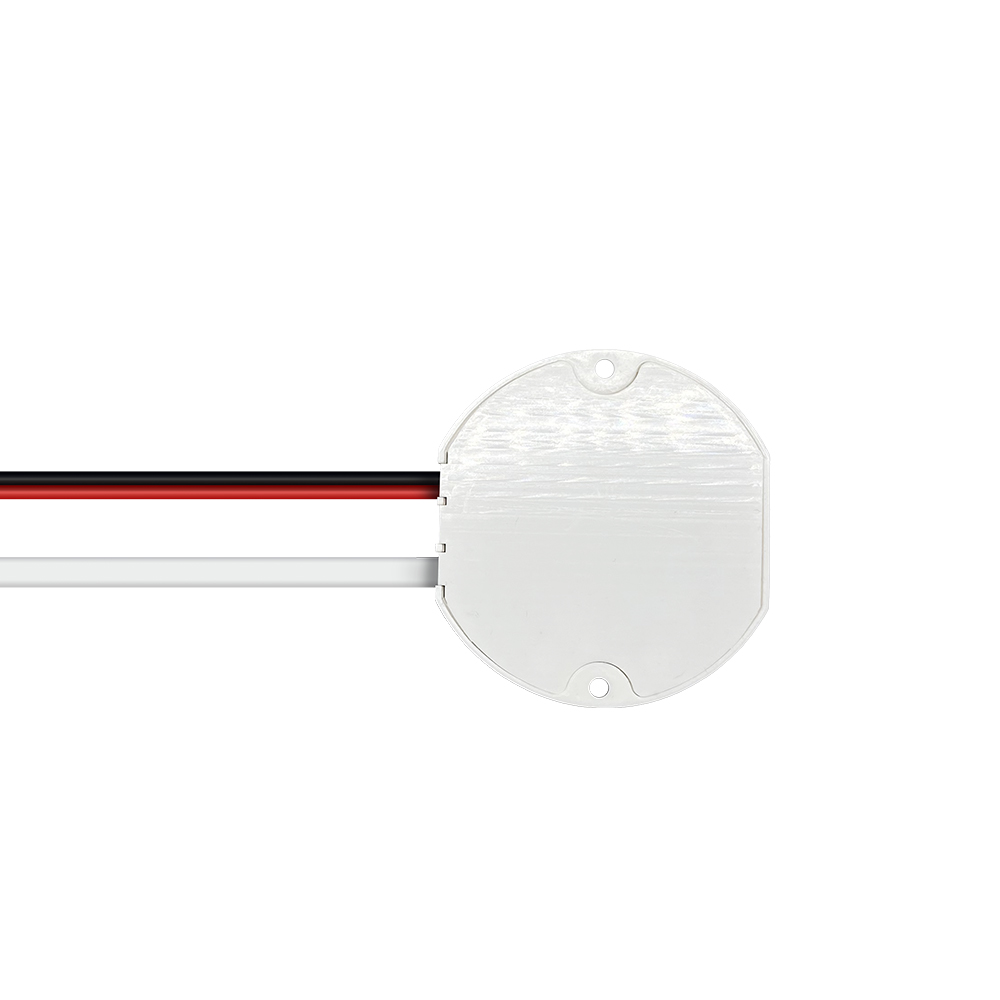

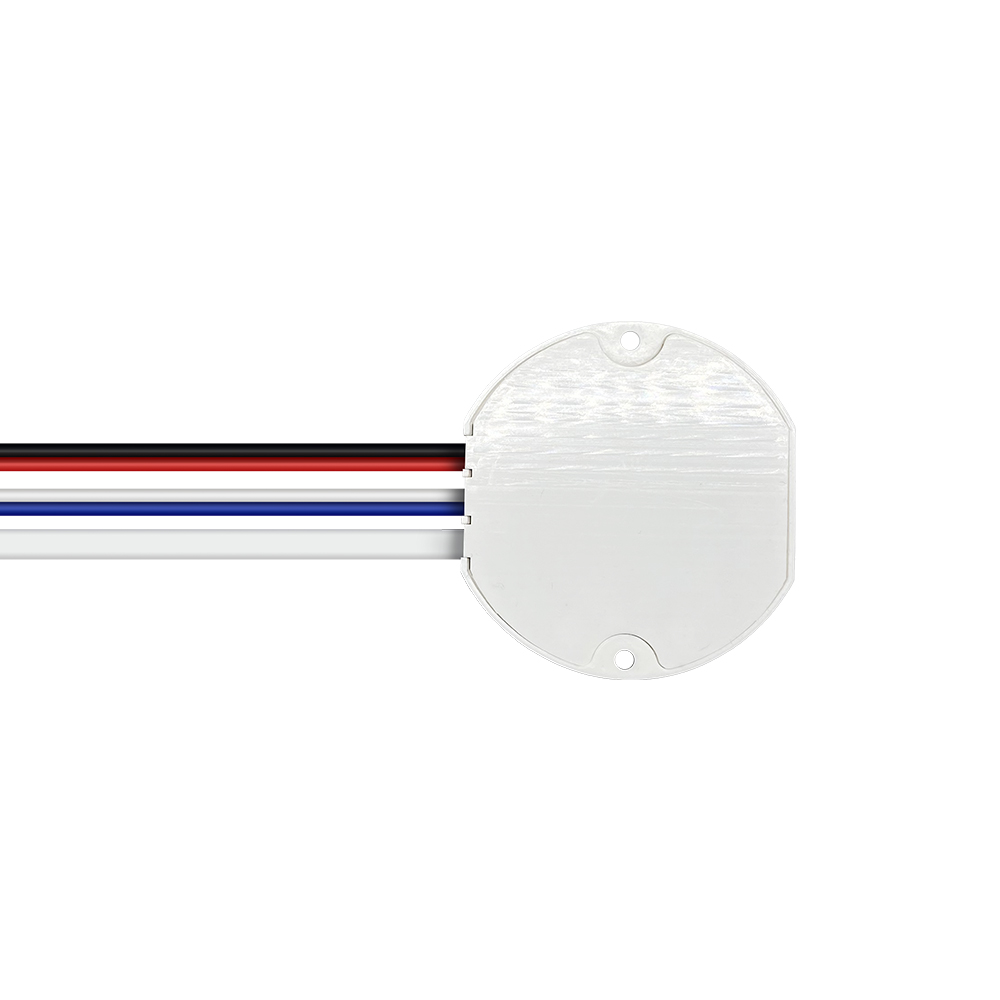

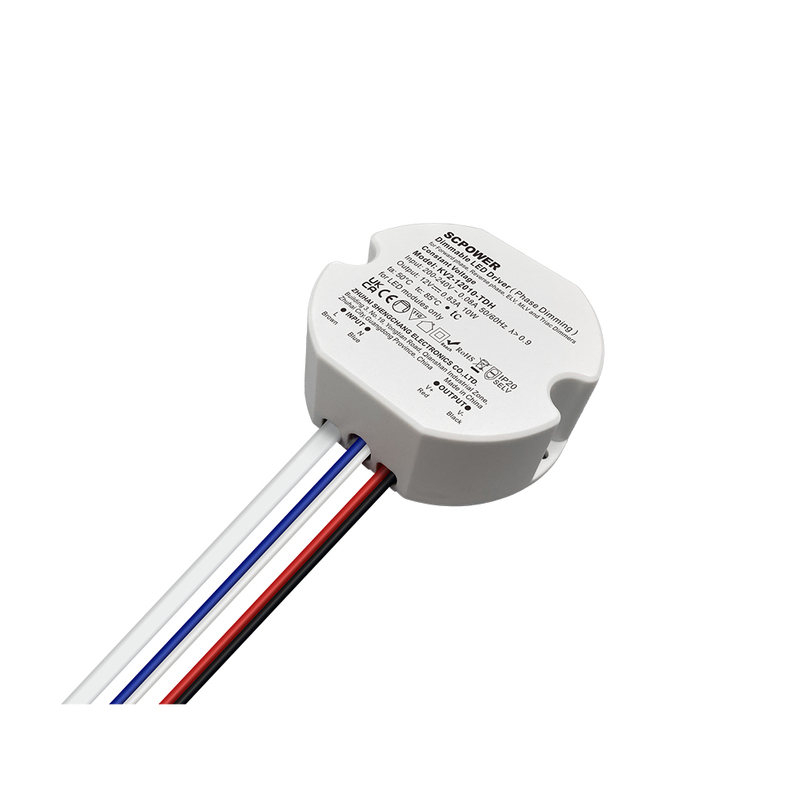

10 15 20 25 30 40 Watt CV Triac Phase-cut Dimmable LED Driver of Adjusting Output Voltage Slightly Round Driver for LED Light from China manufacturer

Products Detail

You are here: Home / Products / Triac 0-10V Dimmable LED Driver / KV2 Series 200-240VAC CV Standard / 10 15 20 25 30 40 Watt CV Triac Phase-cut Dimmable LED Driver of Adjusting Output Voltage Slightly Round Driver for LED Light

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Specification

Output Power	Model Number	Output Voltage	Output Current	Size	Weight

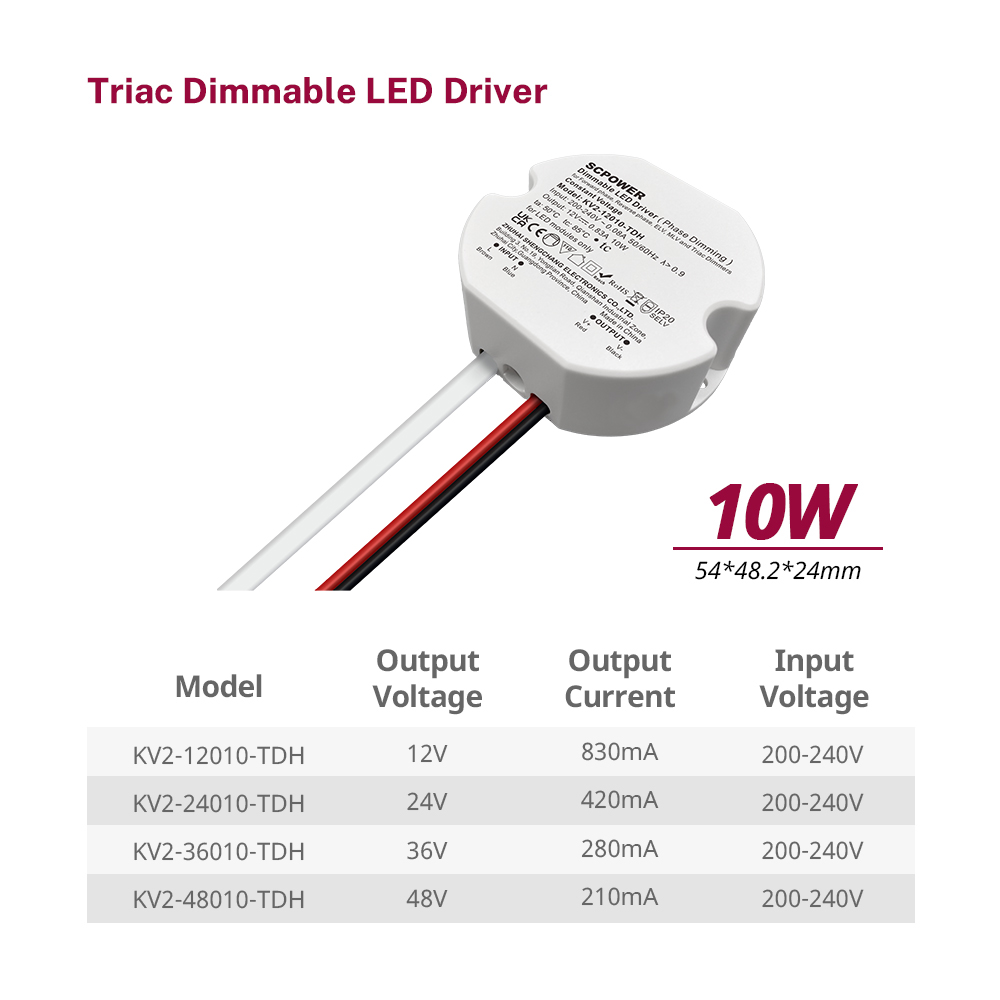

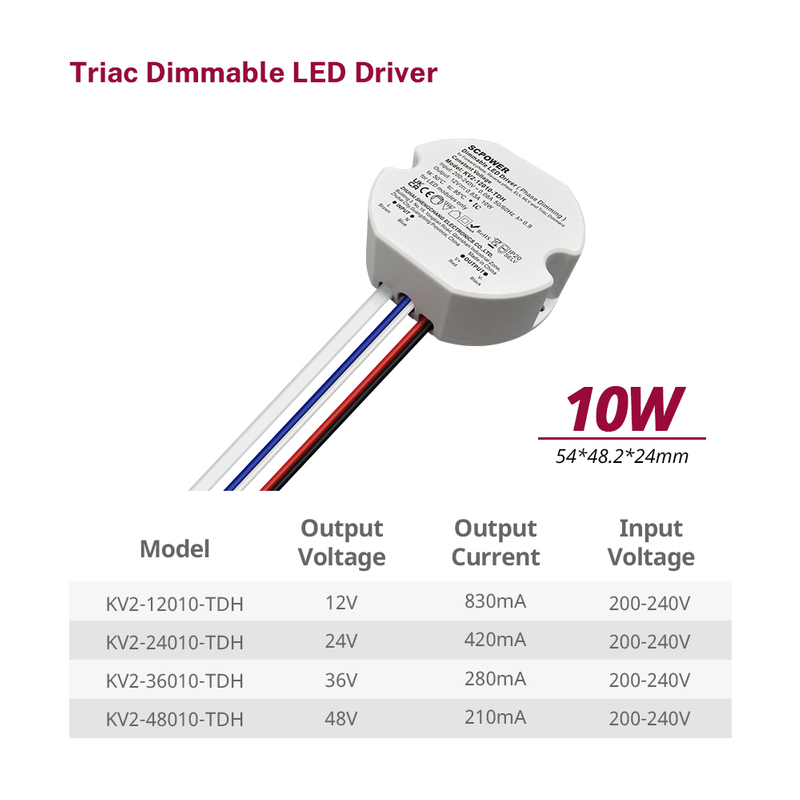

10W	KV2-12010-TDH	12V	830mA	5448.224mm	0.11kg
	KV2-24010-TDH	24V	420mA
	KV2-36010-TDH	36V	280mA
	KV2-48010-TDH	48V	210mA
15W	KV2-12015-TDH	12V	1250mA	5448.224mm	/
	KV2-24015-TDH	24V	630mA
	KV2-36015-TDH	36V	420mA
	KV2-48015-TDH	48V	310mA
20W	KV2-12020-TDH	12V	1670mA	69.462.924mm	/
	KV2-24020-TDH	24V	830mA
	KV2-36020-TDH	36V	560mA
	KV2-48020-TDH	48V	420mA
25W	KV2-12525-TDH	12V	2080mA	69.462.924mm	/
	KV2-24025-TDH	24V	1040mA
	KV2-36025-TDH	36V	690mA
	KV2-48025-TDH	48V	520mA
30W	KV2-12030-TDH	12V	2500mA	74.466.424mm	/
	KV2-24030-TDH	24V	1250mA
	KV2-36030-TDH	36V	830mA
	KV2-48030-TDH	48V	630mA
40W	KV2-12040-TDH	12V	3330mA	74.466.424mm	/
	KV2-24040-TDH	24V	1670mA
	KV2-36040-TDH	36V	1110mA
	KV2-48040-TDH	48V	830mA

Advantage

Features
Output:	Constant Voltage
Range:	220-240VAC
PFC design:	Built-in active PFC function
Efficiency:	Up to 79%
Protections:	Short circuit / Over load / Over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	IP20 can be used indoor.
Dimming function	Phase dimming: work with leading edge and trailing edge, TRIAC dimmers.
Dimming range:	0-100% dimming depth 1%
Application:	Suitable for the application of LED lighting
Warranty:	5 years warranty
Others:	Output frequency 20K Hz PWM, flicker-free

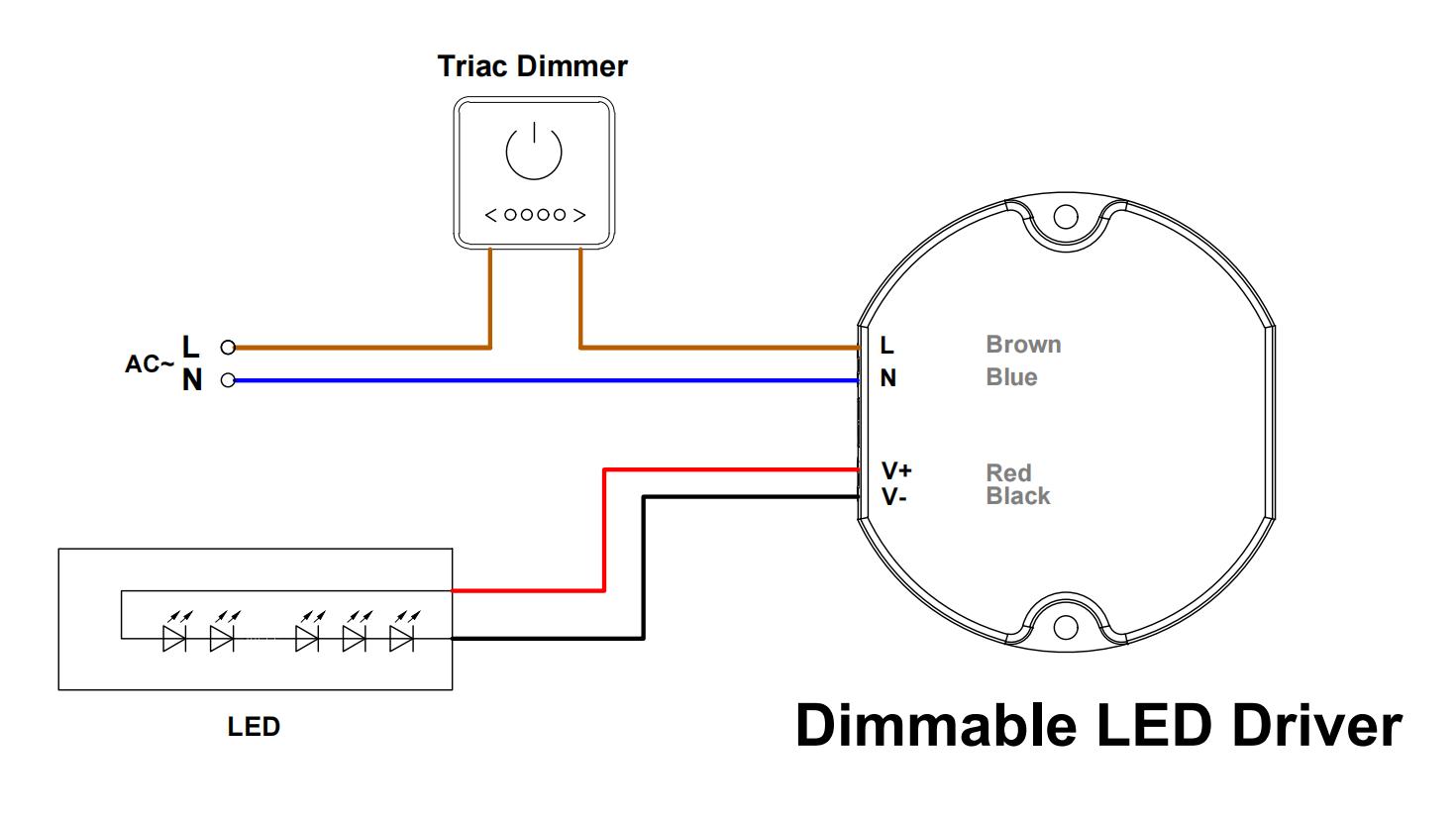

TRIAC / Phase-cut Dimming Operation and Connecting Diagram

Using one dimming -TRIAC/Phase cut dimming.

1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection.

a phase /Triac dimmer or lighting system.

2.Working with leading edge and trailing edge, TRIAC dimmers.

3.Min. loading is about 10%.

4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.

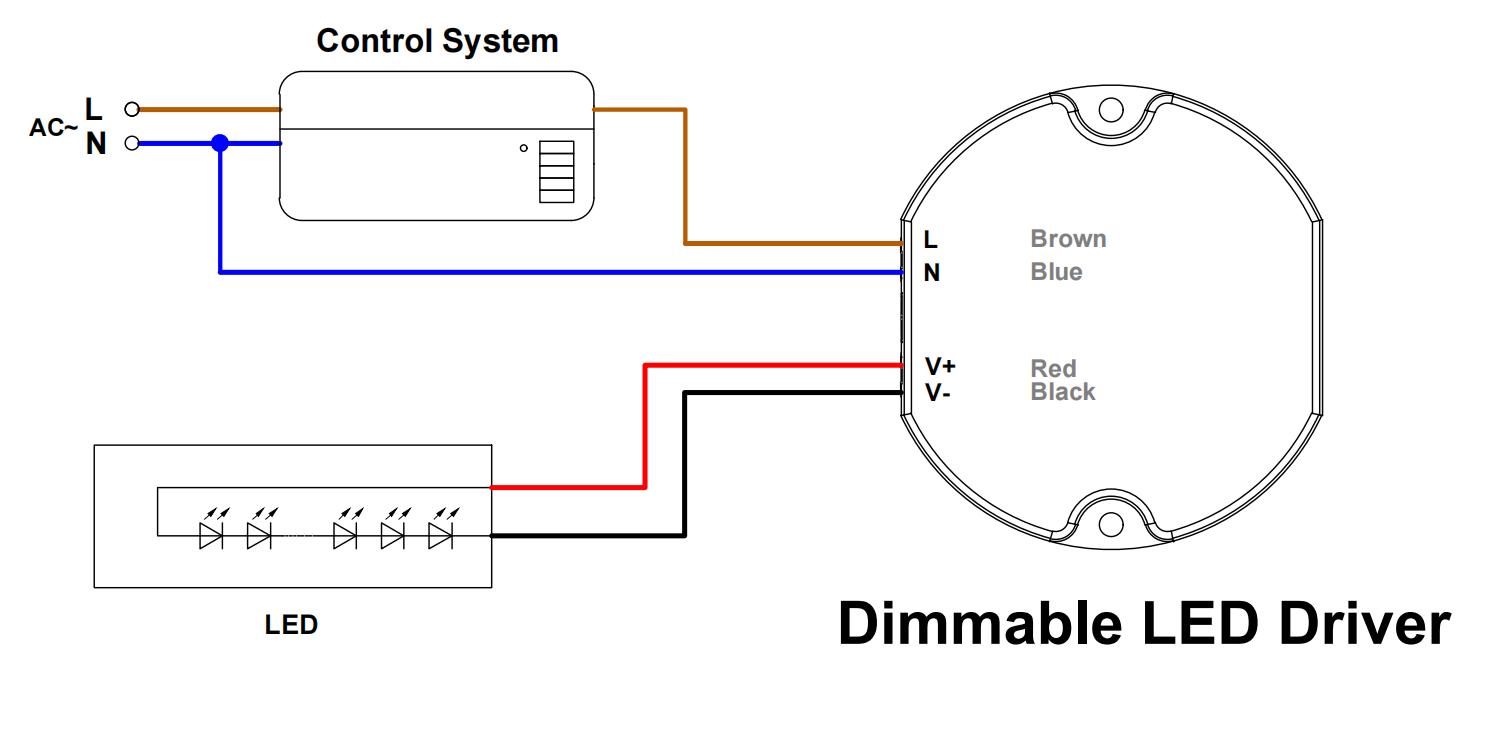

KV2-TDH Dimmable LED Driver Control System

This 10-40W CV round driver ensures seamless Triac phase-cut dimming and optimal LED performance, expertly crafted in our Vietnam and China facility for reliable, adaptable installations.
