Product Description

Specification

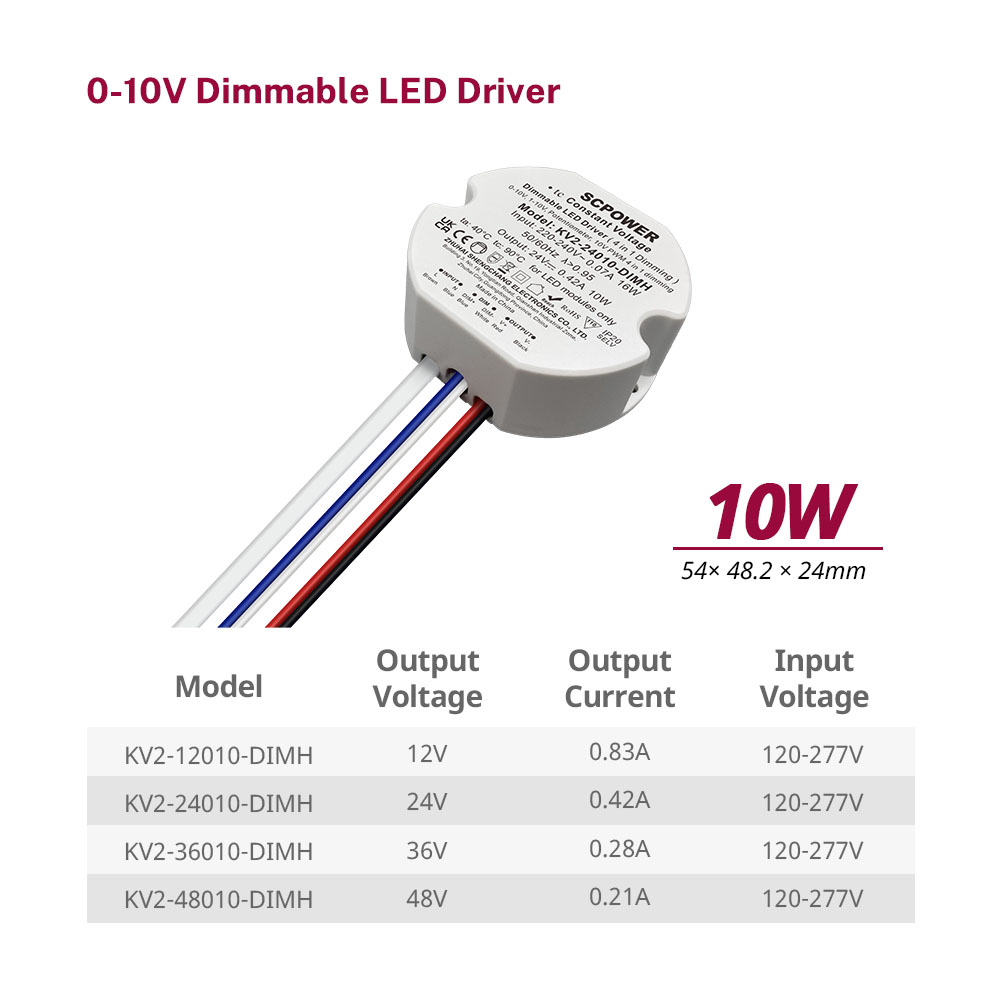

Output Power	Model Number	Output Voltage	Output Current	Size	Weight
10W	KV2-12010-DIMH	12V	830mA	5448.224mm	/
	KV2-24010-DIMH	24V	420mA
	KV2-36010-DIMH	36V	280mA
	KV2-48010-DIMH	48V	210mA
15W	KV2-12015-DIMH	12V	1250mA	5448.224mm	/
	KV2-24015-DIMH	24V	630mA
	KV2-36015-DIMH	36V	420mA
	KV2-48015-DIMH	48V	310mA
20W	KV2-12020-DIMH	12V	1670mA	69.462.924mm	/
	KV2-24020-DIMH	24V	830mA
	KV2-36020-DIMH	36V	560mA
	KV2-48020-DIMH	48V	420mA
25W	KV2-12525-DIMH	12V	2080mA	69.462.924mm	/
	KV2-24025-DIMH	24V	1040mA
	KV2-36025-DIMH	36V	690mA
	KV2-48025-DIMH	48V	520mA
30W	KV2-12030-DIMH	12V	2500mA	74.466.424mm	/
	KV2-24030-DIMH	24V	1250mA
	KV2-36030-DIMH	36V	830mA
	KV2-48030-DIMH	48V	630mA

Advantage

10 15 20 25 30 40 Watt Constant Voltage 0-10V 1-10V 4 in 1 Dimmable LED Driver PWM Output Round Shape

Features
Output:	Constant Current
Range:	220-240VAC
PFC design:	Built-in active PFC function
Efficiency:	Up to 79%
Protections:	Short circuit / Over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	For dry and damp location
Dimming function:	0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range:	1-100%
Application:	Suitable for LED lighting and moving sign applications
Warranty:	5 years warranty

Suretron 10W-50W round LED drivers compatible with Triac, 0-10V, DALI & DMX dimming for indoor lighting.

0-10/ 1-10V/ 10V PWM/ Potentiometer Dimming Diagram

LED driver with multiple dimming options including 0-10V, 1-10V, PWM, and potentiometer control for flexible lighting adjustment. This 0-10V/PWM dimming interface supports flexible brightness regulation through external controllers or manual potentiometers.

Compatible with standard analog and PWM dimming signals for smooth, flicker-free LED light control.

Precision dimming with PWM smoothness: Our 10-40W CV round driver supports 0-10V & 1-10V protocols for versatile 4-in-1 control, ensuring flicker-free performance and precise light adjustment, expertly manufactured in Vietnam and China.
