10 15 20 30 40 50 Watt Constant Current Triac 0-10V 5 in 1 Dimmable LED Driver 3-42V Out put Circular Driver
Features
Output:
Constant Current
Range:
220-240VAC
PFC design:
Built-in active PFC function
Efficiency:
Up to 80%
Protections:
Short circuit / Over temperature
Heat dissipation:
Cooling by free air convection
Waterproof performance:
IP20
Dimming function:
Phase dimming: work withleading edgeand trailing edge, TRIAC dimmers.
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range:
1-100%
Application:
Suitable for the application of LED lighting
Warranty:
5 years warranty

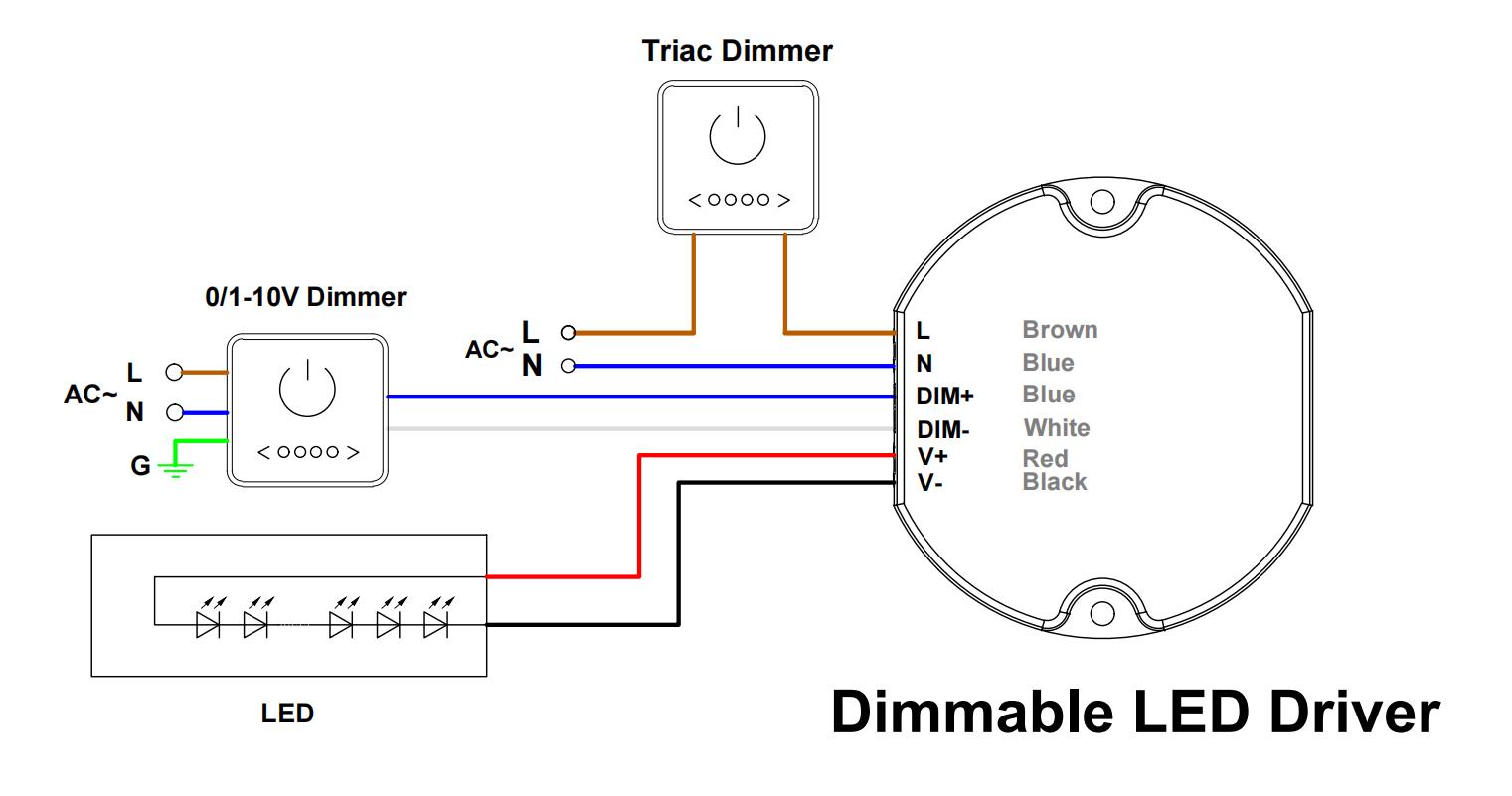

TRIAC / Phase-cut Dimming Operation and Connecting Diagram
Using one dimming -TRIAC/Phase cut dimming.
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection.
a phase /Triac dimmer or lighting system.
2.Working with leading edge and trailing edge, TRIAC dimmers.
3.Min. loading is about 10%.
4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Optimize your LED projects with versatile 5-in-1 dimming. This 10-50W constant current circular driver delivers a wide 3-42V output for flexible fixture matching and smooth Triac/0-10V control, precisely engineered in our Vietnam facility for reliable, professional-grade performance.
Specification
Output Power
Model Number
Output Voltage
Output Current
Size
Weight

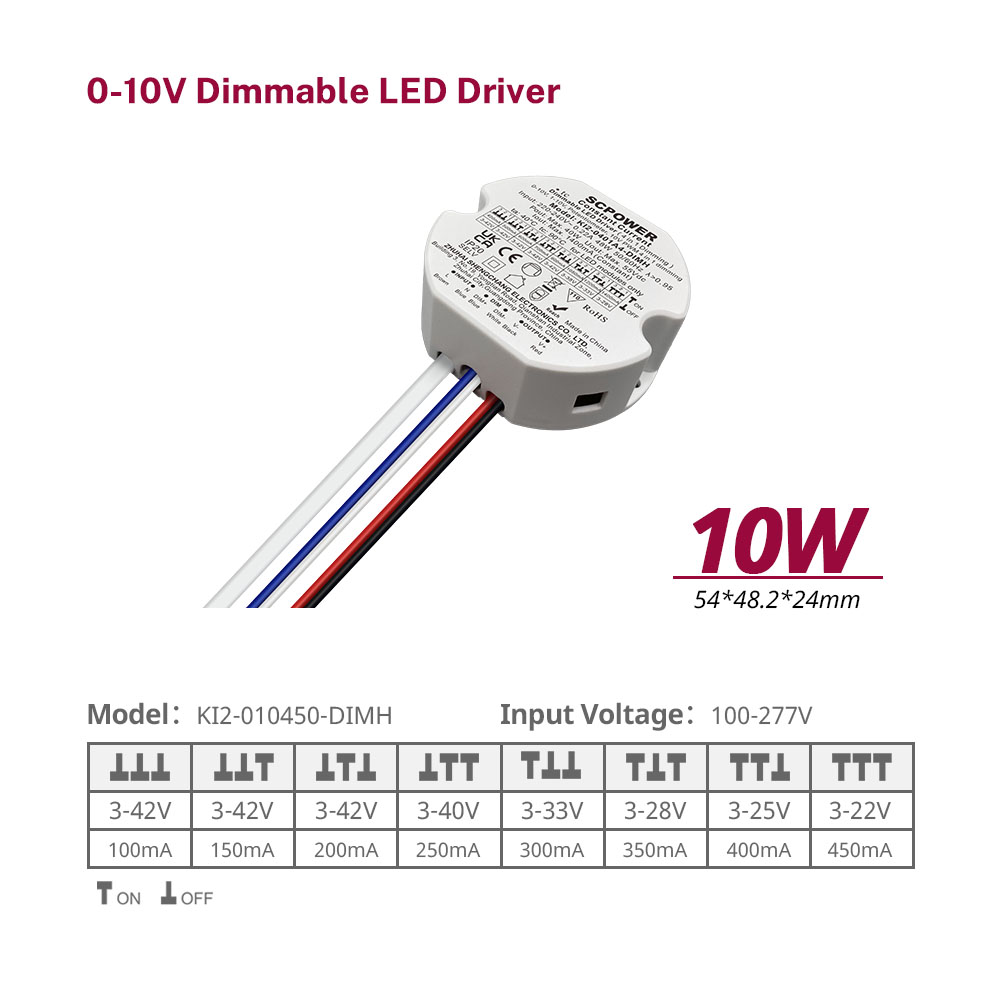

10W
KI2-010450-TMH
3-42V
100mA
54*48.2*24mm
0.083kg
3-42V
150mA
3-42V
200mA
3-40V
250mA
3-33V
300mA
3-29V
350mA
3-25V
400mA
3-22V
450mA
15W
KI2-015500-TMH
3-42V
150mA
54*48.2*24mm
0.083kg
3-42V
200mA
3-42V
250mA
3-42V
300mA
3-42V
350mA
3-37V
400mA
3-33V
450mA
3-30V
500mA
20W
KI2-020700-TMH
3-42V
250mA
64.4*58.4*24mm
0.11kg
3-42V
350mA
3-42V
400mA
3-42V
450mA
3-40V
500mA
3-36V
550mA
3-33V
600mA
3-29V
700mA
30W
KI2-0301A05-TMH
3-42V
300mA
64.4*58.4*24mm
/
3-42V
400mA
3-42V
500mA
3-42V
600mA
3-42V
700mA
3-37V
800mA
3-33V
900mA
3-28V
1050mA
40W
KI2-0401A4-TMH
3-42V
400mA
74.4*66.4*24mm
/
3-42V
500mA
3-42V
600mA
3-42V
700mA
3-42V
900mA
3-38V
1050mA
3-33V
1200mA
3-29V
1400mA
50W
KI2-0501A75-TMH
3-42V
600mA
74.4*66.4*24mm
/
3-42V
700mA
3-42V
900mA
3-42V
1050mA
3-41V
1200mA
3-37V
1350mA
3-33V
1500mA
3-29V
1750mA
Advantage
