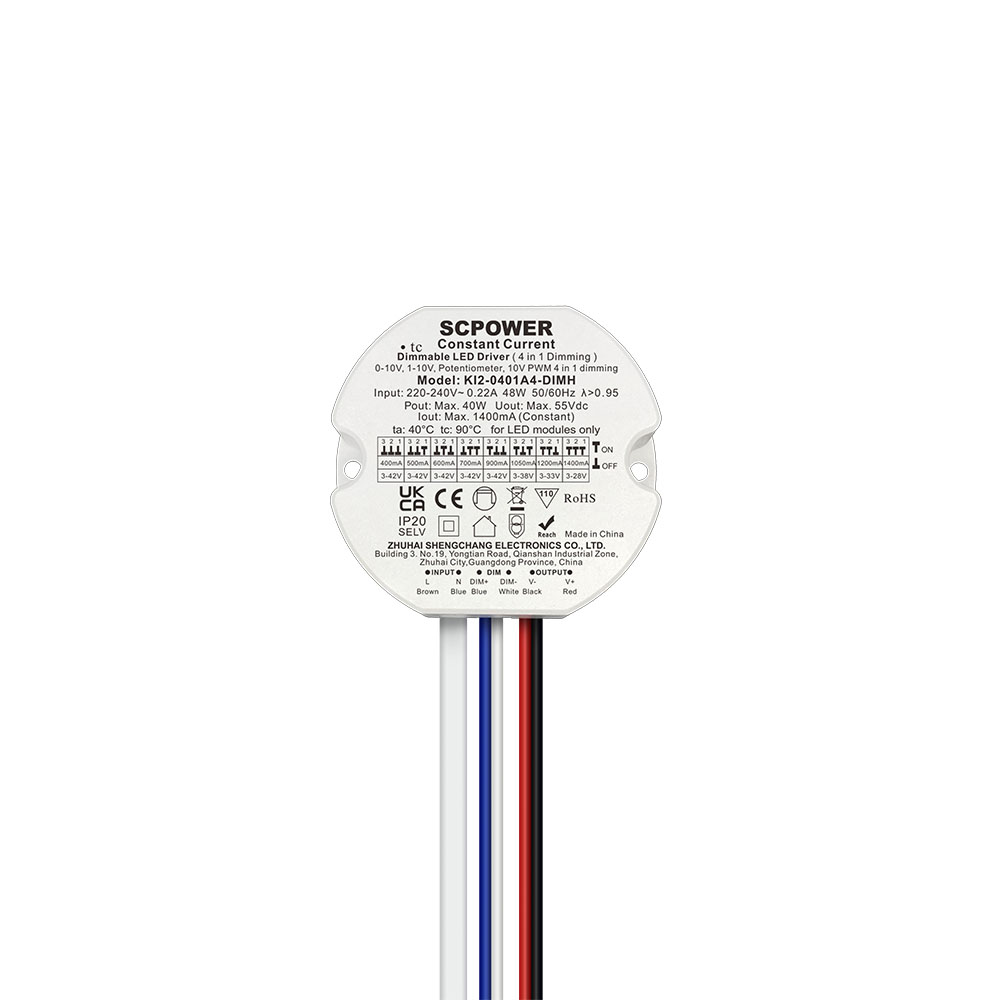

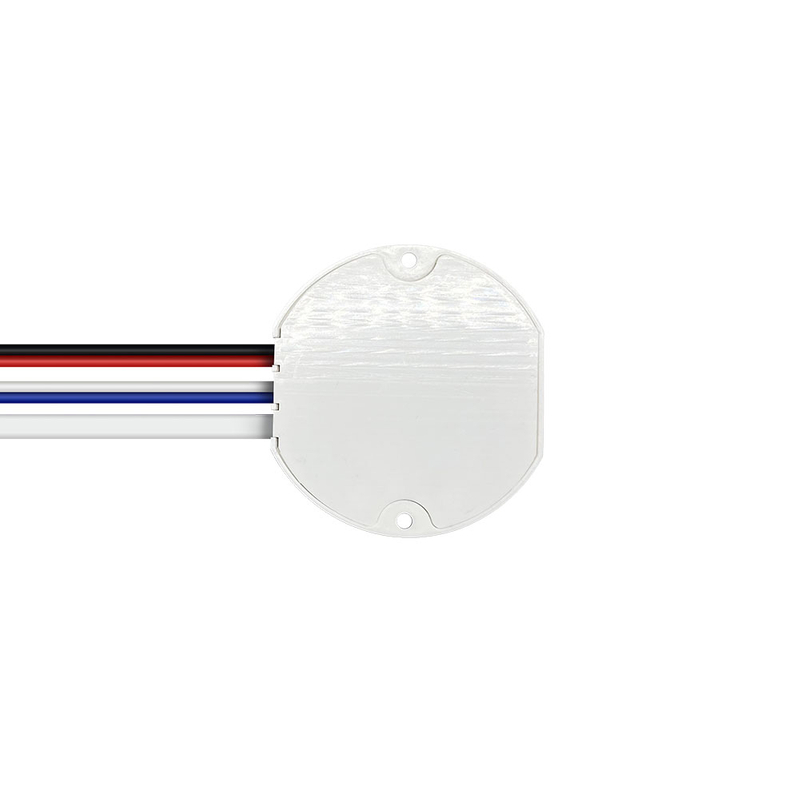

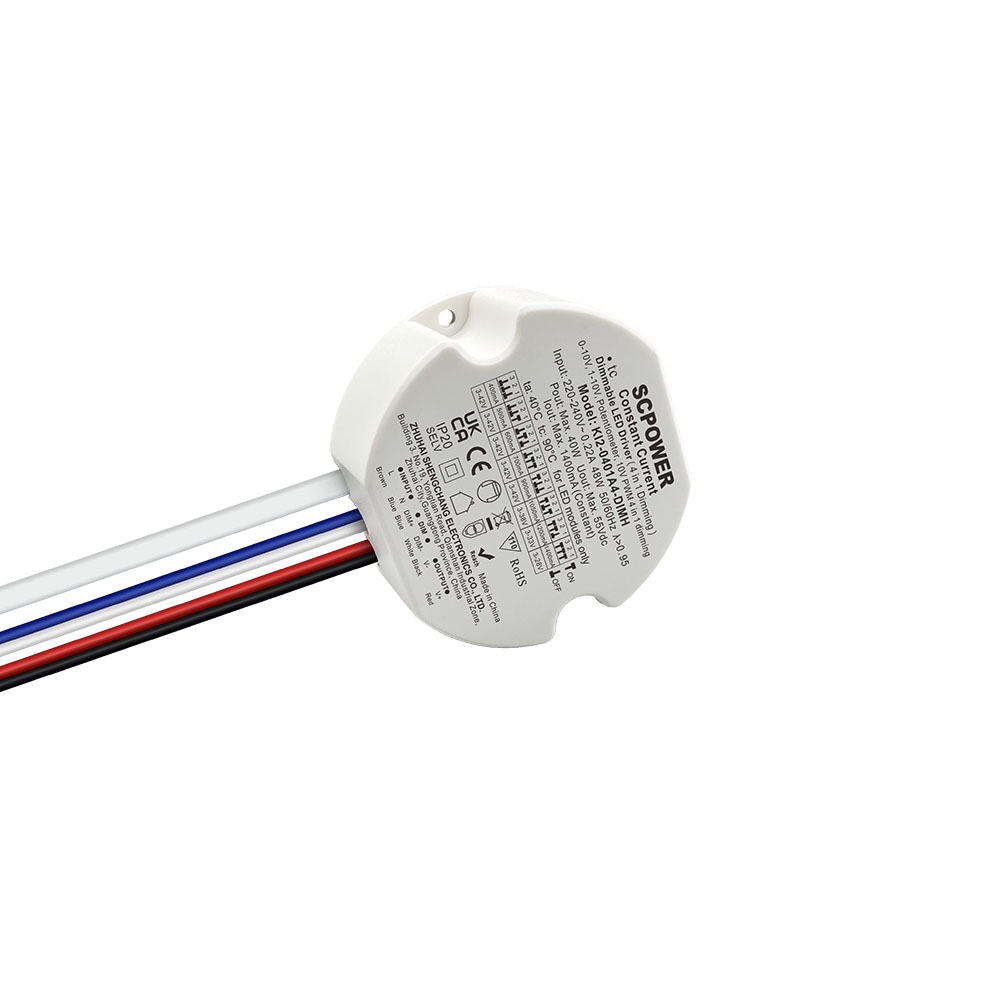

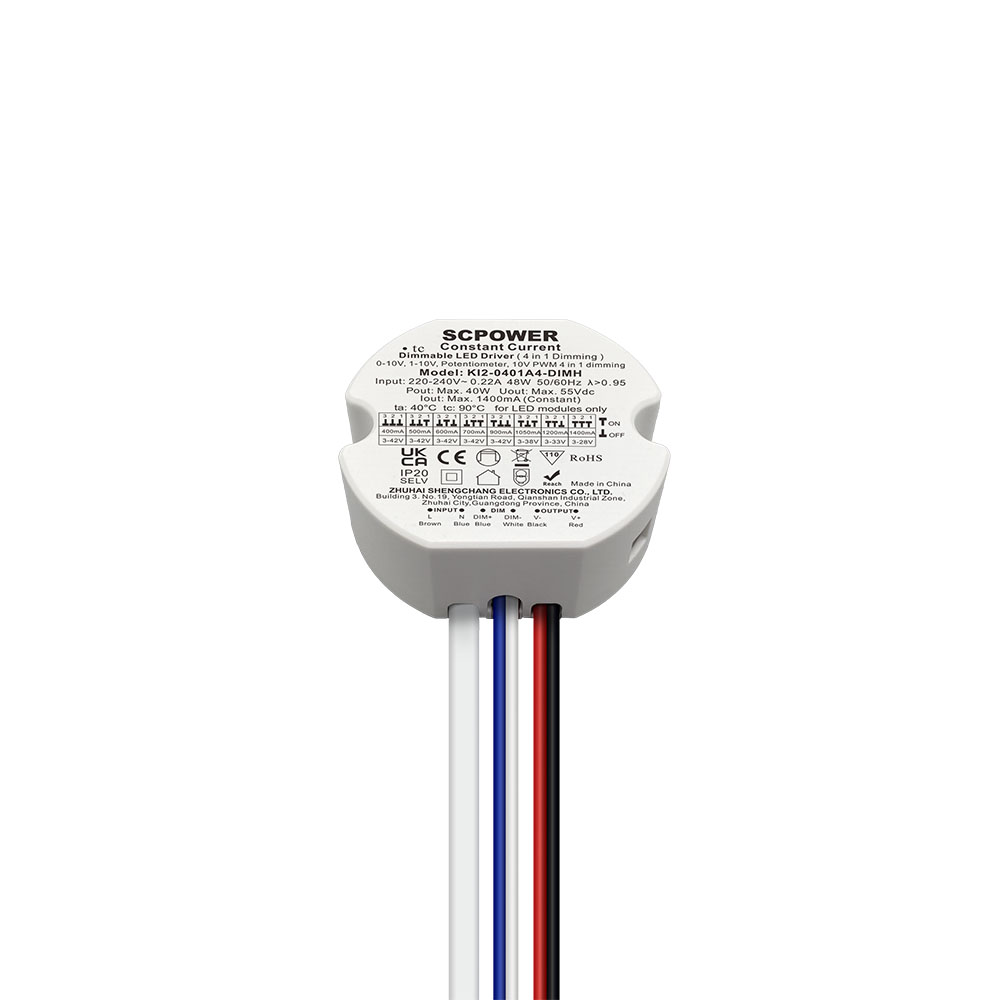

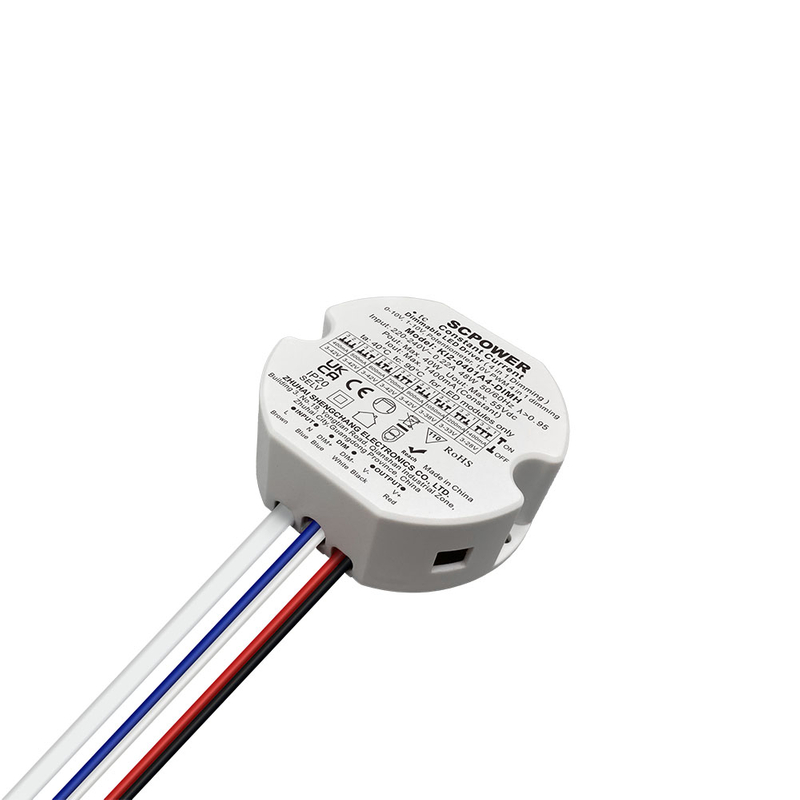

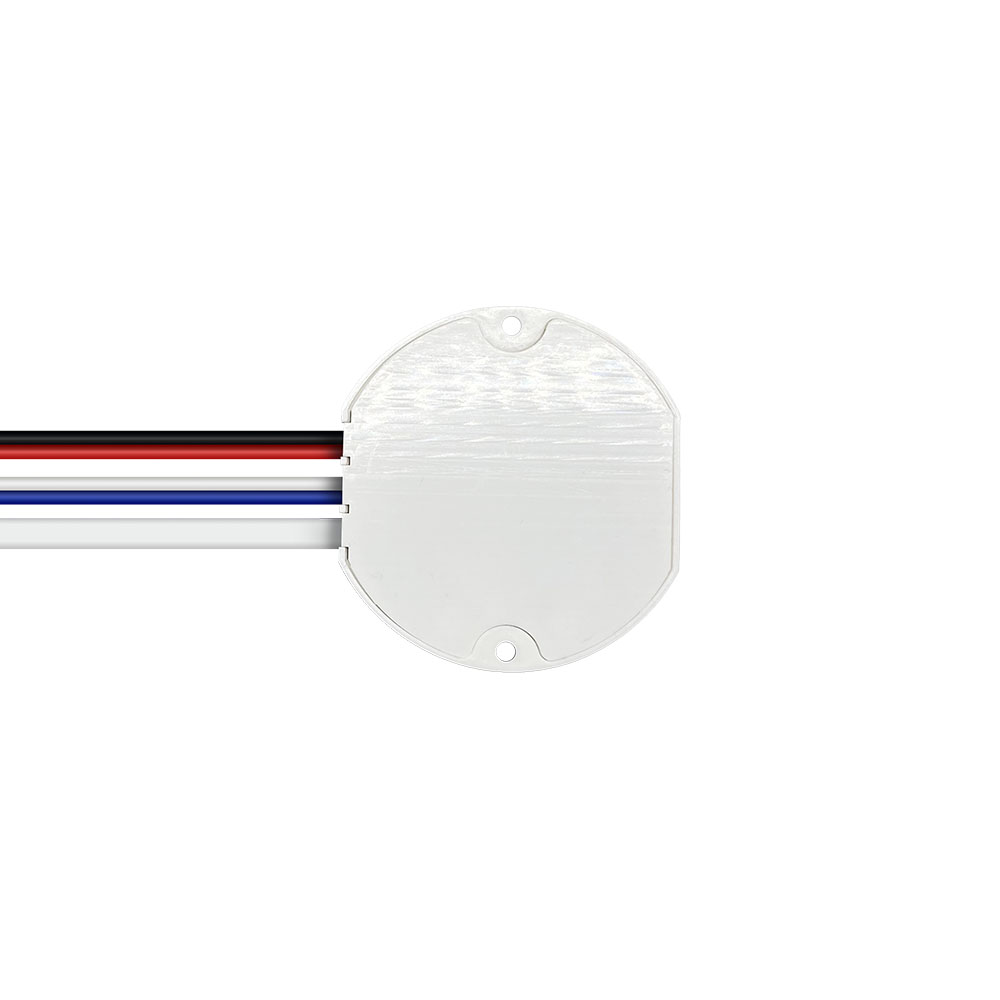

10 15 20 30 40 50 Watt 0-10V 4 in 1 Constant Current Dimmable LED Driver Lighting with Round Shape Driver from China manufacturer

Products Detail

You are here: Home / Products / 0-10V Dimmable LED Driver / Constant Current / 10 15 20 30 40 50 Watt 0-10V 4 in 1 Constant Current Dimmable LED Driver Lighting with Round Shape Driver

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Description

Specification

Output Power	Model Number	Output Voltage	Output Current	Size	Weight

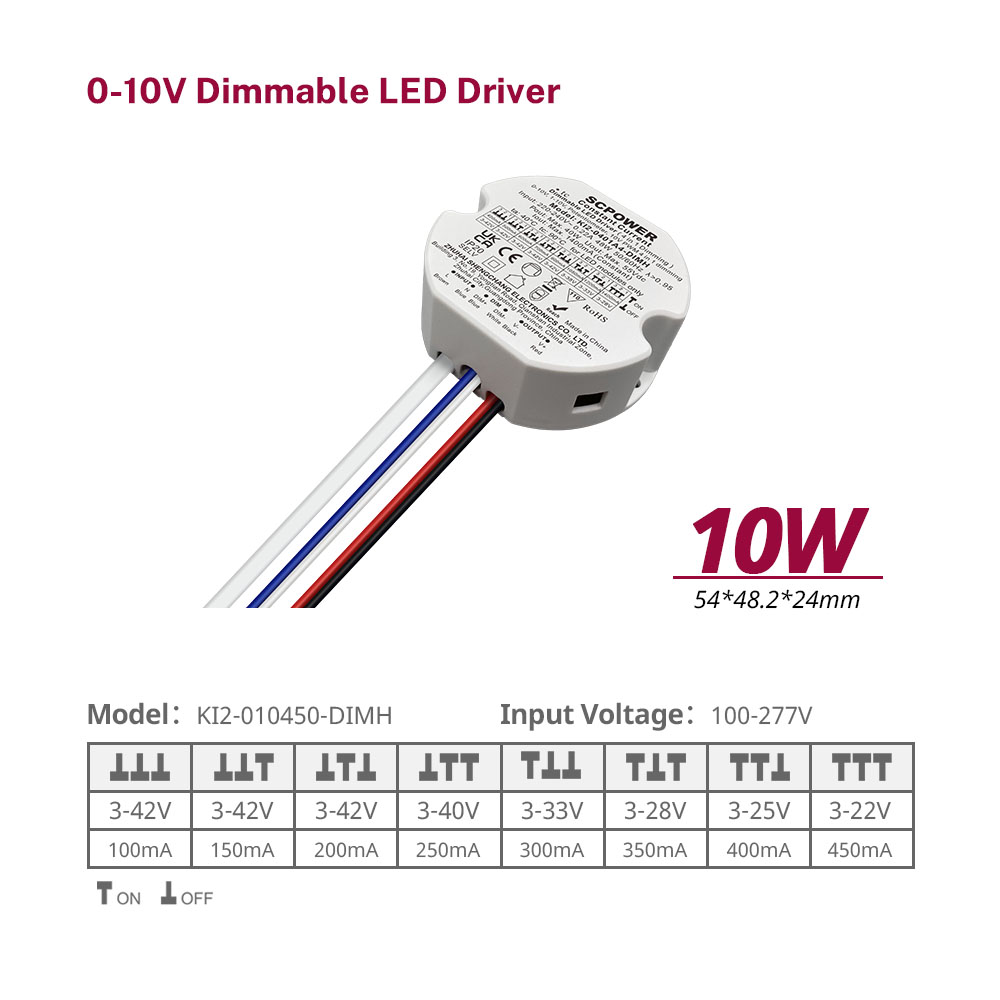

10W	KI2-010450-DIMH	3-42V	100mA	5448.224mm	0.083kg
		3-42V	150mA
		3-42V	200mA
		3-40V	250mA
		3-33V	300mA
		3-29V	350mA
		3-25V	400mA
		3-22V	450mA
15W	KI2-015500-DIMH	3-42V	150mA	5448.224mm	0.083kg
		3-42V	200mA
		3-42V	250mA
		3-42V	300mA
		3-42V	350mA
		3-37V	400mA
		3-33V	450mA
		3-30V	500mA
20W	KI2-020700-DIMH	3-42V	250mA	64.458.424mm	0.11kg
		3-42V	350mA
		3-42V	400mA
		3-42V	450mA
		3-40V	500mA
		3-36V	550mA
		3-33V	600mA
		3-29V	700mA
30W	KI2-0301A05-DIMH	3-42V	300mA	64.458.424mm	/
		3-42V	400mA
		3-42V	500mA
		3-42V	600mA
		3-42V	700mA
		3-37V	800mA
		3-33V	900mA
		3-28V	1050mA
40W	KI2-0401A4-DIMH	3-42V	400mA	74.466.424mm	/
		3-42V	500mA
		3-42V	600mA
		3-42V	700mA
		3-42V	900mA
		3-38V	1050mA
		3-33V	1200mA
		3-29V	1400mA
50W	KI2-0501A75-DIMH	3-42V	600mA	74.466.424mm	/
		3-42V	700mA
		3-42V	900mA
		3-42V	1050mA
		3-41V	1200mA
		3-37V	1350mA
		3-33V	1500mA
		3-29V	1750mA

Advantage

10 15 20 30 40 50 Watt 0-10V 4 in 1 Constant Current Dimmable LED Driver Lighting with Round Shape Driver

Features
Output:	Constant Current
Range:	220-240VAC
PFC design:	Built-in active PFC function
Efficiency:	Up to 81%
Protections:	Short circuit / Over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	IP20. (EU) Full plastic protection housing, for dry and damp locations. (US)
Dimming function:	0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range:	1-100%
Application:	Suitable for the application of LED lighting
Warranty:	5 years warranty

Suretron 10W-50W round LED drivers compatible with Triac, 0-10V, DALI & DMX dimming for indoor lighting.

0-10/ 1-10V/ 10V PWM/ Potentiometer Dimming Diagram

LED driver with multiple dimming options including 0-10V, 1-10V, PWM, and potentiometer control for flexible lighting adjustment. This 0-10V/PWM dimming interface supports flexible brightness regulation through external controllers or manual potentiometers.

Compatible with standard analog and PWM dimming signals for smooth, flicker-free LED light control.

Master dimming versatility with reliable performance. This 10-50W constant current, 4-in-1 round driver delivers smooth 0-10V control for uniform lighting, engineered in our Vietnam facility for consistent quality and easy integration.
