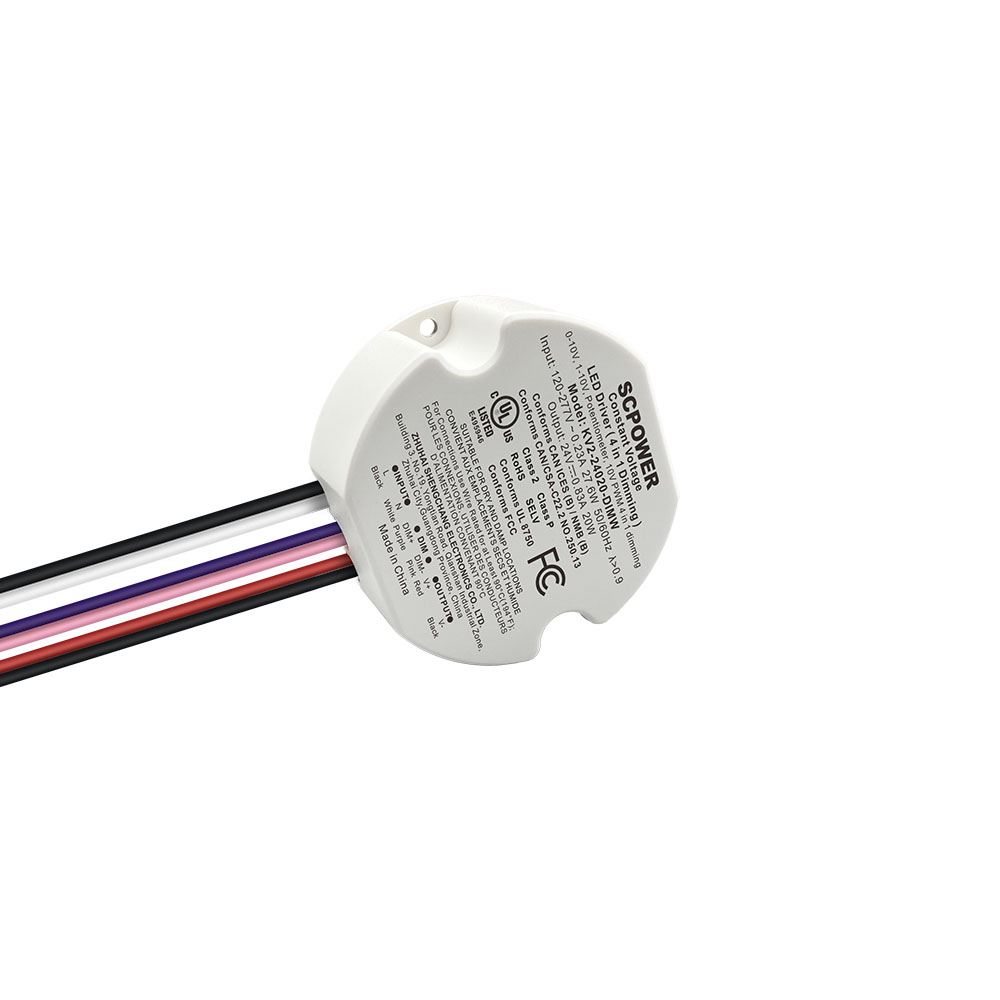

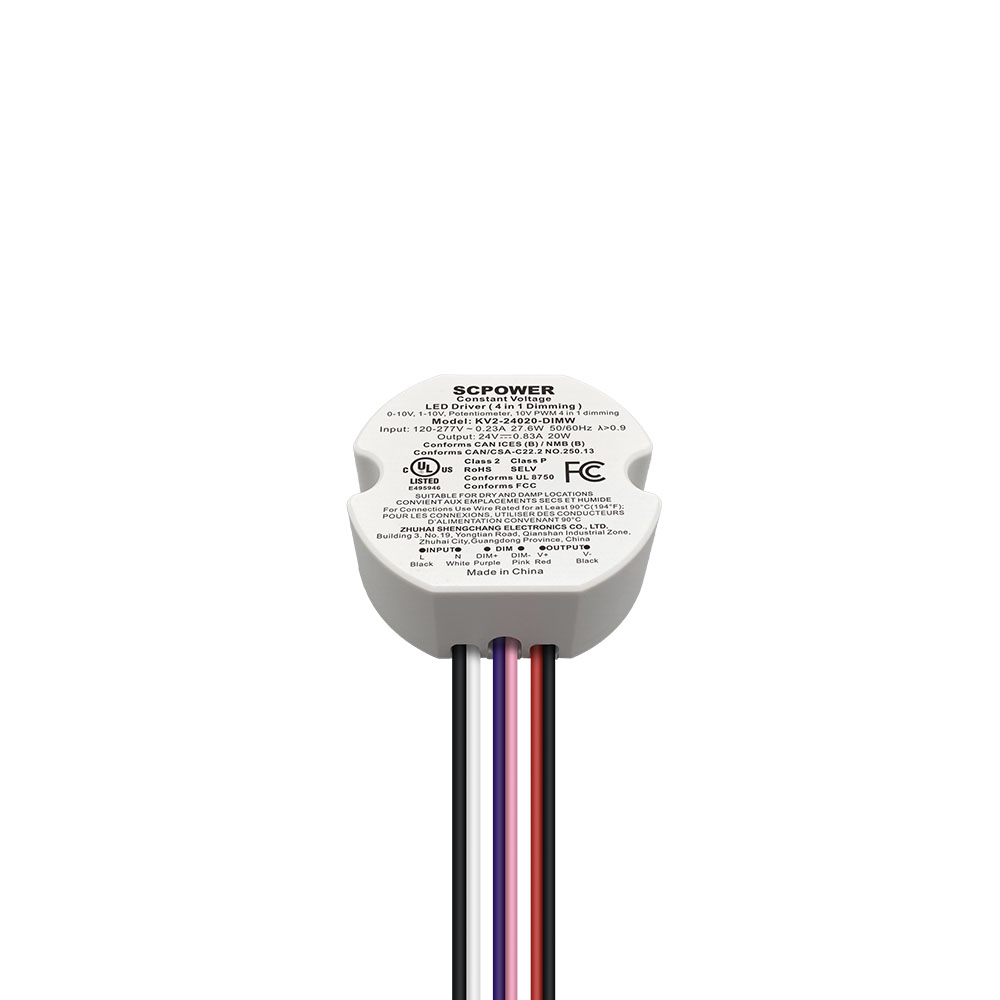

10W 15W 20W 25W 30W 0-10V 4 in 1 Dimmable LED Driver Circular Constant Voltage LED Light Driver in Vietnam from China manufacturer

Products Detail

You are here: Home / Products / Triac 0-10V Dimmable LED Driver / KV2 Series 100-277VAC CV Standard / 10W 15W 20W 25W 30W 40W 0-10V 4 in 1 Dimmable LED Driver Circular Constant Voltage LED Light Driver in Vietnam

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Specification

Output Power	Model Number	Output Voltage	Output Current	Size	Weight

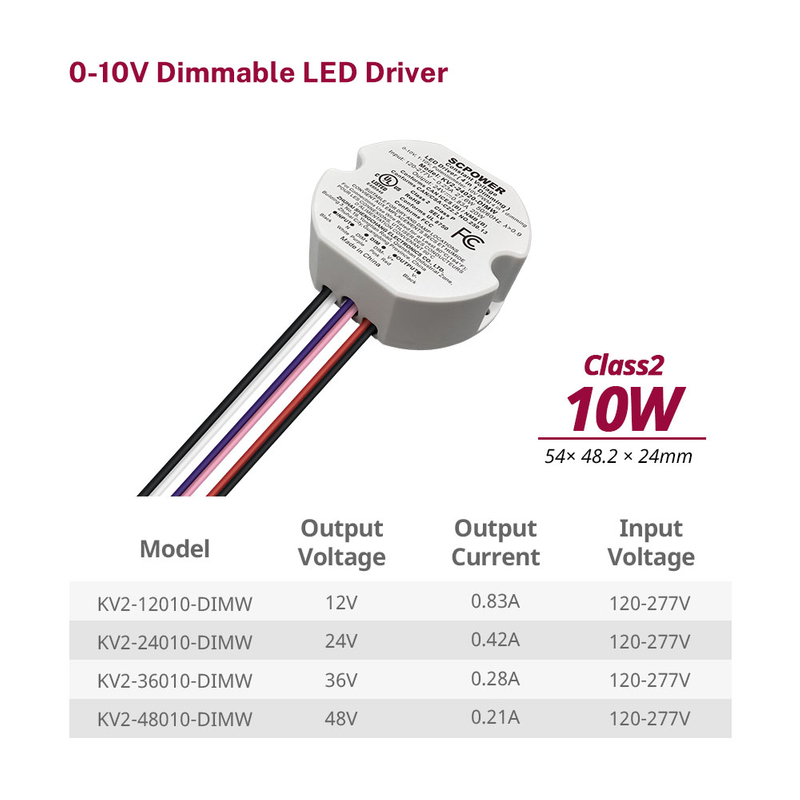

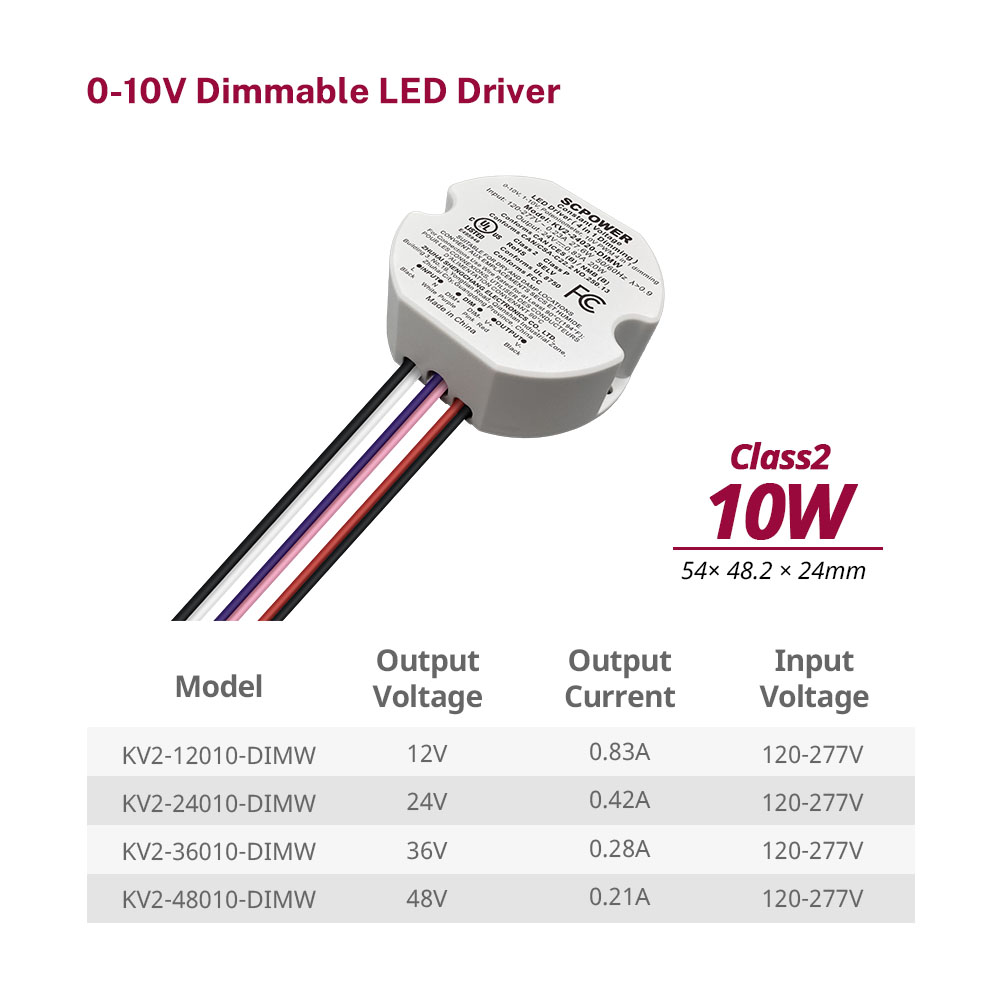

10W	KV2-12010-DIMW	12V	830mA	5448.224mm	/
	KV2-24010-DIMW	24V	420mA
	KV2-36010-DIMW	36V	280mA
	KV2-48010-DIMW	48V	210mA
15W	KV2-12015-DIMW	12V	1250mA	5448.224mm	/
	KV2-24015-DIMW	24V	630mA
	KV2-36015-DIMW	36V	420mA
	KV2-48015-DIMW	48V	310mA
20W	KV2-12020-DIMW	12V	1670mA	69.462.924mm	/

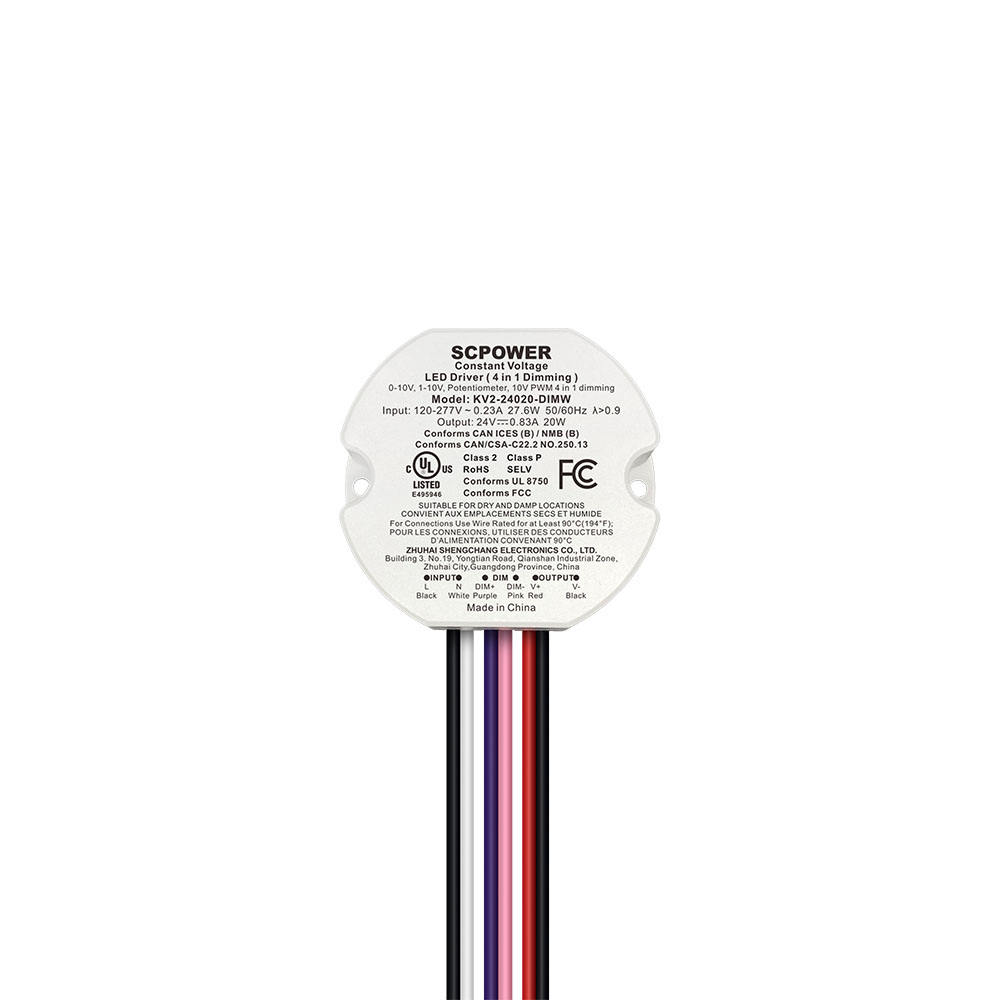

	KV2-24020-DIMW	24V	830mA
	KV2-36020-DIMW	36V	560mA
	KV2-48020-DIMW	48V	420mA
25W	KV2-12525-DIMW	12V	2080mA	69.462.924mm	/
	KV2-24025-DIMW	24V	1040mA
	KV2-36025-DIMW	36V	690mA
	KV2-48025-DIMW	48V	520mA
30W	KV2-12030-DIMW	12V	2500mA	74.466.424mm	/
	KV2-24030-DIMW	24V	1250mA
	KV2-36030-DIMW	36V	830mA
	KV2-48030-DIMW	48V	630mA

Advantage

Features
Output:	Constant Current
Range:	120-277VAC
PFC design:	Built-in active PFC function
Efficiency:	Up to 79%
Protections:	Short circuit / Over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	For dry and damp location
Dimming function:	0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range:	1-100%
Application:	Suitable for LED lighting and moving sign applications
Warranty:	5 years warranty

Suretron 10W-50W round LED drivers compatible with Triac, 0-10V, DALI & DMX dimming for indoor lighting.

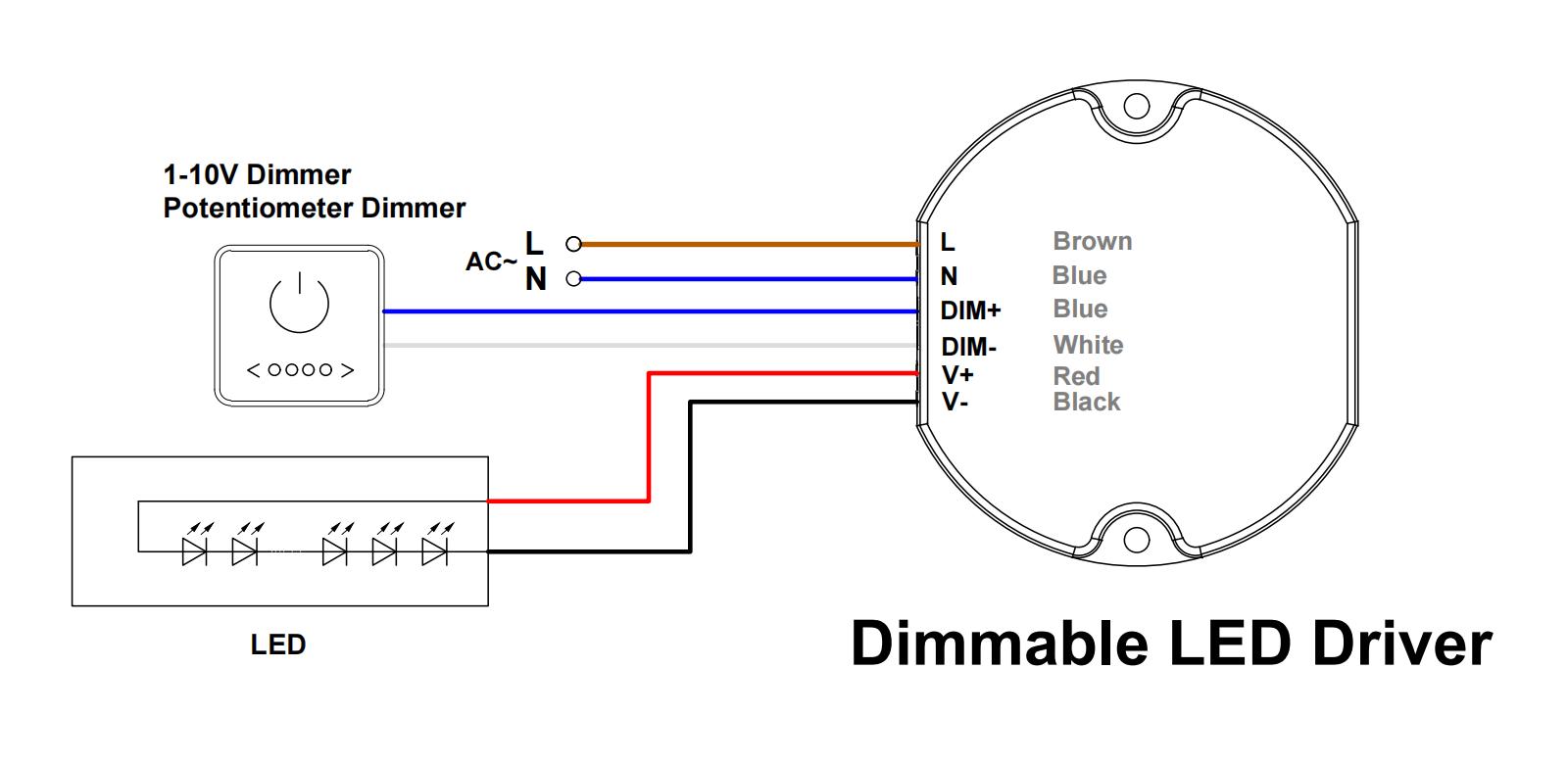

0-10/ 1-10V/ 10V PWM/ Potentiometer Dimming Diagram

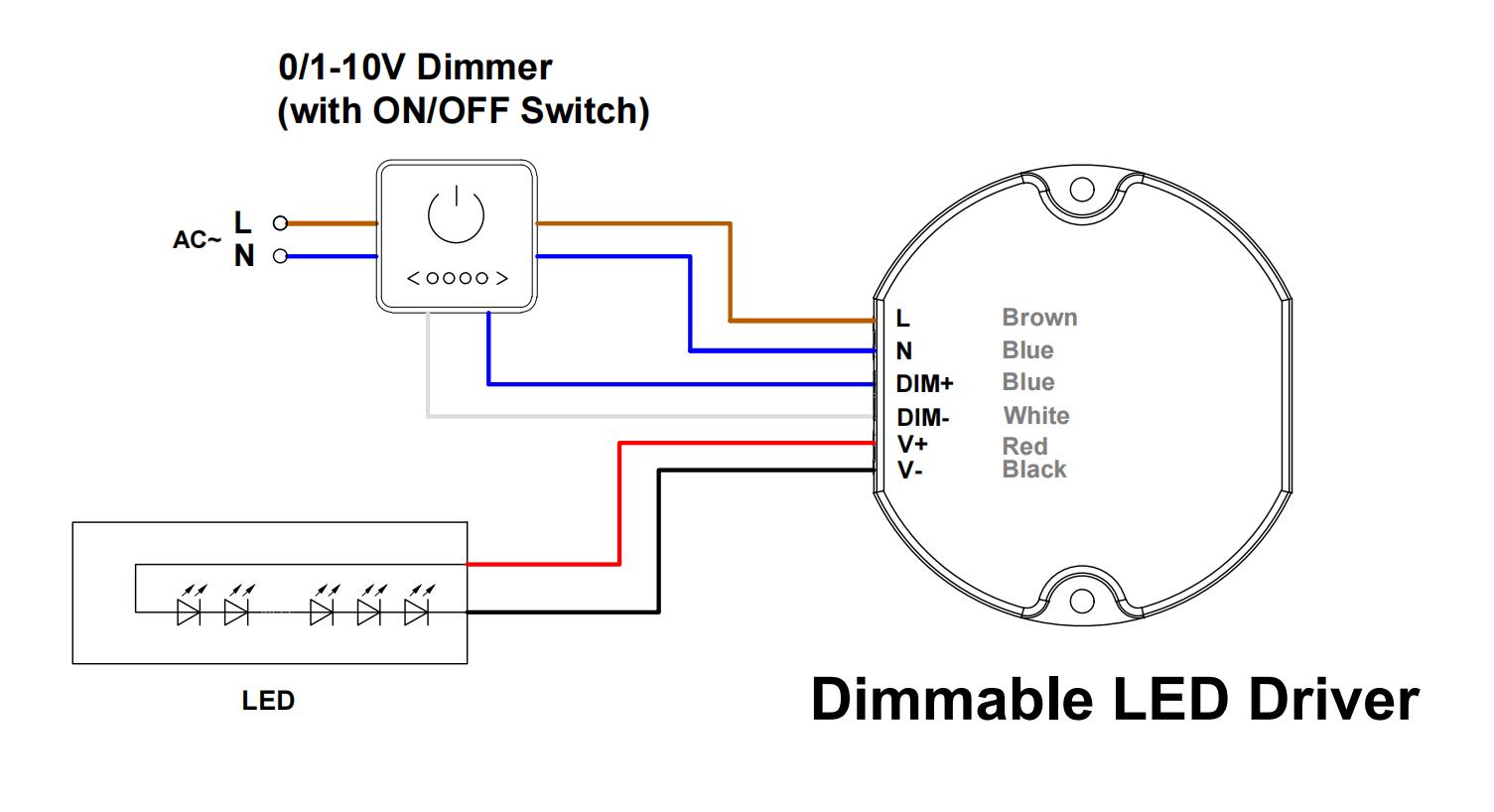

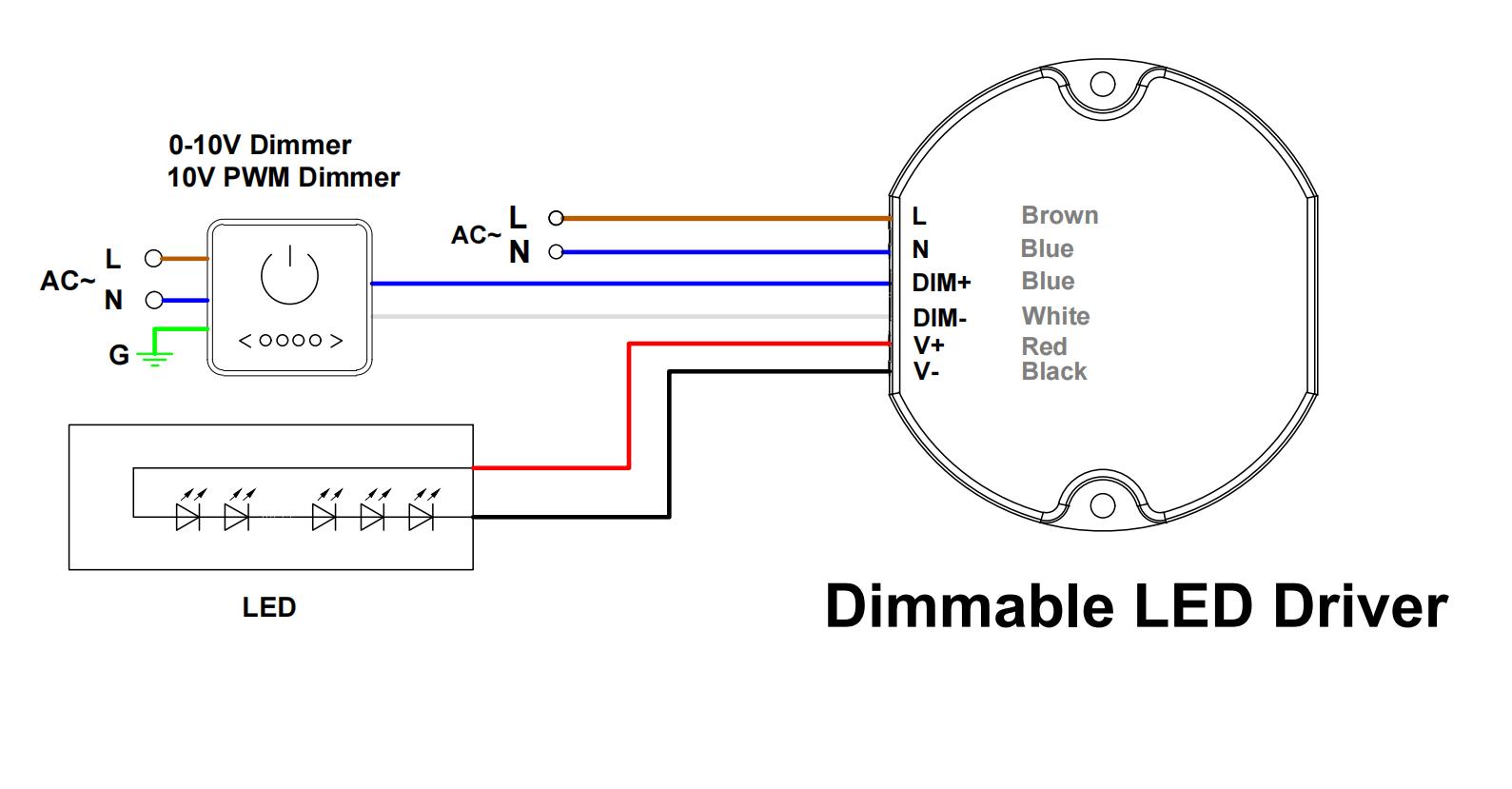

LED driver with multiple dimming options including 0-10V, 1-10V, PWM, and potentiometer control for flexible lighting adjustment. This 0-10V/PWM dimming interface supports flexible brightness regulation through external controllers or manual potentiometers.

Compatible with standard analog and PWM dimming signals for smooth, flicker-free LED light control.

Universal 4-in-1 dimming for effortless control. This 10W-30W Constant Voltage circular LED driver ensures broad fixture compatibility and smooth 0-10V performance, precision-engineered in our Vietnam facility for consistent quality and reliable supply.
