| Ouput Power: | |
|---|---|
DMX512
Isolated
Constant Voltage
1CH (Dimming), 2CH (CCT), 1-5CH (RGBCW)
IP66, Dry & Damp, Wet
100-277VAC
60W, 96W, 300W, 180W, 192W, 288W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2

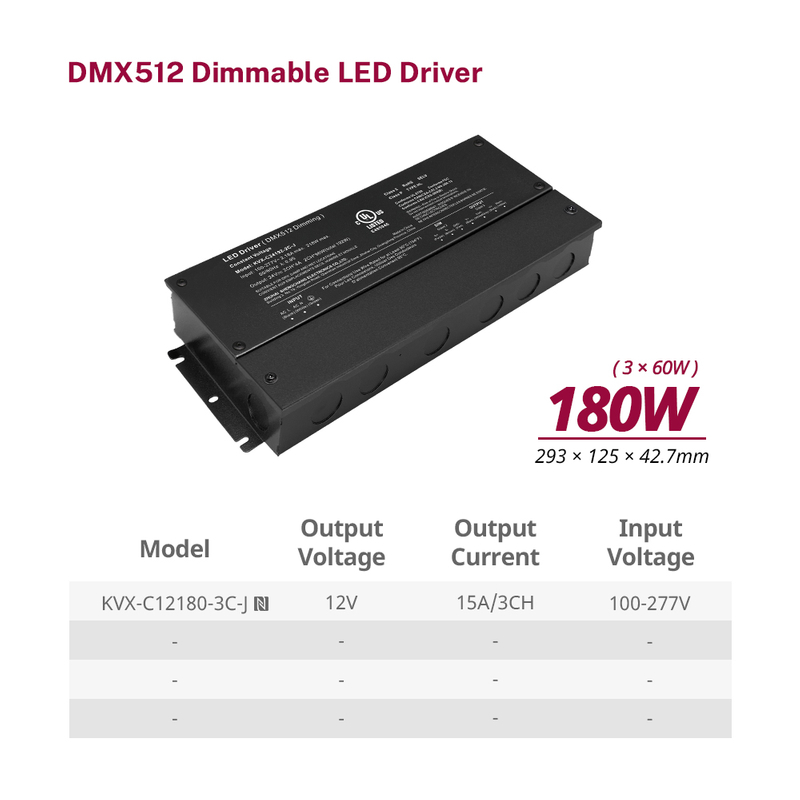

180 192 288 300 Watt Class 2 CV RGB CW DMX Dimmable LED Driver
Output: | Constant Voltage |
Range: | 110-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 92% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection aluminum housing, for dry, damp, wet locations |
Dimming function: | DMX512 and RDM dim. Digital dimming, single light control, DMX512 signal-side isolation |
Dimming range: | 0.1-100% |
NFC function | Fine tune the output voltage, write and read address |
ProNFC: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Output Power | Channel | Model Number | Output Voltage | Output Current | Size (L*W*H) | Weight |
60W | 3 Channels | KVX-12060-3C-J | 12V | 1 x 5A | 202.5*114.2*42.7mm | 1.03kg |
KVX-24060-3C-J | 24V | 1 x 2.5A | ||||
KVX-36060-3C-J | 36V | 1 x 1.67 | ||||
KVX-48060-3C-J | 48V | 1 x 1.25A | ||||
180W | 3 Channels | KVX-C12180-3C-J | 12V | 3 x 5A | 293*125*42.7mm | 2.15kg |
300W | 4 Channels | / | 12V | / | 316*125*42.7mm | kg |
KVX-C24300-4C-J | 24V | 4x3.13A | ||||
KVX-C36300-4C-J | 36V | 4x2.08A | ||||
KVX-C48300-4C-J | 48V | 4x1.56A | ||||
5 Channels | KVX-C12300-5C-J | 12V | 5 x 5A | |||
KVX-C24300-5C-J | 24V | 5 x 2.5A | ||||
KVX-C36300-5C-J | 36V | 5 x 1.66A | ||||
KVX-C48300-5C-J | 48V | 5 x 1.25A | ||||
96W | 2 Channels | KVX-24096-2C-J | 24V | 1 x 4A | 241*125*42.7mm | 1.26kg |
KVX-36096-2C-J | 36V | 1 x 2.67A | ||||
KVX-48096-2C-J | 48V | 1 x 2A | ||||
192W | 2 Channels | KVX-C24192-2C-J | 24V | 2 x 4A | 293*125*42.7mm | 2.15kg |
KVX-C36192-2C-J | 36V | 2 x 2.67A | ||||
KVX-C48192-2C-J | 48V | 2 x 2A | ||||
288W | 3 Channels | KVX-C24288-3C-J | 24V | 3 x 4A | 316*125*42.7mm | 2.37kg |
KVX-C36288-3C-J | 36V | 3 x 2.67A | ||||
KVX-C48288-3C-J | 48V | 3 x 2A | ||||
300W Class 2 RGB CW DMX Dimmable LED Driver 1 2 3 4 5 channel
300W RGBCW DMX LED Drivers Size:
Description
This series is designed for DMX RDM full colour dimming application, especially suitable for architeture, art and museum, entertainment, hospitality, healthcare and urban landscape.
