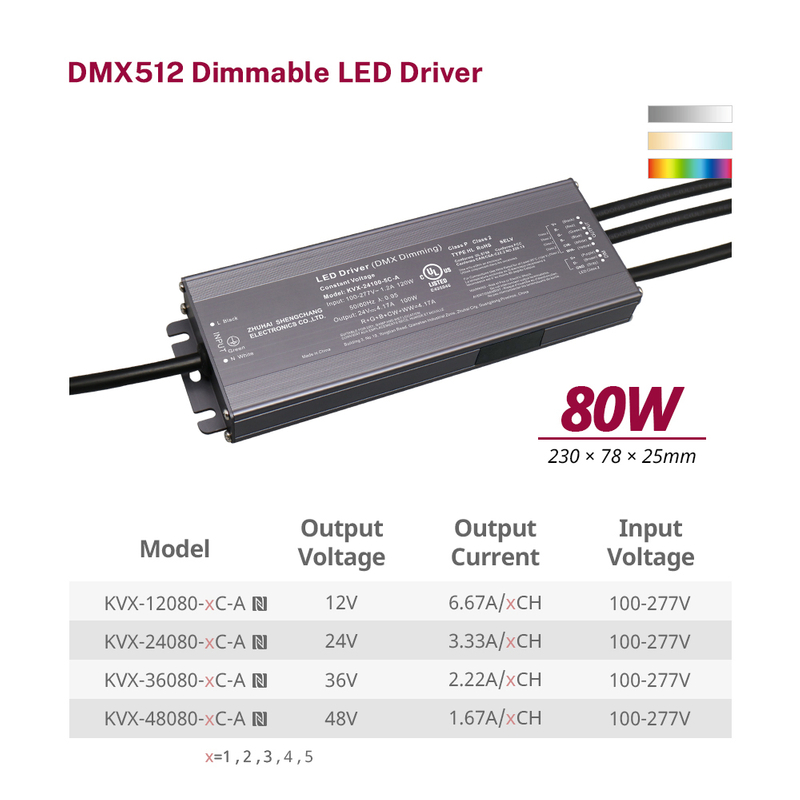

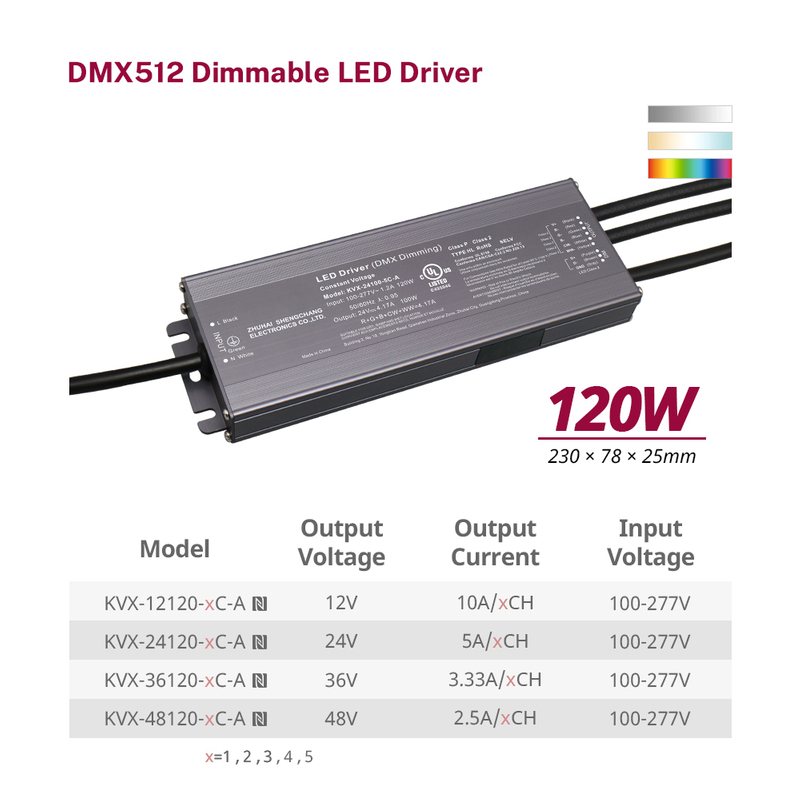

80W 96W 100W 120W Class 2 CV RGB CW DMX LED Driver 1 2 3 4 5 Channels from China manufacturer

Products Detail

You are here: Home / Products / DMX512 Dimmable LED Driver / Constant Voltage DMX LED Driver / 80W 96W 100W 120W Class 2 CV RGB CW DMX LED Driver 1 2 3 4 5 Channels

Product Category

Online shopping

Official Store on Alibaba.com

Official Store on 1688.com

Dimming Type:
DMX512
Isolated Type:
Isolated
Output Type:
Constant Voltage
Channels:
1CH (Dimming), 2CH (CCT), 1-5CH (RGBCW)
Waterproof Performance:
IP66, Dry & Damp, Wet
Input Voltage:
100-277Vac (Global)
Output Power:
80W, 96W, 100W, 120W
Output Voltage:
12/ 24/ 36/ 48V
Certification:
UL & cUL, FCC, Class 2

Advantage

80W 96W 100W 120W Class 2 CV RGB CW DMX LED Driver 1 2 3 4 5 Channels

·Output constant Voltage with slightly adjustable to solve the problem of line loss
·With the RDM (Remote Device Management) function
·With NFC (Near Field Communication) function, read and write DMX512 address or adjust output voltage by mobile EasyNFC app. or special NFC device
·5 CH independent outputs: RGBCW
·Input Range: 110-277VAC
·Built-in active PFC function, PF≥0.97
·Protections: short circuit/ over load/ over temperature
·Cooling by free air convection
·IP66 waterproof design
·Dimming function: DMX512; DMX512 signal isolation
·Dimming range: 0-100%
·Flicker-free, f≥4K Hz STROBOSCOPIC exemption
·Suitable for LED lighting and moving sign application

Specification

Channel	Model Number	Output Power	Output Voltage	Output Current	Size	Weight	Others standard
1 Channel Dimming	KVX-12080-1C-A	80W	12V	6.66A	2007825mm	0.83kg	Class P, TYPE HL, Wet
	KVX-24080-1C-A		24V	3.34A	2327825mm	0.83kg
	KVX-36080-1C-A		36V	2.22A
	KVX-46080-1C-A		48V	1.67A
	KVX-24096-1C-A	96W	24V	4A			Class 2, Class P, TYPE HL, Wet
	/		36V	2.67A
	/		48V	2A
	KVX-12100-1C-A	100W	12V	8.34A			Class P, TYPE HL, Wet
	KVX-24100-1C-A		24V	4.17A
	KVX-36100-1C-A		36V	2.78A
	KVX-48100-1C-A		48V	2.09A
	KVX-12120-1C-A	120W	12V	10A
	KVX-24120-1C-A		24V	5A
	KVX-36120-1C-A		36V	3.33A
	KVX-48120-1C-A		48V	2.5A

2 Channel CCT	KVX-12080-2C-A	80W	12V	6.66A	2327825mm	0.83kg	Class 2, Class P, TYPE HL, Wet
	KVX-24080-2C-A		24V	3.34A
	KVX-36080-2C-A		36V	2.22A
	KVX-46080-2C-A		48V	1.67A
	KVX-24096-2C-A	96W	24V	4A			Class 2, Class P, TYPE HL, Wet
	/		36V	2.67A
	/		48V	2A
	KVX-12100-2C-A	100W	12V	8.34A			Class 2, Class P, TYPE HL, Wet
	KVX-24100-2C-A		24V	4.17A			Class 2, Class P, TYPE HL, Wet
	KVX-36100-2C-A		36V	2.78A			Class 2, Class P, TYPE HL
	KVX-48100-2C-A		48V	2.09A			Class 2, Class P, TYPE HL
	KVX-12120-2C-A	120W	12V	10A			Class 2, Class P, TYPE HL, Wet
	KVX-24120-2C-A		24V	5A			Class 2, Class P, TYPE HL, Wet
	KVX-36120-2C-A		36V	3.33A			Class 2, Class P, TYPE HL
	KVX-48120-2C-A		48V	2.5A			Class 2, Class P, TYPE HL

3 Channel RGB	KVX-12080-3C-A	80W	12V	6.66A	2327825mm	0.83kg	Class 2, Class P, TYPE HL, Wet
	KVX-24080-3C-A		24V	3.34A
	KVX-36080-3C-A		36V	2.22A
	KVX-46080-3C-A		48V	1.67A
	KVX-24096-3C-A	96W	24V	4A			Class 2, Class P, TYPE HL, Wet
	/		36V	2.67A
	/		48V	2A
	KVX-12100-3C-A	100W	12V	8.34A			Class 2, Class P, TYPE HL, Wet
	KVX-24100-3C-A		24V	4.17A			Class 2, Class P, TYPE HL, Wet
	KVX-36100-3C-A		36V	2.78A			Class 2, Class P, TYPE HL
	KVX-48100-3C-A		48V	2.09A			Class 2, Class P, TYPE HL
	KVX-12120-3C-A	120W	12V	10A			Class 2, Class P, TYPE HL, Wet
	KVX-24120-3C-A		24V	5A			Class 2, Class P, TYPE HL, Wet
	KVX-36120-3C-A		36V	3.33A			Class 2, Class P, TYPE HL
	KVX-48120-3C-A		48V	2.5A			Class 2, Class P, TYPE HL

4 Channel RGBW	KVX-12080-4C-A	80W	12V	6.66A	2327825mm	0.83kg	Class 2, Class P, TYPE HL, Wet
	KVX-24080-4C-A		24V	3.34A
	KVX-36080-4C-A		36V	2.22A
	KVX-46080-4C-A		48V	1.67A
	KVX-24096-4C-A	96W	24V	4A			Class 2, Class P, TYPE HL, Wet
	/		36V	2.67A
	/		48V	2A
	KVX-12100-4C-A	100W	12V	8.34A			Class 2, Class P, TYPE HL, Wet
	KVX-24100-4C-A		24V	4.17A			Class 2, Class P, TYPE HL, Wet
	KVX-36100-4C-A		36V	2.78A			Class 2, Class P, TYPE HL
	KVX-48100-4C-A		48V	2.09A			Class 2, Class P, TYPE HL
	KVX-12120-4C-A	120W	12V	10A			Class 2, Class P, TYPE HL, Wet
	KVX-24120-4C-A		24V	5A			Class 2, Class P, TYPE HL, Wet
	KVX-36120-4C-A		36V	3.33A			Class 2, Class P, TYPE HL
	KVX-48120-4C-A		48V	2.5A			Class 2, Class P, TYPE HL

5 Channel RGBCW	KVX-12080-5C-A	80W	12V	6.66A	2327825mm		Class 2, Class P, TYPE HL, Wet
	KVX-24080-5C-A		24V	3.34A
	KVX-36080-5C-A		36V	2.22A
	KVX-46080-5C-A		48V	1.67A
	KVX-24096-5C-A	96W	24V	4A			Class 2, Class P, TYPE HL, Wet
	/		36V	2.67A
	/		48V	2A
	KVX-12100-5C-A	100W	12V	8.34A			Class 2, Class P, TYPE HL, Wet
	KVX-24100-5C-A		24V	4.17A			Class 2, Class P, TYPE HL, Wet
	KVX-36100-5C-A		36V	2.78A			Class 2, Class P, TYPE HL
	KVX-48100-5C-A		48V	2.09A			Class 2, Class P, TYPE HL
	KVX-12120-5C-A	120W	12V	10A			Class 2, Class P, TYPE HL, Wet
	KVX-24120-5C-A		24V	5A			Class 2, Class P, TYPE HL, Wet
	KVX-36120-5C-A		36V	3.33A			Class 2, Class P, TYPE HL
	KVX-48120-5C-A		48V	2.5A			Class 2, Class P, TYPE HL

DMX Driver Wiring Diagram

80W 96W 100W 120W RGBCW DMX LED Drivers 1 2 3 4 5 channel

80W 96W 100W 120W RGBCW DMX LED Drivers 1 2 3 4 5 channel

80W 96W 100W 120W RGBCW DMX LED Drivers Size:

80W 96W 100W 120W RGBCW DMX LED Drivers size

Description

This series is designed for DMX RDM full colour dimming application, especially suitable for architeture, art and museum, entertainment, hospitality, healthcare and urban landscape.

● Input voltage: 100-277Vac

● Power output: 150W or 200W

● DMX RDM Constant Voltage LED Driver

● Waterproof (IP66)

● Life time is 50000 hours（100℃±10℃ shut down o/p voltage, automatically recover after cooling.）

● According with UL, cUL, FCC, CE, ENEC

● Safety standards: EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
