300W Dim-to-Warm LED Driver Triac Constant-Voltage IP66 Outdoor

Product Overview

U.S. Patents No. 9,942,959; No. 10,039,167; No. 9,661,710; No. 9,961,724

Engineered with industry-leading dimming technology and rugged environmental protection, this driver delivers reliable power and seamless lighting control for outdoor and demanding indoor applications. It supports a universal 100-277VAC input voltage range, with 200W and 300W power options, and flexible 12V, 24V, 36V, 48V constant voltage output configurations to match diverse LED load requirements. With an IP66 waterproof rating, full safety certifications, and compatibility with mainstream Triac dimming systems, it eliminates common pain points like flickering, inconsistent dimming, and premature failure in outdoor lighting projects.

Key Features & Competitive Advantages

Wide Universal Input & Stable Constant Voltage Performance

Boasting a 100-277VAC universal input voltage range, this driver seamlessly adapts to global grid standards, making it ideal for cross-regional commercial projects. It delivers strict constant voltage output with a high power factor >0.95, minimizing line loss and ensuring stable power delivery even during grid voltage fluctuations. The 300W model offers matched output current options: 25A for 12V, 12.5A for 24V, 8.33A for 36V, and 6.25A for 48V, supporting a wide range of LED fixture designs.

Advanced Dim-to-Warm & Full Triac Dimming Compatibility

At its core is industry-leading Dim-to-Warm LED dimming technology, which smoothly adjusts color temperature in tandem with brightness reduction, creating a warm, inviting ambiance for hospitality and architectural lighting. It is fully compatible with forward and reverse phase Triac dimming, as well as ELV and MLV dimmers, delivering flicker-free 0-100% dimming with no dead zones or jumpy brightness changes.

IP66 Weatherproof Rating for All-Environment Use

This IP66 rated waterproof LED driver is fully sealed to resist heavy dust ingress and powerful water jets, with official approval for use in dry, damp, and wet locations. Its rugged housing withstands extreme temperature swings, UV exposure, and harsh outdoor conditions, ensuring long-term reliable operation for exterior lighting installations without frequent maintenance.

Global Safety Certifications & Comprehensive Protection

It holds UL & cUL listed certification, along with FCC, CE, RoHS, and REACH compliance, meeting strict North American and international electrical safety standards. The isolated design, Class P rating, and SELV output ensure maximum user safety, while built-in over-current, over-voltage, over-heating, and short-circuit protection safeguards both the driver and connected LED loads.

Ideal Application Scenarios

This Triac dimmable constant voltage LED driver is optimized for a wide range of professional projects, including outdoor architectural lighting, landscape lighting, hotel and hospitality facade and patio lighting, commercial retail exterior illumination, high-end residential outdoor lighting, park and plaza decorative lighting, and wet-location applications like pool surround and spa area lighting. Its universal input and global certifications also make it perfect for multi-national commercial lighting rollouts.

Installation & Wiring Guidance

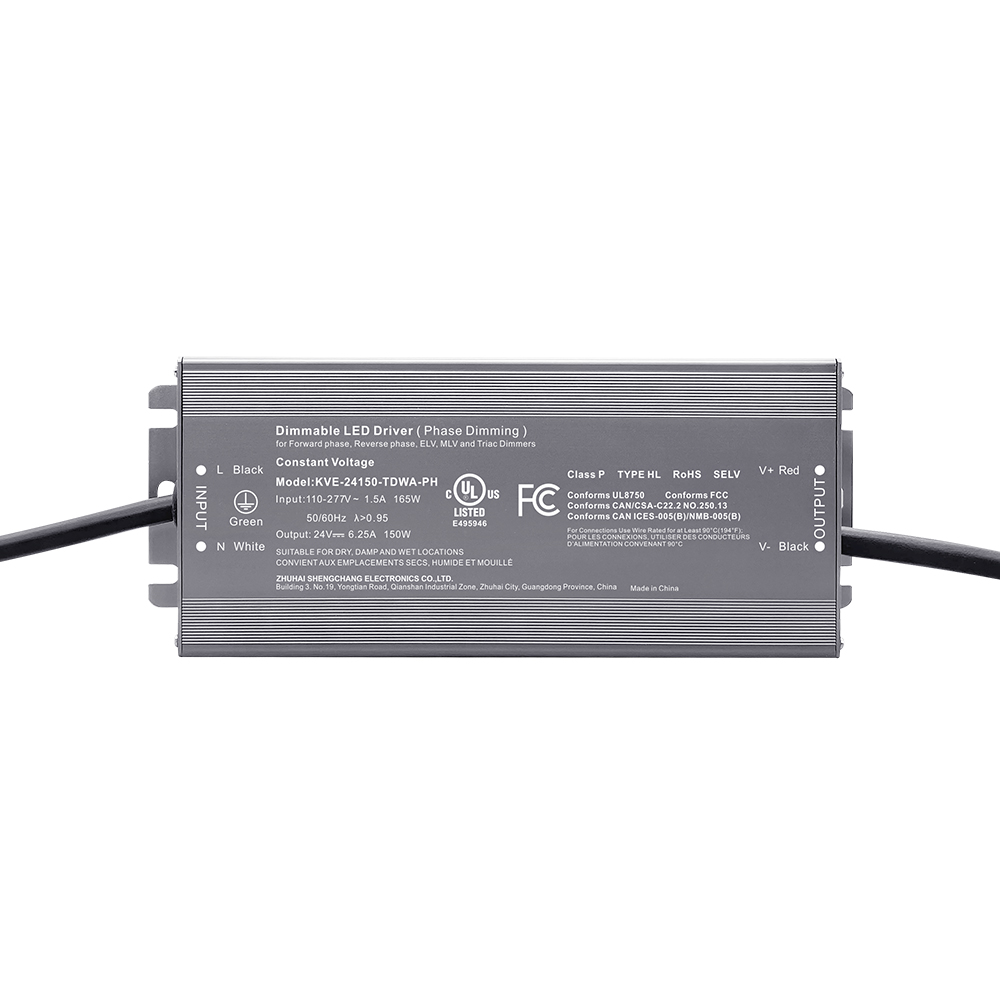

Proper Triac dimmable LED driver wiring is critical for optimal performance and safety. For input connections, link the black wire to Line (L), white wire to Neutral (N), and green wire to protective ground. For output, connect the red wire to LED load positive (V+) and black wire to LED load negative (V-). Always match the driver’s output voltage to your LED fixture’s rated voltage, and ensure the total load current does not exceed the driver’s maximum rated output. Use waterproof cable glands for outdoor installations, mount the driver in a well-ventilated area, and adhere to all local electrical codes during installation.

FAQs

What types of dimmers are compatible with this Triac dimmable LED driver?

This driver is fully compatible with forward phase, reverse phase, ELV, MLV, and standard Triac dimmers. For optimal performance, ensure the dimmer’s power rating is appropriately matched to the total connected LED load.

Can this IP66 outdoor LED driver be used in underwater applications?

While the IP66 rating provides robust protection against dust and high-pressure water jets, it is not designed for full submersion underwater. It is approved for use in outdoor, damp, and wet locations exposed to rain and splashing water, but underwater installations require a dedicated IP68 rated driver.

What output voltage options are available for the 300W Dim-to-Warm model?

The 300W series offers 12V, 24V, 36V, and 48V constant voltage output options, with corresponding maximum output currents of 25A, 12.5A, 8.33A, and 6.25A, to fit diverse LED fixture specifications.
