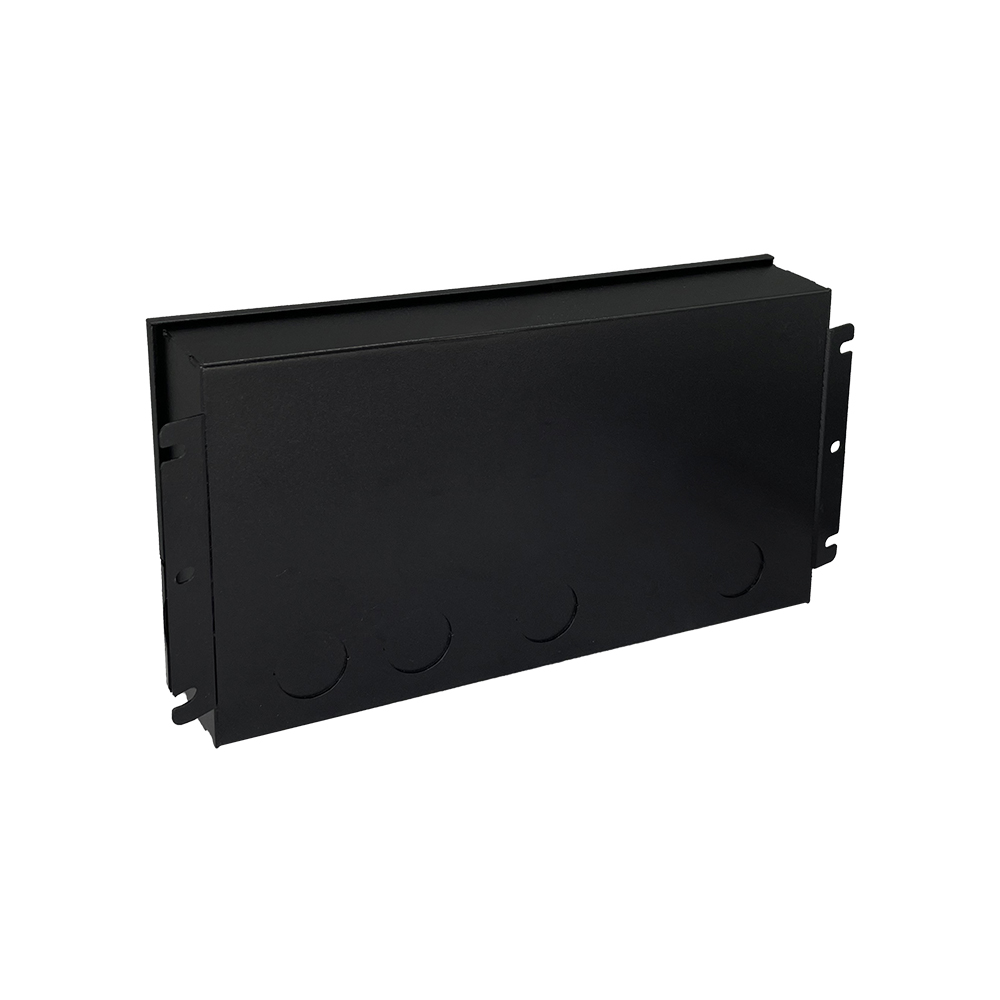

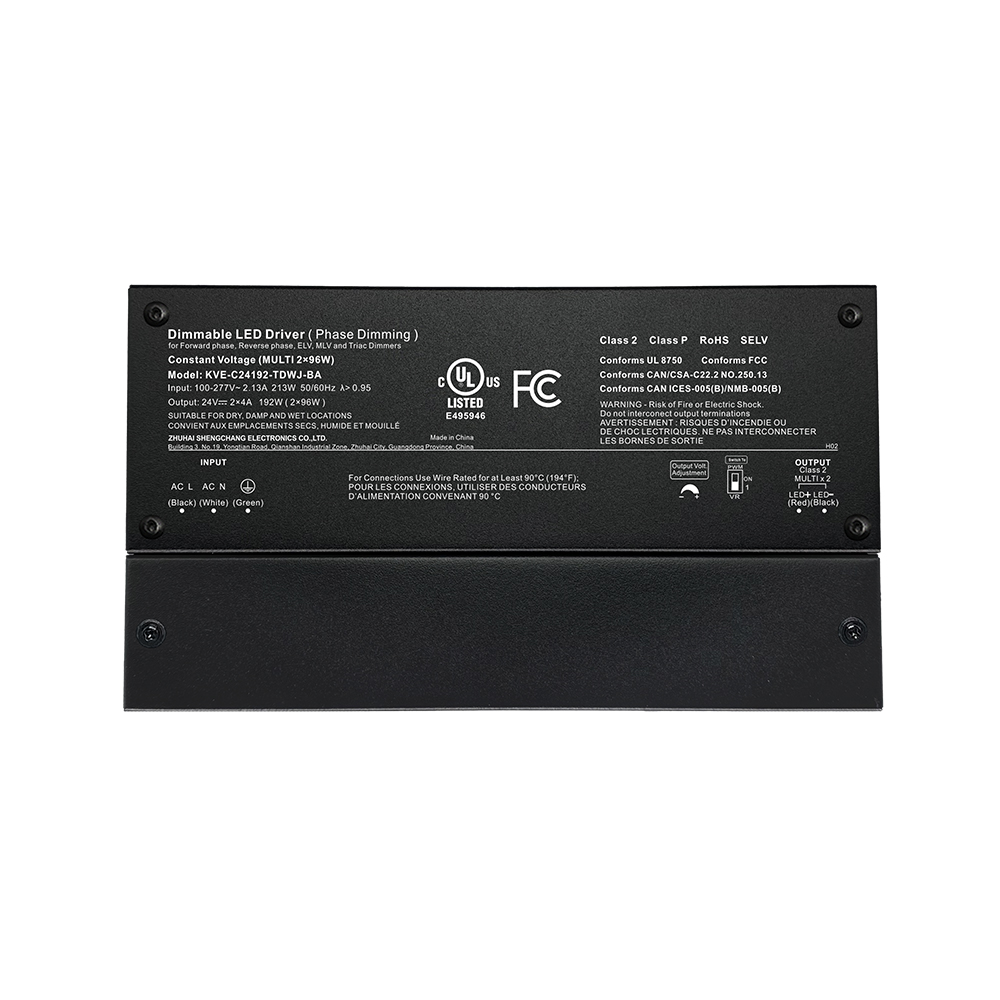

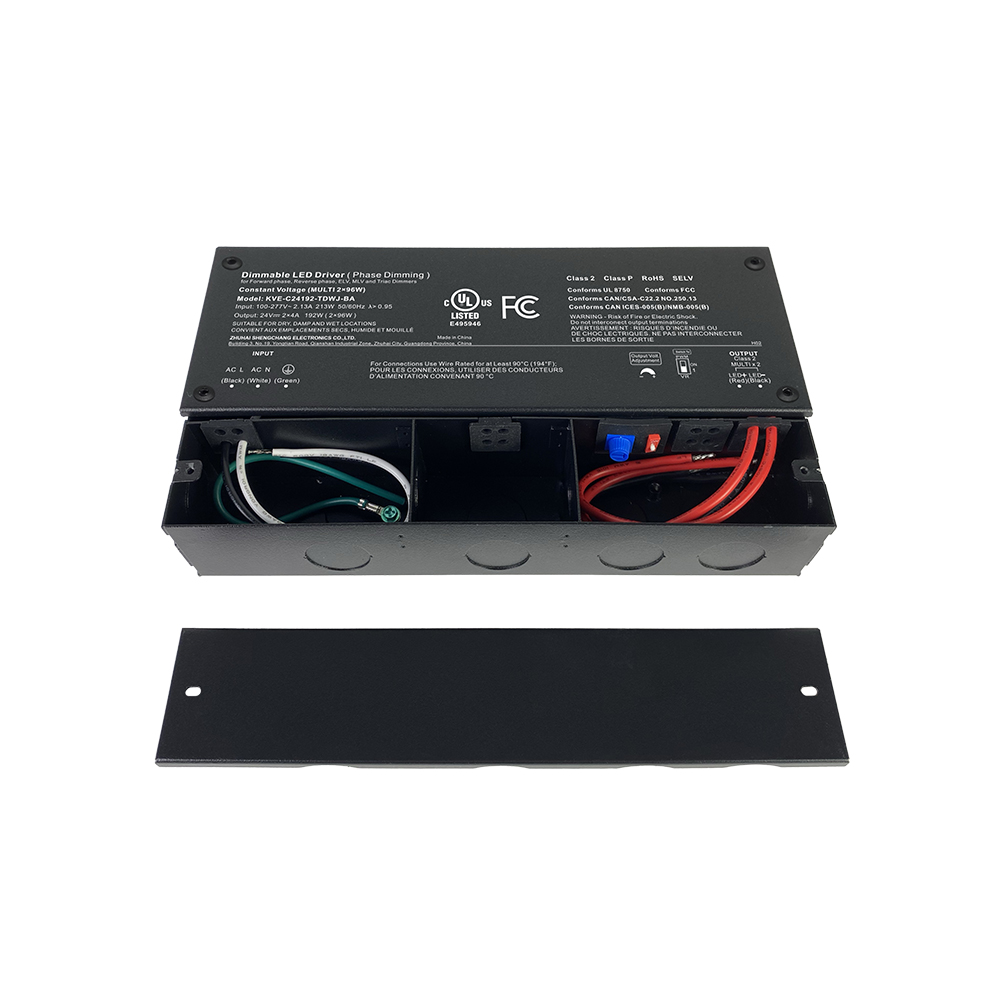

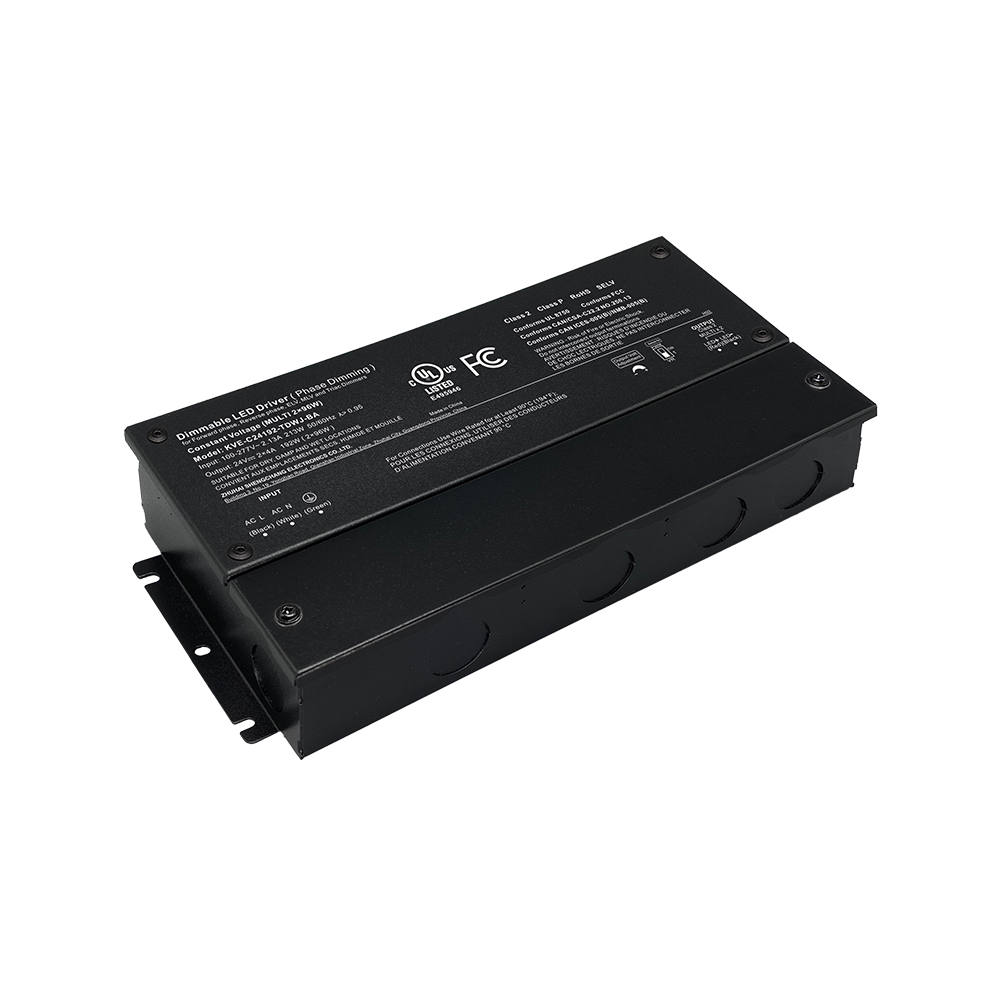

Class 2 180W 192W 288W 300W Triac Dimmable LED Power Supplies CV with Wiring Multiple LED Strips

Ouput Power:
180W
192W
288W
300W
Availability:
Inquire Add to Basket

  • Triac

  • Isolated

  • Constant Voltage

  • 1CH (Dimming)

  • IP66, Dry & Damp, Wet

  • 100-277VAC

  • 300W, 180W, 192W, 288W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Class 2, CE, RoHS, REACH


Advantage

Class 2 180W 192W 288W 300W Triac Dimmable LED Power Supplies CV with Wiring Multiple LED Strips


Specification



Output Power

Model Number

Output Voltage

Output Current

Size

Weight

60W
(60W * 1)

KVE-12060-TDWJ

12V

5A * 1

188*95.4*42.7mm

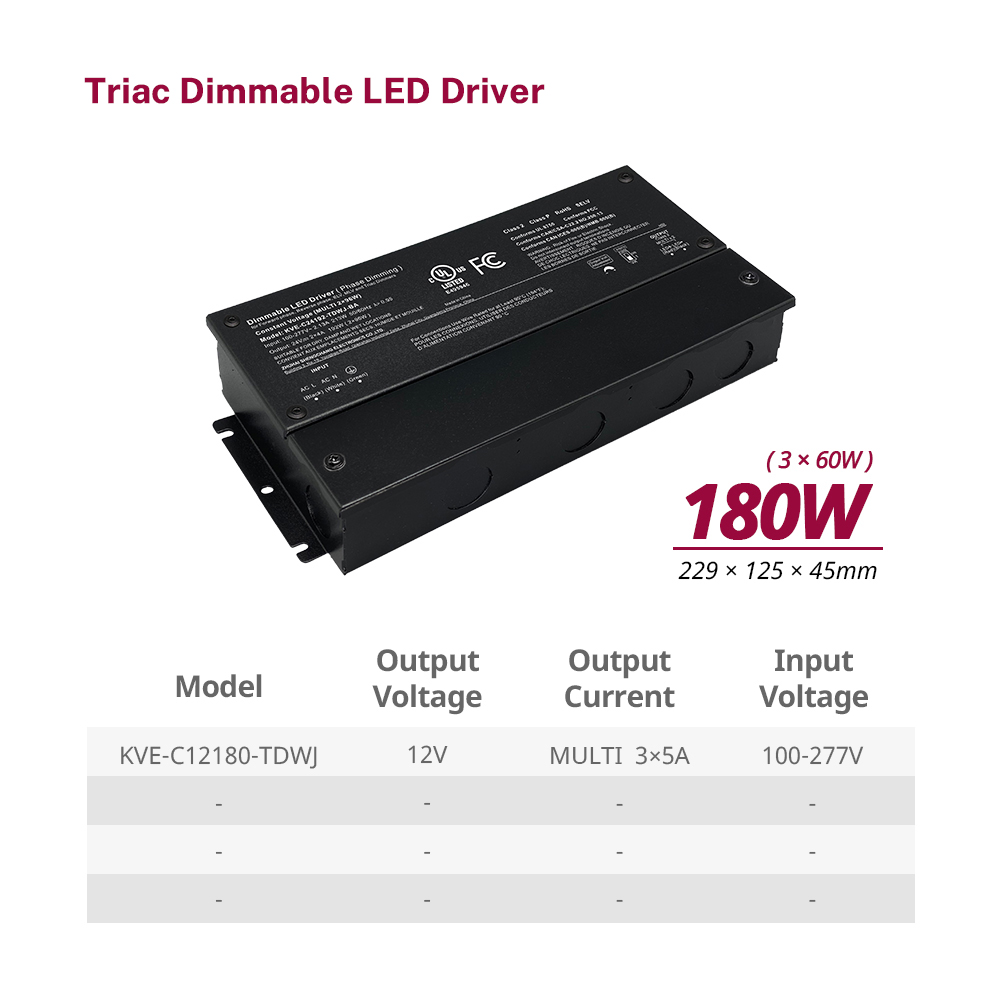

180W
(60W * 3)

KVE-C12180-TDWJ

12V

5A * 3

229*125*45mm

300W
(60W * 5)

KVE-C12300-TDWJ

12V

5A * 5

293*125*45mm

96W
(96W * 1)

KVE-24096-TDWJ

24V

4A

188*95.4*42.7mm

KVE-36096-TDWJ

36V

2.67A

KVE-48096-TDWJ

48V

2A

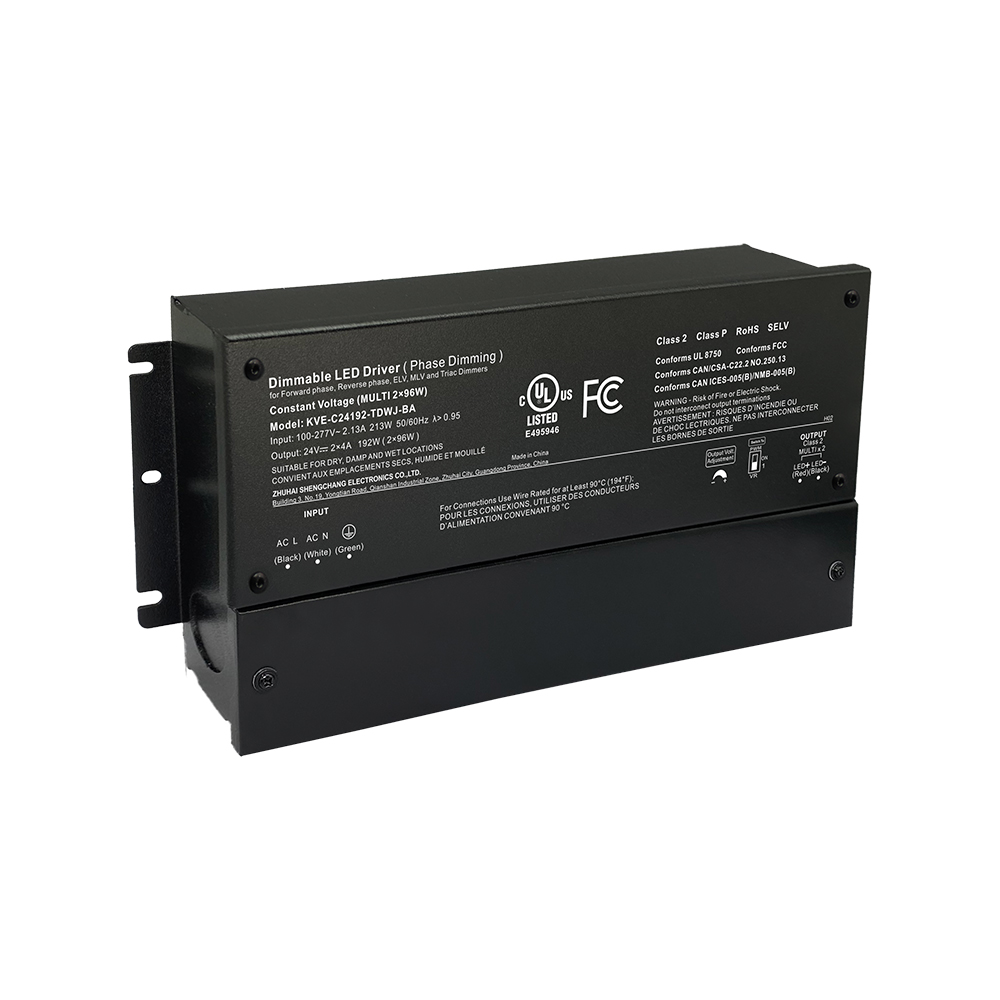

192W
(96W * 2)

KVE-C24192-TDWJ

24V

4A * 2

229*125*45mm

KVE-C36192-TDWJ

36V

2.67A * 2

KVE-C48192-TDWJ

48V

2A * 2

288W
(96W * 3)

KVE-C24288-TDWJ

24V

4A * 3

293*125*45mm

KVE-C36288-TDWJ

36V

2.67A * 3

KVE-C48288-TDWJ

48V

2A * 3



Triac LED Driver Wiring Diagram

Triac LED Driver Wiring Diagram


Triac LED Driver Wiring Diagram (1)Triac LED Driver Wiring Diagram (2)


Triac LED Driver Size（see the spec download）
