Triac 0-10V
Isolated
Constant Voltage
1CH (Dimming), 2CH (Dim to warn)
IP66, Dry & Damp, Wet
100-277VAC
200W, 300W, 500W, 600W
12/ 24/ 36/ 48V
UL & cUL, FCC
·Built-in active PFC function
·Protections: short circuit, over load, over temperature
·Cooling by free air convection

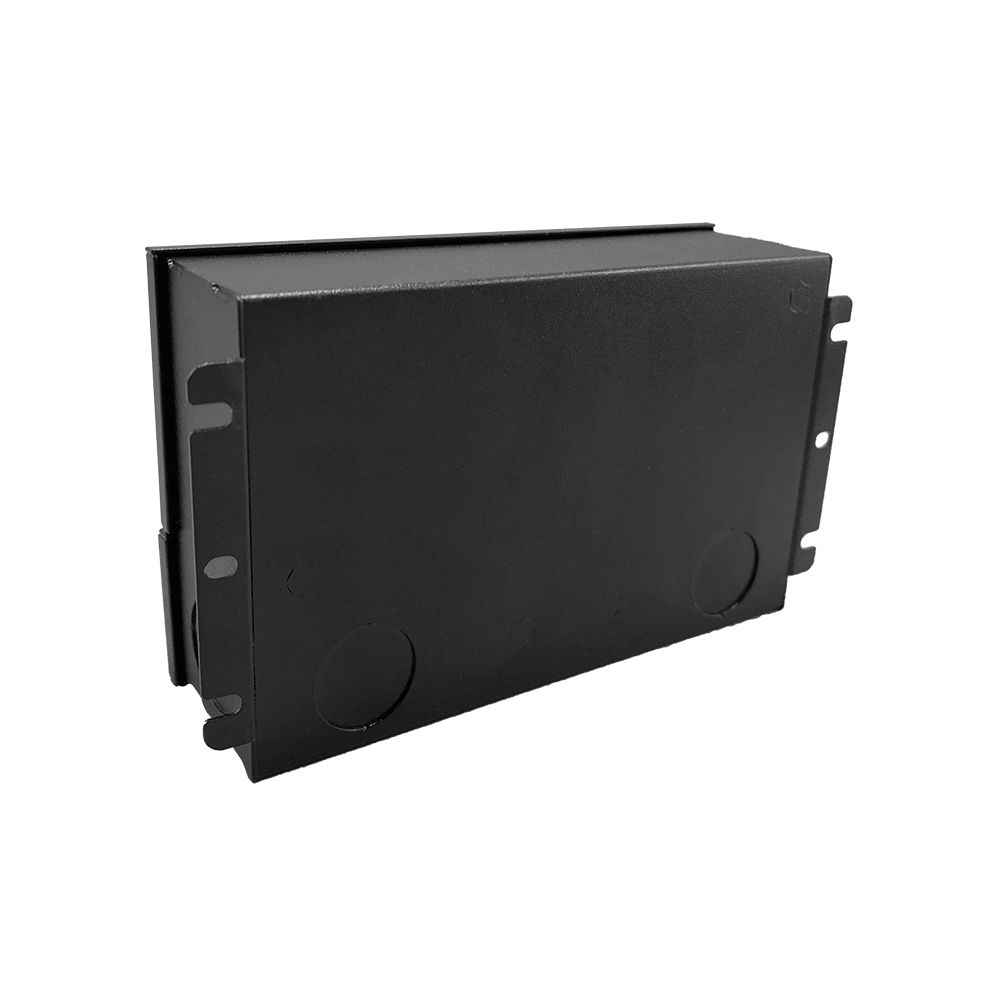

·Full aluminum protection housing, for dry, damp & wet locations（US）
·Dimming function:
PWM & Voltage reduce (VR) mode can be switched (American Invention Patent)
Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers.
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Dimming range: 0-100%
· Suitable for LED lighting and moving sign applications

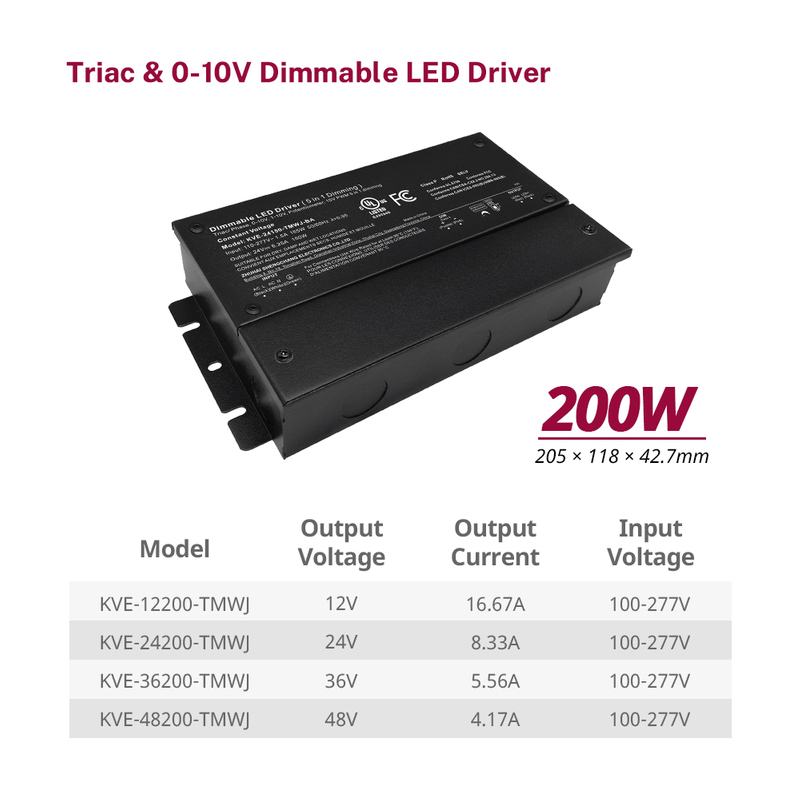

Output Power | Model Number | Output Voltage | Output Current | Power Factor | Size | Weight |
200W | KVE-WC12200-TMWJ | 12V | 16.67A | PF 0.98 | 229*125*45mm | kg |
KVE-WC24200-TMWJ | 24V | 8.34A | ||||
KVE-WC36200-TMWJ | 36V | 5.56A | ||||
KVE-WC48200-TMWJ | 48V | 4.17A | ||||
300W | KVE-WC12300-TMWJ | 12V | 25A | PF 0.99 | 293*125*45mm | kg |
KVE-WC24300-TMWJ | 24V | 12.5A | ||||
KVE-WC36300-TMWJ | 36V | 8.33A | ||||
KVE-WC48300-TMWJ | 48V | 6.25A | ||||
500W | KVE-WC12150-TMWJ | 12V | 12.5A | PF 0.99 | 280*140*50.2mm | kg |
KVE-WC24150-TMWJ | 24V | 6.25A | ||||
KVE-WC36150-TMWJ | 36V | 4.17A | ||||
KVE-WC48150-TMWJ | 48V | 3.13A | ||||
600W | KVE-WC12200-TMWJ | 12V | 16.67A | PF 0.98 | ||
KVE-WC24200-TMWJ | 24V | 8.34A | ||||
KVE-WC36200-TMWJ | 36V | 5.56A | ||||
KVE-WC48200-TMWJ | 48V | 4.17A | ||||
200W ~ 600W Dim to Warm Triac 0-10V Tunable White Driver of LED Light CV
Introducing our high-quality Dim to Warm Triac 0-10V Tunable White Driver for LED Light CV, available in power options ranging from 200W to 600W. This innovative product is designed to enhance the performance and functionality of LED lamps, providing users with a customizable lighting experience.
With the ability to dim to warm and adjust color temperature, our driver allows for precise control over the lighting output, creating the perfect ambiance for any setting. The Triac and 0-10V dimming capabilities ensure seamless integration with existing lighting systems, while the tunable white feature offers flexibility in color temperature selection.
The Triac 0-10V tunable feature allows for easy dimming and color temperature adjustment, giving you full control over the lighting output. The waterproof design ensures that these drivers can be used in outdoor or damp environments without any risk of damage.
Constructed with durability and reliability in mind, our LED light driver is built to last, providing long-lasting performance and energy efficiency. Whether used in residential, commercial, or industrial applications, this product is sure to meet the needs of even the most discerning customers.
Upgrade your lighting system with our Dim to Warm Triac 0-10V Tunable White Driver for LED Light CV and experience the difference in quality and performance. Trust in our product to deliver exceptional lighting solutions for all your needs.
